C

chico929

New Member
Posts
171
Location
Norwich Norfolk
There is virtually no illumination in any of the gauges on my dash. Most light comes from petrol gauge and that is really bright green from right side of background. Turbo gauge a bit better then temp worse and finally speedo almost black. All quite dodgy at night of course. Had the binnacle off and bulbs work and are slotted as they should be.
Whats going wrong there? Do I need to upgrade to brighter bulbs?

slim jim said:
Define little bit :D
Click to expand...

pre td5's use 501 wedge bulbs. The led bulbs are a straight swap.

TD5's onwards use a small version of the wedge bulb (I can't remember the number:eek:). If you get the bulb holders from some wing repeaters or similar and stick male spade terminals on the ends of the wires it will plug direct into the original loom in the place of the standard bub holder. You can then fit LED 501 wedge bulbs into the holder. To hold the bulb in place, use a rubber grommet and push the led bulb into it. This will hold the bulb in place.

slim jim said:
Thanks Ratty. All bar one of mine work fine,only half the clock lights up.
Click to expand...

Why not just change the bulbs?

I have a feeling the bulb holders on the clock and speedo are different from the ones on the fuel and temp gauge just to confuse things.

Here's a piccy of the size of the TD5 bulbs and their holders.




the bit with the black and red wires coming from it on the temp and fuel gauges is the bit you will need to plug the male spades into. Ignore the bulb holder at number 5. It is different from the fuel and temp gauge ones. It's the one for the clock

Last time I looked they were all working but still only one side of the clock lit up, I thought I'd missed a bulb somehow but you've just said the ONE for the clock and Im pretty sure thats all I've got too. Maybe its normal I'd take a pic but Im not going out again tonight. I'll post one tommorow evening.

slim jim said:
Last time I looked they were all working but still only one side of the clock lit up, I thought I'd missed a bulb somehow but you've just said the ONE for the clock and Im pretty sure thats all I've got too. Maybe its normal I'd take a pic but Im not going out again tonight. I'll post one tommorow evening.
Click to expand...

there might be 2 on the clock. I haven't ripped my dash aprt for a bit. All I can remember is that when i went to nick the bulb holder from the clock so i could use it on my temp gauge it was completely different.:rolleyes:

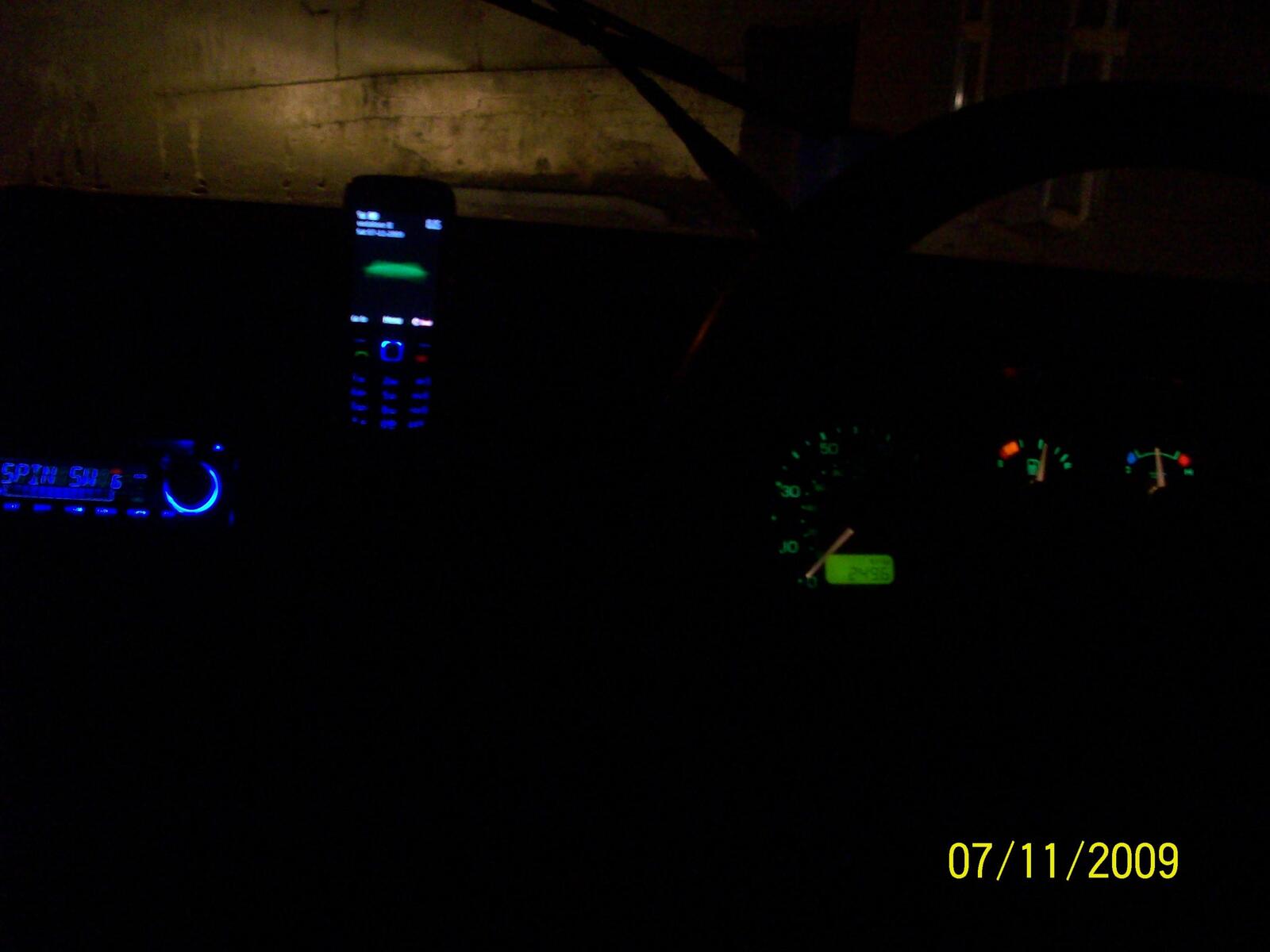

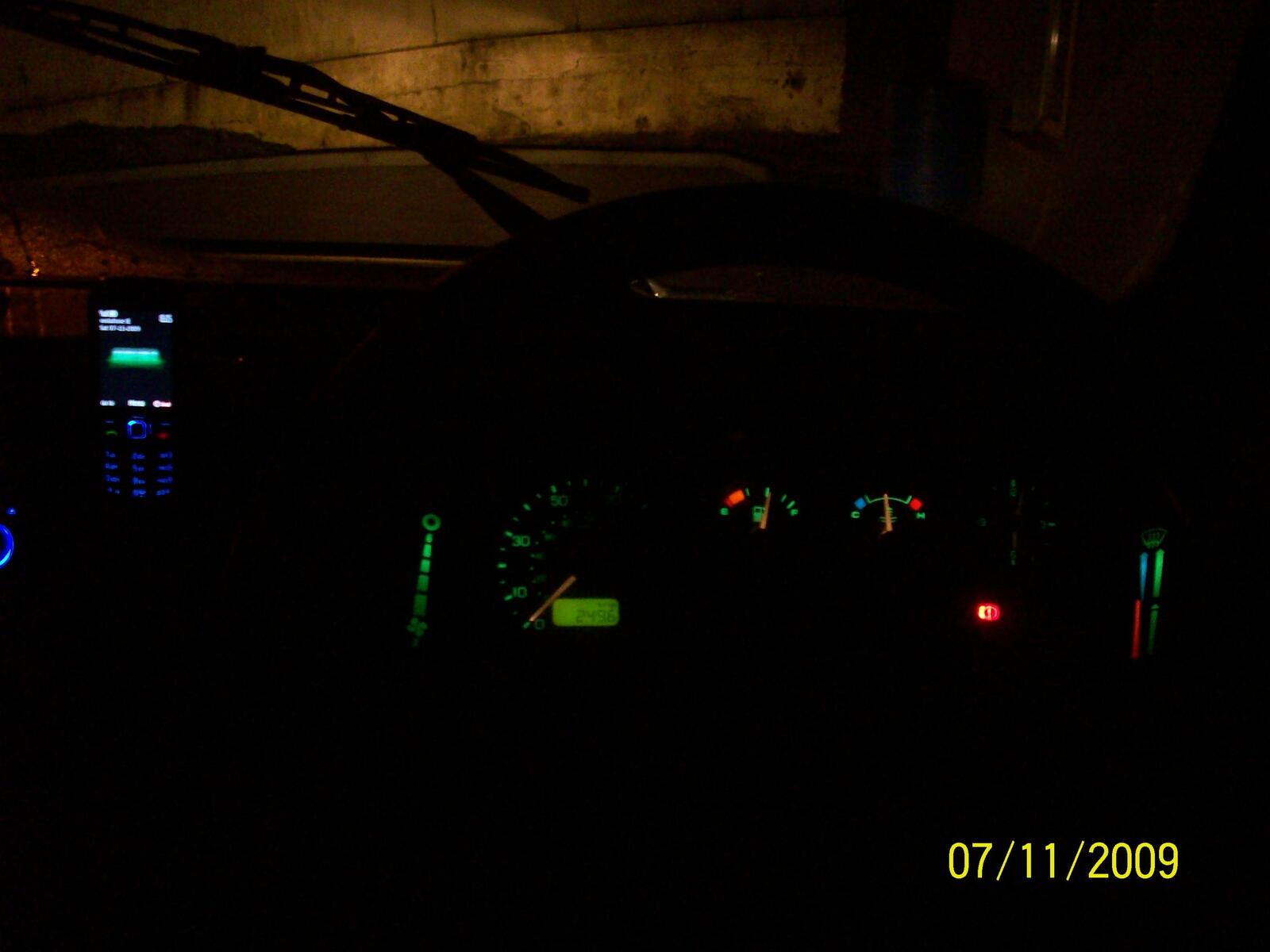

Well when I said clock I ment speedo because I'd been in the local quinching my thirst for a few hours :eek: sorry. So here is the pic but the last time I had the dash out all the lights worked and I only found one behind the speedo, are there two? and I was soaber that time :)


Attachments

  • 100_0616.jpg
    60.1 KB · Views: 153
  • 100_0615.jpg
    68.5 KB · Views: 110
Yeah must be I suppose, I'll take out the dash again next week and have a propper look cheers.
