TD5 instrument faliure

noiseboymart · Oct 16, 2019

Just tootling along today all instruments just went off. Water temp, rev ,speed and fuel guages dead. The fuel warning light flickered back on now and then along with LCD for mileometer. The whole lot came back on a couple of times for 30 seconds so i cant see it being a fuse issue. Has anyone any ideas ?
Could it be a loose multipin connector somewhere, if so where.
Any help appreciated.
Cheers

sierrafery · Oct 17, 2019

Check the cluster's connectors but in most cases these kind of problems are caused by dry joints or cracked PCB within the instrument pack. Do you have RAVE ?

noiseboymart · Oct 17, 2019

Ok cheers. I dont have rave yet so i better go hunting for it.
Thanks

Stanleysteamer · Oct 17, 2019

http://www.d-lander.com/manuals/
might work.

mystery · Oct 19, 2019

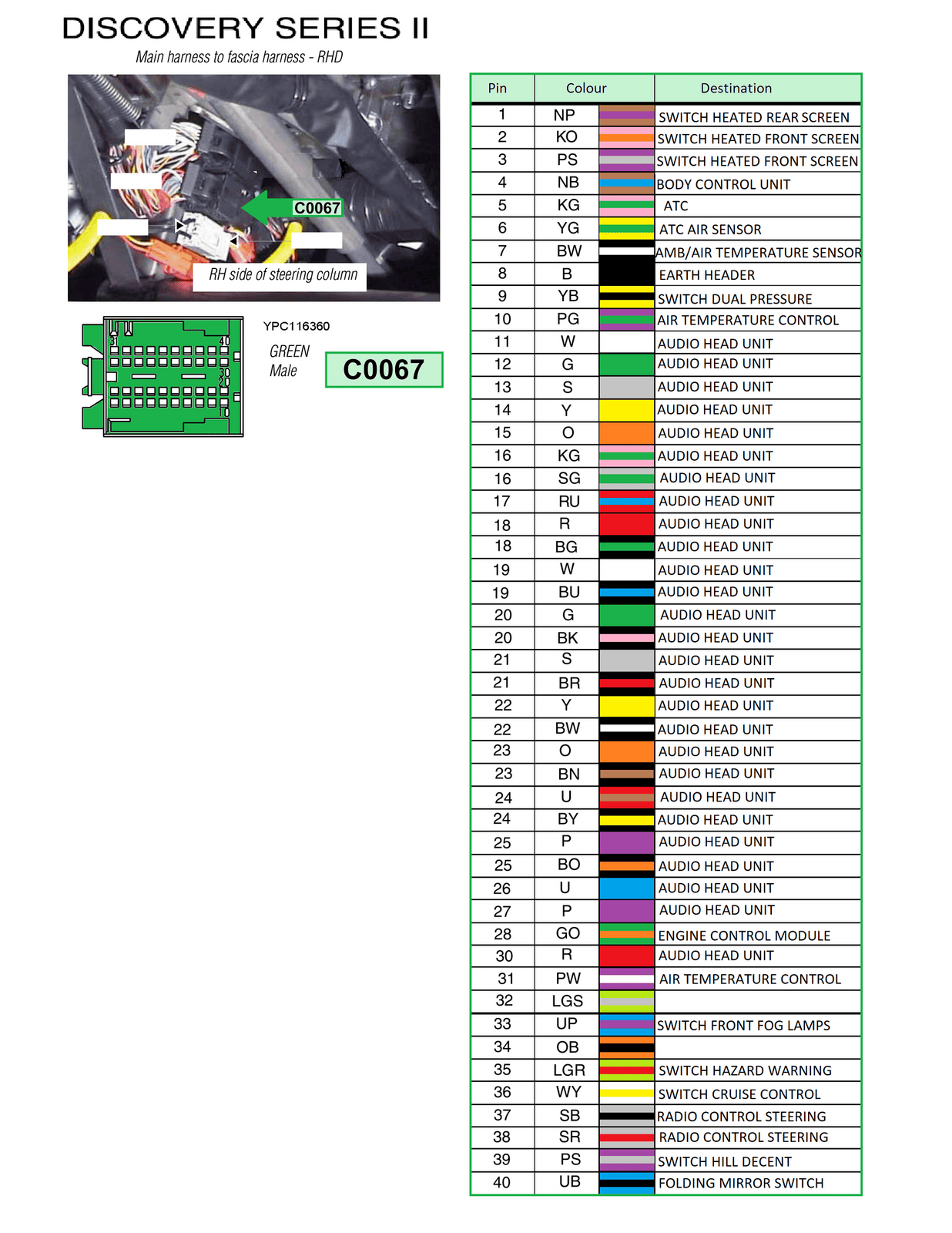

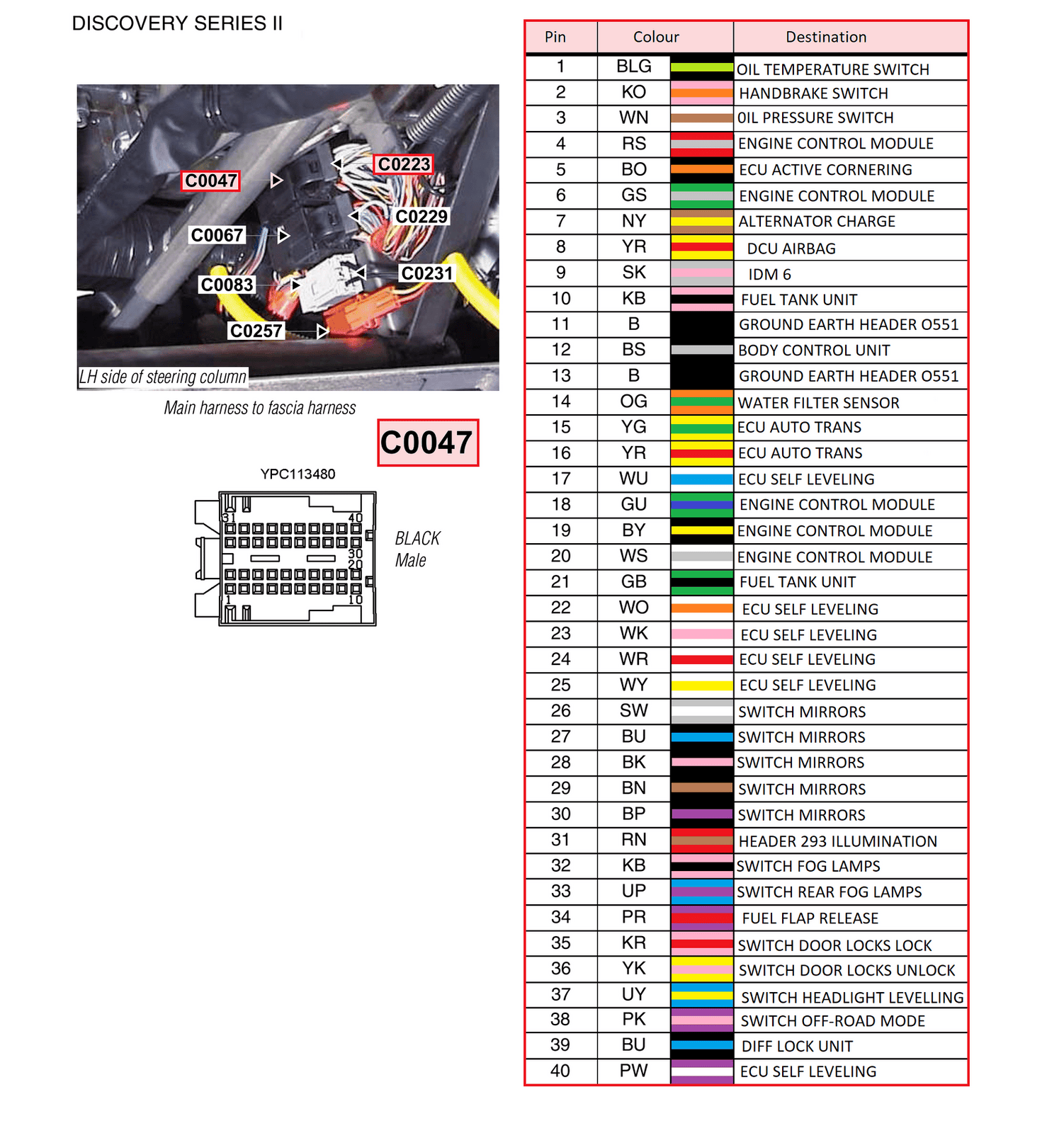

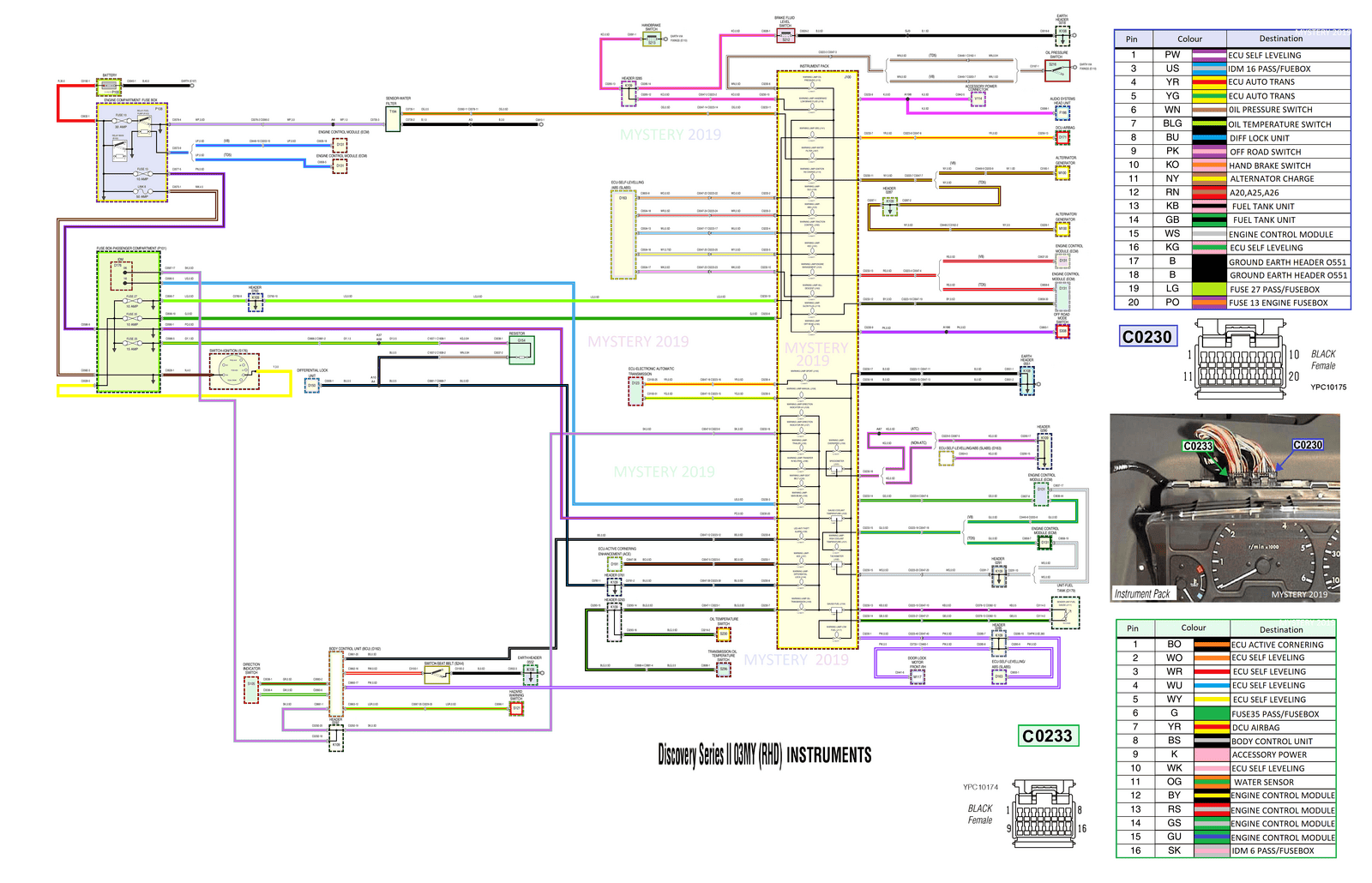

MAY HELP

noiseboymart · Oct 20, 2019

Thanks for the help everyone. I am thinking could be dodgy earth on k108 as non of dials work or indicator tell tale.
Cheers

mystery · Oct 21, 2019

also check harness plugs
