TD5 CRACKED HEAD ?

Discussion in 'Land Rover Discovery' started by CAN, Sep 22, 2020.

< Previous Thread | Next Thread >
  1. CAN

    CAN New Member

    Joined:
    Oct 30, 2019
    Posts:
    9
    Likes Received:
    0
    Location:
    LUTON
    I AM NEW TO THIS SITE AND HAVE A MAJOR PROBLEM WITH MY 2002 DISCO. I HAVE HAD A NEW FUEL PUMP FITTED ANDNEW INJECTOR SEALS AND COPPER WASHERS FITTED BOTH LAST NOV.THE Car now wont start . The garage have said the head is cracked but you cant test them .
    has anyone had similiar symptons re the head was cracked ? previous it would just brake down once it got over 40 mph. starting was the main issue . its been ok for 9 months and now the same issues.
    any advice appreciated

  2. Shimsteriom

    Shimsteriom Master Procrastinator

    Joined:
    Feb 13, 2015
    Posts:
    33,633
    Likes Received:
    19,642
    Location:
    Size isn't everything
    NO NEED TO SHOUT :rolleyes:

    kurtjohnson10 likes this.
  3. jamesmartin

    jamesmartin Well-Known Member

    Joined:
    Dec 8, 2010
    Posts:
    88,366
    Likes Received:
    16,794
    Location:
    louth lincs
    if head was cracked id expect it to be filling sump with diesel ie oil level appears to get higher on the dip stick

    resto_d1, 8ha and kurtjohnson10 like this.
  4. kurtjohnson10

    kurtjohnson10 Well-Known Member

    Joined:
    Dec 31, 2012
    Posts:
    12,734
    Likes Received:
    11,969
    Location:
    midlands
    Damn when you put cracked head - i thought it said crack head and got excited. I thought i had Someone else to talk about drugs to :D.
    someone should be along soon to help mate - good luck :)

    resto_d1 and Shimsteriom like this.
  5. kurtjohnson10

    kurtjohnson10 Well-Known Member

    Joined:
    Dec 31, 2012
    Posts:
    12,734
    Likes Received:
    11,969
    Location:
    midlands
    Ok darling :D

    Shimsteriom likes this.
  6. CAN

    CAN New Member

    Joined:
    Oct 30, 2019
    Posts:
    9
    Likes Received:
    0
    Location:
    LUTON

  7. CAN

    CAN New Member

    Joined:
    Oct 30, 2019
    Posts:
    9
    Likes Received:
    0
    Location:
    LUTON

  8. CAN

    CAN New Member

    Joined:
    Oct 30, 2019
    Posts:
    9
    Likes Received:
    0
    Location:
    LUTON
    DIPSTICK SHOWS NORMAL LEVEL

  9. Shimsteriom

    Shimsteriom Master Procrastinator

    Joined:
    Feb 13, 2015
    Posts:
    33,633
    Likes Received:
    19,642
    Location:
    Size isn't everything
    YOU'RE STILL SHOUTING ;)

  10. jamesmartin

    jamesmartin Well-Known Member

    Joined:
    Dec 8, 2010
    Posts:
    88,366
    Likes Received:
    16,794
    Location:
    louth lincs
    turn your caps lock off,if it started ok but cut out over 40 id suspect other issue than pump and injector washers that usually show poor starting too ie excessive cranking to start

  11. CAN

    CAN New Member

    Joined:
    Oct 30, 2019
    Posts:
    9
    Likes Received:
    0
    Location:
    LUTON
    up until last oct it started on the button, the garage said at the time it was one of 3 things, once they changed the seals after the pump it was ok until recent when it started to not start, when I can get it to start you can hear the pump all the time. The AA used brake cleaner via the air intake to get it going when I broke down last week

  12. sierrafery

    sierrafery Well-Known Member

    Joined:
    Jun 30, 2007
    Posts:
    13,932
    Likes Received:
    2,142
    Location:
    West of Transylvania
    So it's about a starting issue or it stops while driving too ? anyway from these symptoms to jump to cracked head conclusion is quite exagerated... it can be as simple as crank sensor signal failure or other management issue, was it scanned with a dedicated diagnostic tool? if not the discussion is feckless

    resto_d1 likes this.
  13. CAN

    CAN New Member

    Joined:
    Oct 30, 2019
    Posts:
    9
    Likes Received:
    0
    Location:
    LUTON
    yes it is a starting issue and it just stops while driving . Breakdown guy said if i had driven no more than 30 mph the car probably wouldn.t just stop.The garage say its a cracked head but have not suggested anything else, Another breakdown guy said it could be fuel pressure regulator but the garage said no. When the breakdown guy got it started he plugged his device in but no fault codes came up . Thanks for advice

  14. jamesmartin

    jamesmartin Well-Known Member

    Joined:
    Dec 8, 2010
    Posts:
    88,366
    Likes Received:
    16,794
    Location:
    louth lincs
    have they checked fuel pressure,and flow by removing the drain plug on the bottom of the filter then switch ignition on,should flow like a good running tap not splutter,the factparts have been changed at some point doesnt mean they cant be faulty

    8ha and Stanleysteamer like this.
  15. Stanleysteamer

    Stanleysteamer Well-Known Member

    Joined:
    Nov 22, 2013
    Posts:
    11,367
    Likes Received:
    10,038
    Location:
    East Dorset
    Can't a cracked head be diagnosed with a compression test or a leak down test?
    Or is that just too old skool?

  16. CAN

    CAN New Member

    Joined:
    Oct 30, 2019
    Posts:
    9
    Likes Received:
    0
    Location:
    LUTON
    The garage told me that it’s not possible to do any test for a cracked head ,

  17. sierrafery

    sierrafery Well-Known Member

    Joined:
    Jun 30, 2007
    Posts:
    13,932
    Likes Received:
    2,142
    Location:
    West of Transylvania
    IMO the symptoms described cant be caused by a cracked head just like that. The vehicle must be hooked to a diagnostic tool

    Stanleysteamer likes this.
  18. CAN

    CAN New Member

    Joined:
    Oct 30, 2019
    Posts:
    9
    Likes Received:
    0
    Location:
    LUTON
    I am going to take it to another garage for a second opinion if I can get it started

  19. resto_d1

    resto_d1 Well-Known Member

    Joined:
    Apr 30, 2018
    Posts:
    2,534
    Likes Received:
    1,515
    Location:
    Wiltshire

    This!!!

  20. sierrafery

    sierrafery Well-Known Member

    Joined:
    Jun 30, 2007
    Posts:
    13,932
    Likes Received:
    2,142
    Location:
    West of Transylvania

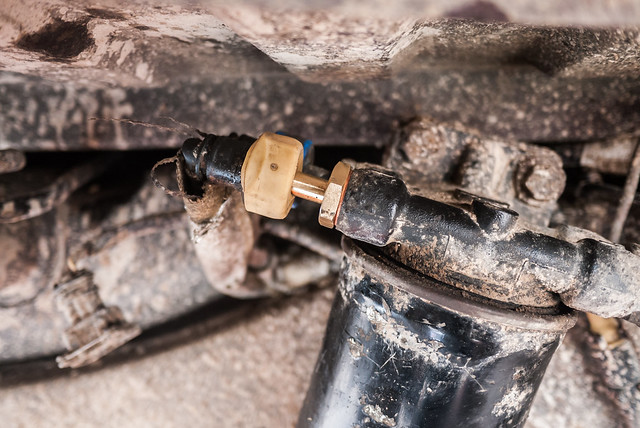

    You can try yourself to rule out the air bleed valve(WJN5200110) cos that one used to cause such issues especially when starting but in rare cases it can make it cut out too, it's in the rear outer port of the filter head, easy to replace...if you replace it run a purge before you crank it
    [​IMG]
