Freelander 1 TD4 No power under 2000 rpm

Is this the cheap bluetooth obd?
Check especially the small ones that go from or to the vacuum. Might be hard to detect it...

websun said:

Is this the cheap bluetooth obd?
Check especially the small ones that go from or to the vacuum. Might be hard to detect it...

Click to expand...

No it's a typical Amazon plug-in type.
Are these the small vacuum hoses down by the turbo/EGR area?

One goes under the egr area that one was dead on mine. Another goes to turbo and not sure what else is there.
Could benefit from a proper diag as many things can cause this...

websun said:

One goes under the egr area that one was dead on mine. Another goes to turbo and not sure what else is there.
Could benefit from a proper diag as many things can cause this...

Click to expand...

Thanks - might be another thing to replace as a "just-in-case".
Do you happen to know if it's 3mm 4mm or 5mm?

4mm for sure as I recently had to purchase some.
I did put silicone but not quite sure how sensitive those are on rubbing

Vacuum pipe arrived today (good old Amazon Prime!)
Replaced the 2 I could see but on start-up no difference at all.
Will let it get warm and see what it's like then.
I also have a low pressure fuel pump waiting to go in, just wanted to see if the vacuum pipes made a difference.

Make sure you get the pierburg lp pump! Those 30 quid ones are tempting but rubbish.
Where are you located?

websun said:

Make sure you get the pierburg lp pump! Those 30 quid ones are tempting but rubbish.

Click to expand...

I can send it back so no worries - will check what it is

websun said:

Where are you located?

Click to expand...

I'm in Somerset.

Too far. It's very easy if pump cost is less than 100 forget it.
Could be a hose split, turbo solenoid, lp pump, turbo. guess game can get expensive and without results...

websun said:

Too far. It's very easy if pump cost is less than 100 forget it.
Could be a hose split, turbo solenoid, lp pump, turbo. guess game can get expensive and without results...

Click to expand...

So I guess the next step should be to get better diagnostic data.
Do you recommend a particular reader? Mine doesn't seem good enough and it would be stabbing in the dark to guess at another one.

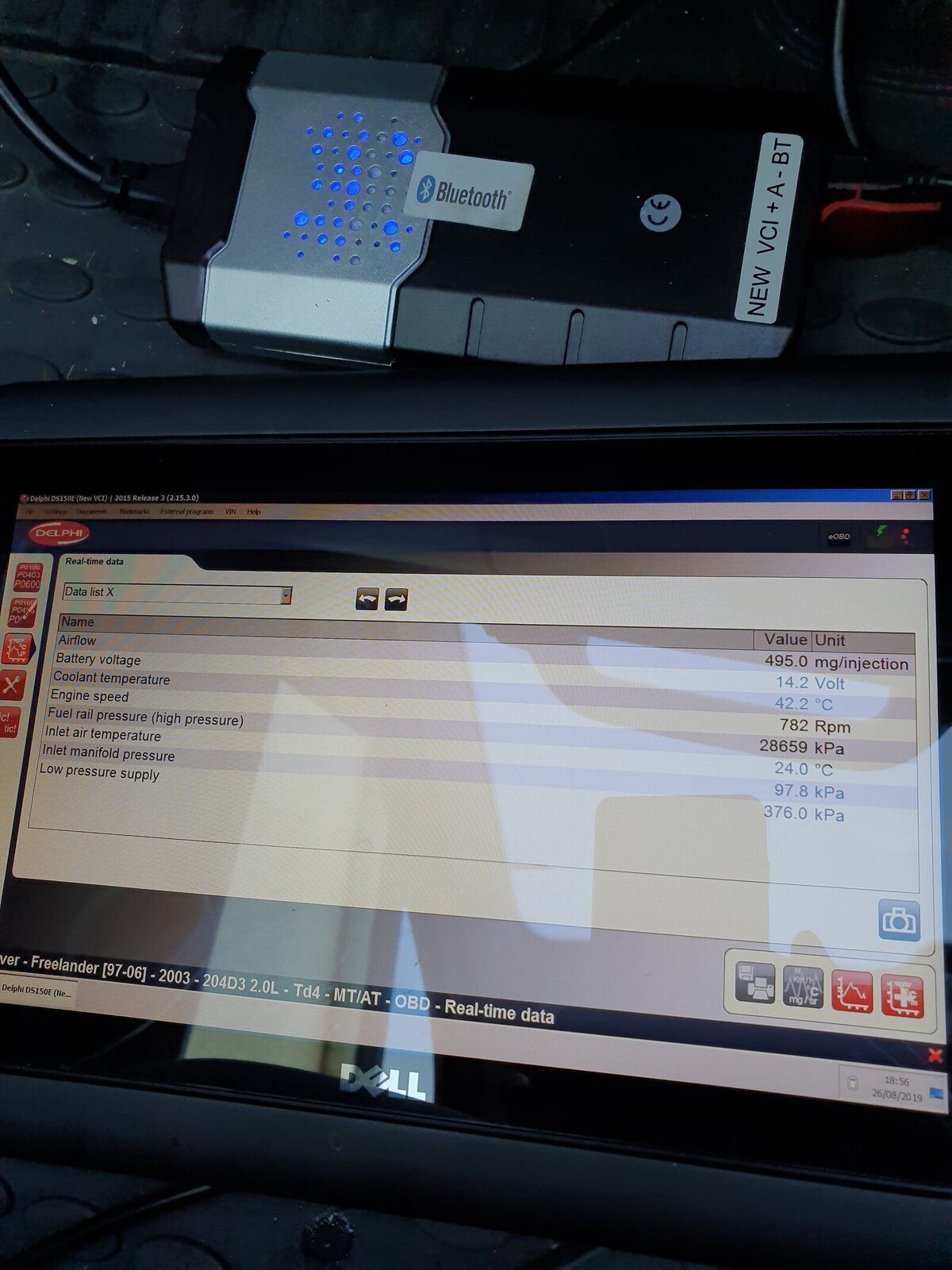

I have this which can see almost everything and access brakes etc as well:

http://ebay.co.uk/itm/163456823046

Then you need the software but can share it via pm. It's a clone therefore they dissapear from ebay fast.

Proof

Good investment works with pretty much any obd2 car these days

I almost went for it, but I bit the bullet and ordered a Hawkeye Total instead.
That should do just about anything I need.

Indeed it will. For 10x the price. And there are very few things that you can see with that, ones I've found is fuel correction and cylinder roughness.
Everything else is in the 30 quid one

websun said:

Indeed it will. For 10x the price. And there are very few things that you can see with that, ones I've found is fuel correction and cylinder roughness.
Everything else is in the 30 quid one

Click to expand...

The Hawkeye will program key transponders etc into the ECUs, it will activate the ABS pump to bleed the brakes etc.

There are a number of things one of the more expensive units will do that the lower priced ones won't. Not quite like having a T4 in your garage, but the nearest you're likely to get.

I thought is needs some coins for the key programming. I can activate abs pump and all with Delphi.

Nodge68 said:

You want to check the live data while driving it. The LP needs to stay above 325 Kpa, or the EDC limits power output.

Click to expand...

Checked it today. The LP Kpa didn't drop below 345 Kpa which was at about 3k revs, 385 Kpa while ticking over.

Something else I just noticed:
I replaced a hose recently but it looked like some oil has sprayed onto it.
On investigating further one of the EGR bolts is missing and it looks like it isn't sealing!
Definitely going to be losing some boost pressure there surely. That's my next job.

You can get ei gasket for a fiver or something on ebay if it's not a nice seal. Or replace the manifold if the screws are wrong. I have one in the shed
