Freelander 1 TD4 Cylinder Balance - P0263

This site contains affiliate links for which LandyZone may be compensated if you make a purchase.
andyfreelandy

andyfreelandy

Well-Known Member
Posts
5,583
Location
Devon
My old faithful has started sounding decidedly sick on idle - misfire and a bit smokey. It has thrown P0263 code which indicates injector 1 is not happy.

Have followed several threads and one stated that changing injector 1 with this code didn't resolve the problem but changing injector 3 did.

Have a refurbed spare injector and so will try 1 first then 3 and see what happens !!

Will check loom first as it is easier.
Anyone else had this code and if so which injector was at fault?

andyfreelandy said:
My old faithful has started sounding decidedly sick on idle - misfire and a bit smokey. It has thrown P0263 code which indicates injector 1 is not happy.

Have followed several threads and one stated that changing injector 1 with this code didn't resolve the problem but changing injector 3 did.

Have a refurbed spare injector and so will try 1 first then 3 and see what happens !!

Will check loom first as it is easier.
Anyone else had this code and if so which injector was at fault?
Click to expand...

Hi,

Before getting the code, you had certainly some issues before, like smelling exhaust or starting issue.
I had a dying injector, with no code, once replaced no more issue..

Changing the dying injector will solve the problem for sure.
A leak back test can be done to confirm the issue.

Regards

So the P0263 is cleared and reappears. P01613 Map also appears on PScan.
Injector balance shows -0.9 to -1.2 for cylinders 2 to 4.
It shows +4 for cylinder 1.
Will be changing injector 1 and trying again.

Interesting couple of hours.
1) Probably a daft thing to do but substituted injector 1 with a refurbed one that I had, only it was an 'auto' one and my engine is from a manual, even though it is now an auto !

Still with me ?

It ran like a pig and the +4 compensation for cylinder 1 went up to +8.

So, with no other injectors at my disposal, stripped and cleaned the original.

Problem solved and cylinder 1 now reads 0.4. Other 3 are just negative. -0.9 to -0.2.

So we now know that an auto injector is fairly majorly different to a manual one !
Live and learn.

I might get a set of auto injectors, using the manual ones may be the source of my labouring on hills and vibration ??

andyfreelandy said:
It ran like a pig and the +4 compensation for cylinder 1 went up to +8.
Click to expand...
It could be that the injector is faulty in some way, rather the being incorrect. From memory the diesel injectors flow more fuel, which would result in a - compensation value, not a + value.

Could be, it is a bosch serviced injector which had only run a few weeks in another engine.
Do you think a set of auto injectors would be better suited to the auto box torque requirements or no difference ?!

andyfreelandy said:
Do you think a set of auto injectors would be better suited to the auto box torque requirements or no difference ?!
Click to expand...
I don't know what the difference is between the auto and manual injectors, but the auto does have 2 BHP more power, if the specs are correct. I can't see 2 BHP needing different injectors, but that's the only obvious difference us laypersons get.

Hello from Canarias,

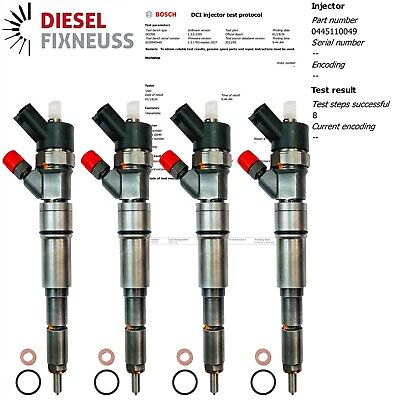

I know the company Diesel Fix from Neuss and can confirm that they work properly there. The injectors from the TD4
(by the way, they are also used in the 6-cylinder Opel DTI with BMW engine) are very easy to repair and overhaul.
The nozzles and needles are very cheap to get and I think these injectors are no longer in demand very often, hence the low price.

A few days ago I repaired a nozzle 0445110 049 manual gearbox Bosch Nr 0986 435 095 and a 0445110 120 automatic gearbox
Bosch No. 7 785 903 or 983 I noticed that the solenoid coil is slightly different. This probably delays or extends the injection time.
The nozzles were the same for both

Injektoren: Bosch CRI 0445 110 030 \ 049 \ 120 \ 130

Düsentyp: DSLA 145P 868

Betriebsdruck des Injektors: 250 - 1350 bar (3625 - 19575 lbf.in)

Impedanz: 14,5 d +- 5% @ 20%

Die Injektion beginnt: 60 BTDC

Vorinjektion (maximal) 25 BTDC

Hauptinjektion (maximal) 100 - 200 Kurbel-ATDC Nach der Injektion

Timing der InjektionGesteuert durch Bosch DDE 4.0 Motormanagementsystem für Common-Rail-Einspritzung

Injektionsmenge1 - 80 cm³

Thank you. Really useful information.
4 injectors reserviced for 200 is excellent. They want 30 ukp deposit per injector.
