swivels

Discussion in 'General Land Rover Forum' started by bongo1, Sep 10, 2019.

< Previous Thread | Next Thread >
  1. bongo1

    bongo1 Active Member

    Joined:
    Oct 7, 2011
    Posts:
    337
    Likes Received:
    33
    Location:
    MACCLESFIELD cheshire
    DEF90 300tdi 1996 , My front diff oil is contaminated with i assume one shot grease , which im told is no big deal .
    Now i want to check and top up the swivels , i have i believe the earlier hubs with fill + drain + level bungs . (is that correct on a 96 ?) . Anyway lets assume the seals have gone and the one shot has got to the oil , Do i need to check and topup the swivels . ? or are they topped up already with diff oil .
    ta gerry.

  2. dieseldog69

    dieseldog69 Well-Known Member LZIR Despatch Agent

    Joined:
    May 21, 2010
    Posts:
    8,473
    Likes Received:
    6,123
    Location:
    Back in the UK, Sunny Hampshire.

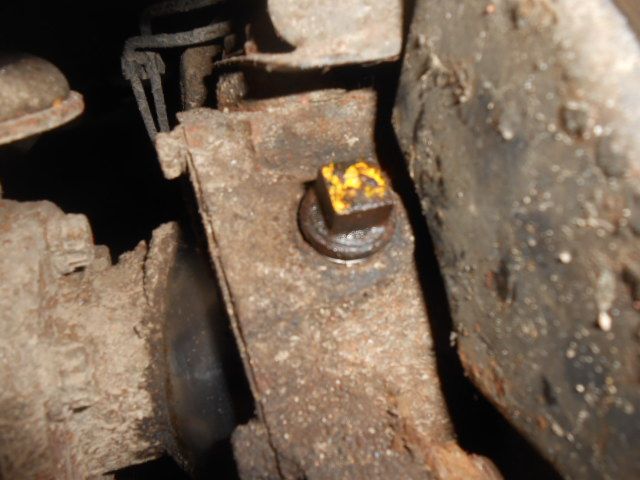

    Fill on the top


    Level bung under the lock stop bolt


    Drain plug at the bottom.


  3. bongo1

    bongo1 Active Member

    Joined:
    Oct 7, 2011
    Posts:
    337
    Likes Received:
    33
    Location:
    MACCLESFIELD cheshire
    That's the one . With the grease i guess getting into the diff oil , I assume that i will still need to topup/check the swivels .
    When were the hubs changed to ones without a drain .

  4. discool

    discool Well-Known Member

    Joined:
    Apr 25, 2007
    Posts:
    11,642
    Likes Received:
    677
    Location:
    Sector 12 in Kent, The Garden of England
    For the D1 around 1996MY when LR fitted the swivels filled with grease and had the black Teflon balls so no more plugs.

  5. bongo1

    bongo1 Active Member

    Joined:
    Oct 7, 2011
    Posts:
    337
    Likes Received:
    33
    Location:
    MACCLESFIELD cheshire
    As mines an early 96 , so that sounds about right , mine are chrome and have the 3 ports . I wondered if the hubs had been changed for very early ones , and that i should of had the single fill only ones .

  6. bongo1

    bongo1 Active Member

    Joined:
    Oct 7, 2011
    Posts:
    337
    Likes Received:
    33
    Location:
    MACCLESFIELD cheshire

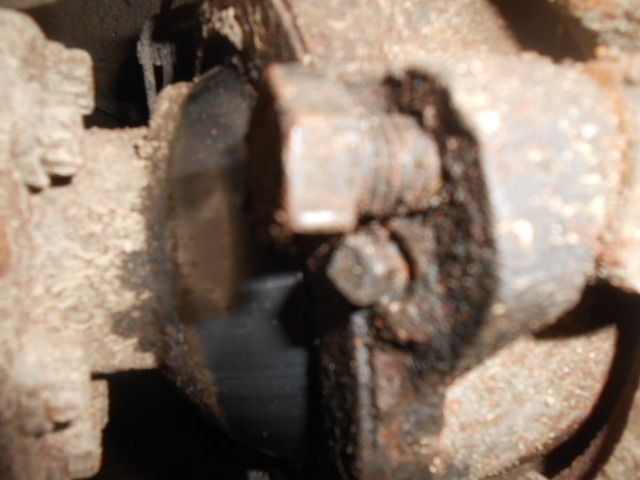

    The level was very tight to get a spanner on , I wanted to remove the wheel lock stop bolt , but changed my mind as tight and felt like it would snap off , some serious heat required but i don't have O/A only mapp , let the garage have that headache .

  7. Flossie

    Flossie Well-Known Member

    Joined:
    Sep 2, 2015
    Posts:
    6,023
    Likes Received:
    3,264
    Location:
    Shropshire
    I changed my level plugs for Chrome on brass BSP hex key plugs. Easy to remove.

  8. dieseldog69

    dieseldog69 Well-Known Member LZIR Despatch Agent

    Joined:
    May 21, 2010
    Posts:
    8,473
    Likes Received:
    6,123
    Location:
    Back in the UK, Sunny Hampshire.

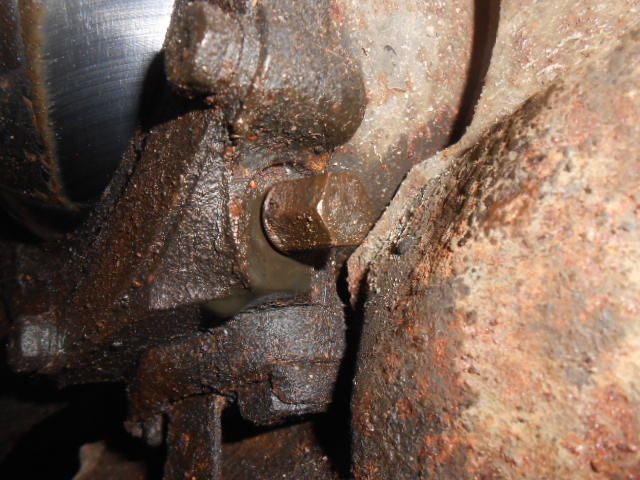

    Lock stop bolts have a locking nut behind them so you have to undo that first.

    Hicap phill likes this.
  9. bongo1

    bongo1 Active Member

    Joined:
    Oct 7, 2011
    Posts:
    337
    Likes Received:
    33
    Location:
    MACCLESFIELD cheshire
    Hi dieseldog69 , your totally right as normal . Im ashamed to say that when i actually had a proper look i spotted the lock nut DOH , ever-likely it would not move . But in my defence my old 90 had the lock nut on the other side (not on the back) , and why i thought it was simply missing on this one . Maybe the old 90 had the lock nut fitted on the wrong side ?? .

  10. bongo1

    bongo1 Active Member

    Joined:
    Oct 7, 2011
    Posts:
    337
    Likes Received:
    33
    Location:
    MACCLESFIELD cheshire
    Hi Flossie , is that because you can get a hex key in more easily , my problem was there was not enough clearance between it and the stop lock bolt .

  11. Flossie

    Flossie Well-Known Member

    Joined:
    Sep 2, 2015
    Posts:
    6,023
    Likes Received:
    3,264
    Location:
    Shropshire
    Yes.
    Female hex on the new plug.

  12. bongo1

    bongo1 Active Member

    Joined:
    Oct 7, 2011
    Posts:
    337
    Likes Received:
    33
    Location:
    MACCLESFIELD cheshire
    Are the hex plugs a taper

  13. Flossie

    Flossie Well-Known Member

    Joined:
    Sep 2, 2015
    Posts:
    6,023
    Likes Received:
    3,264
    Location:
    Shropshire
    Mine were yes. Got them from a compressor/pneumatic place.

  14. bongo1

    bongo1 Active Member

    Joined:
    Oct 7, 2011
    Posts:
    337
    Likes Received:
    33
    Location:
    MACCLESFIELD cheshire
    Thanks Flossie

  15. Flossie

    Flossie Well-Known Member

    Joined:
    Sep 2, 2015
    Posts:
    6,023
    Likes Received:
    3,264
    Location:
    Shropshire

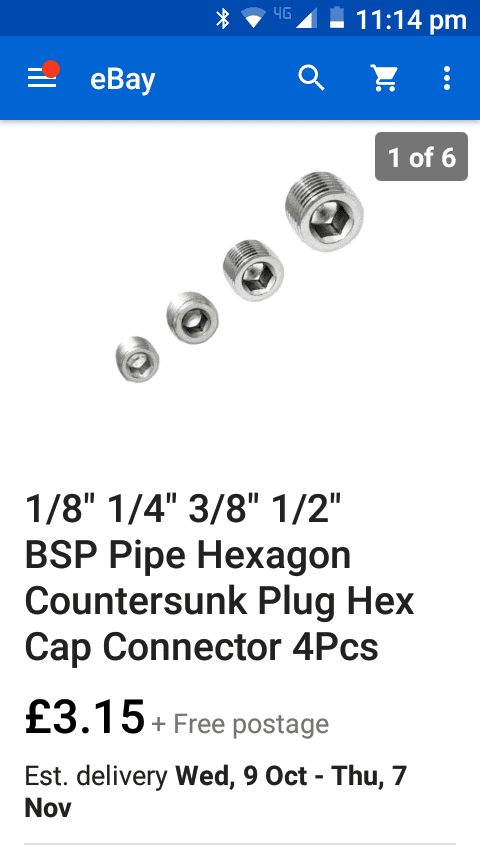

    This sort of thing, can't remember the size though. Screenshot_20190923-231438.png

  16. bongo1

    bongo1 Active Member

    Joined:
    Oct 7, 2011
    Posts:
    337
    Likes Received:
    33
    Location:
    MACCLESFIELD cheshire
    ive got a few BSP bits , i will compare and see . so they are a BSP thread .
