Swivel pin bolt size

Discussion in 'Defender 90 / 110 / 130' started by Galladog, Oct 29, 2019.

< Previous Thread | Next Thread >
  1. Galladog

    Galladog Member

    Joined:
    Feb 27, 2010
    Posts:
    91
    Likes Received:
    15
    Location:
    Alloa
    Evening all, my TD5 lower swivel pin has excessive play in it so I ordered a rebuild kit.
    The lower swivel pin bolts part BH108061M are rusty as hell so I thought I would replace these, the manual says they are M8 but gives no length, anyone know the length ?
    Also are they any type of special bolt or just standard M8 ?

    Cheers Galladog

  2. Flossie

    Flossie Well-Known Member

    Joined:
    Sep 2, 2015
    Posts:
    6,549
    Likes Received:
    3,941
    Location:
    Shropshire
    Whip one out to check the length then put it straight back , won't do any harm.

  3. Al2O3

    Al2O3 Well-Known Member

    Joined:
    Apr 21, 2014
    Posts:
    8,822
    Likes Received:
    2,970
    Location:
    North of the Wall
    Not sure about grade of bolt, but the go right through housing. I might have some on shelf in garage! Watching Barca game, 15 mins until half time. Will have a look then.

  4. Al2O3

    Al2O3 Well-Known Member

    Joined:
    Apr 21, 2014
    Posts:
    8,822
    Likes Received:
    2,970
    Location:
    North of the Wall

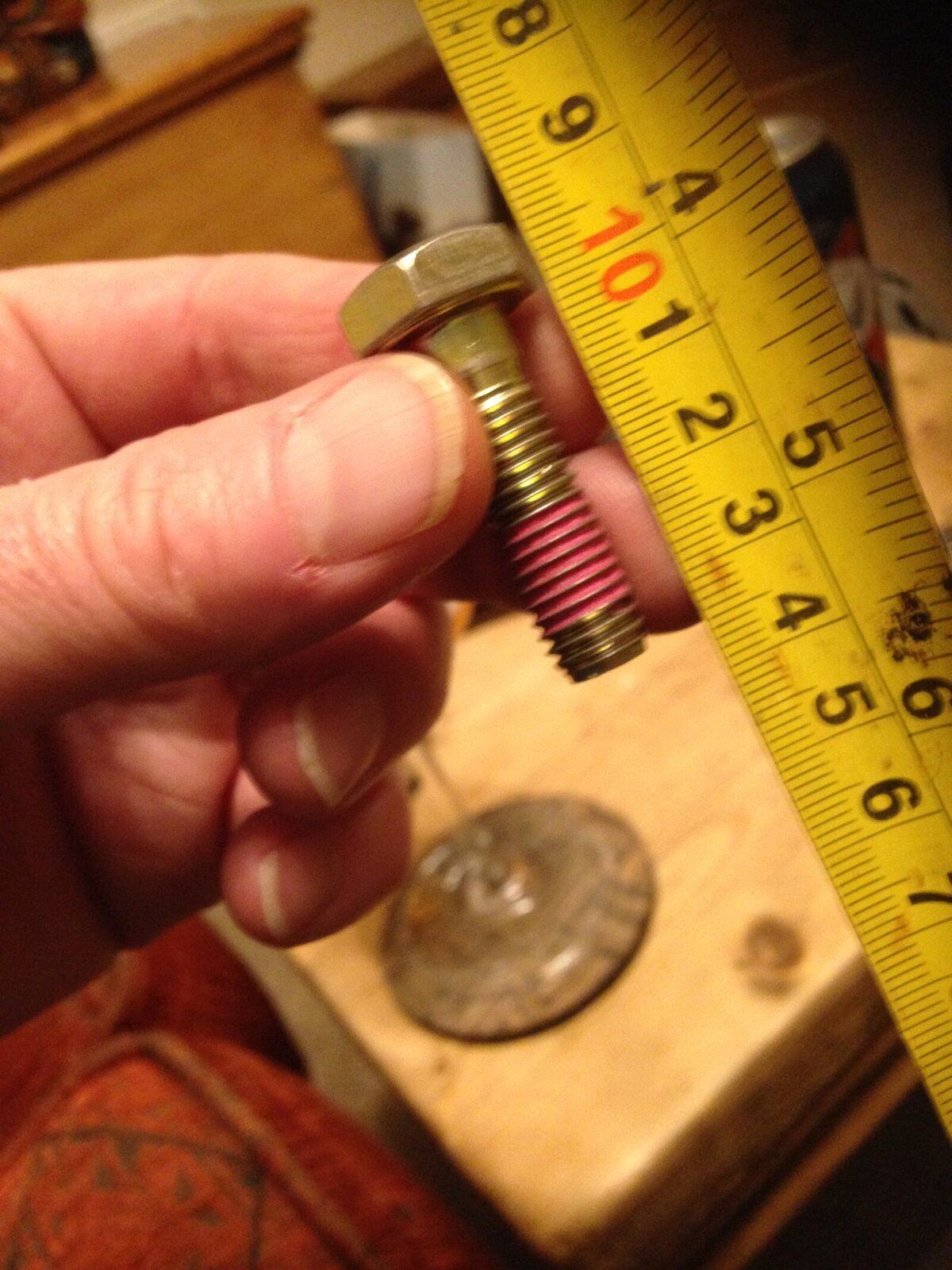

    35mm

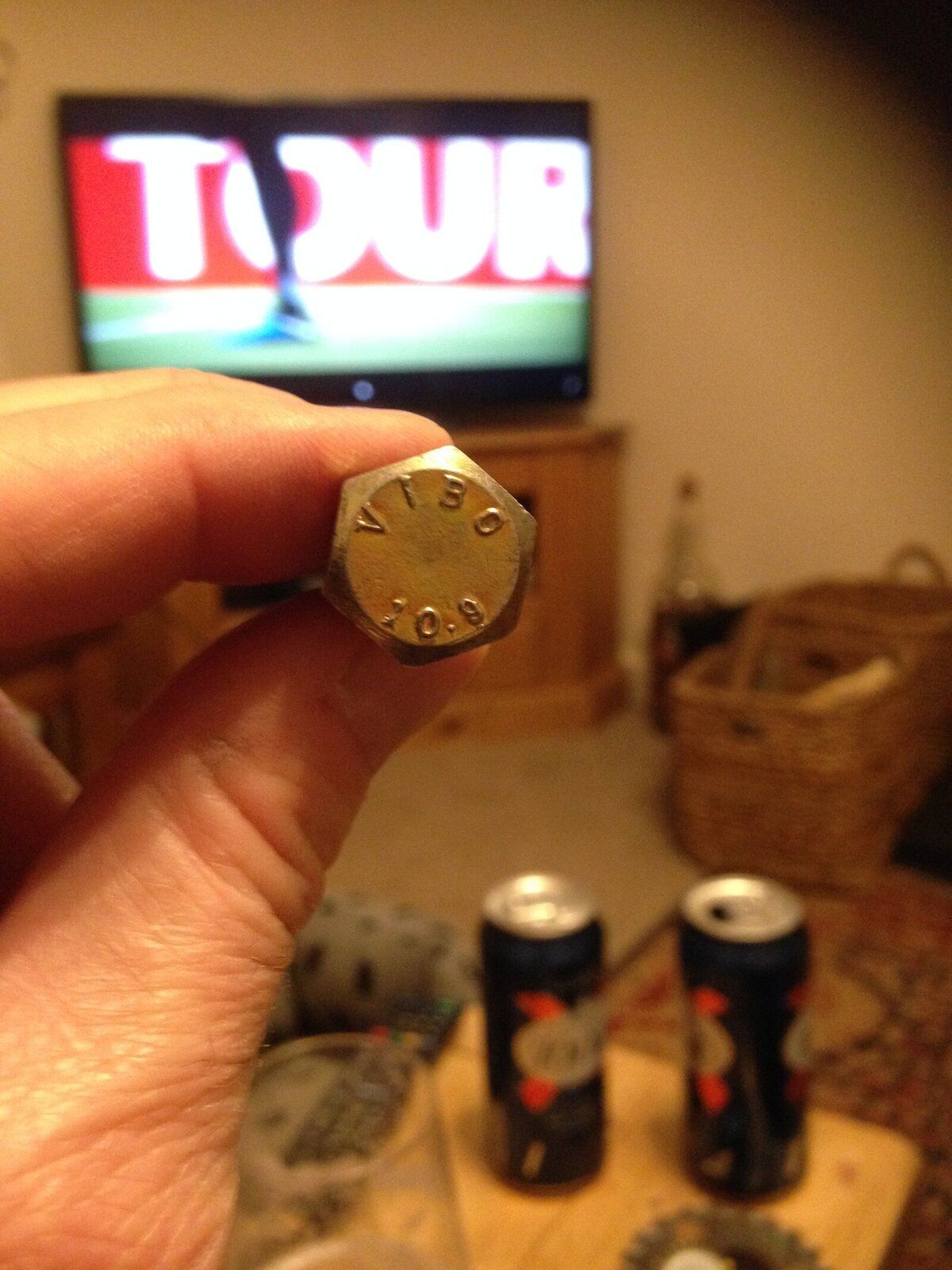

    10.9 grade

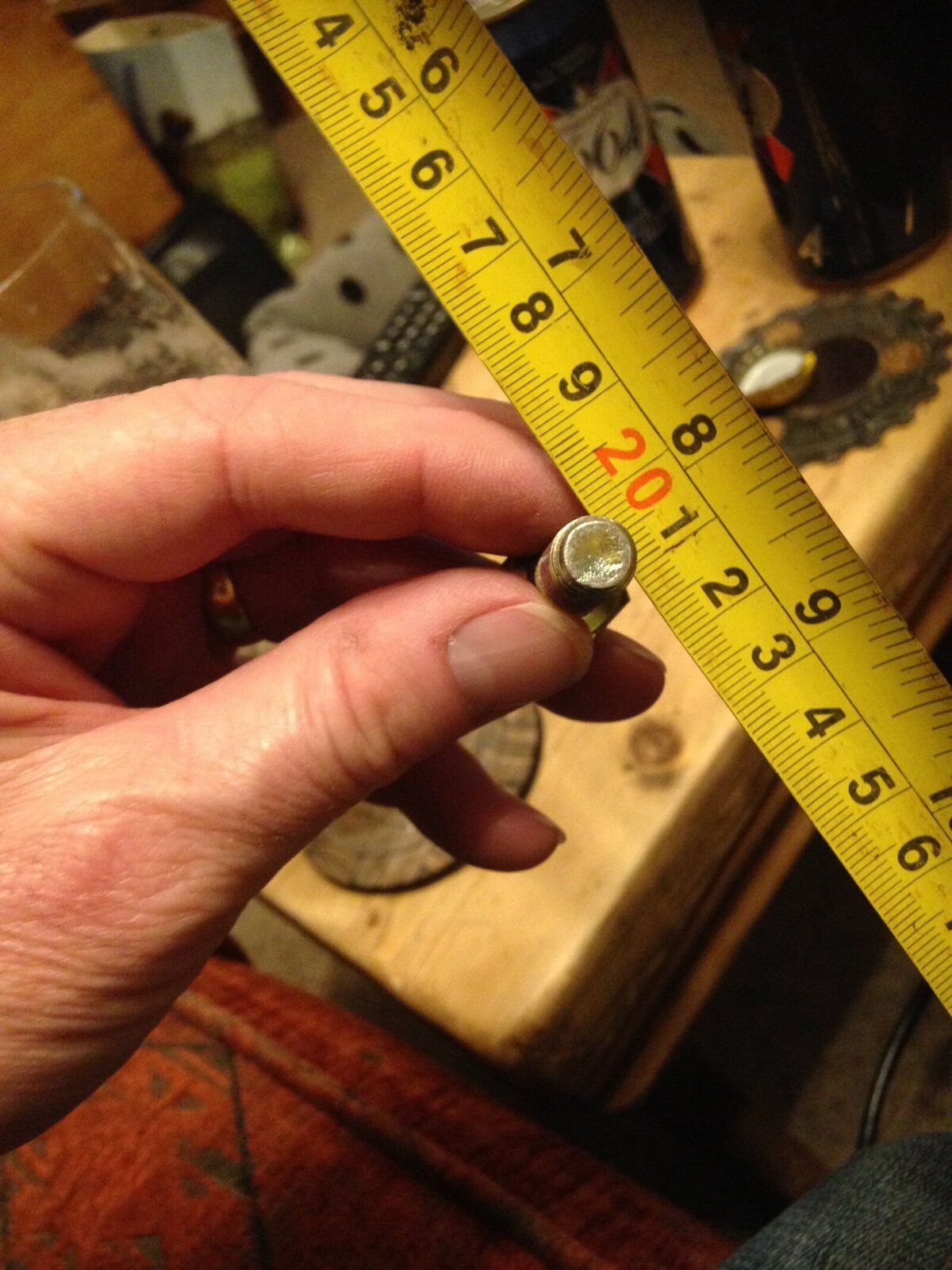

    Reckon mine are M10
    If you're taking one out, make it a top one.

  5. TorsionBhudda

    TorsionBhudda Well-Known Member

    Joined:
    Nov 15, 2014
    Posts:
    1,333
    Likes Received:
    220
    Location:
    Falkirk
    10.9 Grade and M10

    Galladog and Al2O3 like this.
  6. Al2O3

    Al2O3 Well-Known Member

    Joined:
    Apr 21, 2014
    Posts:
    8,822
    Likes Received:
    2,970
    Location:
    North of the Wall
    Was letting him down gently with the M10 and his manual saying M8 :p
    @Galladog what manual have you got?

    Galladog likes this.
  7. Galladog

    Galladog Member

    Joined:
    Feb 27, 2010
    Posts:
    91
    Likes Received:
    15
    Location:
    Alloa
    Thanks for the replies guys.
    The manual I have is the genuine parts catalogue ( STC9021CC )
    Diagram E22 part no 14, BH108061M is listed as " Bolt-hexagonal head M8".

  8. Al2O3

    Al2O3 Well-Known Member

    Joined:
    Apr 21, 2014
    Posts:
    8,822
    Likes Received:
    2,970
    Location:
    North of the Wall
    Hmmm, could be a Haynes misprint?
    Edit
    Oo , sorry. googled that number hand Gaynes came up. Missed the bit where you said it was genuine parts catalogue. That'll be the 1664 :rolleyes:

    Last edited: Oct 29, 2019
    Galladog likes this.
  9. bluedog333

    bluedog333 Well-Known Member

    Joined:
    Jun 7, 2014
    Posts:
    3,242
    Likes Received:
    1,900
    Location:
    Henley on Thames, Oxfordshire
    On a school night as well!
    Oh, wait, it’s half-term. Crack on!

    Galladog likes this.
  10. Al2O3

    Al2O3 Well-Known Member

    Joined:
    Apr 21, 2014
    Posts:
    8,822
    Likes Received:
    2,970
    Location:
    North of the Wall
    To be fair, I was watching football.
    Anyway, don't they say 'every day is a school day'! So, when is a man to drink? ;)

    Galladog likes this.
  11. Galladog

    Galladog Member

    Joined:
    Feb 27, 2010
    Posts:
    91
    Likes Received:
    15
    Location:
    Alloa
    Not in Scotland :)

  12. Galladog

    Galladog Member

    Joined:
    Feb 27, 2010
    Posts:
    91
    Likes Received:
    15
    Location:
    Alloa
    Gonna dismantle the swivel tommorow, find out the size then.

  13. bluedog333

    bluedog333 Well-Known Member

    Joined:
    Jun 7, 2014
    Posts:
    3,242
    Likes Received:
    1,900
    Location:
    Henley on Thames, Oxfordshire
    Fair enough, I went a bit Mackers and enjoyed a couple of Baileys watching some new-fangled “RugbyX” mullarkey. Should have watched some footy instead.

  14. bluedog333

    bluedog333 Well-Known Member

    Joined:
    Jun 7, 2014
    Posts:
    3,242
    Likes Received:
    1,900
    Location:
    Henley on Thames, Oxfordshire
    Are there drinking rules in Scotland? :eek:

  15. Galladog

    Galladog Member

    Joined:
    Feb 27, 2010
    Posts:
    91
    Likes Received:
    15
    Location:
    Alloa
    I was on about the school holidays;)

  16. Al2O3

    Al2O3 Well-Known Member

    Joined:
    Apr 21, 2014
    Posts:
    8,822
    Likes Received:
    2,970
    Location:
    North of the Wall
    Baileys is a luxury in our house. The Mrs loves it and I nick some all the time ;)

  17. Al2O3

    Al2O3 Well-Known Member

    Joined:
    Apr 21, 2014
    Posts:
    8,822
    Likes Received:
    2,970
    Location:
    North of the Wall
    Was the RugbyX fast and furious?

  18. Al2O3

    Al2O3 Well-Known Member

    Joined:
    Apr 21, 2014
    Posts:
    8,822
    Likes Received:
    2,970
    Location:
    North of the Wall
    No. Not unless you count 'drink as much as you can as fast as you can', every time ye gaan oot ;)

    bluedog333 likes this.
  19. TorsionBhudda

    TorsionBhudda Well-Known Member

    Joined:
    Nov 15, 2014
    Posts:
    1,333
    Likes Received:
    220
    Location:
    Falkirk
    Sorry I got all confused never read your post properly Yeah the bottom pin bolts are M8 still 10.9 I believe as part of the steering and suspension.The tops are M10 and the bolts that connect the swivel to axle are M10. If your in Alloa it may be worth giving Gemm 4x4 a call they might have them in stock and they are only in Larbert,Falkirk. 01324 557735 is their number.

  20. bluedog333

    bluedog333 Well-Known Member

    Joined:
    Jun 7, 2014
    Posts:
    3,242
    Likes Received:
    1,900
    Location:
    Henley on Thames, Oxfordshire
    I won’t be in a hurry to see it again. The concept probably sounded good on paper, but in reality it was awful.
    Ended up watching a documentary on the 40s/50s boxer Freddie Mills. Fascinating story and quite sad towards the end.
