Linking to the competition: How To : Replacement of front lower ball joint arm...
Enjoy. Looks like it'll be a ballache without a ramp.
Enjoy. Looks like it'll be a ballache without a ramp.
Suspension Knocking - Worn bushes ?
- Thread starter 2.0_hippo
- Start date
This site contains affiliate links for which LandyZone may be compensated if you make a purchase.
gold rover
Well-Known Member
- Posts
- 10,132
- Location
- Scotland,
Yep got RAVE. Checked with suppliers and my friendly indie, apparently there is lower , attached to arm and upper , which separates. Only the upper is the issue but might as well get both done at same time.
I'll get a better look in next couple of days.
Thanks Bix. Got a 4 poster so one down a million others to deal with
- Posts
- 16,475
- Posts
- 16,475
Ahhh wait a minute...they could be talking about the Compression Link...which is a ball joint that is just above the other lower ball joint...!!
gold rover
Well-Known Member
- Posts
- 10,132
- Location
- Scotland,
Hmmm that's odd. I'll double check tomorrow. Thanks
gold rover
Well-Known Member
- Posts
- 10,132
- Location
- Scotland,

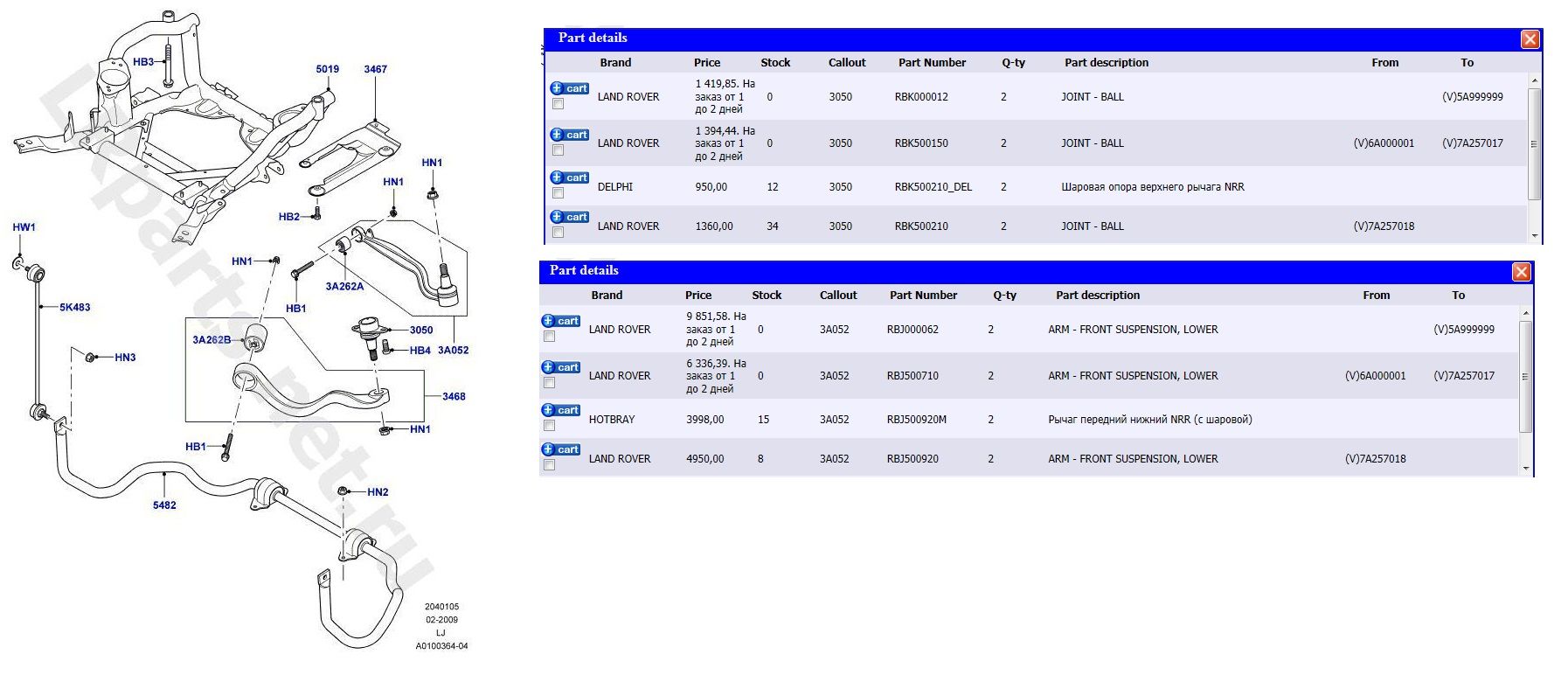

Do these parts make it any clearer LR032644GEN Lower Ball Joint
RBK500210 Upper Track Control Arm Ball Joint
RBK500210 Upper Track Control Arm Ball Joint
gold rover
Well-Known Member
- Posts
- 10,132
- Location
- Scotland,

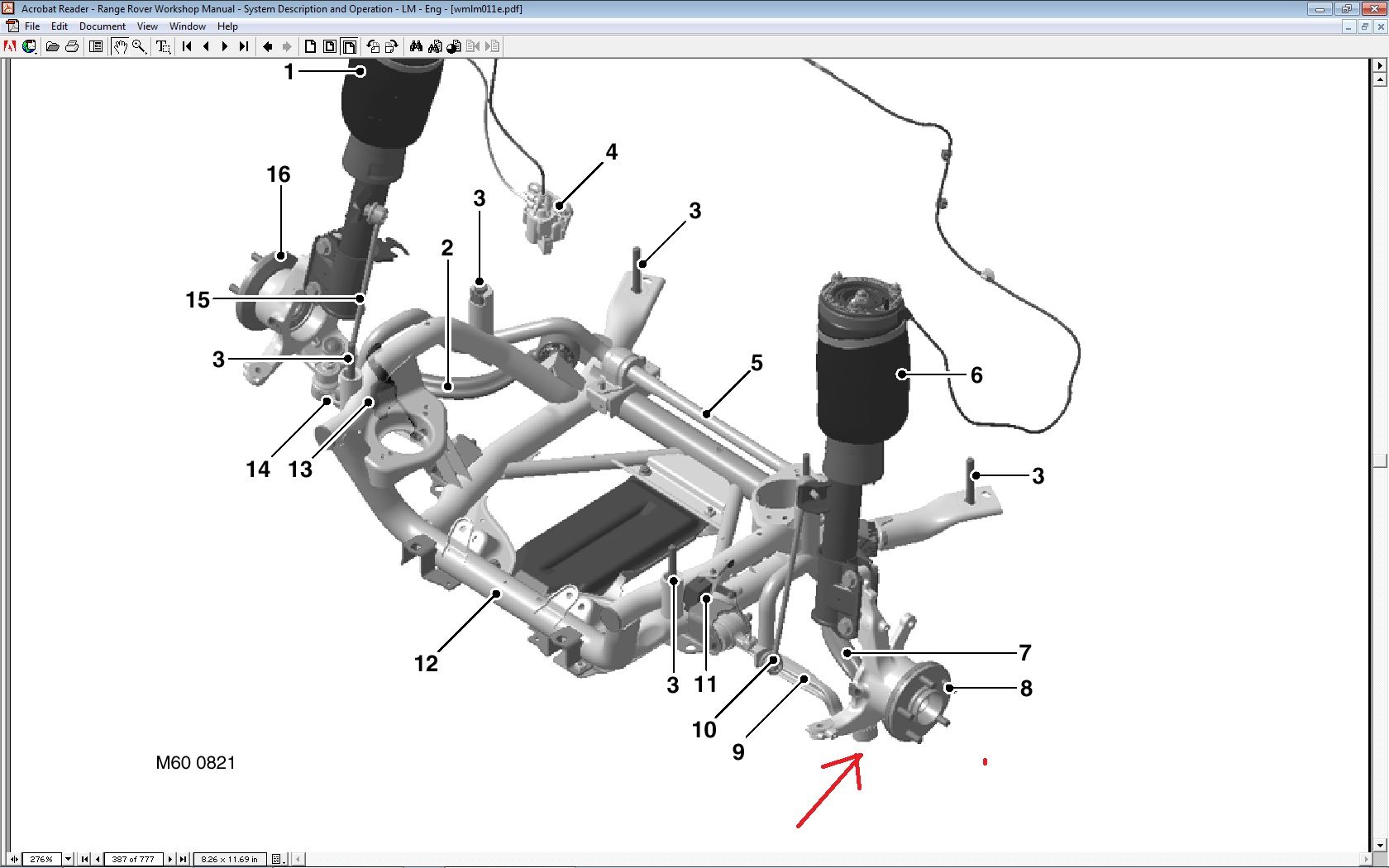

Ok might not be that one then lol I never, ever said I was good at this type of thing. All I know is I was told to get the ball joint, the one that faces forward not on the angle . Then when I explained that to the parts people they came back with is it lower or upper. Upper is separate and lower is attached to arm.
All I know is I was told to get the ball joint, the one that faces forward not on the angle . Then when I explained that to the parts people they came back with is it lower or upper. Upper is separate and lower is attached to arm.
- Posts
- 16,475
gold rover
Well-Known Member
- Posts
- 10,132
- Location
- Scotland,
Great thanks Saint. I'll ake a proper look in the morning. It's bed time for those of us who have to work at silly o'clock.
- Posts
- 16,475
Silly O clock for me too...but then again silly O'Clock is relative... my wake up at 6.15am may be a lie in for some!!
2.0_hippo
Well-Known Member
- Posts
- 6,069
- Location
- Hertfordshire
Yes there is upper and Lower ball joint arms
Already done the lower ones last year on mine
Relatively straight forward
Just buy the whole arm including the joints
Otherwise you need a 2 tonne press to get the old joints out
Not worth the hassle so its easier to buy the complete arms
Already done the lower ones last year on mine
Relatively straight forward
Just buy the whole arm including the joints
Otherwise you need a 2 tonne press to get the old joints out
Not worth the hassle so its easier to buy the complete arms
Last edited:
2.0_hippo
Well-Known Member
- Posts
- 6,069
- Location
- Hertfordshire

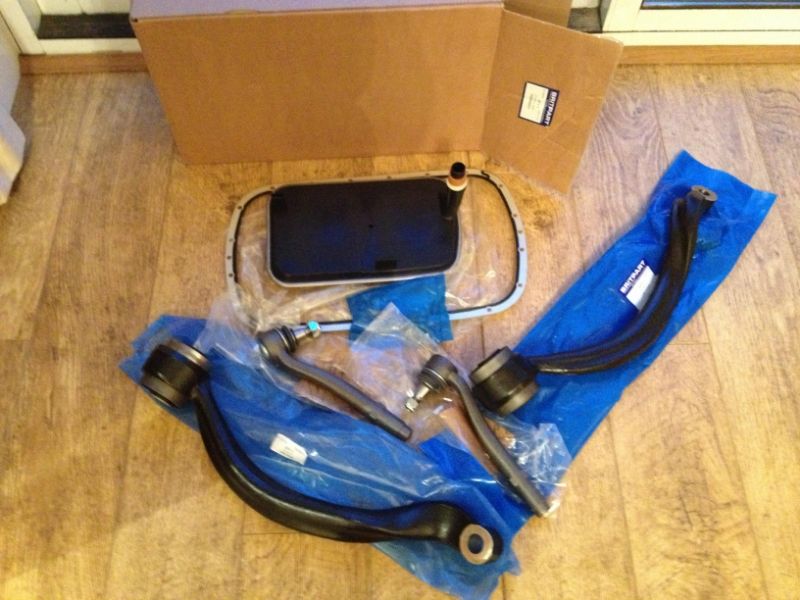

well, fedex has delivered my bits from island 4X4.
so far so good, very well packaged up indeed i must say.
astonished at the size and weight of these upper suspension arms ! you dont relaise how big they are until they are off the car ! LOL
oh well, looks like im going to be busy this weekend then with these bits.
hopefully this will cure my nearside suspension knocking !
both upper arms, both track rod ends, and this years gearbox service !
so far so good, very well packaged up indeed i must say.
astonished at the size and weight of these upper suspension arms ! you dont relaise how big they are until they are off the car ! LOL
oh well, looks like im going to be busy this weekend then with these bits.
hopefully this will cure my nearside suspension knocking !
both upper arms, both track rod ends, and this years gearbox service !
gold rover
Well-Known Member
- Posts
- 10,132
- Location
- Scotland,
Parts ordered from island4x4 this morning. Now just got to get them and then get the job done.
Thor1950
Well-Known Member
- Posts
- 39,238
- Location
- Land of the midnight sun
well, fedex has delivered my bits from island 4X4.
so far so good, very well packaged up indeed i must say.
astonished at the size and weight of these upper suspension arms ! you dont relaise how big they are until they are off the car ! LOL
oh well, looks like im going to be busy this weekend then with these bits.
hopefully this will cure my nearside suspension knocking !
both upper arms, both track rod ends, and this years gearbox service !
replace the ball joints would be cheaper then all them new parts. And now you have to schedule a front end alignment
Datatek
Well-Known Member
- Posts
- 43,949
- Location
- Near Poitiers SW France
well, fedex has delivered my bits from island 4X4.
so far so good, very well packaged up indeed i must say.
astonished at the size and weight of these upper suspension arms ! you dont relaise how big they are until they are off the car ! LOL
oh well, looks like im going to be busy this weekend then with these bits.
hopefully this will cure my nearside suspension knocking !
both upper arms, both track rod ends, and this years gearbox service !
I see it say's ****part on the label
Still when you have learnt how to do it you will be able to do it quicker when you do it again in summerKeep the old parts, you may need them
2.0_hippo
Well-Known Member
- Posts
- 6,069
- Location
- Hertfordshire
Load of p!ss takers you are ! Lol
Nothing wrong with britpart !
Why would I buy just the bushes for £30 and then send then to a workshop to extract and change the old bushes when you can buy a complete arm for £50 ?!?
I need the wheels aligning anyway so that's why I'm changing these worn parts now otherwise it will throw the alignment out !
Nothing wrong with britpart !
Why would I buy just the bushes for £30 and then send then to a workshop to extract and change the old bushes when you can buy a complete arm for £50 ?!?
I need the wheels aligning anyway so that's why I'm changing these worn parts now otherwise it will throw the alignment out !
Thor1950
Well-Known Member
- Posts
- 39,238
- Location
- Land of the midnight sun
Right you got a BUTLER
2.0_hippo
Well-Known Member
- Posts
- 6,069
- Location
- Hertfordshire
