Disco 2 Strange vacuum hose

Master808 · Jan 19, 2019

Hi all. Just been changing my air filter in td5 and I've noticed a vacuum hose which ends just near air box, it's not connected to anything ,hanging down on radiator .The beginning of that hose is in vacuum valve on the driver's side of the engine, goes over radiator and ends nowhere. Is that supposed to be plugged somewhere? Or just reading atmospheric pressure?

neilly · Jan 19, 2019

if it is the one I am thinking of,

there is a hose that connects to a small connector on the side of the air box.

But a photo would help.

Cheers

sierrafery · Jan 19, 2019

Master808 said:
Hi all. Just been changing my air filter in td5 and I've noticed a vacuum hose which ends just near air box, it's not connected to anything ,hanging down on radiator .The beginning of that hose is in vacuum valve on the driver's side of the engine, goes over radiator and ends nowhere. Is that supposed to be plugged somewhere? Or just reading atmospheric pressure?

That pipe is a vent hose which supposed to be connected to the airbox, it's from EGR on Eu3 version

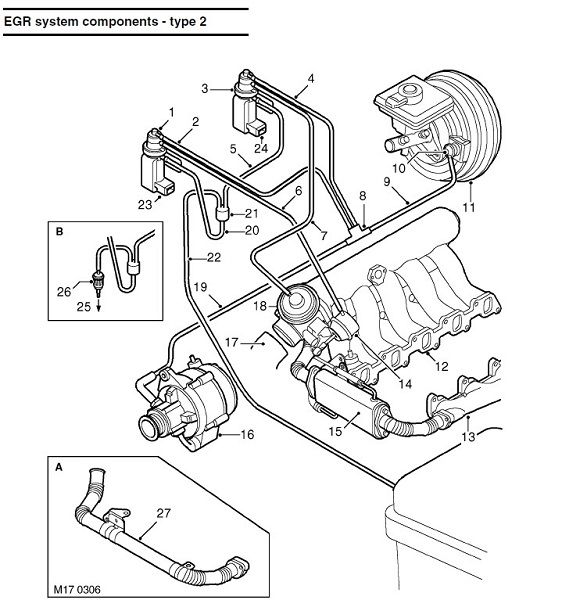

nr 22 in the pic

Master808 · Jan 19, 2019

Oh my gosh, you are obviously right ! I must be blind ... Thanks a lot guys!!!
