Steering box rebuild

This site contains affiliate links for which LandyZone may be compensated if you make a purchase.
busagsx1300

busagsx1300

Active Member
Posts
167
Location
Under my disco with a rain mac!
Hi All,

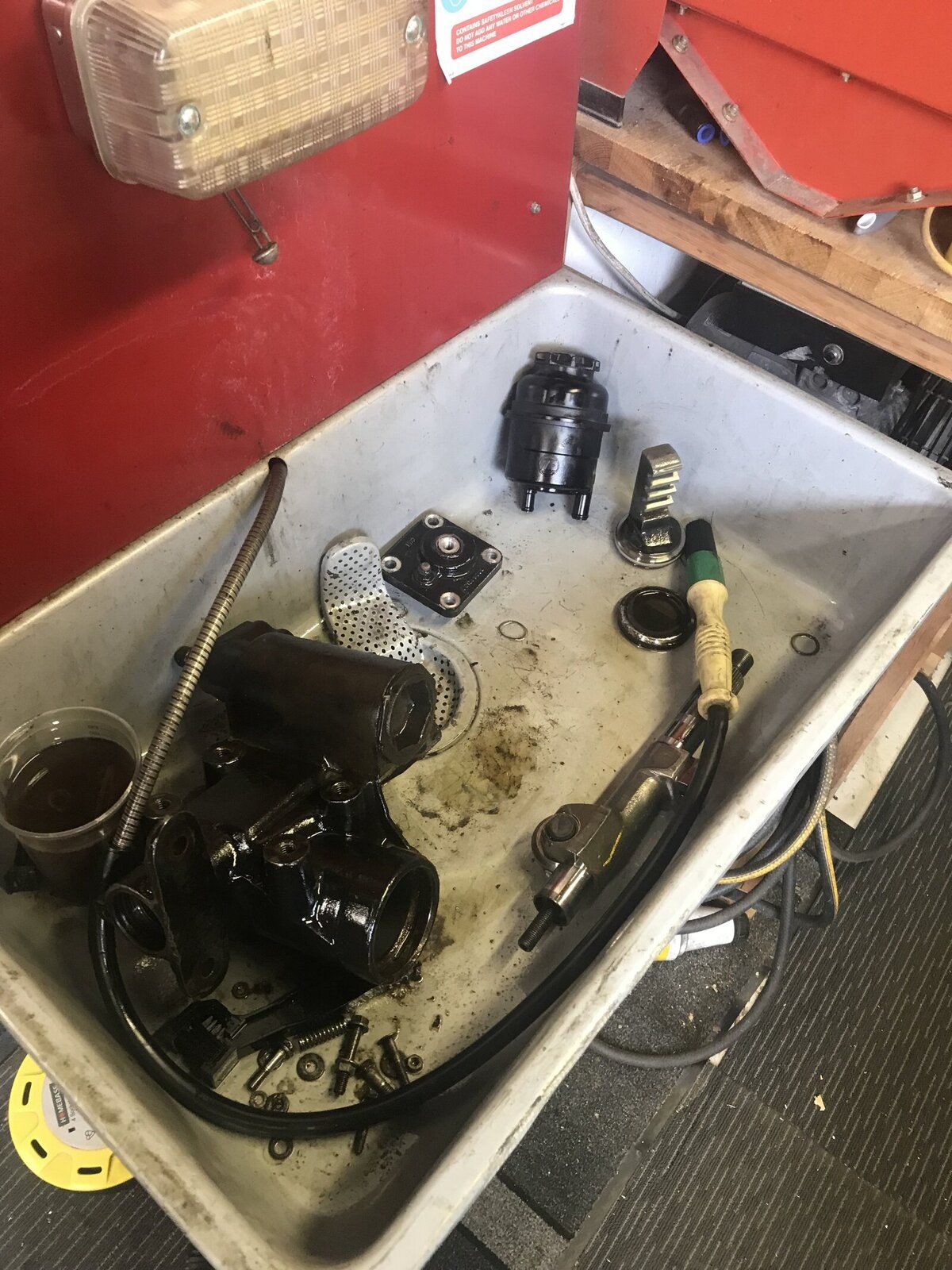

has anybody rebuilt the steering box ok, the only thing i'm struggling with is fitting the retaining ring back on the piston housing plate!

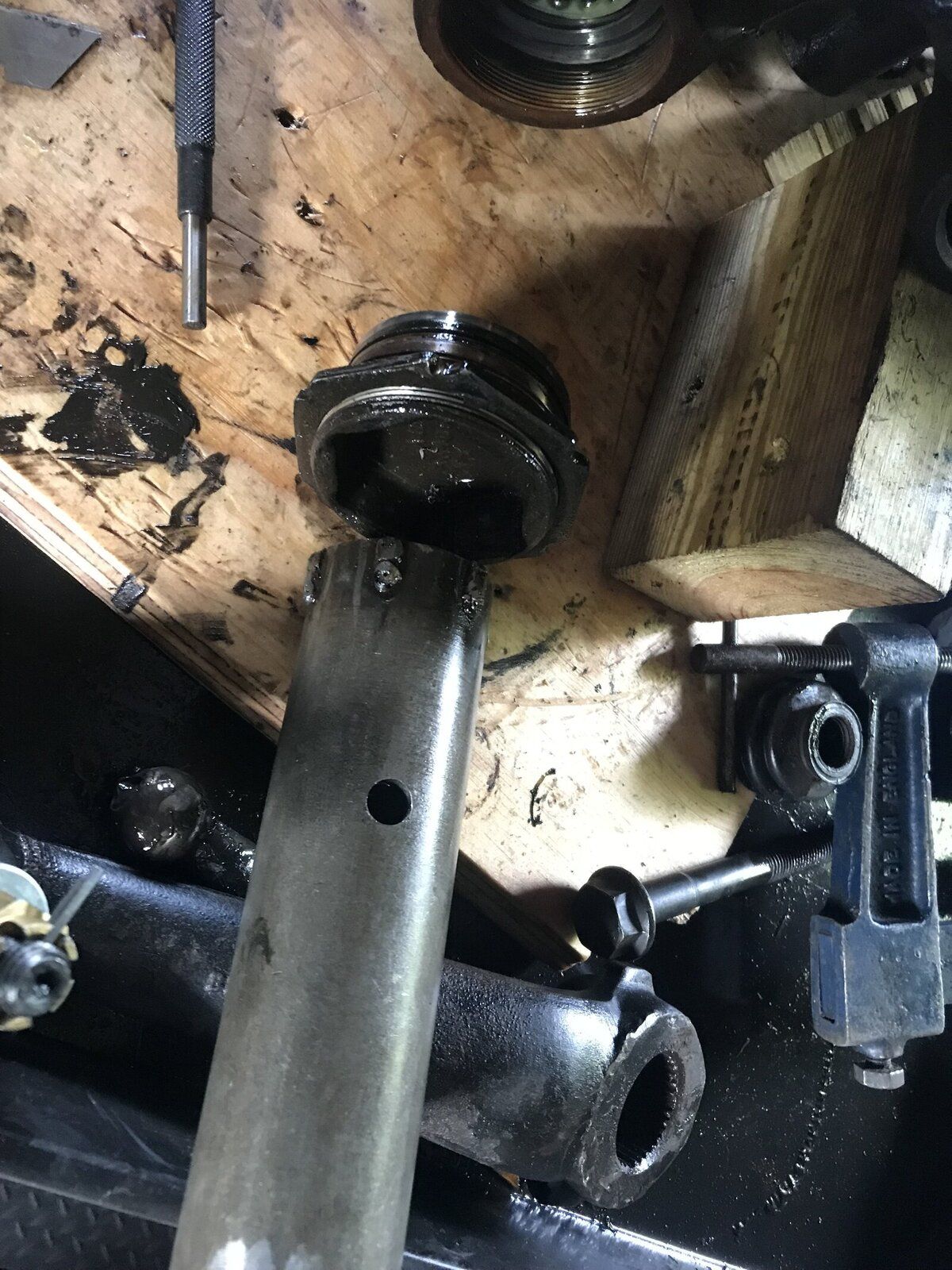

Everything else done ok. even making my own tools for the job but i have been struggling getting this back on, so hopefully someone has found a way?


Attachments

  • IMG_0920.jpg
    328.2 KB · Views: 122
  • IMG_0949.jpg
    336.5 KB · Views: 92
busagsx1300 said:
Hi All,
has anybody rebuilt the steering box ok, the only thing i'm struggling with is fitting the retaining ring back on the piston housing plate!
Everything else done ok. even making my own tools for the job but i have been struggling getting this back on, so hopefully someone has found a way?
Click to expand...
press or tap the cap carefully in so it sits further in than will do once working, hook one end in the groove using a largish hammer tap ring in starting where its just beginning to lay over the box housing and work your way round you need to hold the free end as flat as possible to box housing

Hi James, thanks for that, i have been trying that and it keeps springing out, it was a bar steward to get out and is slightly twisted so don't know if that's causing a problem! Didn't know if there was a way of clamping it tighter a dropping it in?

busagsx1300 said:
Hi James, thanks for that, i have been trying that and it keeps springing out, it was a bar steward to get out and is slightly twisted so don't know if that's causing a problem! Didn't know if there was a way of clamping it tighter a dropping it in?
Click to expand...
try it the other way round ,have you pushed the cap in enough, bigger hammer or better hits, ive built a considerable number and it allways works

busagsx1300 said:
Hi James, thanks for that, i have been trying that and it keeps springing out, it was a bar steward to get out and is slightly twisted so don't know if that's causing a problem! Didn't know if there was a way of clamping it tighter a dropping it in?
Click to expand...
did you use the hole in the side with a suitable sized pin punch to remove the ring

I did push the piston in a bit further, after i cleaned out the recess etc before i fitted all the new seals, oiled them all up as usuall
etc. But the ring is just being a sod to get back in!
If i could find i pipe of slightly smaller size i was thinking of compressing it in that and pushing it into place or something!

busagsx1300 said:
I did push the piston in a bit further, after i cleaned out the recess etc before i fitted all the new seals, oiled them all up as usuall
etc. But the ring is just being a sod to get back in!
If i could find i pipe of slightly smaller size i was thinking of compressing it in that and pushing it into place or something!
Click to expand...
persevere once you get the knack it will go in ,where you hit is vital hold it flat and just hit it were it is touching the inner edge of housing and keep it held down till enough is in it doesnt need holding
