Discussion in 'Land Rover Freelander' started by RO51, Jul 15, 2014.

< Previous Thread | Next Thread >
  1. RO51

    RO51 New Member

    Joined:
    Jun 11, 2014
    Posts:
    300
    Likes Received:
    1

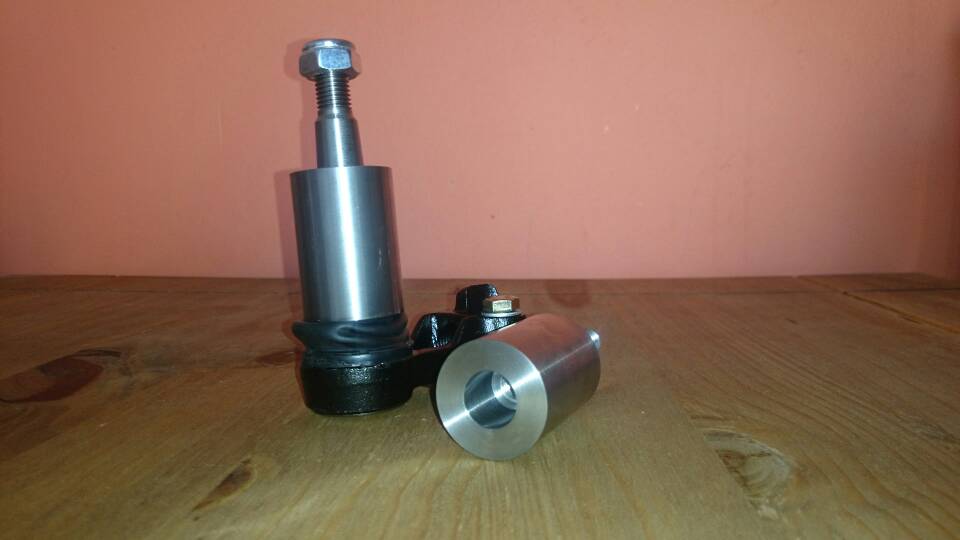

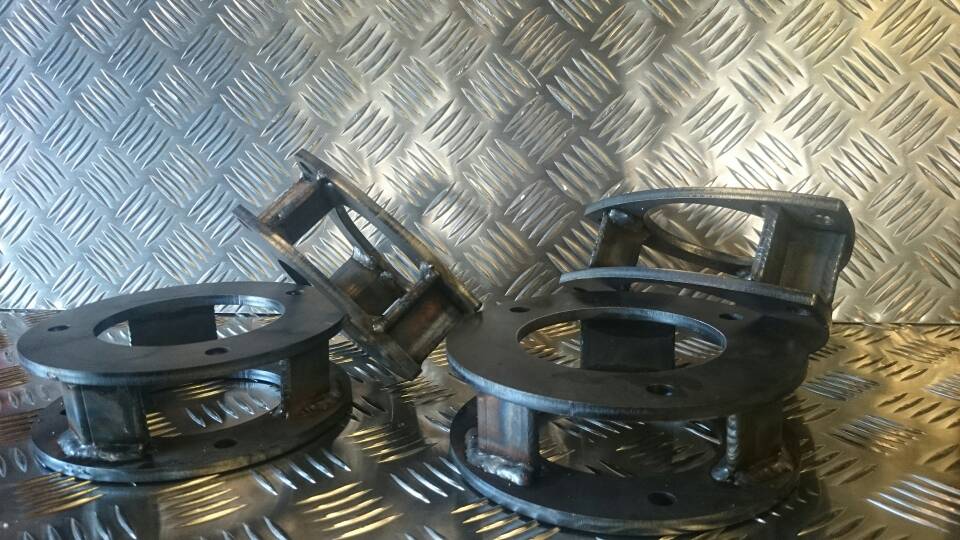

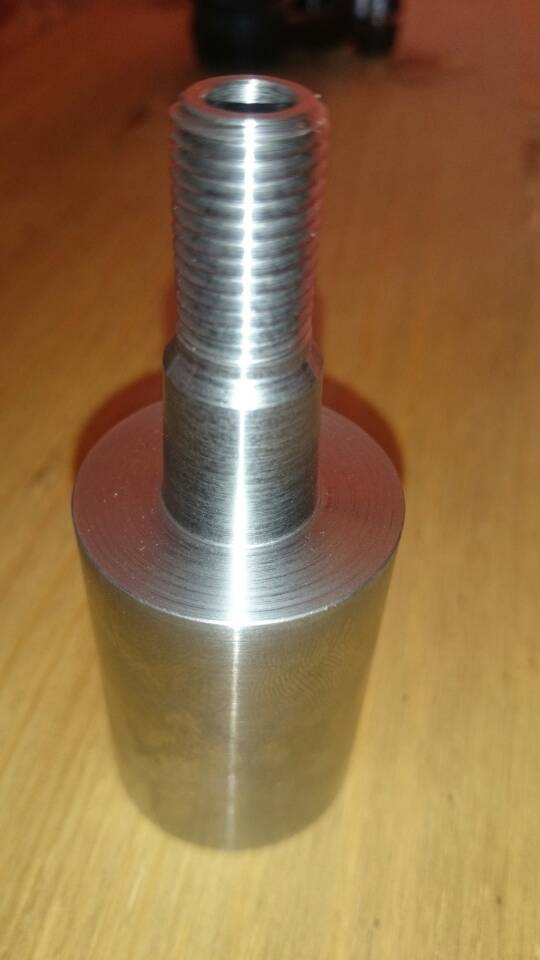

    Well the machined parts I collected today, the lift plates I have made and had powder coated and there back too. I have a few sets a couple to test to destruction at work I'm making up a jig so I can apply a load of sheer force to them.

    Just a case of fitting and testing when I have some camber bolts

    Can't upload photos from my mobile phone tho I guess I need to be on a proper computer

  2. Kizzeh

    Kizzeh Well-Known Member

    Joined:
    Apr 9, 2012
    Posts:
    1,722
    Likes Received:
    15
    Location:
    Cambs
    Get tapatalk app on your phone then it's easy to upload pics.

  3. RO51

    RO51 New Member

    Joined:
    Jun 11, 2014
    Posts:
    300
    Likes Received:
    1
    [​IMG][​IMG][​IMG]

    Well fingers crossed this tapatalk works.... Can ya all see pics

  4. RO51

    RO51 New Member

    Joined:
    Jun 11, 2014
    Posts:
    300
    Likes Received:
    1
    Can someone please confirm that the photos are showing

    Cherry on top and all that &#128514;

  5. bukko

    bukko Well-Known Member

    Joined:
    Jul 22, 2011
    Posts:
    1,289
    Likes Received:
    56
    Location:
    Lake Somerset (but I'm a Landanna)
    Looking good! :)

  6. RO51

    RO51 New Member

    Joined:
    Jun 11, 2014
    Posts:
    300
    Likes Received:
    1
    Sweet it works lol
    Cheers for the heads up it means I can plague you lot with pics now

  7. ZDomZ

    ZDomZ New Member

    Joined:
    Nov 13, 2013
    Posts:
    1,723
    Likes Received:
    14
    Location:
    South Norfolk
    I still think that the tre extension needs to have a locking/securing method, what's the point of a nylock on the top when the internal thread isn't locking?

    But they do look good!

    Last edited: Jul 16, 2014
  8. RO51

    RO51 New Member

    Joined:
    Jun 11, 2014
    Posts:
    300
    Likes Received:
    1
    Ok I can see your point, the part will have a flat on both sides so an adjustable spanner can be used to tighten it onto the ball joint, through the center the is a hole to allow an Allen key to pass through into the Allen key slot in the ball joint it's self so it can still be tightened as normal or undone as normal.
    With the nylock on top the extension can't undo anyway but, if it's a concern you could always use thread lock on the ball joint end
    Hope that makes sense

  9. Dj4man

    Dj4man New Member

    Joined:
    Jul 6, 2014
    Posts:
    66
    Likes Received:
    0
    Location:
    Howardian Hills, Yorkshire
    What sort of lift will those give you then? 2"?

  10. RO51

    RO51 New Member

    Joined:
    Jun 11, 2014
    Posts:
    300
    Likes Received:
    1
    Yeah will lift two inches and the silver parts hopefully lift the steering arms up so I won't have to cut into the chassis legs for clearance on full droop

  11. jedi

    jedi Well-Known Member

    Joined:
    Jan 1, 2010
    Posts:
    2,293
    Likes Received:
    74
    Location:
    A Galaxy far far away.......
    I`d be happier if the cylindrical part was twice the thickness.....but thats just me and my OCD over engineering mind..:whoosh:

    Still looks good and if the material can withstand the forces involved....

    Well done pal..:clap2:

  12. Nodge68

    Nodge68 Well-Known Member

    Joined:
    Nov 15, 2011
    Posts:
    23,167
    Likes Received:
    5,593
    Location:
    Near Newquay
    I've 2 concerns.
    1 the ball joint extension is to close to the ball itself. This will, A: pinch the boot causing grease leakage and giving a MOT failure. B: restrict ball joint movement. This will load the track rod with a bending force.
    2 The internal thread needs to be locked in some way. Possibly by a bolt through the side, stopping the thread from rotating.

  13. jedi

    jedi Well-Known Member

    Joined:
    Jan 1, 2010
    Posts:
    2,293
    Likes Received:
    74
    Location:
    A Galaxy far far away.......
    What he says above too:)

  14. RO51

    RO51 New Member

    Joined:
    Jun 11, 2014
    Posts:
    300
    Likes Received:
    1
    Ok I could drill through a flat face and fit a grub screw to pinch the thread and lock it in place on the ball joint would this be ok?
    It's 35mm outside so is quite chunky
    As regards to pinching the rubber boot the distance from the bottom of the extension to the ball joint it's self is almost the same as the steering arms the ball joint has its full range of movement with no contact.
    Pics to follow with it at its own stopping point

  15. RO51

    RO51 New Member

    Joined:
    Jun 11, 2014
    Posts:
    300
    Likes Received:
    1

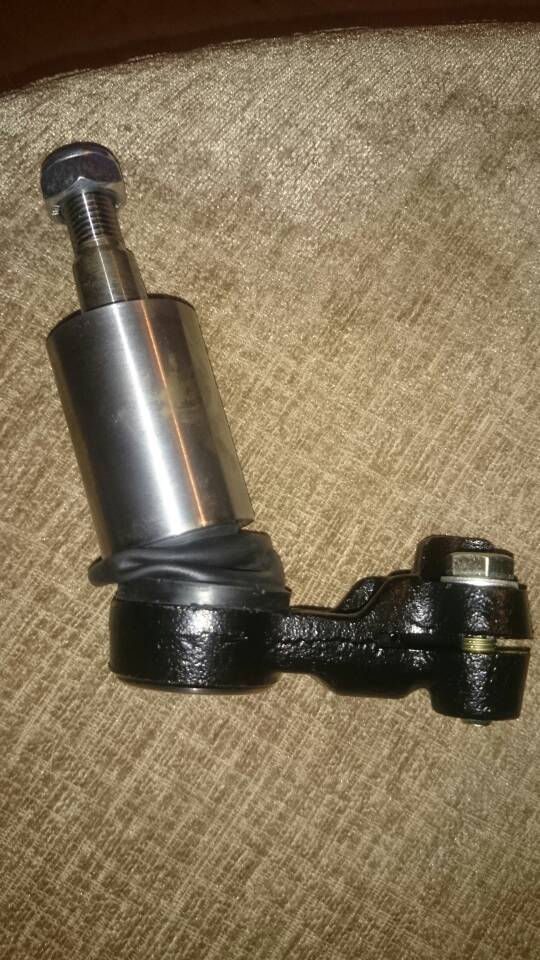

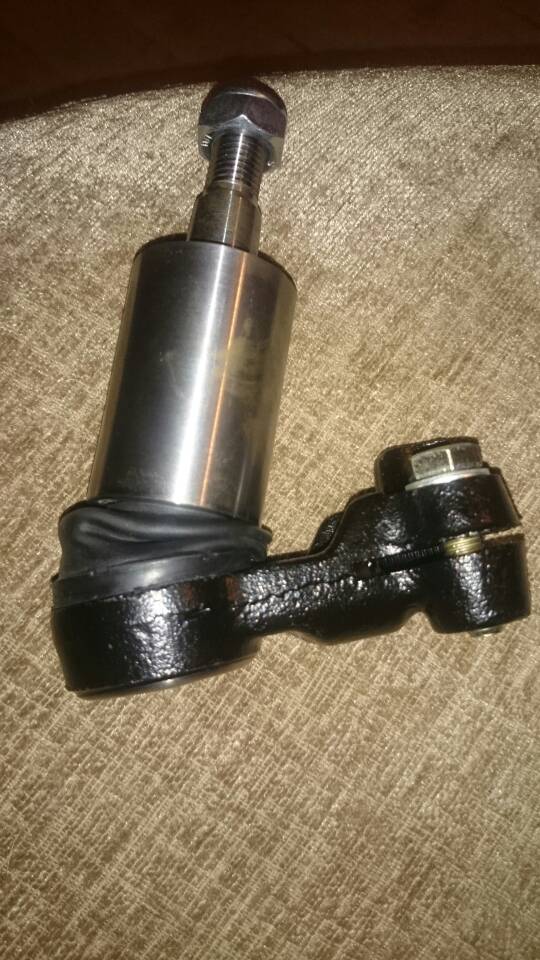

    [​IMG][​IMG]

    Even at this point I can still wiggle the rubber boot in the space that is available. It's not tight at all.
    I could put a bigger chamfered edge around it to give a smoother surface for the rubber, if it was to deform and come into contact wit that edge the it would slide rather than slice.

    Top comments by the way all. thanks for the input

    :D:D:D:D:D

  16. Nodge68

    Nodge68 Well-Known Member

    Joined:
    Nov 15, 2011
    Posts:
    23,167
    Likes Received:
    5,593
    Location:
    Near Newquay
    Looking at the latest pictures, the joint looks to have full movement so that's good.
    Something that worries me that in the way ball joint taper isn't going to be drawn in tight enough. I'll try to explain why.
    All ball joints use a taper lock type joint. This means that the taper takes all steering loads, the nut is there simply to pull the taper into place and keep it there. The taper won't turn with the nut, it is simply drawn into firm interference fit with the female taper of steering arm on the strut.
    Now with your extension do dad, the nut is replaced by a threaded section inside the extension above the taper. With this arrangement, you will need to turn the taper to tighten the nut. This is going to make full tightening of the nut (threaded section) impossible due to the drag of the taper. It's difficult to explain in writing so I hope you can see what I'm trying to explain. Basically a taper is designed to prevent turning, but it must be turned for the nut to tighten fully.
    Then the actual mechanics of tightening become a question too. There isn't any way to tighten the extension on to the ball joint, other than the friction of the joint itself. This will also need to be overcome.
    It this moment in time, I'm not sure how to get around either of these issues.

    Last edited: Jul 17, 2014
  17. RO51

    RO51 New Member

    Joined:
    Jun 11, 2014
    Posts:
    300
    Likes Received:
    1
    Humm yeah I do see what you mean.... It's almost a crushed fit when tightening,
    Well on first impressions just by pinching it on by hand it seems to pull up ok I'm yet to machine the flats on full a full tighten up.
    Both the new ball joint and the extension faces are quite "polished" is there a lubricant that could be used when fitting that would allow the two mating faces to slide on each other and then dry. Could potentially solve that issue

  18. 19NMC

    19NMC Member

    Joined:
    Apr 16, 2014
    Posts:
    98
    Likes Received:
    0
    Location:
    Preston UK
    Been reading this thread with great interest because I love an invention!! Have to agree with the above about tightening it against the friction of the taper. There's no way (in my humble opinion) that you could get the taper pulled in enough by having to turn it. Only way I can see of doing it is by splitting your component (yes I know it means more parts which might not be good). I'll try to explain in words but it may be difficult! Imagine cutting it across where the internal taper ends, put the tapered section on, and then have two flats on the remaining section to tighten it all on. Then you could possibly drill the top section and lock it with a pin. Just thinking out loud but it may take something along those lines. Assuming anyone knows what I'm actually trying to say !!!!! :confused:

  19. Nodge68

    Nodge68 Well-Known Member

    Joined:
    Nov 15, 2011
    Posts:
    23,167
    Likes Received:
    5,593
    Location:
    Near Newquay
    I too have been thinking about this problem. The only way I can seethe taper being held correctly, is to use a 2 piece extension. This could consist of a cup shaped lower section, it's bottom would be machined to match the track rod end taper. This would allow the joint taper to be fastened correctly with the lock nut.
    The upper inner edge of the cup section could be threaded with a large fine thread. The upper section would consist of the taper and thread as on the current single piece extension. On the lower part of the upper section would be a thread to screw it into the lower section. There would need to be a shoulder on the upper section to tension the thread. This would prevent bending and help keep dirt and water out.
    Hopefully that makes sense.
    This is I feel, the safest way forward with this idea.

  20. PlattyR56

    PlattyR56 New Member

    Joined:
    Jan 4, 2014
    Posts:
    165
    Likes Received:
    0
    Location:
    Gatwick
    As you said, just whack some thread lock on the thread of the original TRE's, they'll be stout.
