Steep learning curve

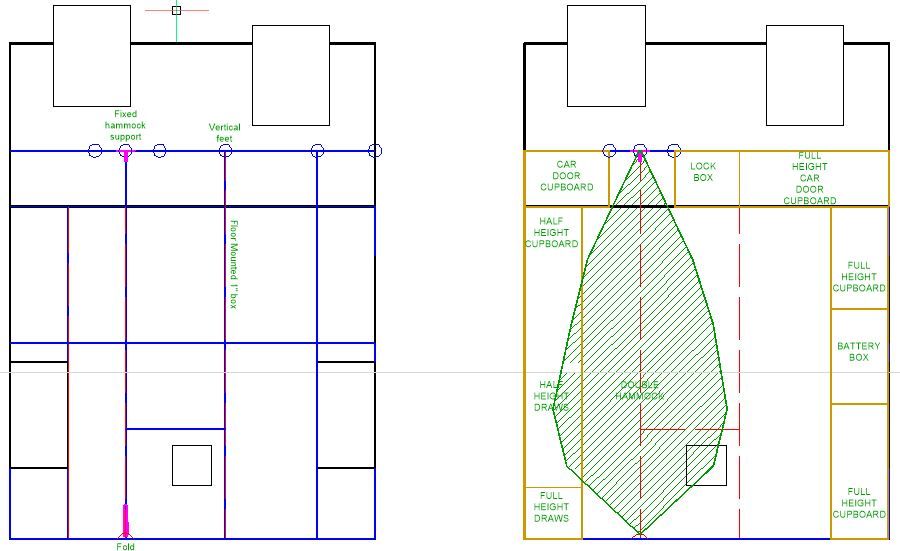

Thoughts @dieseldog69 ?

That's not bad that, but what are you going to use to make the cupboards out of?

I'd be very weight conscious.

dieseldog69 said:

I'd be very weight conscious.

Click to expand...

So would I. Unsure if I could fit in the hammock

Hicap phill said:

So would I. Unsure if I could fit in the hammock

Click to expand...

Lol!
Double hammock is huge. I'd get my mate to make cupboards out of Mdf. The inch box section wouldn't be too heavy - 1 big frame doesn't weigh much past 10kg. The hammock supports I am thinking having one fixed at front passenger side then a flip up one on rear passengers. Tow eyes on each end to bolt to.Was just brainstorming..

You giys thibk theres anything practical im missing there? I want to be able to go on lanes trips. One cupboard atleast for spares. Went with hammock as it packs away and also can get dog under but he'll end up in it no doubt lol

Ply for cupboards sorry. Only thin

I would only put items in sealed boxes. These can then lock in runners as your cupboards will shake to bits laneing.

Raise the floor & slide them out through back door.
Unsure about the hammock I know a double air bed (fits 2 ) lies in the back of a disco

I'd rather a slide put style bed or hammock than an air bed. The hammock is favourable due to packing away in a cupboard.. or box! So your thinking slide put almost like a gun cabinet/box

That would mean full floor raise back to front also? Cheers

Forgot yours is a 3 door.
You could hinge the floor & use struts to stop up.
Only problem would be you can't get to stuff once inside.

Hicap phill said:

Forgot yours is a 3 door.
You could hinge the floor & use struts to stop up.
Only problem would be you can't get to stuff once inside.

Click to expand...

It is 5 door. Yes this is true, hence the hammock also. Could go for draws with the sealed boxes rather than cupboards and use locks to stop shaking/sliding?

Rear seats out though hence the legs to prob it to same height as boot behind the seats if you know what I mean

Even easier now.
I used the rear passenger doors & build as 2way storage cupboards. You can acsess from inside or outside.
I Put an Ali bulkhead behind front seats keeps all the kit safe.
You can get good storage space in the rear foot wells.
I do not have any photos of my old conversion. Mine was built for motorsport recovery.

Camping trips will be fine with built in cupboards and stuff, Phil is right about the rattling out of place on laning trips though!!!

Certainly framing it out and fitting a false floor should be considered as it enables you to keep everything safe, low centre of gravity and if you were to design and build them that way then you could almost have full length roller draws

Yes and yes. @dieseldog69 is kindly donating a bulkhead and I was planning to put two way cupboards there. I could use that for the stuff I need to hand if camping. Tools spares and sleeping equipment can all go under raised floor. Steel or wood for raised floor frame/stud work? I could make it out of frame without issue. Welding definitely is useful

Do away with the cupboards down the sides on the plan and replace with runner gun style draws

Who's been nicking frames lol

resto_d1 said:

Yes and yes. @dieseldog69 is kindly donating a bulkhead and I was planning to put two way cupboards there. I could use that for the stuff I need to hand if camping. Tools spares and sleeping equipment can all go under raised floor. Steel or wood for raised floor frame/stud work? I could make it out of frame without issue. Welding definitely is useful

Click to expand...

If it's going to be semi-permanent then I'd be tempted to build a frame out of 25mm box section and angle so and then the ply can be bolted to the top and the roller draws would be easy to fab up an mount.

resto_d1 said:

Who's been nicking frames lol

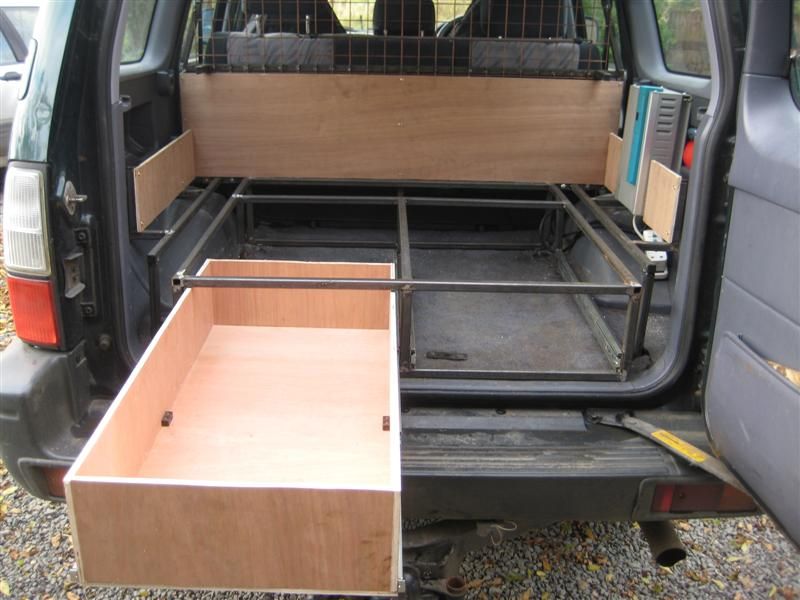

View attachment 163114

Click to expand...

Boom!!!

Just like that!!!

dieseldog69 said:

Boom!!!

Just like that!!!

Click to expand...

exactly! Shame to lose the height though. I might go a bit more now profile
