Disco 2 Starter motor

Discussion in 'Land Rover Discovery' started by Efrem, Oct 28, 2018.

< Previous Thread | Next Thread >
  1. Efrem

    Efrem New Member

    Joined:
    Jan 17, 2018
    Posts:
    9
    Likes Received:
    0
    Location:
    Brecon, powys
    Hi,I recently posted regarding our disco 2 td5 commercial having trouble starting or rather not starting.thought it was immobilzer but after following a few steps which we were guided to try out we found the starter motor selonoid has gone.we have bought another starter motor and have tried to replace. Undone the bottom two bolts but really struggling with the top bolt. Consulted the Haynes manual which just says undo the bolts and remove.i know I suffer from fibromyalgia but 3 hrs trying to remove the top bolt is ridiculous. Can get my finger tips on it but can't get a socket or even a spanner on it.this is done from underneath as unable to get to it from above.any any ideas or tips would be greatly received as then hopefully after many week's I'll have a working truck. Thanks you

  2. jamesmartin

    jamesmartin Well-Known Member

    Joined:
    Dec 8, 2010
    Posts:
    91,752
    Likes Received:
    20,136
    Location:
    louth lincs
    underneath with a suitable length extension and a decent ratchet thin wall 15mm socket from underneath you can get help with someone at the top guiding socket on with a telescopic magnet or similar or i reach round from box side with the other hand to guide it on

    Andy Warren and Intestinalworm like this.
  3. brianconwy

    brianconwy Well-Known Member

    Joined:
    Nov 1, 2007
    Posts:
    1,112
    Likes Received:
    256
    Location:
    conwy, north wales

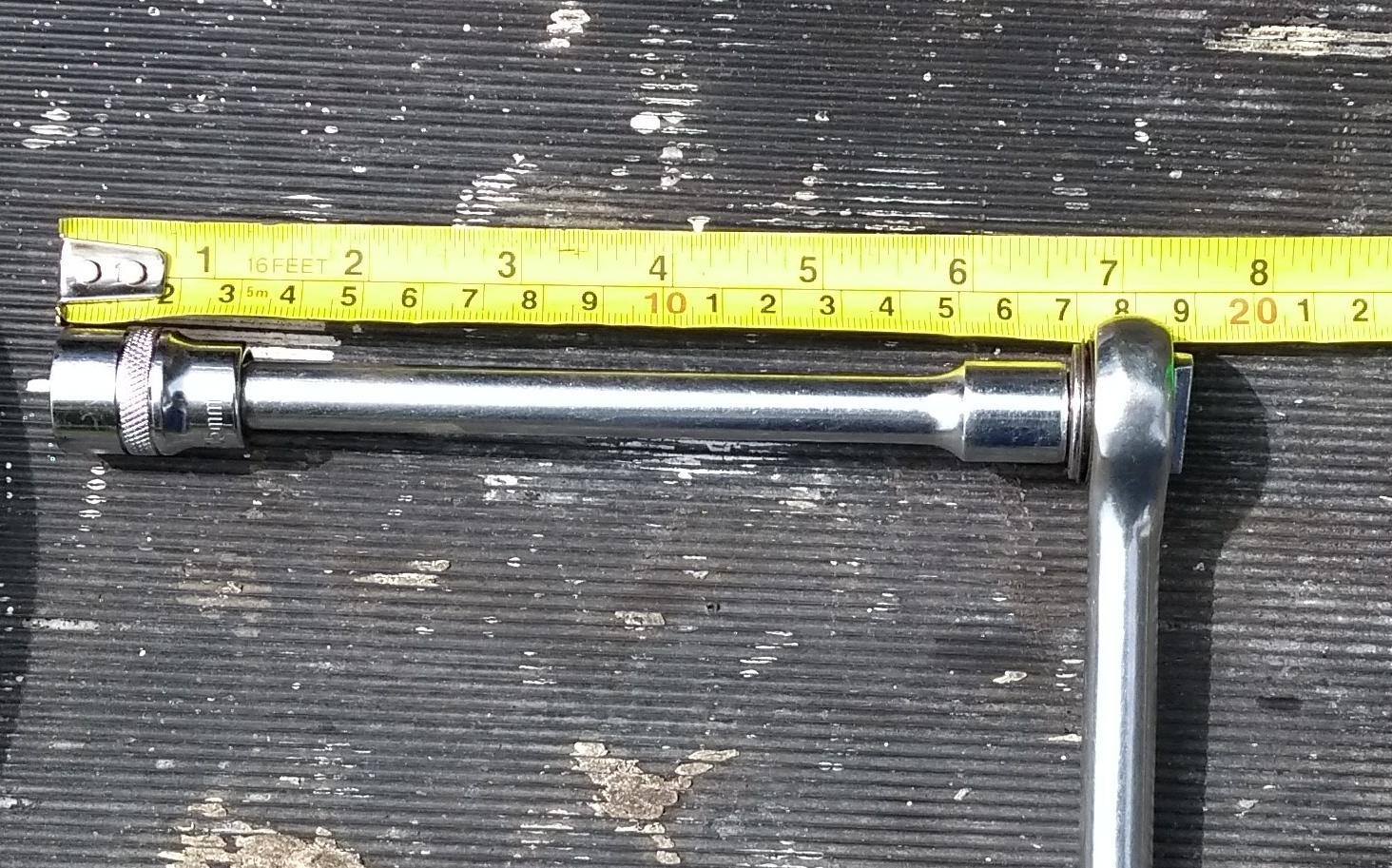

    I find the easiest way on mine is to set up extensions so that the distance between the back of the socket wrench and the end of the socket is between 18cm and 19cm. Any longer and there is not enough room. As said above with your head to the front of the car you can feel the nut with your left hand. You can probe with the socket and extension with your right hand and then fit the socket driver carefully to not dislodge it. Fun the first time though. It is one of these things where once you have done it once then it is quite easy.
    Starter motor nut.jpg

    Andy Warren and Intestinalworm like this.
  4. Bobdog

    Bobdog Well-Known Member

    Joined:
    May 1, 2012
    Posts:
    4,117
    Likes Received:
    4,912
    Location:
    Horsham West Sussex
    Just a thought (and you probably have done,) but have you tried cleaning up the small spade type connector to the solenoid? I had exactly the same symptoms as you, thought I was going to need a new starter motor, and all it turned out to be was a loose/dirty connection. Cleaned it up and it's fine.

    neilly and Shimsteriom like this.
  5. neilEbardsley

    neilEbardsley Member

    Joined:
    Apr 23, 2012
    Posts:
    41
    Likes Received:
    3
    I recently just bought a starter repair kit and replaced the plunger, and cleaned the contacts, with the starter on the car so avoid the problem of removing the starter.

    Perhaps not a long term solution but working for me

  6. Jamiegreen

    Jamiegreen Well-Known Member

    Joined:
    Jul 30, 2017
    Posts:
    614
    Likes Received:
    151
    Location:
    Wales
    Removed mine today, 4" extension bar (I think) with a 15mm socket and 3/8 ratchet. its a bit fiddly and took me a few mins to get it on, but certainly possible, all done from underneath btw.
    Mine has just been clicking and not firing, after taking out realized its a crappy aftermarket one, so putting a repair kit on my genuine spare one and fitting that.

  7. Jamiedc

    Jamiedc Member

    Joined:
    Mar 10, 2021
    Posts:
    15
    Likes Received:
    7
    Location:
    Isle of Wight
    Hi mate. Just wondering if you could give me some guidance. Know this post is old. I'm having the same issue with the clicking and not firing. I'm not entirely sure how to locate the starter motor. Do you happen to have a diagram of where it is. Just got some advice that I need to give it a little knock.
    Not a long term solution but will get it going...

  8. Jamiegreen

    Jamiegreen Well-Known Member

    Joined:
    Jul 30, 2017
    Posts:
    614
    Likes Received:
    151
    Location:
    Wales
    Hey, it's pretty hard to miss once your under. Facing the car from the front it's to the left side and towards the back end of the engine about half way up the side.

    Intestinalworm likes this.
  9. Jamiedc

    Jamiedc Member

    Joined:
    Mar 10, 2021
    Posts:
    15
    Likes Received:
    7
    Location:
    Isle of Wight
    Got it!

    Intestinalworm likes this.
  10. Intestinalworm

    Intestinalworm Well-Known Member

    Joined:
    Nov 5, 2017
    Posts:
    554
    Likes Received:
    112
    Location:
    Australia
    This, but I used a wobble extension with the thin walled six-sided socket to get a little bit of articulation - did it all from underneath. Soaked the area with penetrant before-hand, and put a little ball of Blu Tac inside the socket so I didn't drop the bolt.

    Andy Warren likes this.
