Speaker replacement

Hello all.
It's probably been covered before, but i took some pictures when changing my front speakers, and thought I would share.

I bought a set of 13cm Pioneers of Ebay. Similar to these.

They have a mounting depth of less then 50mm, which means they will not interfere with the window. (according to this thread, thats the magic depth)

Remove doorcard, easy enough, a couple of screws and your there.

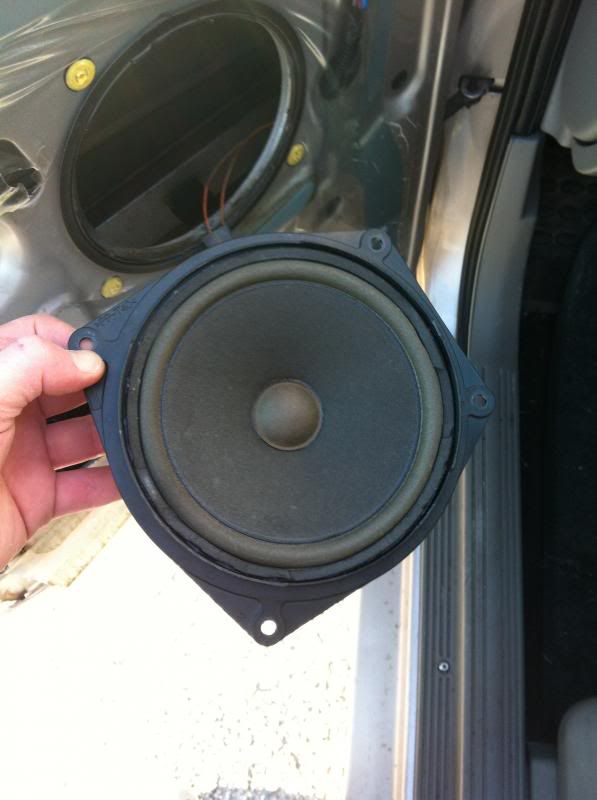

Remove speaker, 4 screws.

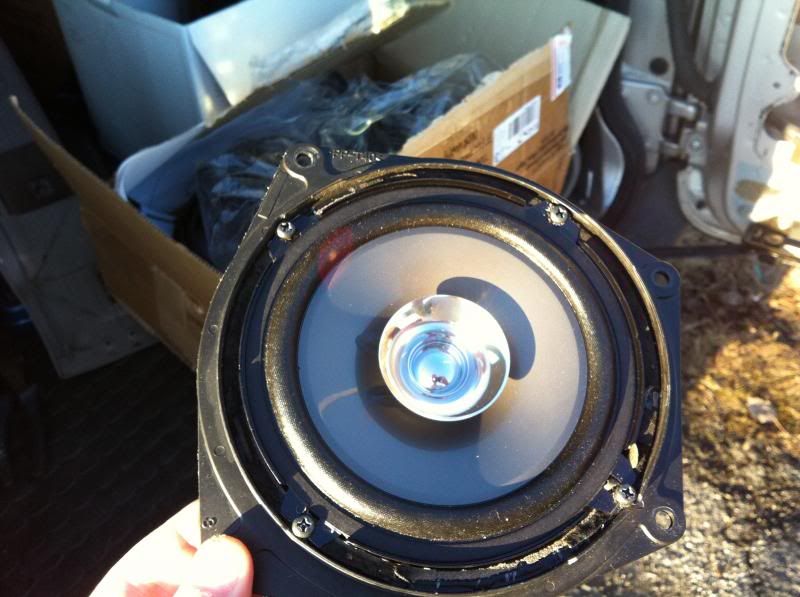

I choose to destroy the old speaker to save me the time of making a new mounting bracket.

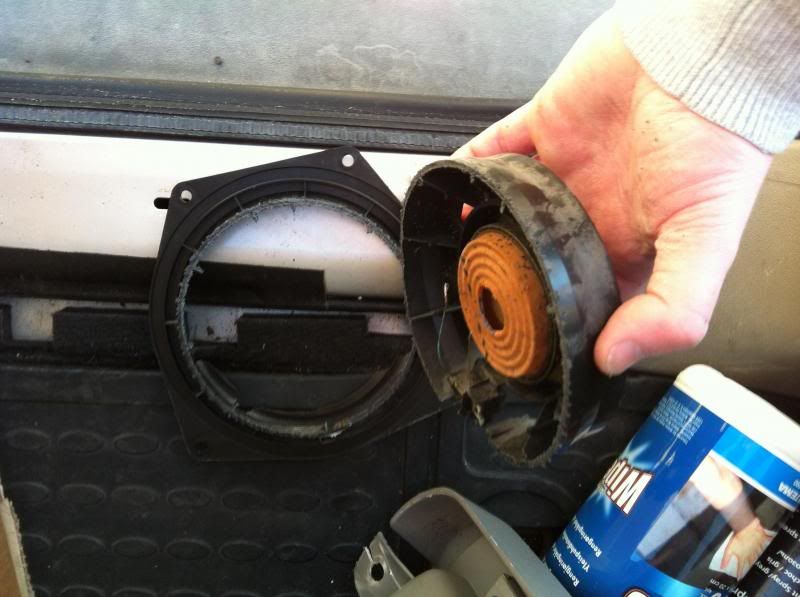

Simply peel away the old speaker, and I used a saw to remove the whole back of the original speaker.



I then cut the mounting "things" (don't know the English word for it) away, to make them fit into the original speaker mountings.

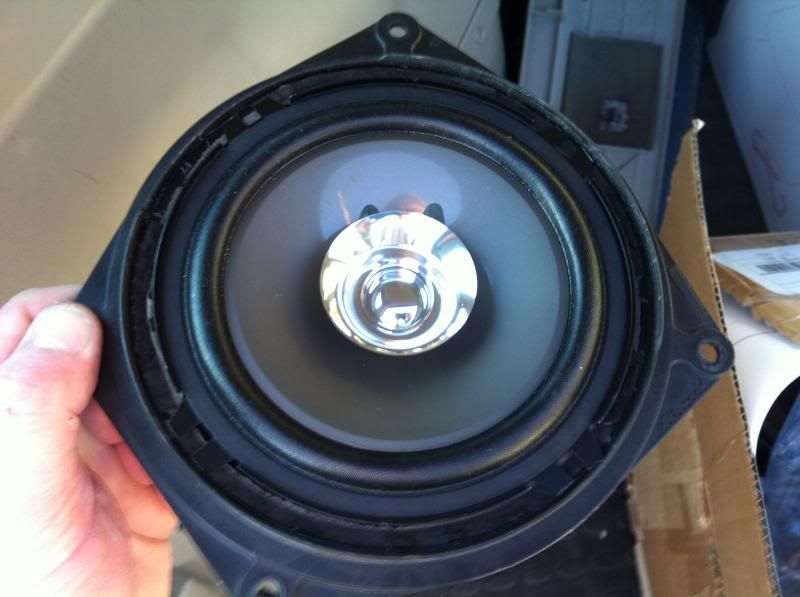

Before:


After:




Cut the original wire, and use the spade connetors that is supplyed with the speakerset to wire them up.

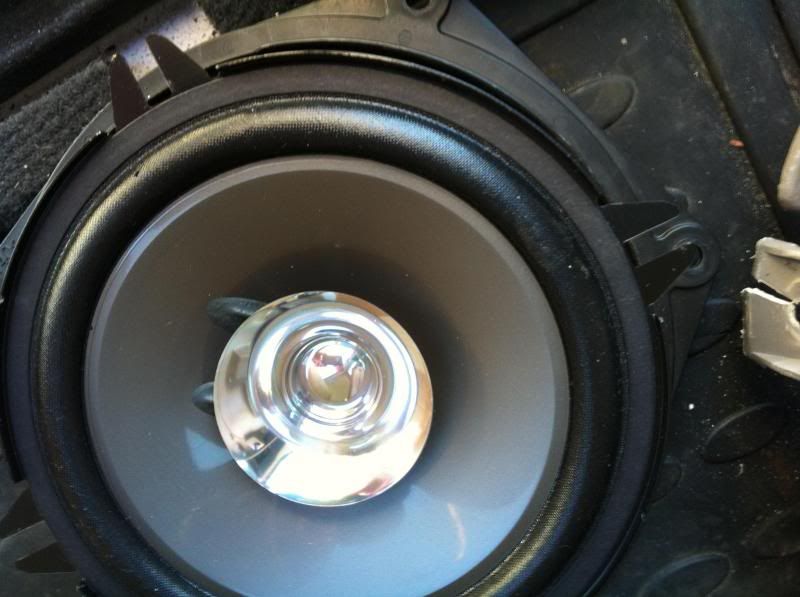

Refit :



Finished:




As I said before, It's probably been covered before, but hey, one more thread for people that search for a speaker replacement in their Freelander.

Good write up. Never occurred to me to destroy the original speakers to get a good mounting plate when I did mine.

Very nice job,
Need to replace mine soon as the cracklings had started!

Great right up mate deffo a good idea to break the old crappy ones. might be able to do something like this once i can get mine to be reliable first lol

Good job! and thanks for the pictures,

how many Watts, how do they sound?

hiya

good thinking about using the existing bracket, now u know everyone will copy you, lol

have u replaced the rears yet please, as ive done the fronts but cant find good ones for the rear, as it looks like some of the metal will need removing

cracking job mate and most appreciated u sharing

gary

Thanks guys, though this would be old news for the members of Landyzone. Glad if someone find it usefull.
Baptista, 200w (Which translates into about 35 real watts.. ), sound much better acctually, not much bass, but I'm thinking about installing a small active sub, one of those 8" that fits underneath the seat.

Gstuart, no, I have not replaced the rear ones yet, changing speakers as I change the window mechs, yes all 5 was broken. Anyone got a picture of the inside of the doorcard for the rear doors?

im looking to changing all my speakers for decent ones and found this baby 6.5" sub will fit nicely under the passenger seat

http://www.ebay.co.uk/sch/i.html?_t...ubwoofer+Sub+Woofer+Single&_sacat=0&_from=R40

matt1295 said:

im looking to changing all my speakers for decent ones and found this baby 6.5" sub will fit nicely under the passenger seat

http://my.ebay.co.uk/ws/eBayISAPI.d...edoff=true~~wholeDiv240~~ithr240~~myRCP240_ct

Click to expand...

Hello Matt! Thank your for your tip, I was not able to see the item using your link though? I was just redirected to my ebay home/start page?

i have edited the link with a working one dunno why it didnt work tho lol

matt1295 said:

i have edited the link with a working one dunno why it didnt work tho lol

Click to expand...

Nice! Thank you.

im looking at one myself i dnt need alot of base and since i took out my CD changer under the passenger seat ive being looking to find something to fit under it and at 6.5" and at 7cm depth it was and is looking good
