Other solar battery chargers

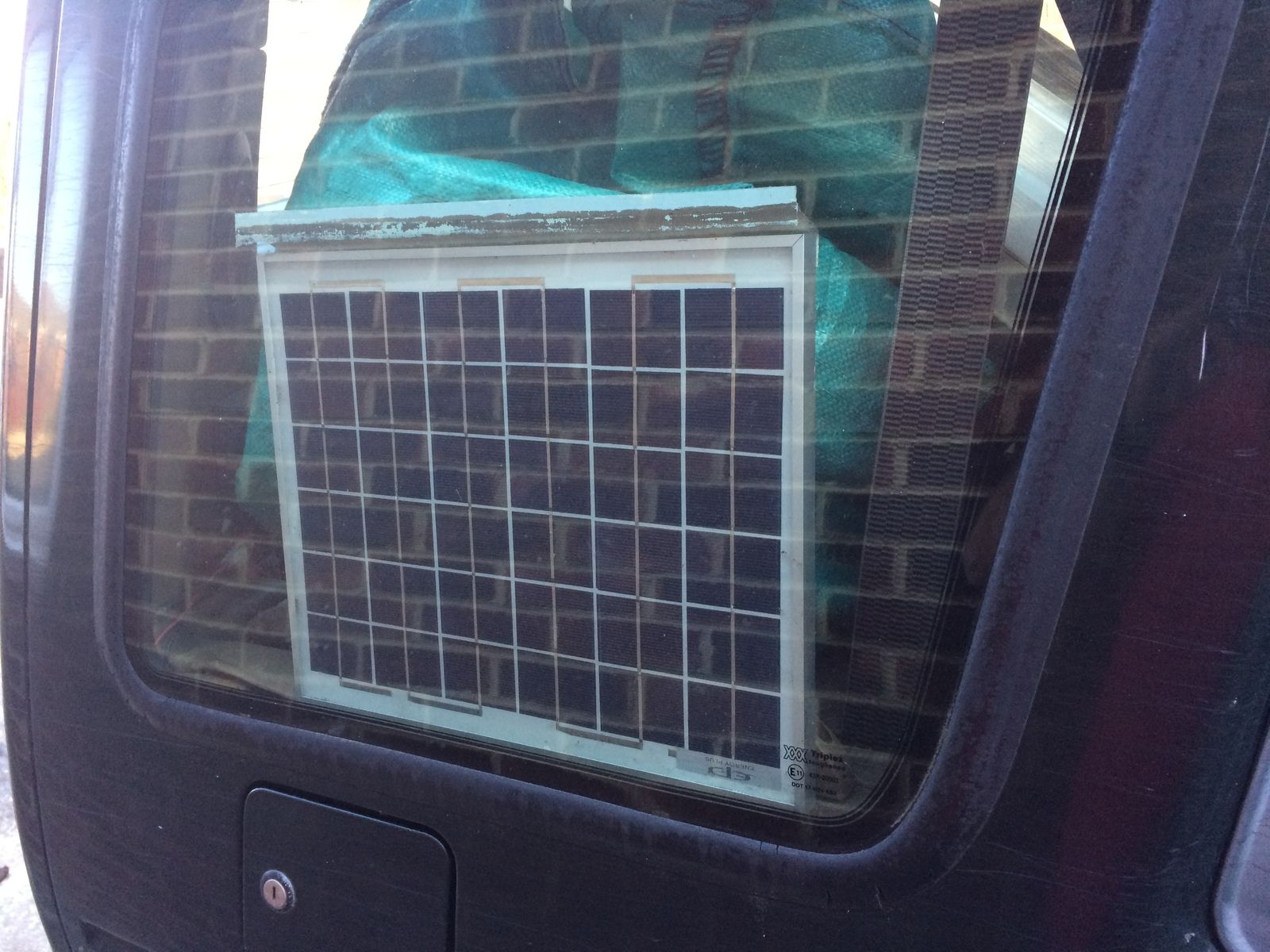

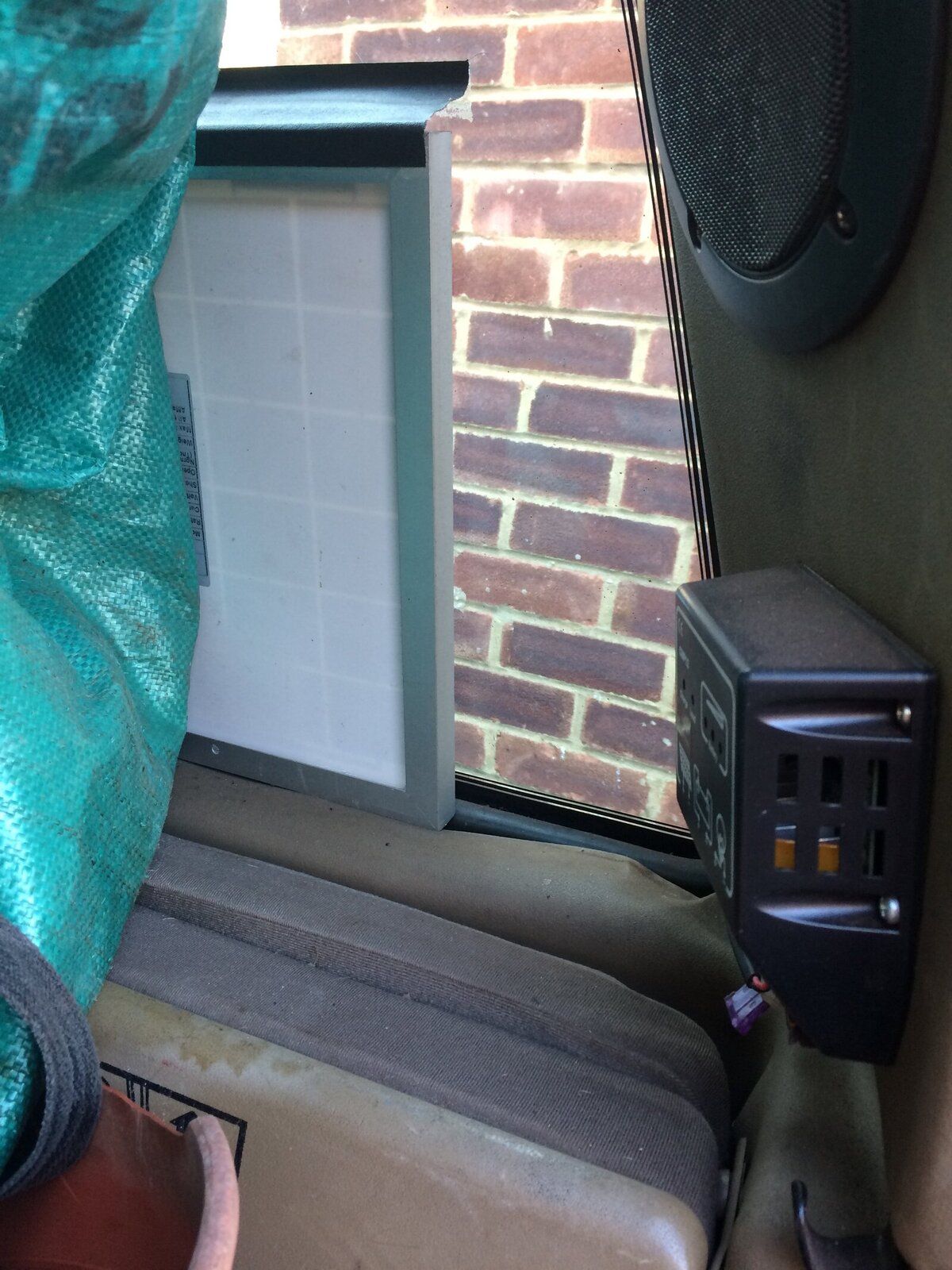

i have mine in rear quarter window, with controller inside, connected to permanent live to trailer electrics..

pics to follow




http://www.ebay.co.uk/itm/CMP12-10A...786892?hash=item1ecb4c308c:g:RPgAAOSwxxdZZ2ky

The Mad Hat Man said:

i have mine in rear quarter window, with controller inside, connected to permanent live to trailer electrics..

pics to follow

Click to expand...

perfect many thks

just seen this

http://www.ebay.co.uk/itm/20w-Light...le-/261912374098?_trksid=p2349526.m2548.l4275

but as u know i listen to u guys and will start working out what i need and then go from there , i.e. capacity etc needed

gstuart said:

perfect many thks

just seen this

http://www.ebay.co.uk/itm/20w-Light...le-/261912374098?_trksid=p2349526.m2548.l4275

but as u know i listen to u guys and will start working out what i need and then go from there , i.e. capacity etc needed

Click to expand...

Hi Gary, not wanting to make it seem like I am teaching you to suck eggs, but something to be aware of Gramps.

I guess you are going to chuck the l'ill ones in the back at some point ( It is a 7 seater init?)

Then you might want to get something kid proof, or else it will not last long.

Cheers

The Mad Hat Man said:

yes.. but not when the engine is running

Click to expand...

of course , sorry being dense, doh

so is it ok to then leave the solar panel fitted permanently with the engine running , if it has a protector fitted which if i'm starting to understand will isolate the solar panel anyway as the alternator will be charging the battery up

will wait for the other post , ref pics etc

thks again

neilly said:

Hi Gary, not wanting to make it seem like I am teaching you to suck eggs, but something to be aware of Gramps.

I guess you are going to chuck the l'ill ones in the back at some point ( It is a 7 seater init?)

Then you might want to get something kid proof, or else it will not last long.

Cheers

Click to expand...

not at all, i always prefer to ask and plan what i wish to do, so am more than happy to take advice , as at the end of the day will get better results and all done properly , but also not going backwards or as u quite rightly say , buying something that may be redundant in the future

good call ref the back seats , would put the dogs on the back 6-7 seat, or just leave them folded down so they have the entire boot , grandchildren on the middle seat , so thought the back side boot window for the solar panel in theory should be the safest place,

have already got the cooler will write down the watts reg

then if i may then be able with help work everything out to give me the base sofar watts needed plse

right , working out what wattage volts i need please

this is my cooler heater unit

The Mad Hat Man said:

i have mine in rear quarter window, with controller inside, connected to permanent live to trailer electrics..

pics to followView attachment 129208
View attachment 129209
View attachment 129210
View attachment 129211

http://www.ebay.co.uk/itm/CMP12-10A...786892?hash=item1ecb4c308c:g:RPgAAOSwxxdZZ2ky

Click to expand...

thks so much for taking the time posting the pics , perfect as that's the kind of thing i wish to do

not sure what type wiring etc i have regarding the tow bar electrical socket and tonwork out what size solar panel i need ??

do you want to run it from the charger, or just top up a storage battery?

100W to run it, 20W to top up a battery

The Mad Hat Man said:

do you want to run it from the charger, or just top up a storage battery?

100W to run it, 20W to top up a battery

Click to expand...

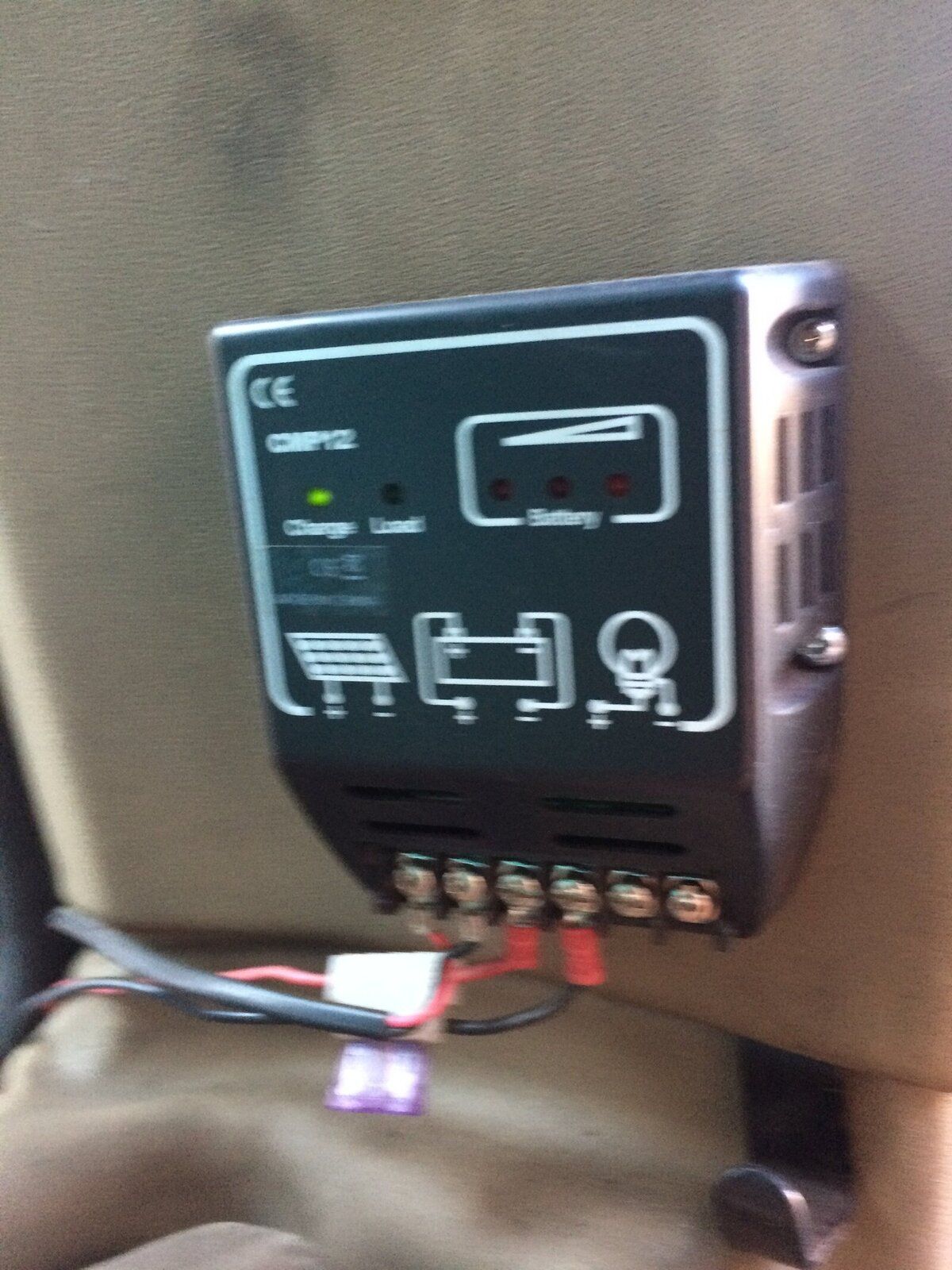

that's a point , did wonder from ur pic what the far right terminals were, assume that to run power off the solar panel

will have to ponder about that , just going to make a cuppa

yes - thats for a load.

The Mad Hat Man said:

yes - thats for a load.

Click to expand...

many thks , what power capacity is ur panel plse

so really my main goal would be to protect the cranking battery , keeping it charged whilst the engine isn't running by the solar panel

doing the work in stages , mainly down to cost

First work out size of solar panel wattage and how to connect it to a permanent live, i.e. towing socket or direct to cranking battery

1 ) fit a solar panel with protector

2) fit an aux deep cell battery along with a split charge system
A) unsure to either fit the solar to the aux battery or keep on the cranking battery

be able to if cranking battery was drained , to have the facility of connecting the aux battery temp to start the disco

hopefully that makes some sense , ?????

alternator is 150amps

mine is 10watts, but it isnt really man enough. 20W+ would be better.

gstuart said:

from what i'm reading , it seems i can connect a solar panel up to 10 watts to the battery and leave it permanently connected even with the engine running

if i go above 10 x watts it supposed to have a regulator fitted ??

Click to expand...

I have cheap 10 to 20 watt solar panals to my shed roof keeping my jetski and boat battery's on charge (like a float charge )
however they do not regulate very well ...eventually the voltage creeps up and keeps going until the battery's boil if left unattended for long periods ....the information of the solar panel of voltage is crucial ..my 10 w solar panel can put out 18 volts but amperage is low

when adding in a solar panel to a car its best to work out power demands is needed ..once you source a nice size solar panel .... then the correct regulator to suit that desired voltage panel

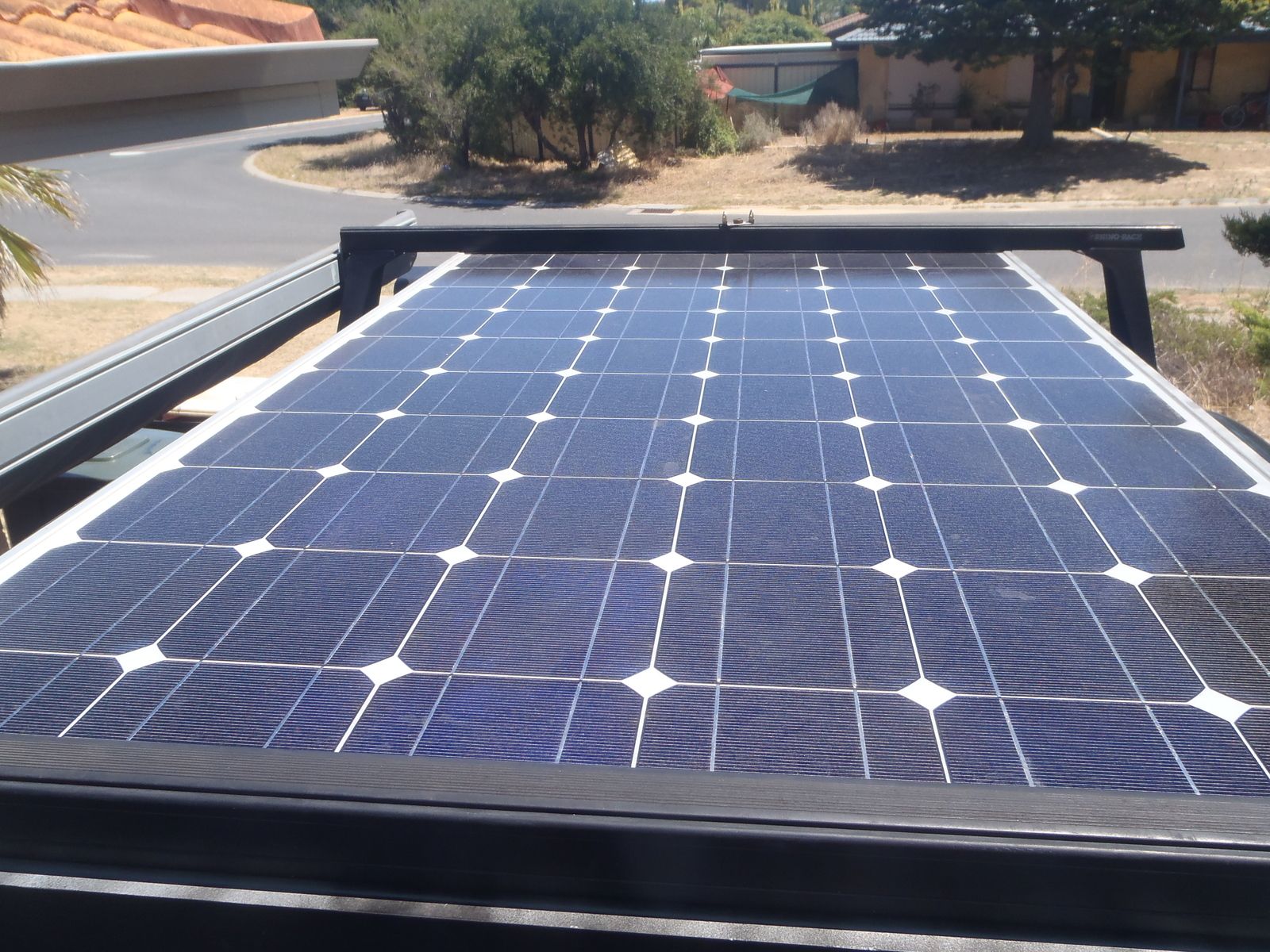

I have a 200 w solar panel @ 38 volts on the roof of my D2 in Australia where the sun is never shy ....if I connect this direct to the car batts is not good this needs to be regulated yes it will charge but eventually cook the battery'
try and stay away from cheap ebay so called regulators they also do not regulate that well
also when purchasing a regulator make sure the regulator can work in the voltage range ......ie a regulator that has a max of 18 tvolts input will be no good connected to a 38 volt panel

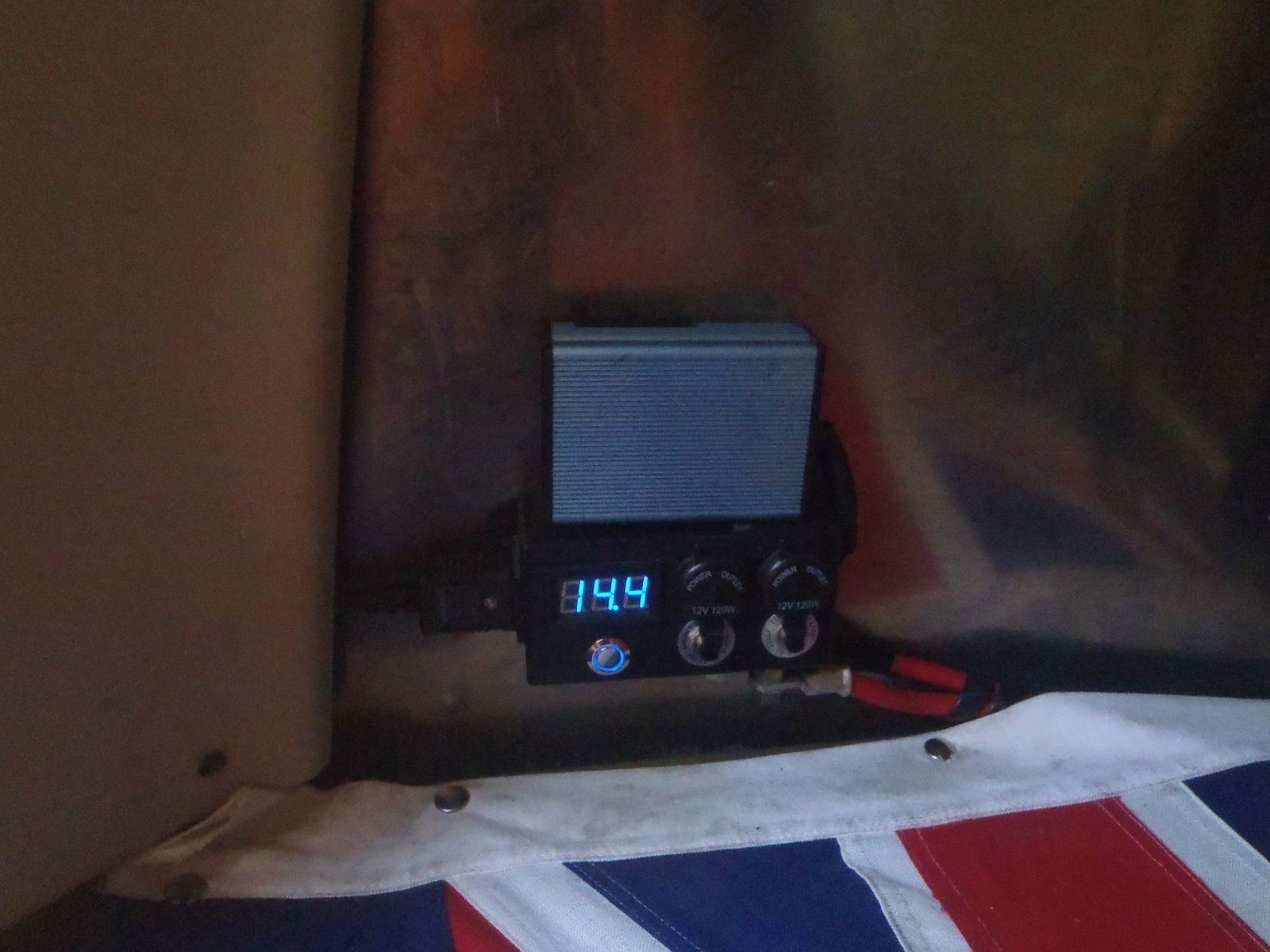

here is mine
this panel and regulator is hard wired its a GSL charger .....i don't need to disconnect when engine is running ..the reason being the regulator is doing its job....... this system is capable of running a weaco fridge /freezer on it own ... the battery only acts as a buffer on fridge compressor start up only

gstuart said:

right , working out what wattage volts i need please

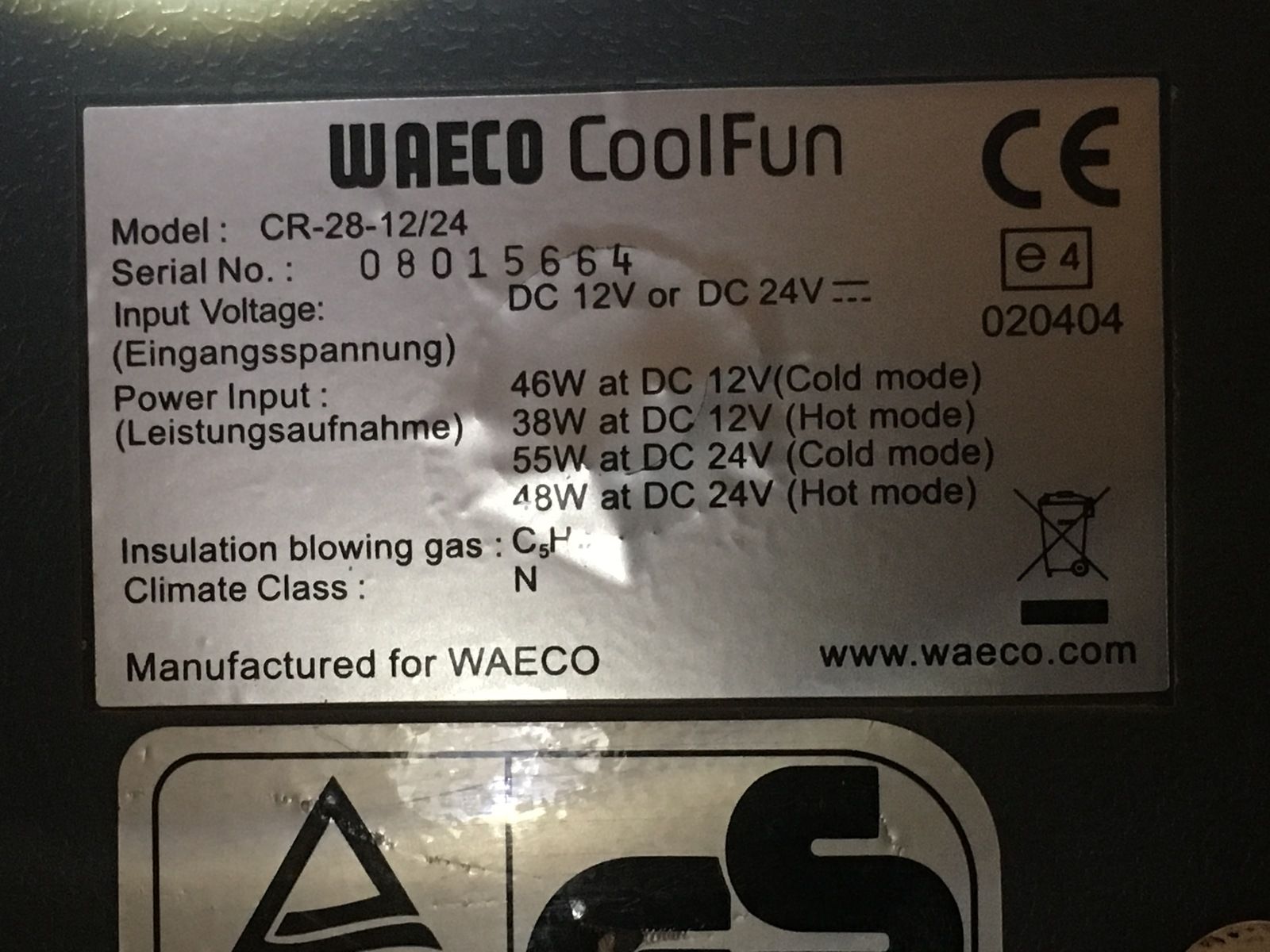

this is my cooler heater unit



View attachment 129212

Click to expand...

https://www.google.com.au/search?q=...1j0i131k1j0i13i30k1j33i22i29i30k1.snXTK-BeBYM
