Snorkel

Got my snorkel connected up at last, it's been fitted for a few weeks now but i've been working out how best to do the air box.

I fitted a 200tdi mantec snorkel to my 300tdi because I wanted to fit a second battery later, this meant that it was difficult to use the 300tdi square air box so got hold of a 200tdi air box and filter, but that wouldn't fit either due to the ABS.

So I redesigned the air box, moving the inlet and extending it.

So here are some pics.

Before

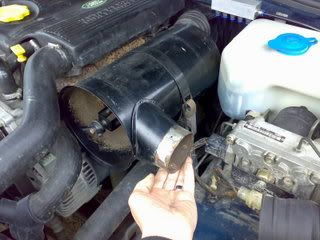

Seeing if it fits! (200tdi air box, with inlet pipe removed)

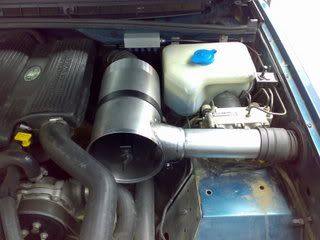

The new air box (the flared inlet was reused)

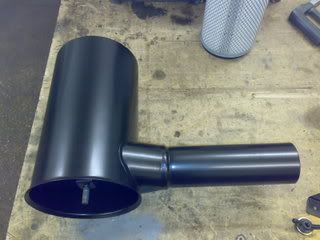

Back from the powder coaters.

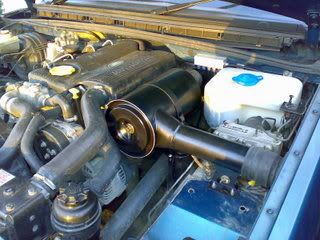

The finished project.



I'm quite happy with the way it's worked out, and it dosn't leak either.


Jon.

Looks like it was meant to be there from new, well done on a nice mod well executed.

Bluddy 'ell, welding, powder coating no less! A Proper job? Get out, you don't belong here!

Nah, nice job chap.

am surprised yer last post wasn't in green, marcus!

Ha ha, nah fair play for good work, it's just not the way work gets done on trackters.........& I usually steer clear of postings about snorkels.
