Snorkel and shock turret help please

This site contains affiliate links for which LandyZone may be compensated if you make a purchase.

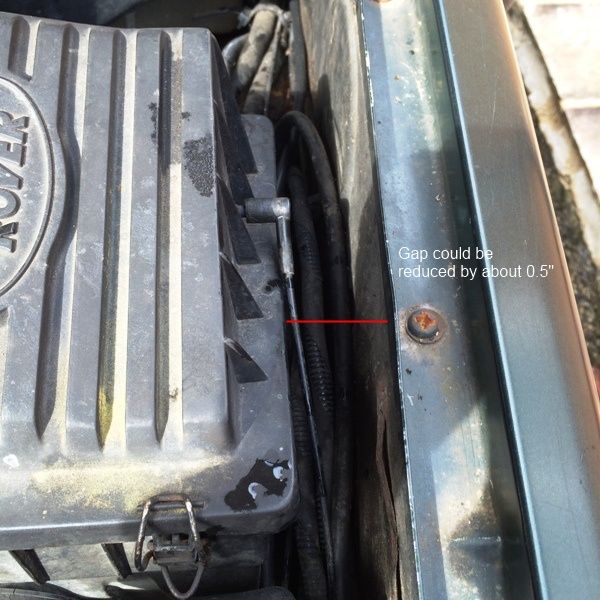

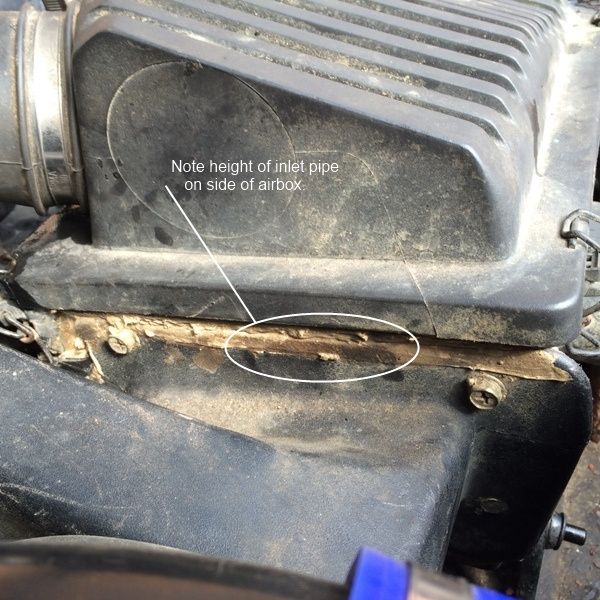

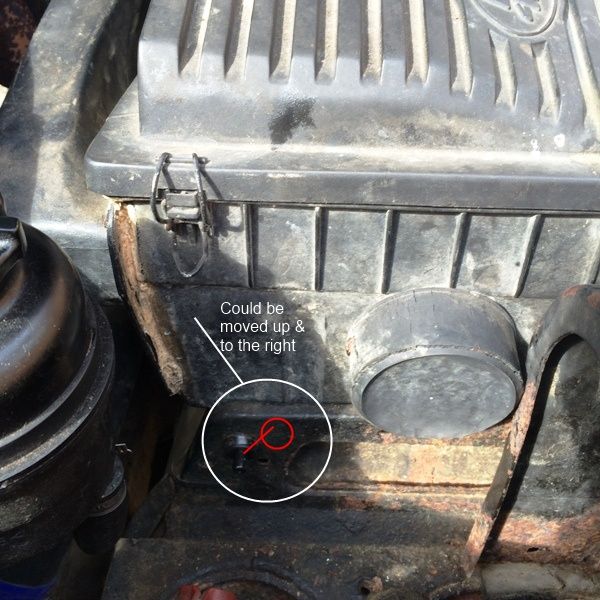

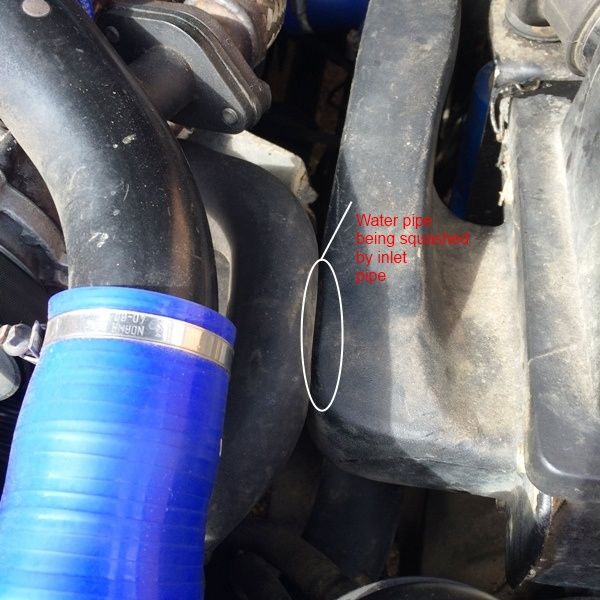

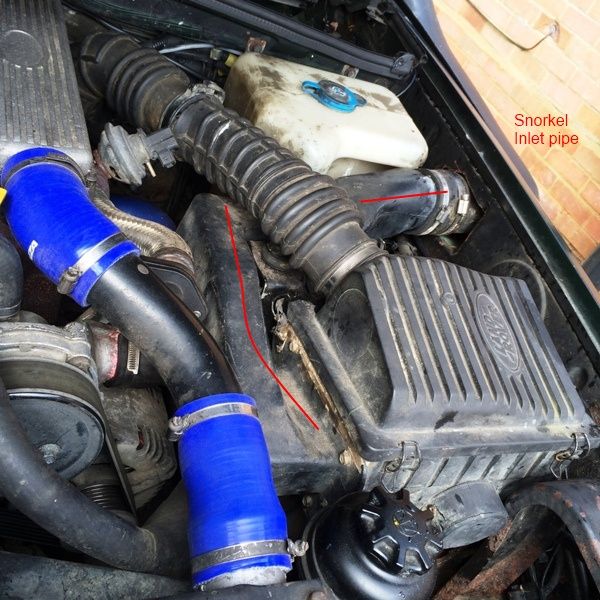

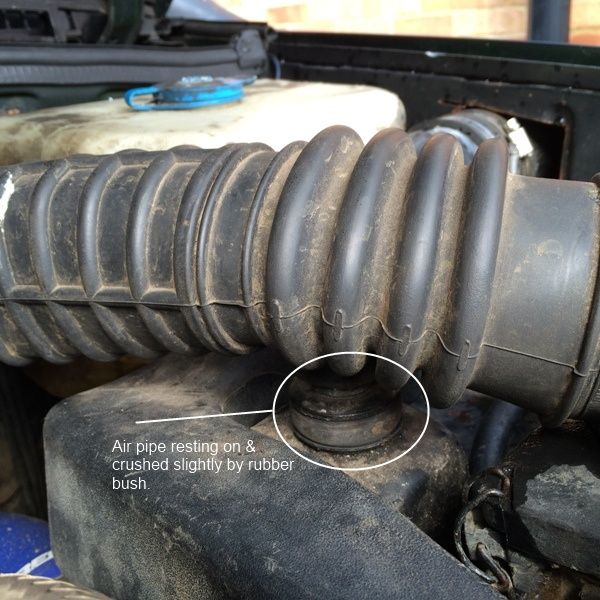

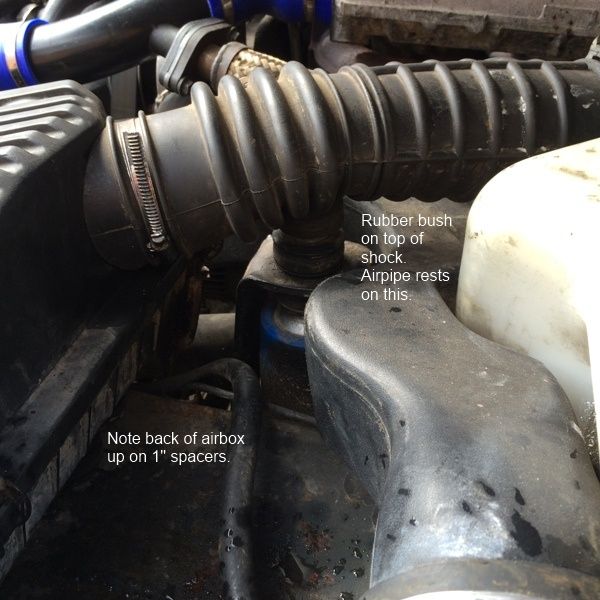

Here are some pics of mine..... Note how high on the side of the airbox, the snorkel inlet goes - this means I cannot lift the current airbox very much. You can also see that the inlet pipe fouls the water pipe, and the rubber buffer on the top of the shock.

I know which way i would go !
another air box then get in contact with a supplier to get rubber pipe then butcher old air box for the inlet if a supplier won't supply bits you have missing to make like mine :)

I just measured the shock mount turrets. Std are 10", mine are 11".

Butchering is not my style - I prefer to use "off the shelf" stuff if I can.
I will have a play in the next week or two. I think lifting the airbox and moving it closer to the wing might, just, work, otherwise it will mean a bespoke airbox outlet pipe. :eek:

Mad hat, would you consider getting an abs snorkel then for about £70 and selling yours then either get another airbox or stick a plate over that hole

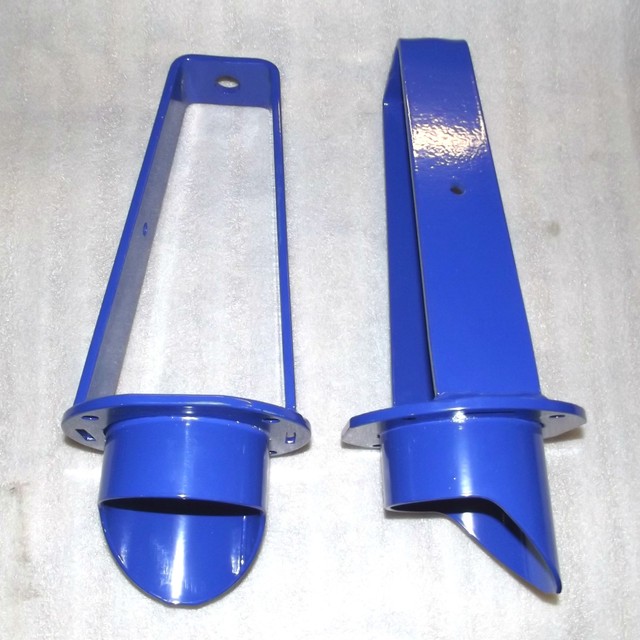

Magic, yeah me too. 9" grinder, some flat bar and the welder...bingo, extended turrets

Towsey

This is gunna cost you a bacon butty M/H/M:):):):eek::eek::eek:!
First get rid of the agr valve !
Then you can move inlet to Turbo closer to your motor, blank out let from air box ! (are you with me so far ??)
Then make a new out let for air box ! & fit it in were the O is in the side of the air box !( nearest to the rad)
Elbo to suet ! re pipe ! short piece of s/s pipe jube clips ! job done & no need to move air box !!
Mmmmmmm can taste the bacon already:rolleyes::rolleyes::rolleyes::rolleyes::p
Magic / Steve
ps Just had another look & you may get away without moving valve !!
Mmmmmmmm 2 bacon buttys :rolleyes::rolleyes::rolleyes::rolleyes::rolleyes::rolleyes::rolleyes::rolleyes::rolleyes:

Last edited:
Magicgrotto said:
This is gunna cost you a bacon butty M/H/M:):):):eek::eek::eek:!
First get rid of the agr valve ! I aint got n EGR valve :p
Then you can move inlet to Turbo closer to your motor, blank out let from air box ! (are you with me so far ??) No I cant ;)
Then make a new out let for air box ! & fit it in were the O is in the side of the air box !( nearest to the rad) It is at the back above the filter :)
Elbo to suet ! re pipe ! short piece of s/s pipe jube clips ! job done & no need to move air box !! Something I am looking into (not for suet tho ;))
Mmmmmmm can taste the bacon already:rolleyes::rolleyes::rolleyes::rolleyes::p
Magic / Steve
ps Just had another look & you may get away without moving valve !!
Mmmmmmmm 2 bacon buttys :rolleyes::rolleyes::rolleyes::rolleyes::rolleyes::rolleyes::rolleyes::rolleyes::rolleyes:
Click to expand...

Dont think so - baconman. I think I have the answer ;)

Is that the Star ship Enterprise striking out of your manifold ?? LOL
And before you say owt ! Yes I think I can see you have it blanked off :p

Ey, wots all this "look at my replies in red" mean???

Yeah my egr and cat lasted 3 days after I got the disco

Well I ordered me springs today, think il try those terrafirma +5 adjustable jobbies aswell now I have some ideas about the front turret problem

Towsey

One can only take it towsey that you were watching 25 out of breath blokes chasing a ball about Last night ???

Magic / Steve
