I
Series gearbox
- Thread starter William Simpson 109 2.5td
- Start date
This site contains affiliate links for which LandyZone may be compensated if you make a purchase.
Trench Rat
Well-Known Member
- Posts
- 2,889
- Location
- Near some excellent trees
Interesting...
William Simpson 109 2.5td
Member
- Posts
- 18
- Location
- Northern Ireland
Trench Rat
Well-Known Member
- Posts
- 2,889
- Location
- Near some excellent trees
@jamesmartin will probably know.
William Simpson 109 2.5td
Member
- Posts
- 18
- Location
- Northern Ireland
Thanks

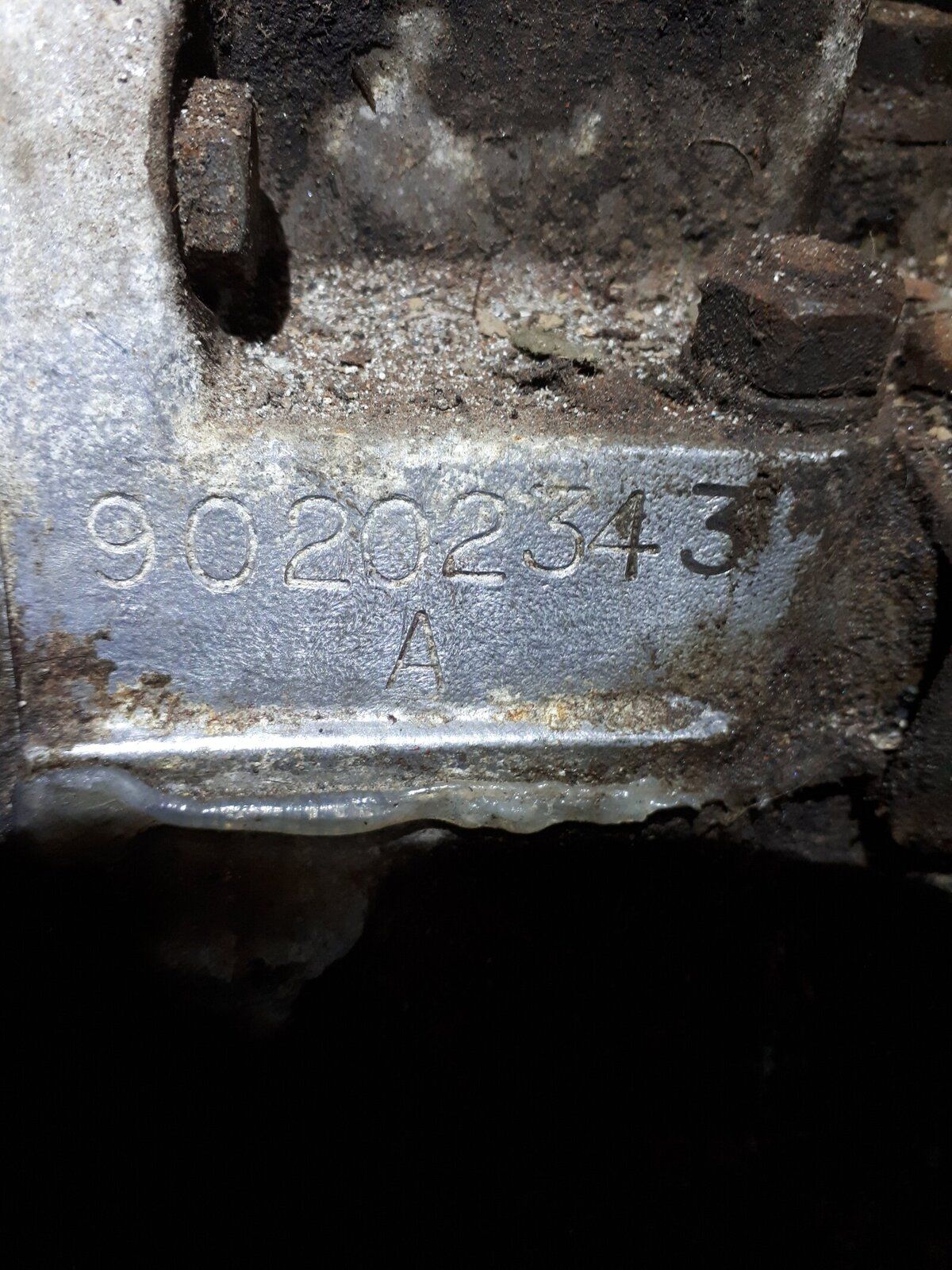

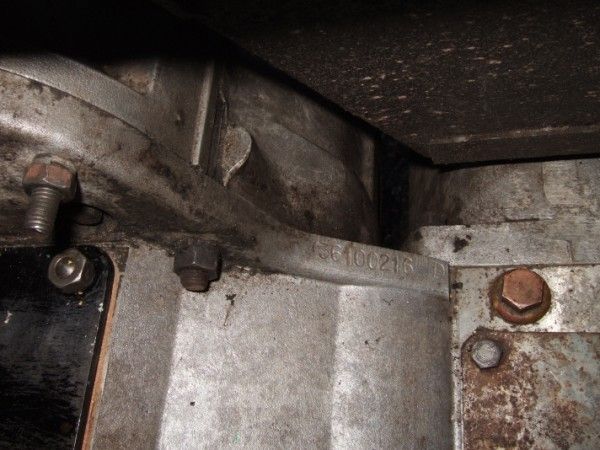

The number you have shown is a casting number ie part identifier when they make the components. Is there any numbers stamped on the edge of transfer case. as seen in attached pic or stamped any where else.
A photo of the drivers side of selector box will also help ie the bolts holding the reverse stop spring plate differ on Suffix D box.
A photo of the drivers side of selector box will also help ie the bolts holding the reverse stop spring plate differ on Suffix D box.
Attachments
William Simpson 109 2.5td
Member
- Posts
- 18
- Location
- Northern Ireland
William Simpson 109 2.5td
Member
- Posts
- 18
- Location
- Northern Ireland
This any good
jamesmartin
Well-Known Member
- Posts
- 91,879
- Location
- louth lincs

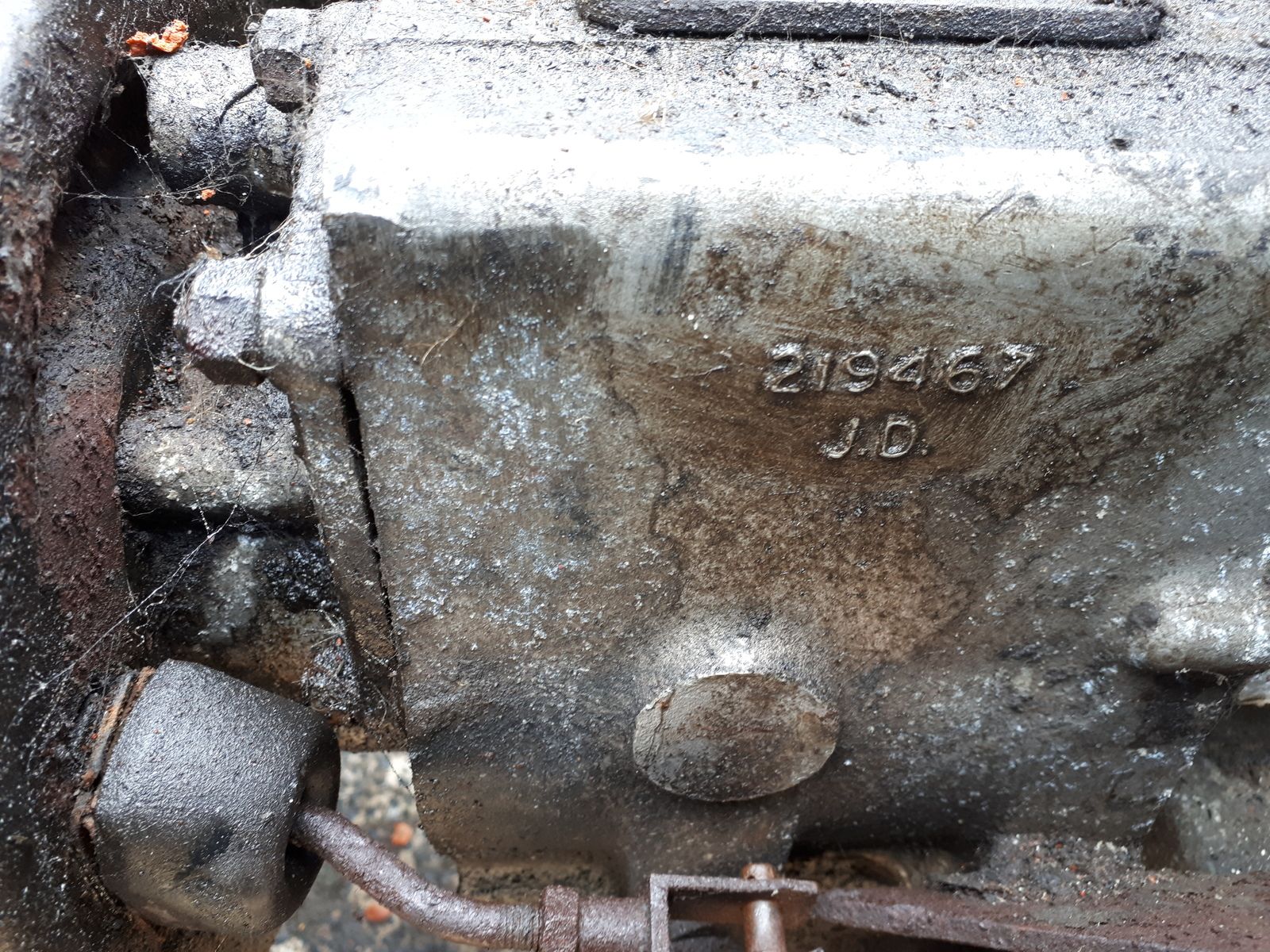

s3 a suffix std box,thats not the one in the chassis in pics is it ?
As your clutch is hydraulic on drivers side I believe that makes it a Series 2A box Suffix A is the version.
If it is a Series 2 I believe it would have the mechanical clutch linkage.
Have a read of this as Series 2 gearboxes went up to suffix E.
http://www.expeditionlandrover.info/gearboxes.htm
It mentions series 2A boxes being stamped with an S.
Have you driven it does it have synchromesh on all gears.
If it is a Series 2 I believe it would have the mechanical clutch linkage.
Have a read of this as Series 2 gearboxes went up to suffix E.
http://www.expeditionlandrover.info/gearboxes.htm
It mentions series 2A boxes being stamped with an S.
Have you driven it does it have synchromesh on all gears.
jamesmartin
Well-Known Member
- Posts
- 91,879
- Location
- louth lincs
thats why i asked about the pic as number is series 3, suffix e series 2a boxes are all synchro too and basically the same box as a suffix a series 3,suffix e is when side mounted slave changed to slave bolted direct to bell housing
William Simpson 109 2.5td
Member
- Posts
- 18
- Location
- Northern Ireland
Haven't drove it .it was a project already started I bought. Looked the other gearbox could find a number stamped like that on it
rob1miles
Well-Known Member
- Posts
- 3,565
- Location
- Slough and Bath

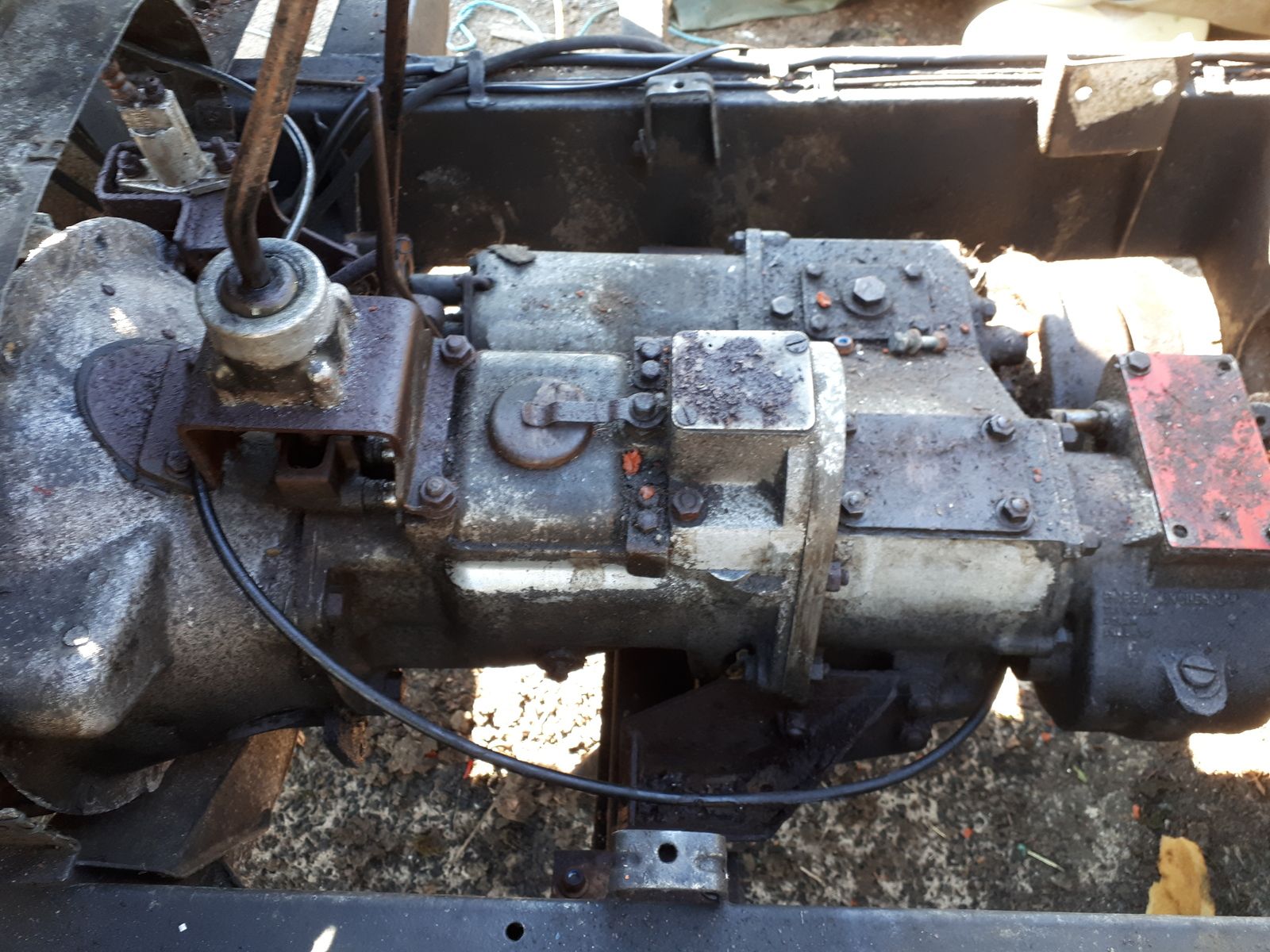

That box in the first picture has the top filler cap. Is the crossmember removable?
William Simpson 109 2.5td
Member
- Posts
- 18
- Location
- Northern Ireland
No.cross member welded in
