Series 3 with series 2 gearbox. Clutch Problem.

Discussion in 'Series Land Rovers' started by Rodeo Joe, Apr 2, 2020.

< Previous Thread | Next Thread >
  1. Rodeo Joe

    Rodeo Joe Well-Known Member

    Joined:
    Dec 30, 2017
    Posts:
    1,547
    Likes Received:
    694
    Location:
    norfolk

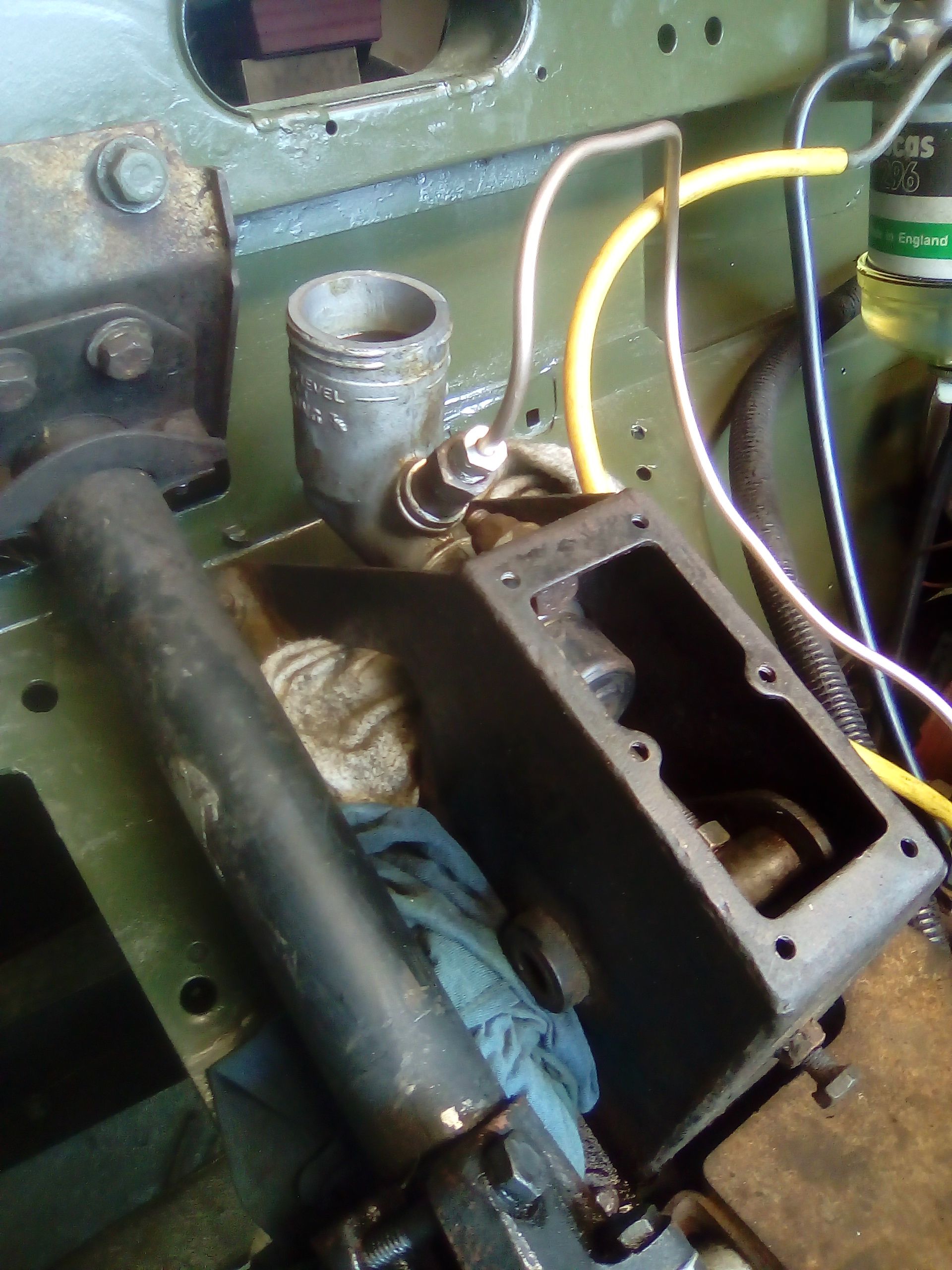

    I am just trying to get the clutch to work , its a series 2 gearbox with the associated release mechanism mated to a series 3 master as per the photos IMG_20200402_124048.jpg IMG_20200402_124105.jpg

    Having problems getting enough travel at the master to get the release bearing to shift far enough.
    Has anybody else done this system? I am thinking I might have to use the series 2 master but has that got any more travel than the later one in the pic.
    Bit stumped again.:(

  2. jamesmartin

    jamesmartin Well-Known Member

    Joined:
    Dec 8, 2010
    Posts:
    87,656
    Likes Received:
    16,235
    Location:
    louth lincs
    isnt the push rod on slave adjustable

  3. Rodeo Joe

    Rodeo Joe Well-Known Member

    Joined:
    Dec 30, 2017
    Posts:
    1,547
    Likes Received:
    694
    Location:
    norfolk
    Yes but still only getting enough to just move the slave and not enough to operate the release bearing.
    Got adjustment both master and slave but no joy.

  4. jamesmartin

    jamesmartin Well-Known Member

    Joined:
    Dec 8, 2010
    Posts:
    87,656
    Likes Received:
    16,235
    Location:
    louth lincs
    shouldnt think the masters would differ much,has the box release mechanism been to bits

  5. Rodeo Joe

    Rodeo Joe Well-Known Member

    Joined:
    Dec 30, 2017
    Posts:
    1,547
    Likes Received:
    694
    Location:
    norfolk
    Yes had a new bearing, actually its just occured to me that the clutch cover plate is for a series 3 not series 2, there is a difference in width for those so could that be the problem?

  6. jamesmartin

    jamesmartin Well-Known Member

    Joined:
    Dec 8, 2010
    Posts:
    87,656
    Likes Received:
    16,235
    Location:
    louth lincs
    the cross shaft hasnt been removed though?

  7. Stanleysteamer

    Stanleysteamer Well-Known Member

    Joined:
    Nov 22, 2013
    Posts:
    10,289
    Likes Received:
    8,149
    Location:
    East Dorset
    Seem to remember modding my son in law's Series by extending the crosshaft to get his clutch to work better.
    This may be absolutely nothing to do with this problem.
    Just saying! :):):):)

    Rodeo Joe likes this.
  8. Rodeo Joe

    Rodeo Joe Well-Known Member

    Joined:
    Dec 30, 2017
    Posts:
    1,547
    Likes Received:
    694
    Location:
    norfolk
    I see what you're saying the cross shaft might have been put back out of kilter. Don't remember having that off though.

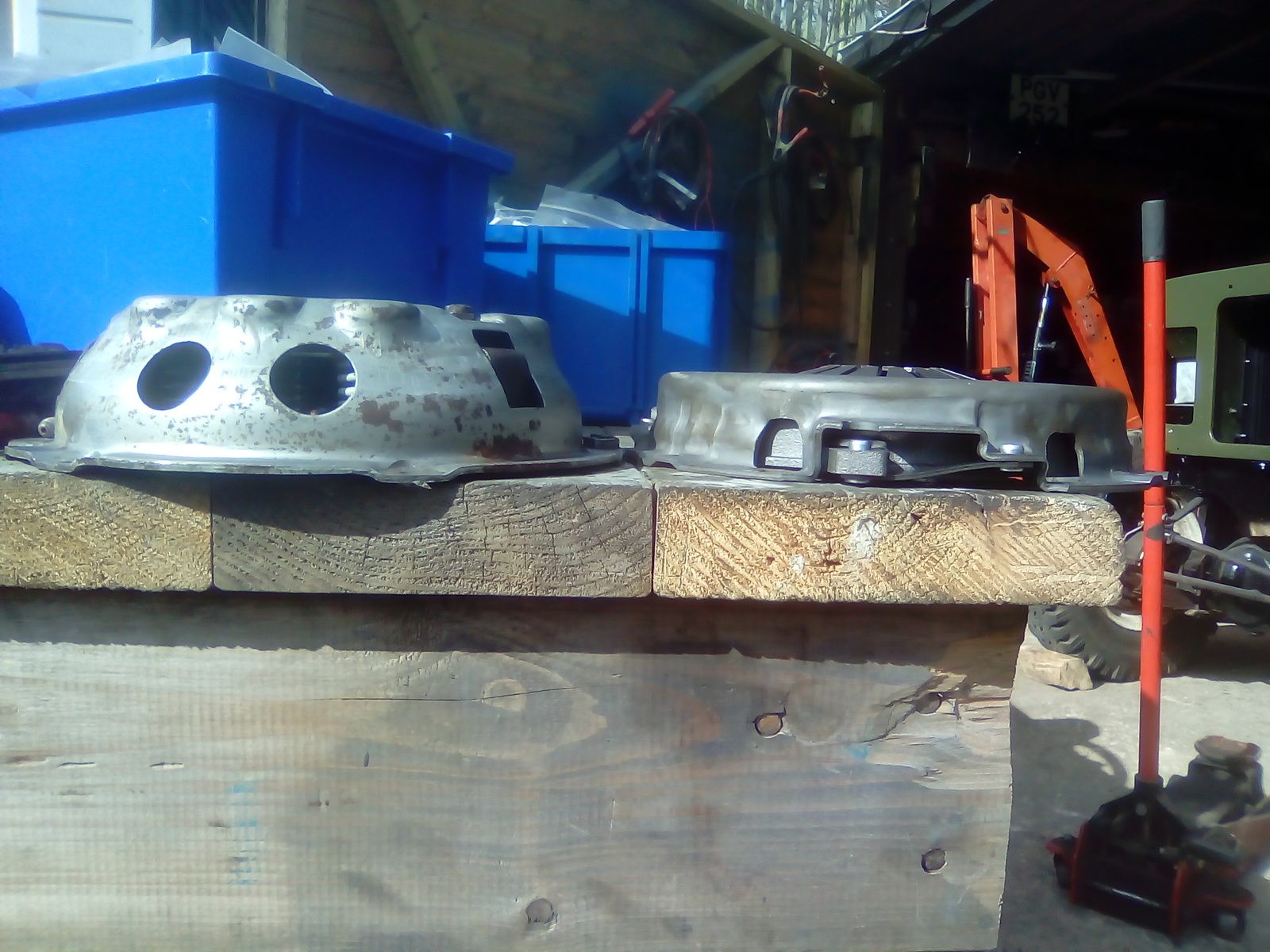

    Just had a look at a series 2 clutch cover and its a lot deeper than a series 3 so guessing thats the problem too far from the release bearing to start with so not enough reach on the slave, means the gearbox is coming out again.......bugger but at least I can try and sort the oil leak at the back of the sump whilst I'm on it.

    Stanleysteamer likes this.
  9. Rodeo Joe

    Rodeo Joe Well-Known Member

    Joined:
    Dec 30, 2017
    Posts:
    1,547
    Likes Received:
    694
    Location:
    norfolk
    Guessing that's the problem then.
    New issue though now the cover plate won't sit on the pins in the flywheel so gonna have to drill a couple of new holes in the plate to sort it.

  10. jamesmartin

    jamesmartin Well-Known Member

    Joined:
    Dec 8, 2010
    Posts:
    87,656
    Likes Received:
    16,235
    Location:
    louth lincs
    theres 2 pin and later 3 pins youd need to change flywheel to suit

  11. Rodeo Joe

    Rodeo Joe Well-Known Member

    Joined:
    Dec 30, 2017
    Posts:
    1,547
    Likes Received:
    694
    Location:
    norfolk
    Can't I just drill new holes in the cover plate, they're only about 6mm so should be ok?
    I can use the series 3 plate as a template.
    All the bolt holes line up.
