Series 3 heater upgrade

Discussion in 'Series Land Rovers' started by taylorslandy72, Feb 26, 2018.

< Previous Thread | Next Thread >
  1. taylorslandy72

    taylorslandy72 Active Member

    Joined:
    Jan 19, 2013
    Posts:
    201
    Likes Received:
    10
    Location:
    bristol
    Has anyone upgraded there heater box in there landy and out of what car fits the s3. Cheers

    cornish rattler likes this.
  2. rob1miles

    rob1miles Well-Known Member

    Joined:
    Sep 22, 2017
    Posts:
    1,086
    Likes Received:
    339
    Location:
    Slough and Bath
  3. cornish rattler

    cornish rattler Well-Known Member

    Joined:
    Aug 15, 2010
    Posts:
    4,928
    Likes Received:
    224
    Location:
    Manc chester
    Slightly different, mines a late 2a hard top ( currently restoring ) with the square type heater and once I've cleaned the heater matrix out and fitted I plan on fitting a rear heater aswell probably use one of those new round type jobbies but on a separate switch so if it gets too hot with both on I can switch one off :)

  4. rob1miles

    rob1miles Well-Known Member

    Joined:
    Sep 22, 2017
    Posts:
    1,086
    Likes Received:
    339
    Location:
    Slough and Bath
    My 2A has a Smiths square heater as its ex-mil. I've lived with it being poor for a few years but last week I decided to take it apart with a view to fitting a modern fan. What I found inside was a 2 speed resistor wired in parralled (which explained the current draw) and a mass of dog fur (a previous owner was a dog breader). Now with he fan lubed, the matrix cleaned and good wiring it pumps out loads of heat so my upgrade plan has been ditched. I also have a taxi heater in the rear.

  5. cornish rattler

    cornish rattler Well-Known Member

    Joined:
    Aug 15, 2010
    Posts:
    4,928
    Likes Received:
    224
    Location:
    Manc chester
    Yeah I've heard good things and bad things with the square type heater, my 2a was an unroad worthy runner when I bought it so couldn't really test it and I've never had the square type heater before been used to the old useless round type and or the useless S3 heater's so I'm hoping the square type heater will be ok and I have heard that these newer smiths copies are better than the smiths round type which I'm hoping to fit in the back when I get to fitting the tub :)

  6. ciderman

    ciderman Active Member

    Joined:
    Oct 1, 2007
    Posts:
    600
    Likes Received:
    17
    Location:
    sunny worcestershire
    Hi
    I have had success by fitting an auxiliary pump to the heater circuit- and it seems to have cured overheating.
    I posted some pictures last year.

  7. suburban

    suburban Well-Known Member

    Joined:
    Nov 1, 2017
    Posts:
    3,293
    Likes Received:
    2,191
    Location:
    w sussex
  8. nickjaxe

    nickjaxe Active Member

    Joined:
    Apr 11, 2007
    Posts:
    585
    Likes Received:
    24
    Location:
    North Cheshire/Merseyside
    Its the position of the air intake on the S3 that causes the prob....the fan just cant pull the air in at speed.

    I re-positioned the air intake to the front grill with duct pipe so I now get a ram air fed heater unit...even with my soft top on this time of year its toasty.

    The side entry will just never be any good...its in a low pressure area.

    Nick.

  9. rob1miles

    rob1miles Well-Known Member

    Joined:
    Sep 22, 2017
    Posts:
    1,086
    Likes Received:
    339
    Location:
    Slough and Bath

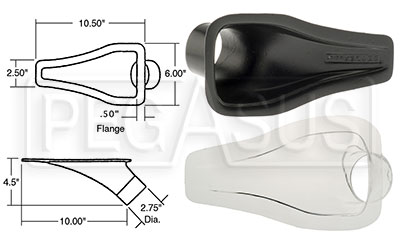

    You need a NACA duct, would look good too. As they are effectively half a divergent duct they generate pressure as the speed increases.
    [​IMG]
    Probably catch a lot of bugs too!

  10. rob1miles

    rob1miles Well-Known Member

    Joined:
    Sep 22, 2017
    Posts:
    1,086
    Likes Received:
    339
    Location:
    Slough and Bath
    A new solution to the heater issue:
    [​IMG]

  11. suburban

    suburban Well-Known Member

    Joined:
    Nov 1, 2017
    Posts:
    3,293
    Likes Received:
    2,191
    Location:
    w sussex
    come home to a real fire

  12. rob1miles

    rob1miles Well-Known Member

    Joined:
    Sep 22, 2017
    Posts:
    1,086
    Likes Received:
    339
    Location:
    Slough and Bath
    It didn't say it whether it was in Wales or not...

  13. LordOWar

    LordOWar Active Member

    Joined:
    Dec 3, 2014
    Posts:
    278
    Likes Received:
    54
    Location:
    North West
    That's on the M61 on Thursday.

  14. taylorslandy72

    taylorslandy72 Active Member

    Joined:
    Jan 19, 2013
    Posts:
    201
    Likes Received:
    10
    Location:
    bristol
    That totally make sense

  15. nickjaxe

    nickjaxe Active Member

    Joined:
    Apr 11, 2007
    Posts:
    585
    Likes Received:
    24
    Location:
    North Cheshire/Merseyside
    And it really does work....be using it for over 20 years now.
