Gearbox cover/tunnel removal?

RiffRaffRevival · Apr 8, 2024

Series 2 Lightweight...

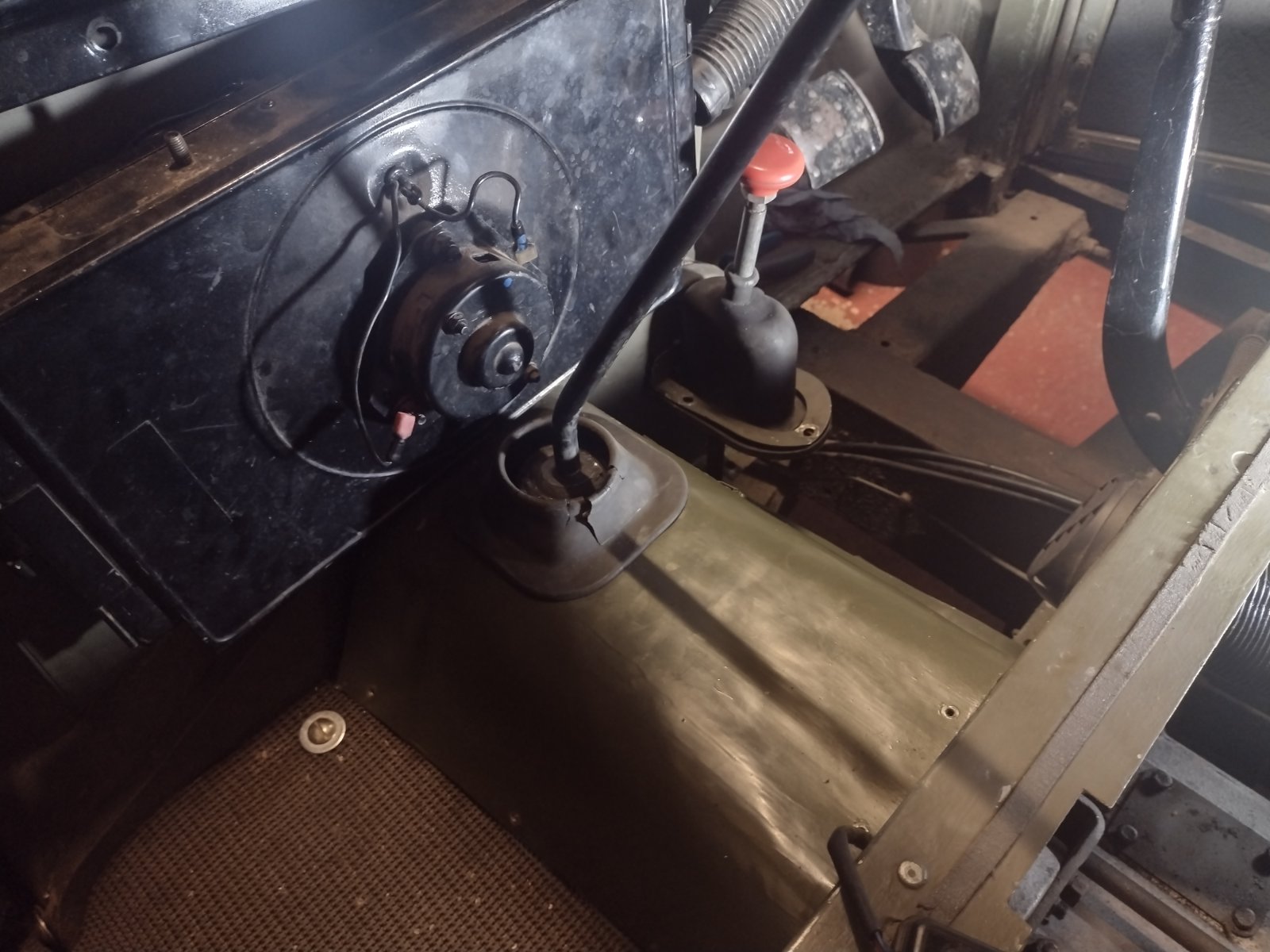

I have gearbox issues (separate topic), but trying to remove the gearbox cover/tunnel in the cab, with much difficulty!

Does the heater matrix need to be removed, water pipes disconnected, etc, to enable the cover to be lifted over the gearstick, or is there a method of doing so with the matrix in-situ? Grrrrr... driving me to distraction!

Thanks in advance.

RiffRaff

tottot · Apr 8, 2024

Both floor plates have to be removed. Did not have to remove heater on my old Civi 2a but is there something at front of seat box to do with arctic heater system on yours that may be in the way?

RiffRaffRevival · Apr 8, 2024

Thanks tottot... the panel will simply not lift over the gearstick, as it fouls the heater matrix. The vent located on the seat box is easily removed.

tottot · Apr 8, 2024

Not so much the vent but is there something the cable on the left links to in the way? The rear end has to come up first.

boguing · Apr 8, 2024

My Lightweight takes a fair bit of splaying outwards before the back will come up. I think I could have got the bulkhead a few mm further forwards, even thought the doors are by no means tight.

lynall · Apr 9, 2024

Take the heater out, it will make life easier in and out.

RiffRaffRevival · Apr 10, 2024

Got it... BUT it took a fair portion of brute force and ignorance on my part.

Basically, splayed out the sides of the tunnel and lifted out at the rear... much scraping, jamming and profanity and she's out.

Thanks everyone for the guidance.
