Series 3 Heater fan

Beneagles

Well-Known Member

Full Member

Posts

6,407

Location

North Perthshire

• Jan 21, 2023

• #1

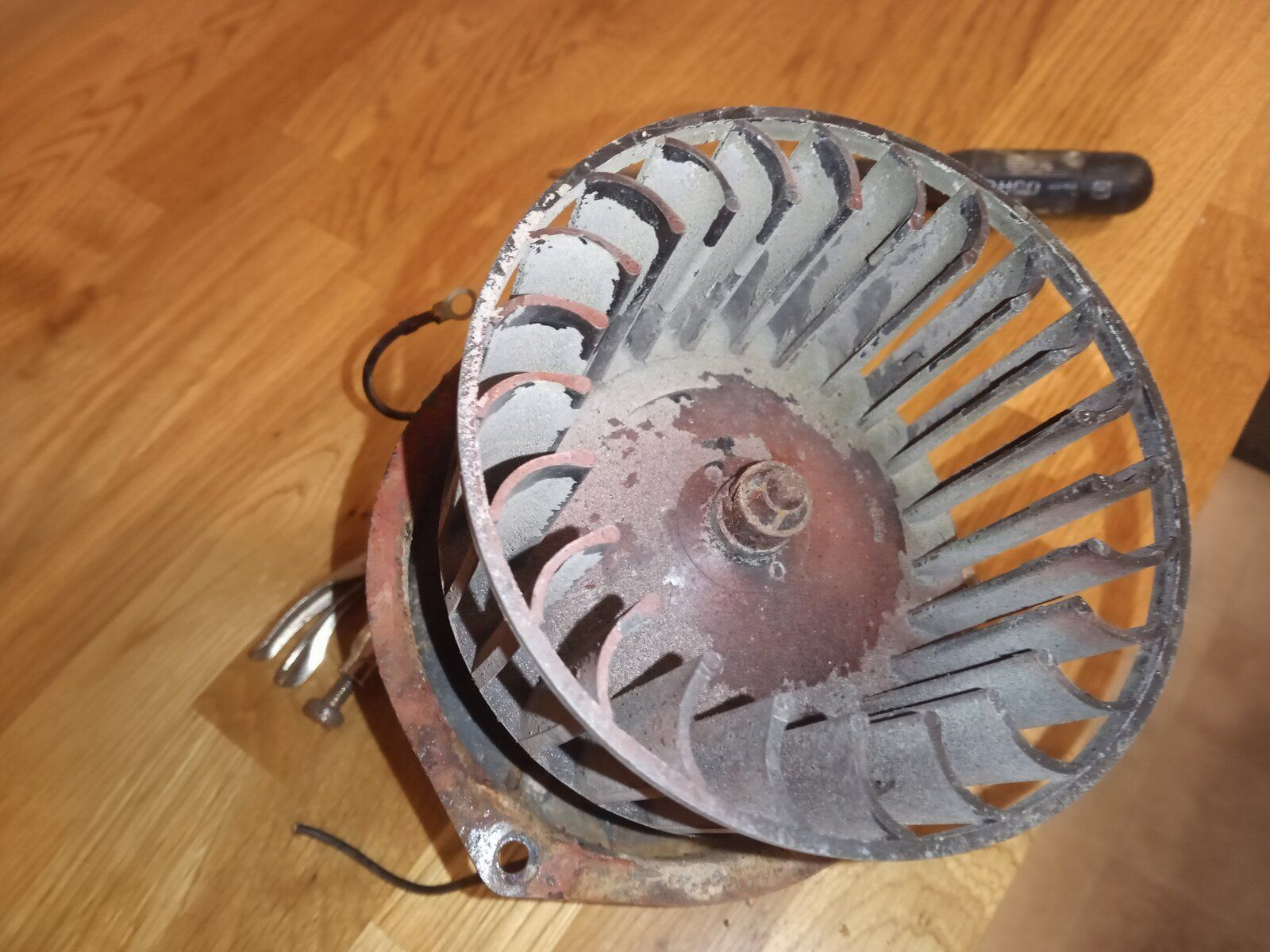

So I am replacing the motor part of the heater assembly and need to remove the fan from the existing spindle. Does the metal collar just prise open? or do the plastic wedges need to be prised upwards? or am I missing something??
Cheers



Bobsticle

De Villes Advocaat

Posts

27,632

Location

Manchester

• Jan 21, 2023

• #2

Looks like the centre spindle has an indent and the collet tabs lock into it.

I wouldn’t be surprised if it was brittle enough to break a few tabs trying to pull them over the end of the spindle. I’d warm everything up a bit to help things but it looks like it should just pull off.



Beneagles

Well-Known Member

Full Member

Posts

6,407

Location

North Perthshire

• Jan 23, 2023

• #3

Left field solution - I cut through the spindle at the motor end and tapped it through the collet from behind.
As a result I now have a fully operational heater motor fan once more...and as the ballast resistor still works, I have a 2 speed heater fan motor.
Happy days.
