Series 3 half shaft refitting.

Hi

I've just overhauled the front axle and have started the re assembly, the left hand side with the larger steering arm went together without any problems. But now starting on the right, the swivel pin and housing has gone on, but I can't seem to get the half shaft back in. There seems to be a slight inclined angle to the face of the swivel pin housing which seems to be restricting the movement of the UJ to allow it to pop inside. It was a long time ago I stripped them down so am not sure if I have missed something but.

I was wondering if: 1- There is a nack to getting the shaft in.
2- The angle to the face of the housing means something is wrong.

Thanks in advance

Joe

pics ? it should go in as other side if anything easier as shafts shorter

Photo's attached

JoeDixon said:

Photo's attached

Click to expand...

Not very...

I've tried a few times but the link page doesn't seem to put them on the post?

JoeDixon said:

I've tried a few times but the link page doesn't seem to put them on the post?

Click to expand...

If your trying to upload from your computer 4.77Mb is the max file size so may need resizing.

Other options are HERE

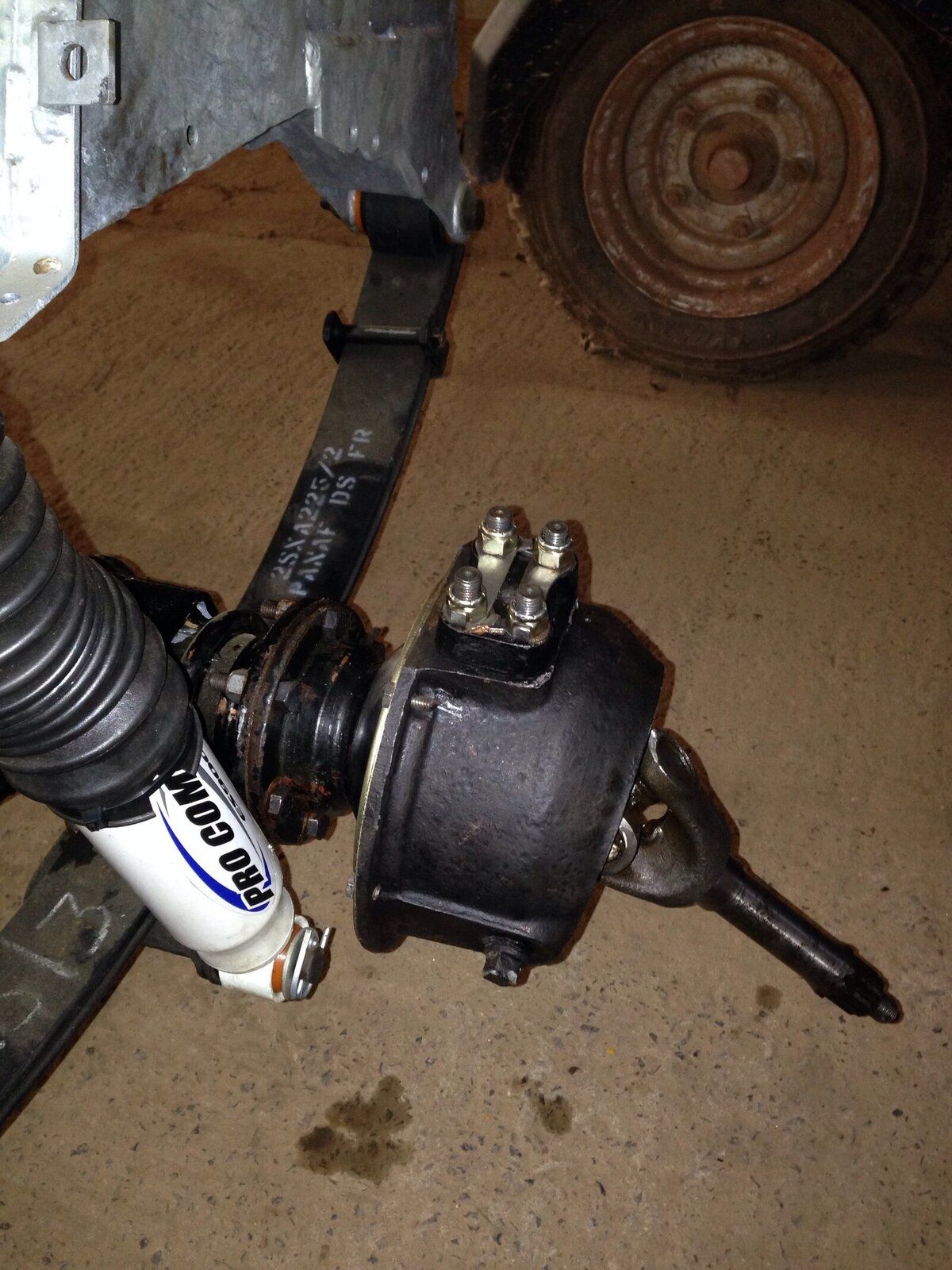

I hope it's worked this time, thanks for your help.

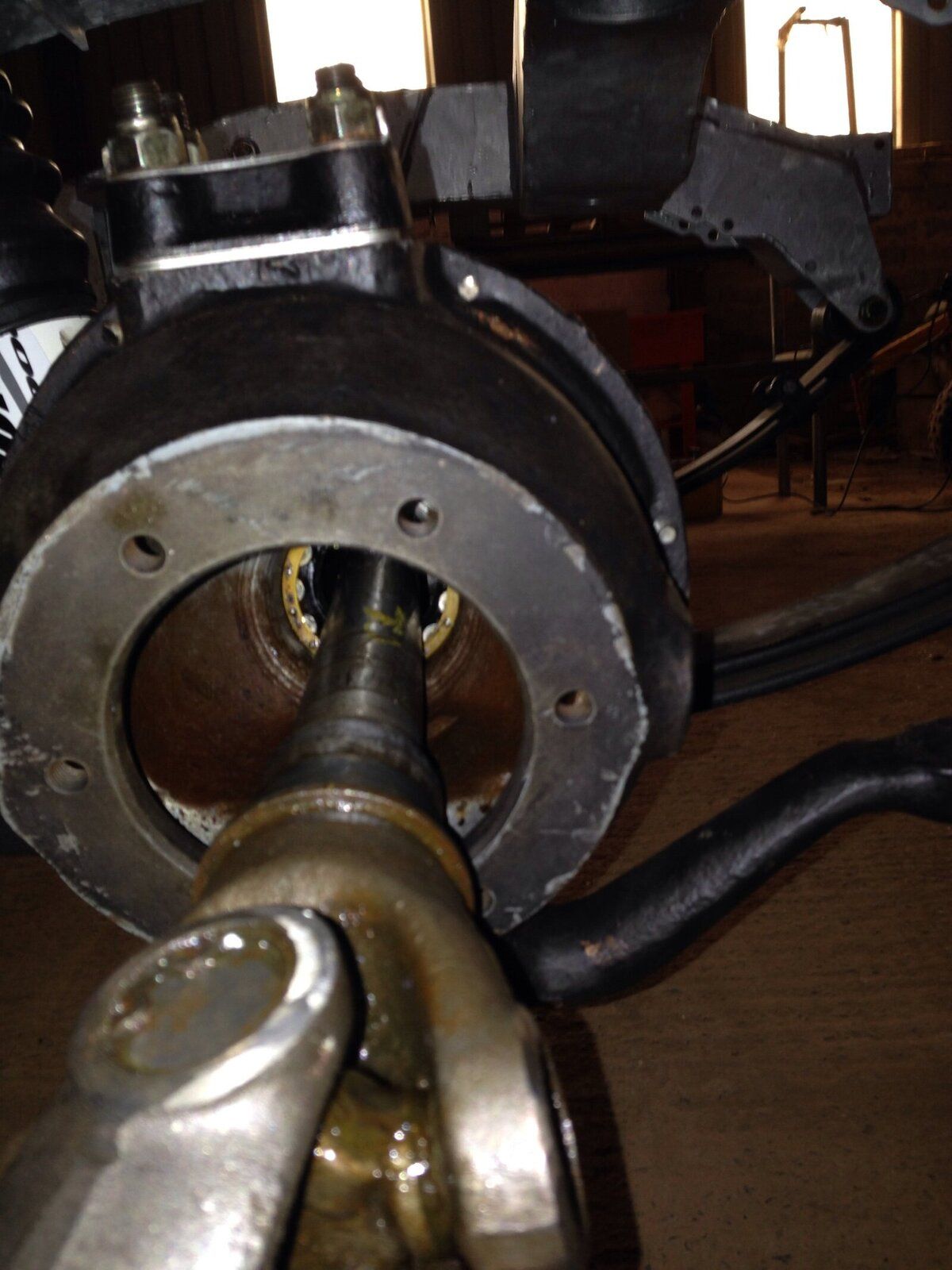

One more

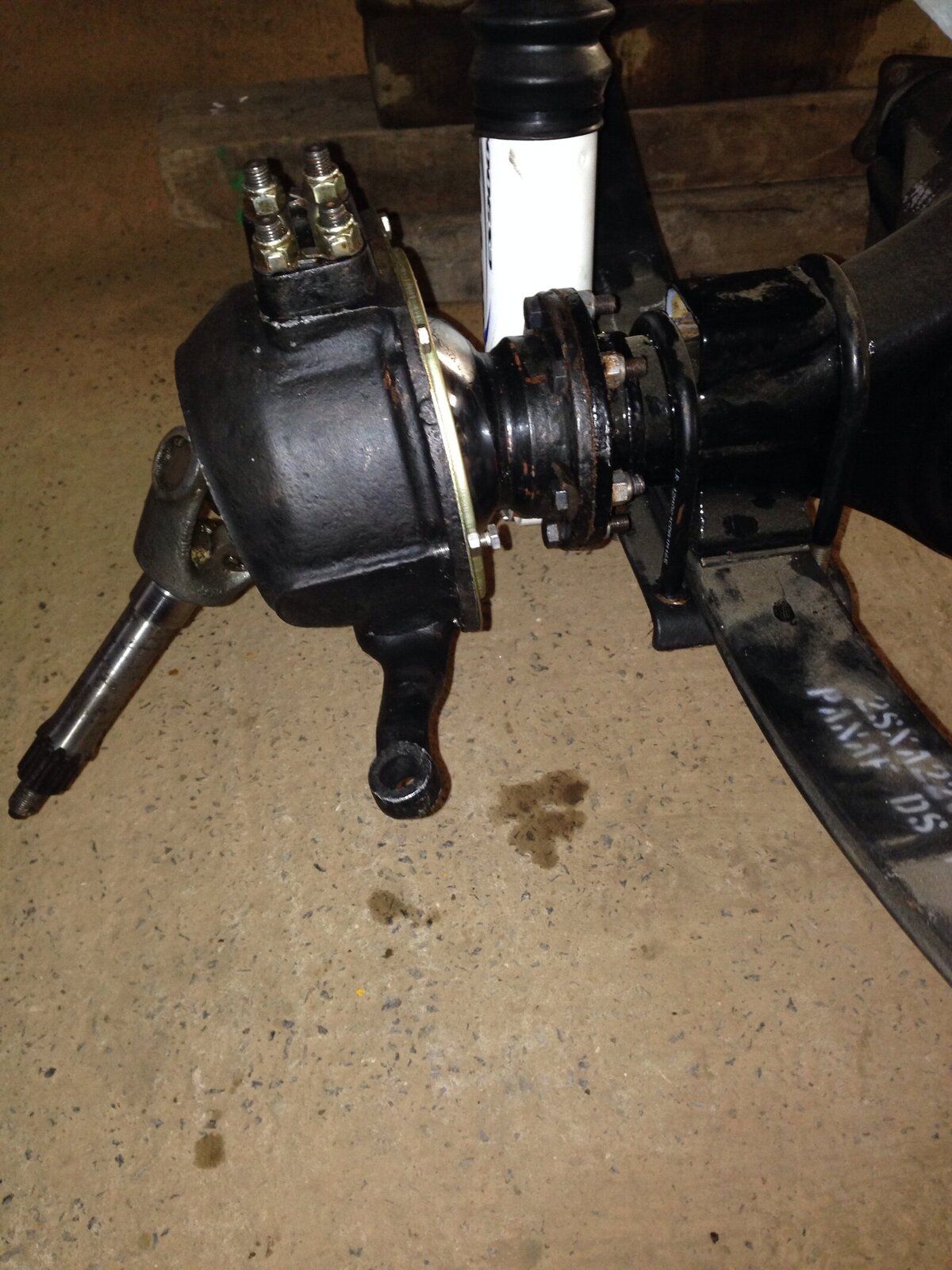

Another

difficult to tell from pic but are you sure that swivel housing is outer face is not leaning out at the top

It is leaning out at the top by about 30 degrees that's what raised suspicions, as the hardy spicer joint won't clear it to allow me to slot the shaft to the diff, the left side is perfect.

either it or chrome ball are fitted wrong
