Series 3 cut out switch

crashbox · Jan 19, 2011

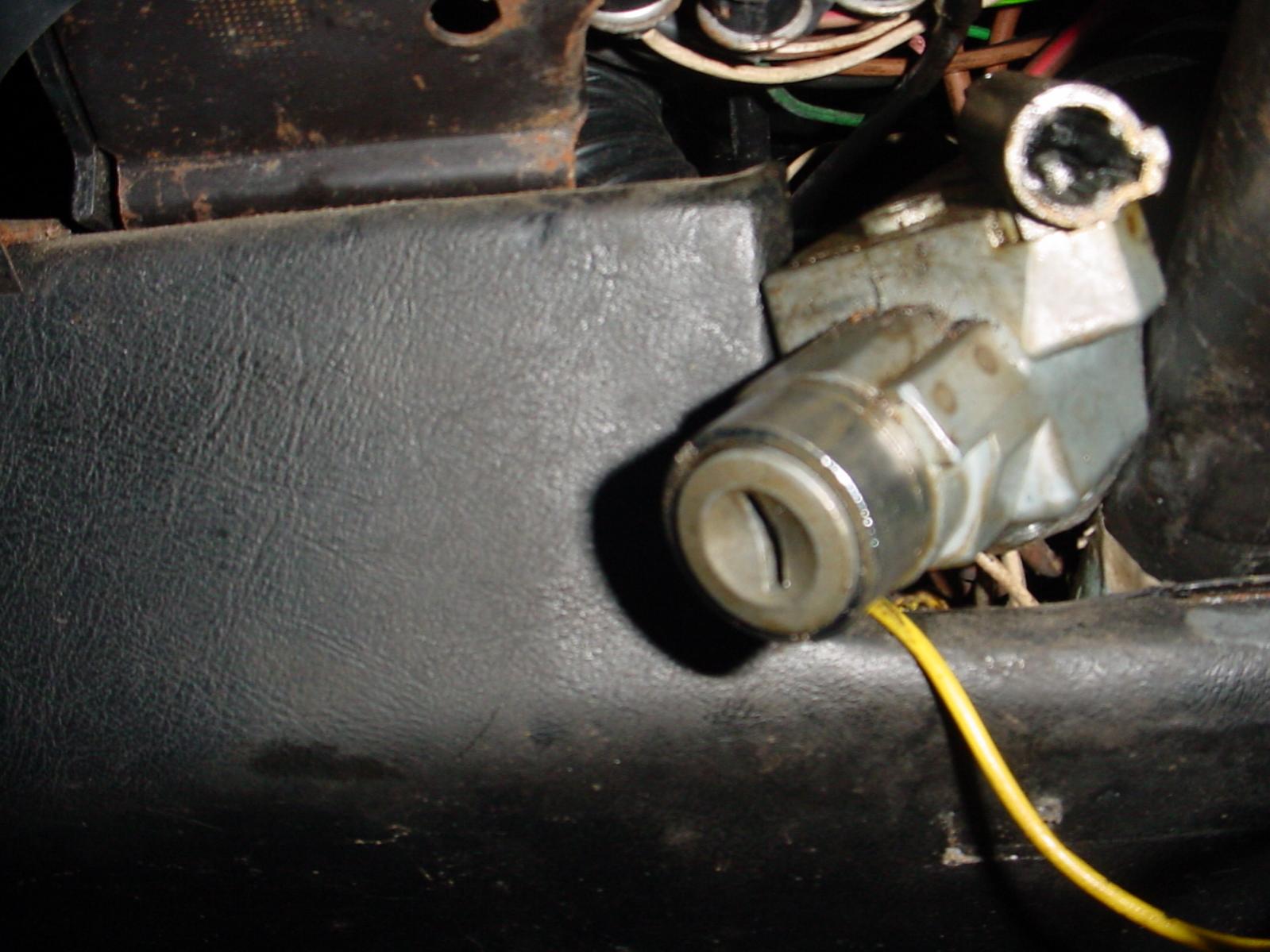

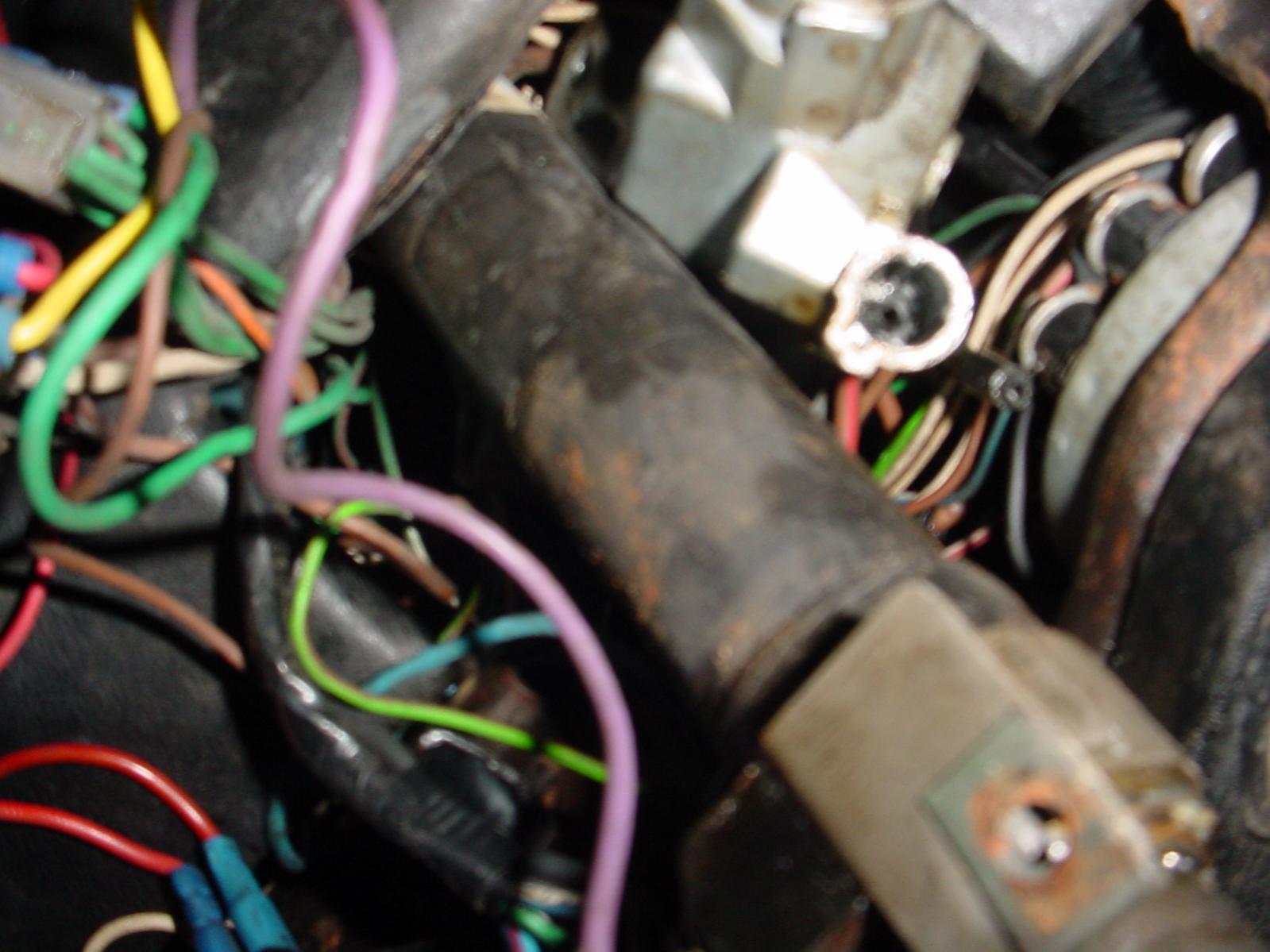

I pulled the cut out lever/switch on my ser3 diesel and it wouldn't go back in. It is fitted onto the ignition switch housing. I disconnected the cable leading to the pump and removed it. There is some sort of button in the hole where the pull lever/switch goes. It looks like it should go into the ignition mechanism but its not for moving. Any advice or have I baffled you?

dr pepper · Jan 19, 2011

Maybe you'd better get another ignition switch, one without the lever.

dirtyrhino · Jan 19, 2011

It's the steering lock pin. When you puill the lever, and lock the wheel, it stops some pikey pushing the pull-knob back in. Turn yer ign key to position 2 and watch the pin magically dissapear...

....hopefully...

G-man · Jan 19, 2011

i may have an ignition switch with a working cut-out kicking about, i will have a look for you tomorrow night

crashbox · Jan 20, 2011

Thanks for the replies, Yes I think it is the locking pin, unfortunately its bent now and wont go back in. G-man, if you have one I will purchase same from you, thanks.

Honest Walt · Jan 20, 2011

My Diesel's fitted with a petrol ignition switch so the cut out springs right back in.

Anyone know where I could get a proper diesel one?

G-man · Jan 20, 2011

ended up doing some overtime tonight i will have look in a while mate

dirtyrhino · Jan 20, 2011

Honest Walt said:
My Diesel's fitted with a petrol ignition switch so the cut out springs right back in.
Anyone know where I could get a proper diesel one?

you on about the pull cable i assume fella ?
Famous four or Paddocks have them.

G-man · Jan 20, 2011

right i will have to give it a clean up and free it off a bit but i have found it! it was under a pile of TD parts lol, i can't find the clamp part that holds it to the column so you will need one of them(and new security bolts) but they are only a couple of quid (available separate from lrseries i think) also one of the bolts is snapped off in the thread so i will remove that (drill and easy out time)

G-man · Jan 21, 2011

ere crashbox....... that barrel and 'cut out switch' i have is working quite nice now

PM me if you want t mek an offer on it

crashbox · Jan 29, 2011

G-man is a Landy hero, works a treat.
