Series 2a 1971 swb

Trumar · Jul 13, 2018

need help with this question please? Top of the windscreen where truck cab roof sits. I took the roof off and noticed there is no rubber seal between top of windscreen and roof, where does the rubber seal sit? How wide is the rubber seal? As it looks that I could fit 2 seals side by side? Cheers mark

Turboman · Jul 13, 2018

Trumar said:
need help with this question please? Top of the windscreen where truck cab roof sits. I took the roof off and noticed there is no rubber seal between top of windscreen and roof, where does the rubber seal sit? How wide is the rubber seal? As it looks that I could fit 2 seals side by side? Cheers mark

I am not certain there is a rubber seal.

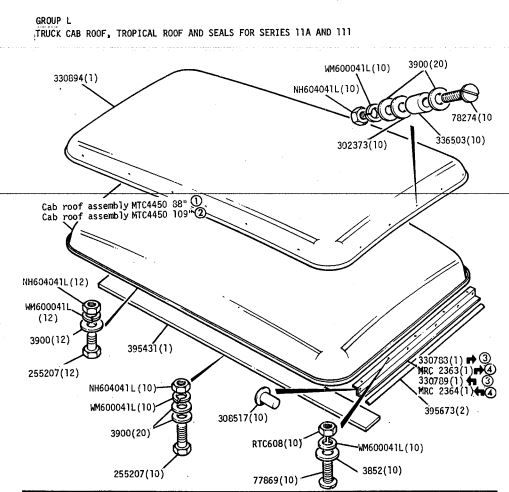

A look at an exploded diagram in a parts book or manual would confirm.
If you are worried about it, just get some single sided adhesive foam tape, and make one. You can get is in different widths from RS onine, or other stockists.

Land Raver · Jul 13, 2018

There should be a seal, about 6mm thick there.

suburban · Jul 13, 2018

don't think my 3 has a seal there

mind you water seems to get in

Trumar · Jul 14, 2018

Land Raver said:
There should be a seal, about 6mm thick there.

I have the seal but I’m not sure where to fit the seal? I have placed the seal so that the nuts and bolts go through the seal but then there is a gap at the front of the roof to the windscreen. It just don’t look right?

cornish rattler · Jul 14, 2018

I've always put a dollop of silicon on the seals aswell just incase the seal doesn't seal

cornish rattler · Jul 14, 2018

Trumar said:
I have the seal but I’m not sure where to fit the seal? I have placed the seal so that the nuts and bolts go through the seal but then there is a gap at the front of the roof to the windscreen. It just don’t look right?

It sounds like there is no seal fitted to your roof at all, you could either fit a complete seal or lift the roof and put a thick bead of silicon round the roof and refit but a seal would be better

Blackburn · Jul 14, 2018

Seal goes forward of the bolts on normal roof so would think it is the same..

Land Raver · Jul 15, 2018

Yes, the seal is a thick neoprene type seal that sits on forward of the bolts on the lower ledge closer to the front of the screen.

Trumar · Jul 15, 2018

Land Raver said:
Yes, the seal is a thick neoprene type seal that sits on forward of the bolts on the lower ledge closer to the front of the screen.

Nice one Land Raver now it looks right. Cheers Trumar

Trumar · Jul 15, 2018

Blackburn said:
Seal goes forward of the bolts on normal roof so would think it is the same..

Thank you Blackburn it looks right now. Cheers Trumar

Trumar · Jul 15, 2018

Turboman said:
I am not certain there is a rubber seal.
A look at an exploded diagram in a parts book or manual would confirm.
If you are worried about it, just get some single sided adhesive foam tape, and make one. You can get is in different widths from RS onine, or other stockists.

cornish rattler said:
I've always put a dollop of silicon on the seals aswell just incase the seal doesn't seal

Nice one Turboman, I wouldn’t of thought use silicon. Cheers Trumar
