Hello,

I have recently inherited a Series 1 Landrover (1957) and need some help.

The Landrover has been stood still for the past 20 years and I have tried to see if it will start and nothing.

I have changed the battery and I have lights and working wiper blades, but nothing coming from the engine, no sound of fuel pump, nothing at all.

I thought at a minimum the engine would try and turnover, but the ignition button doesn't seem to do anything (no sounds)

Suggestions on steps needed please.

I have tried the crank handle and the engine does turn, so I know it's not ceased.



H

Hicap phill

Well-Known Member

Posts

16,337

Location

Wiltshire

• Aug 30, 2022

• #2

Welcome.
Have you got a key?
Take a photo & upload a photo of the engine bay. This will help



S

Series1LandyNewbie

New Member

Posts

9

Location

Gloucester

• Aug 30, 2022

• #3

Hicap phill said:

Welcome.
Have you got a key?
Take a photo & upload a photo of the engine bay. This will help

Click to expand...

Yes, I have a key.

Can try and upload a photo of the engine bay tomorrow.



L

lynall

Well-Known Member

Full Member

Posts

25,899

Location

Kent

• Aug 30, 2022

• #4

Not sure on s1, but s2 diesel had two ignition barrels/keys



H

Hicap phill

Well-Known Member

Posts

16,337

Location

Wiltshire

• Aug 30, 2022

• #5

lynall said:

Not sure on s1, but s2 diesel had two ignition barrels/keys

Click to expand...

On our S1 the key only provides power.,,,
You need to know where the starter button is to start.



S

Series1LandyNewbie

New Member

Posts

9

Location

Gloucester

• Aug 31, 2022

• #6

Hicap phill said:

On our S1 the key only provides power.,,,
You need to know where the starter button is to start.

Click to expand...

I know where the starter button is.

The issue is that this doesn’t appear to do anything.



H

Hicap phill

Well-Known Member

Posts

16,337

Location

Wiltshire

• Aug 31, 2022

• #7

Series1LandyNewbie said:

I know where the starter button is.

The issue is that this doesn’t appear to do anything.

Click to expand...

So do you have a solenoid on the starter motor or the bulkhead?

you need to get the multimeter out & start tracing 12v

Good photos of engine & engine bay will show us what you need to check



Shippers

Well-Known Member

Posts

10,693

Location

Algarve

• Aug 31, 2022

• #8

Move your questions and pics to the series section...



S

Series1LandyNewbie

New Member

Posts

9

Location

Gloucester

• Sep 1, 2022

• #9




S

Series1LandyNewbie

New Member

Posts

9

Location

Gloucester

• Sep 1, 2022

• #10

Engine Photo



Attachments

•

  84 KB · Views: 91

S

Series1LandyNewbie

New Member

Posts

9

Location

Gloucester

• Sep 1, 2022

• #11

Shippers said:

Move your questions and pics to the series section...

Click to expand...

don’t think have permissions to move threads.



marjon

Well-Known Member

Full Member

Posts

16,860

Location

Bulgaria

• Sep 1, 2022

• #12

Welcome.

What @Shippers meant was if you ask in the series section you will get better response to your questions.

Good luck with it.

J



H

Hicap phill

Well-Known Member

Posts

16,337

Location

Wiltshire

• Sep 1, 2022

• #13

Series1LandyNewbie said:

Engine Photo

Click to expand...

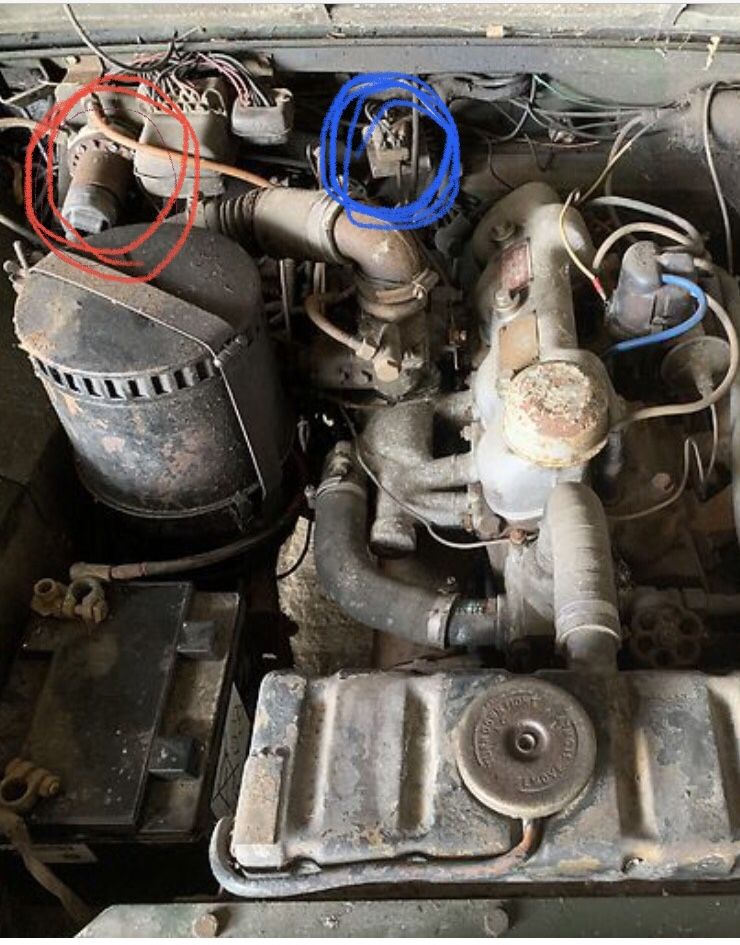

Oo 2ltr side valve…
In red circle check voltage to the can looking item(fuel pump)
In the blue circle is this a solonoid?



Turboman

Mab An Gov

Posts

60,151

Location

Lathrowda, Kernow

• Sep 1, 2022

• #14

Series1LandyNewbie said:

I know where the starter button is.

The issue is that this doesn’t appear to do anything.

Click to expand...

The starter switch is basic to the extreme. It just makes the connections when pushed in, and comes back out on a spring when released, breaking the connections.

Take it apart, and look for worn contacts, or wires come off the switch.

If not, maybe a new one. I think Series One club is the best source for many parts for these, although the switch is probably the same as the ones on a Series 2.



S

Series1LandyNewbie

New Member

Posts

9

Location

Gloucester

• Sep 11, 2022

• #15

Hello,

I have found out the issue and it’s the ignition coil.

I’ve been told it’s the old type for a series 1.

Any recommendations on where to get one from?

link to item if possible.



kermit_rr

Very

Full Member

Posts

33,944

Location

North Shropshire

• Sep 11, 2022

• #16

The ignition coil won't stop the engine turning over when you press the starter button, it just won't start



Turboman

Mab An Gov

Posts

60,151

Location

Lathrowda, Kernow

• Sep 11, 2022

• #17

Series1LandyNewbie said:

Hello,

I have found out the issue and it’s the ignition coil.

I’ve been told it’s the old type for a series 1.

Any recommendations on where to get one from?

link to item if possible.

Click to expand...

Google Accuspark, and ring them up, they are helpful.
I think it will be the 8 volt coil with a ballast, but am by no means certain.
With specialised stuff like this, online ordering is usually not the best policy.
