Seized hub nut - heat it?

Discussion in 'General Land Rover Forum' started by BravoNovember, Mar 24, 2019.

< Previous Thread | Next Thread >
  1. BravoNovember

    BravoNovember Active Member

    Joined:
    Jan 13, 2019
    Posts:
    130
    Likes Received:
    74
    Location:
    The Shire
    Trying to do the drive shaft oil seals on my disco two, as always it’s a mission!

    Hub nut won’t budge, it doesn’t look like it has been staked by whoever put it on so I don’t think it’s that.

    Breaker, jack under breaker, hitting socket with a mallet, running out of options.

    If I get the torch on it and heat it will I b*gger up anyththing else in the hub like the bearings and all that?

    Or my only other option is to try and drill and split the nut, but access is limited by the raised crown bit on the hub.

    I’m open to suggestions.

    Sorry if it’s a proper noob question!

  2. Beneagles

    Beneagles Well-Known Member

    Joined:
    Oct 27, 2009
    Posts:
    4,423
    Likes Received:
    2,059
    Location:
    North Perthshire
    Longer lever - stick a scaff pole on the breaker! :D

    Bantam1 and BravoNovember like this.
  3. Si Click

    Si Click Well-Known Member

    Joined:
    Aug 21, 2018
    Posts:
    1,250
    Likes Received:
    615
    Location:
    Lincolnshire
    3/4" breaker with scaff pole (1/2" may well snap), or a really good impact wrench able to cope with > 400NM. Good quality rechargeable ones are light and small, but expensive; alternatively mains powered ones are more powerful and start at around £60, but are less useful when access is restricted.

    Last edited: Mar 24, 2019
    BravoNovember likes this.
  4. Bobsticle

    Bobsticle De Villes Advocaat

    Joined:
    Aug 8, 2013
    Posts:
    16,650
    Likes Received:
    18,148
    Location:
    Manchester
    Cold chisel and lumpy.

    BravoNovember and Dippypud like this.
  5. beanwood

    beanwood Active Member

    Joined:
    Apr 17, 2010
    Posts:
    109
    Likes Received:
    50
    Location:
    North of Bristol
    Torque multiplier, or heavy duty Impact wrench (I now have both!!)
    It amazed me how easily it took mine off after I'd snapped a 3/4 breaker bar.
    Whereabouts are you?

    BravoNovember likes this.
  6. Bobdog

    Bobdog Well-Known Member

    Joined:
    May 1, 2012
    Posts:
    4,101
    Likes Received:
    4,882
    Location:
    Horsham West Sussex
    3/4" breaker with scaff tube, touching or near the ground in direction of travel, then 1st or reverse gear depending on which side you are doing and drive slowly off...

    Mine came off with a 1/2" breaker and an old trampoline pole over it (it was bending like fook without it) then I stood on it and it cracked the nut.
    Edit- don't forget to put the wheel back on before trying the above... :D

    Last edited: Mar 24, 2019
    BravoNovember likes this.
  7. BravoNovember

    BravoNovember Active Member

    Joined:
    Jan 13, 2019
    Posts:
    130
    Likes Received:
    74
    Location:
    The Shire
    I’m in the worlds of Wiltshire.

    Funny enough I had a look at some impact wrenches today whilst I was out, can’t afford til payday lol!

  8. neilly

    neilly Well-Known Member

    Joined:
    Jan 10, 2011
    Posts:
    18,849
    Likes Received:
    9,083
    Location:
    Oxfordshireness
    If you use a breaker bar, then support the extension bar on an axle stand , it makes applying the torque to undo it a little more controlled.

    Cheers

    1988smithy and BravoNovember like this.
  9. BravoNovember

    BravoNovember Active Member

    Joined:
    Jan 13, 2019
    Posts:
    130
    Likes Received:
    74
    Location:
    The Shire
    Right I’ve got seven feet of scaf pole from my mates garden, this will not defeat me lol!

    I’ll give it a nudge with the 1/2 inch breaker, if it snaps it will be 3/4 inch time on payday.

    Thanks for the post so far guys, I appreciate the help!

  10. neilly

    neilly Well-Known Member

    Joined:
    Jan 10, 2011
    Posts:
    18,849
    Likes Received:
    9,083
    Location:
    Oxfordshireness
    I hope you are using a 6 sided socket as well.

    Cheers

  11. Si Click

    Si Click Well-Known Member

    Joined:
    Aug 21, 2018
    Posts:
    1,250
    Likes Received:
    615
    Location:
    Lincolnshire
    If you have problems keeping the socket on the nut with a long breaker + scaff get a helper to lie on their back and push the socket on with their foot.

    BravoNovember likes this.
  12. BravoNovember

    BravoNovember Active Member

    Joined:
    Jan 13, 2019
    Posts:
    130
    Likes Received:
    74
    Location:
    The Shire
    Yep, I’ve hear not to use the ones with more sides with a lot of torque. I imagine it’s to spread the load force over the whole side rather than just the corners? (Go easy on the noob if I’m wrong lol).

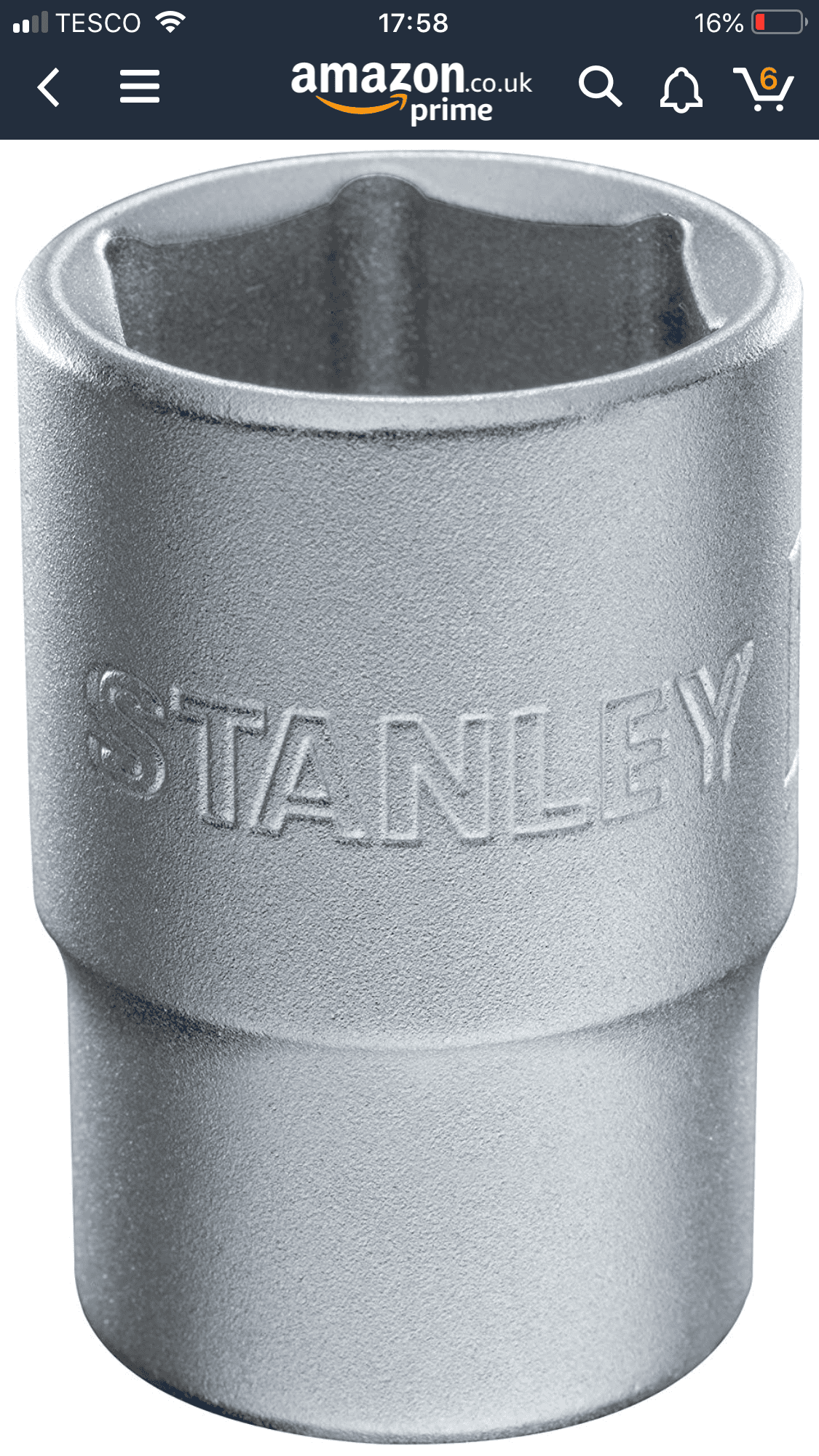

    Pretty much gonna use this one (pic)


    Attached Files:

  13. freelance

    freelance Well-Known Member

    Joined:
    Mar 5, 2009
    Posts:
    7,427
    Likes Received:
    3,768
    Location:
    essex and beyond
    Seven foot, on a half inch breaker bar, it’s going to end in tears !

    BravoNovember likes this.
  14. BravoNovember

    BravoNovember Active Member

    Joined:
    Jan 13, 2019
    Posts:
    130
    Likes Received:
    74
    Location:
    The Shire
    I can cut the tube down if it’s too much of a beast???

    I might have a chat with the head of motor vehicle at the college I work at, see if he will lend me a 3/4 bar and socket. You have me worrying now with mental images of snapping bars and flying shrapnel eeeeek.

    freelance likes this.
  15. BravoNovember

    BravoNovember Active Member

    Joined:
    Jan 13, 2019
    Posts:
    130
    Likes Received:
    74
    Location:
    The Shire
    Nice avatar btw, gotta love a Case!

    freelance likes this.
  16. bluedog333

    bluedog333 Well-Known Member

    Joined:
    Jun 7, 2014
    Posts:
    3,632
    Likes Received:
    2,284
    Location:
    Henley on Thames, Oxfordshire
    Just hold it half way down it’s length, work your way along the pole until something gives.

    BravoNovember likes this.
  17. kevstar

    kevstar Well-Known Member

    Joined:
    Sep 25, 2013
    Posts:
    5,378
    Likes Received:
    6,491
    Location:
    In the next Glen
    I've not long snapped a snap on 1/2 breaker bar removing wheel nuts id be very surprized if your bar survives this
    3/4" set took them off without an issue id wait until you have a decent tool for the job.

  18. beanwood

    beanwood Active Member

    Joined:
    Apr 17, 2010
    Posts:
    109
    Likes Received:
    50
    Location:
    North of Bristol
    OK.....Well Wiltshire is a fairly large place. Is where you live a secret??
    If you want to borrow the multiplier, you're welcome, (It makes it pi$$ easy) but without knowing how far away you are...

    Disco1BFG and kevstar like this.
  19. BravoNovember

    BravoNovember Active Member

    Joined:
    Jan 13, 2019
    Posts:
    130
    Likes Received:
    74
    Location:
    The Shire
    Lol sorry I’m in Trowbridge, that’s very kind of you to offer! Cheers. I would like to take you up on that.

  20. beanwood

    beanwood Active Member

    Joined:
    Apr 17, 2010
    Posts:
    109
    Likes Received:
    50
    Location:
    North of Bristol
    OK. let me know if you want to borrow it.
    I work in Bath, and have a colleague who lives in Trowbridge and he MAY be able to assist with transport, but I'm not back to work until Wednesday or Thursday.

    BravoNovember likes this.
