Disco 1 Saving an old disco

Discussion in 'Land Rover Discovery' started by owas, Jan 27, 2018.

< Previous Thread | Next Thread >
  1. dieseldog69

    dieseldog69 Well-Known Member LZIR Despatch Agent

    Joined:
    May 21, 2010
    Posts:
    4,155
    Likes Received:
    2,691
    Location:
    Back in the UK, Hayling Island.
    The wiring looms run along the top of the body sections in a tray, there are two, one each side, you can chase them down to the rear light clusters where there will be plugs going down to the bumper light clusters.

    On the drivers side floor pan you also have the fuel pipes and rear brake line runs along a piece of steel too with sporadic use of zip ties.

  2. Spong

    Spong Well-Known Member

    Joined:
    Feb 3, 2014
    Posts:
    1,248
    Likes Received:
    881
    Location:
    Surrey / Hants border
    Getting interesting now....


  3. owas

    owas Active Member

    Joined:
    Jul 30, 2014
    Posts:
    273
    Likes Received:
    44
    Somehow my indicators work fine without the bumper ones connected, i thought it would flash as if a bulb was out.

    The light circuit is the only one i need to the rest can get cut out.

    Dont expect it to get done quickly though, ill have it cut up on wednesday, god knows when ill have it back together:D

  4. dieseldog69

    dieseldog69 Well-Known Member LZIR Despatch Agent

    Joined:
    May 21, 2010
    Posts:
    4,155
    Likes Received:
    2,691
    Location:
    Back in the UK, Hayling Island.
    You have two light circuits, one either side.

    They have plugs under the dash in the foot wells and at the light clusters, on the RH side I forgot to mention that you also have the washer fluid tube and the heated rear window power feed as well.

    There really isn't that much wiring in a Discovery 1, not even in the 300Tdi, they kept most of it under the dash and even then it is "sparse" by today's standards.

  5. owas

    owas Active Member

    Joined:
    Jul 30, 2014
    Posts:
    273
    Likes Received:
    44
    Just quickly removed the headlining, all looks straightforward really.

    I think itll be around a 6ft long bed staying within the 60% overhang.

    Ill check other conversions to see how the joint is made, looks a little awkward.

  6. dieseldog69

    dieseldog69 Well-Known Member LZIR Despatch Agent

    Joined:
    May 21, 2010
    Posts:
    4,155
    Likes Received:
    2,691
    Location:
    Back in the UK, Hayling Island.

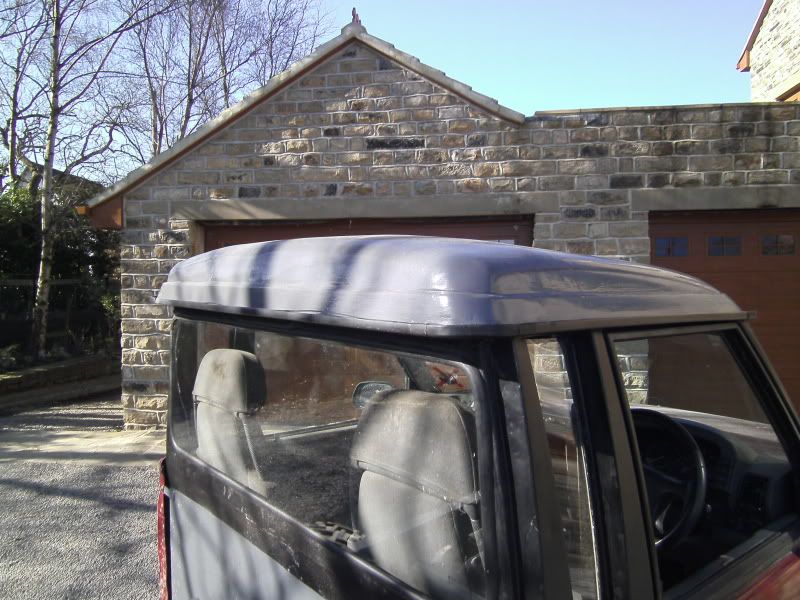

    DiscoUte022.jpg I really liked this roof, the guy used a standard Defender screen at the back, I couldn't do that, the cold through the glass behind my neck would be awful I think.

    Last edited: Jan 29, 2018
  7. The Mad Hat Man

    The Mad Hat Man Well-Known Member LZIR Despatch Agent

    Joined:
    Sep 11, 2005
    Posts:
    79,913
    Likes Received:
    6,304
    Location:
    Embasinga stocæ
    no pic :eek:

    download and then upload to here

  8. dieseldog69

    dieseldog69 Well-Known Member LZIR Despatch Agent

    Joined:
    May 21, 2010
    Posts:
    4,155
    Likes Received:
    2,691
    Location:
    Back in the UK, Hayling Island.
    This D2 has had an extra 10 inches added to the wheelbase and TBH looks factory built.


    Spong and Magicgrotto like this.
  9. The Mad Hat Man

    The Mad Hat Man Well-Known Member LZIR Despatch Agent

    Joined:
    Sep 11, 2005
    Posts:
    79,913
    Likes Received:
    6,304
    Location:
    Embasinga stocæ
    Untitled.jpg you mean this one?

  10. dieseldog69

    dieseldog69 Well-Known Member LZIR Despatch Agent

    Joined:
    May 21, 2010
    Posts:
    4,155
    Likes Received:
    2,691
    Location:
    Back in the UK, Hayling Island.
    I edited it and added.

  11. dieseldog69

    dieseldog69 Well-Known Member LZIR Despatch Agent

    Joined:
    May 21, 2010
    Posts:
    4,155
    Likes Received:
    2,691
    Location:
    Back in the UK, Hayling Island.
    No image.

  12. The Mad Hat Man

    The Mad Hat Man Well-Known Member LZIR Despatch Agent

    Joined:
    Sep 11, 2005
    Posts:
    79,913
    Likes Received:
    6,304
    Location:
    Embasinga stocæ
    is now :p

  13. dieseldog69

    dieseldog69 Well-Known Member LZIR Despatch Agent

    Joined:
    May 21, 2010
    Posts:
    4,155
    Likes Received:
    2,691
    Location:
    Back in the UK, Hayling Island.
    LOL

    Or you mean post #46?

  14. The Mad Hat Man

    The Mad Hat Man Well-Known Member LZIR Despatch Agent

    Joined:
    Sep 11, 2005
    Posts:
    79,913
    Likes Received:
    6,304
    Location:
    Embasinga stocæ
    #46 has no pic

  15. owas

    owas Active Member

    Joined:
    Jul 30, 2014
    Posts:
    273
    Likes Received:
    44
    Its the side panel by the door im not too sure about, might be someway of using the doors, perhaps chopping them down and welding them to the B pillar, with an infill plate in the shortend window frame.

    Just thinking out loud :D

  16. The Mad Hat Man

    The Mad Hat Man Well-Known Member LZIR Despatch Agent

    Joined:
    Sep 11, 2005
    Posts:
    79,913
    Likes Received:
    6,304
    Location:
    Embasinga stocæ
    Use a Disco Sunroof - thats what mine has :)

  17. dieseldog69

    dieseldog69 Well-Known Member LZIR Despatch Agent

    Joined:
    May 21, 2010
    Posts:
    4,155
    Likes Received:
    2,691
    Location:
    Back in the UK, Hayling Island.
    Now?

    Bear in mind it looks fine on my puter!

  18. dieseldog69

    dieseldog69 Well-Known Member LZIR Despatch Agent

    Joined:
    May 21, 2010
    Posts:
    4,155
    Likes Received:
    2,691
    Location:
    Back in the UK, Hayling Island.
    Like that idea, just the glass or is it an old fashioned one that lifts at the back like the side windows of a 3dr?

  19. The Mad Hat Man

    The Mad Hat Man Well-Known Member LZIR Despatch Agent

    Joined:
    Sep 11, 2005
    Posts:
    79,913
    Likes Received:
    6,304
    Location:
    Embasinga stocæ
    fine now

    dieseldog69 likes this.
  20. The Mad Hat Man

    The Mad Hat Man Well-Known Member LZIR Despatch Agent

    Joined:
    Sep 11, 2005
    Posts:
    79,913
    Likes Received:
    6,304
    Location:
    Embasinga stocæ
    lift at back (bottom) type

    dieseldog69 likes this.
