S3 109 Safari project......

Discussion in 'Members Vehicles/Projects' started by GSF 109, Apr 3, 2020.

< Previous Thread | Next Thread >
  1. Wagon Loon

    Wagon Loon Well-Known Member

    Joined:
    Apr 25, 2020
    Posts:
    149
    Likes Received:
    196
    Location:
    Aberdeen
    Looking good, you have been busy. I guess there must be some tension in the chassis if it moved a little when you cut the front member out

  2. auld duffer

    auld duffer Well-Known Member

    Joined:
    Oct 6, 2020
    Posts:
    211
    Likes Received:
    230
    Location:
    scotland
    great progress, good save on the front chassis legs ,, Its annoyig when stuff you expect to fit just doest , without some remedial work.. But you puled it off and its looking great .

  3. GSF 109

    GSF 109 Active Member

    Joined:
    Mar 24, 2020
    Posts:
    242
    Likes Received:
    95
    Location:
    Kilmarnock
    Yes, even though the crossmember was completely rotten, it still managed to keep the main rails aligned. I really should have braced it before removing. I did have angle iron clamped across both front dumb irons but that obviously didn’t work! Anyway, it’s all back in line now. Once I make up and fit the additional strengthening plates for both sides, I will overlap the welds to prevent a weak point. The crush tubes will support the m12 bolts for the steering box and prevent the chassis leg deforming once they are welded into place.

    Last edited: Nov 1, 2020
    Wagon Loon likes this.
  4. GSF 109

    GSF 109 Active Member

    Joined:
    Mar 24, 2020
    Posts:
    242
    Likes Received:
    95
    Location:
    Kilmarnock
    Thanks very much. Yes, it was a bit surprising as the dumbiron was well made. It will all start to look a bit stronger once the additional strengthening is in place. I will refabricate the front crossmember from 4mm steel plate and shape it to fit the new steering box location, which is where the old front crossmember was which is inconvenient.:rolleyes: It should make sense as it progresses.:D

    Last edited: Nov 1, 2020
  5. Wagon Loon

    Wagon Loon Well-Known Member

    Joined:
    Apr 25, 2020
    Posts:
    149
    Likes Received:
    196
    Location:
    Aberdeen
    Will be interested to see your power steering fitment and how it fits with the cross member.
    I assume there will be some plumbing too :)

  6. GSF 109

    GSF 109 Active Member

    Joined:
    Mar 24, 2020
    Posts:
    242
    Likes Received:
    95
    Location:
    Kilmarnock
    Hopefully, I will be able to fit the discovery radiator with oil cooler, keep the power steering pump on the 200tdi and modify the plumbing to suit. May need to make up some pipes to suit. The crossmember, I will wing it and see how it goes :D:D

  7. auld duffer

    auld duffer Well-Known Member

    Joined:
    Oct 6, 2020
    Posts:
    211
    Likes Received:
    230
    Location:
    scotland
    there is a fella /company in the UK do a you tube video of fitting the P38 power steering box to the series chassis and run off the 200TDI power steer pump.. They run through the whole installation in the video :)

  8. GSF 109

    GSF 109 Active Member

    Joined:
    Mar 24, 2020
    Posts:
    242
    Likes Received:
    95
    Location:
    Kilmarnock
    Yeah, I’ve seen it. Looks good, but I’ve not gone down this route because I have a discovery power steering box already and all the bits to fit it. I like a challenge too lol. :):)

  9. GSF 109

    GSF 109 Active Member

    Joined:
    Mar 24, 2020
    Posts:
    242
    Likes Received:
    95
    Location:
    Kilmarnock
    Decided to fully weld the plate on the side of the chassis first, then add the strengthening plates. 7040655C-D1FB-4F1D-8B78-A332245F6FA6.jpeg

  10. GSF 109

    GSF 109 Active Member

    Joined:
    Mar 24, 2020
    Posts:
    242
    Likes Received:
    95
    Location:
    Kilmarnock
    Next I added some 4mm plate to support the addition of the steering box to both sides of the chassis. 300E7BE4-997F-4948-AA30-C6B5E4CA94C1.jpeg 680B4AD9-DC7A-4B6F-8A98-A85D21733BB4.jpeg

  11. GSF 109

    GSF 109 Active Member

    Joined:
    Mar 24, 2020
    Posts:
    242
    Likes Received:
    95
    Location:
    Kilmarnock

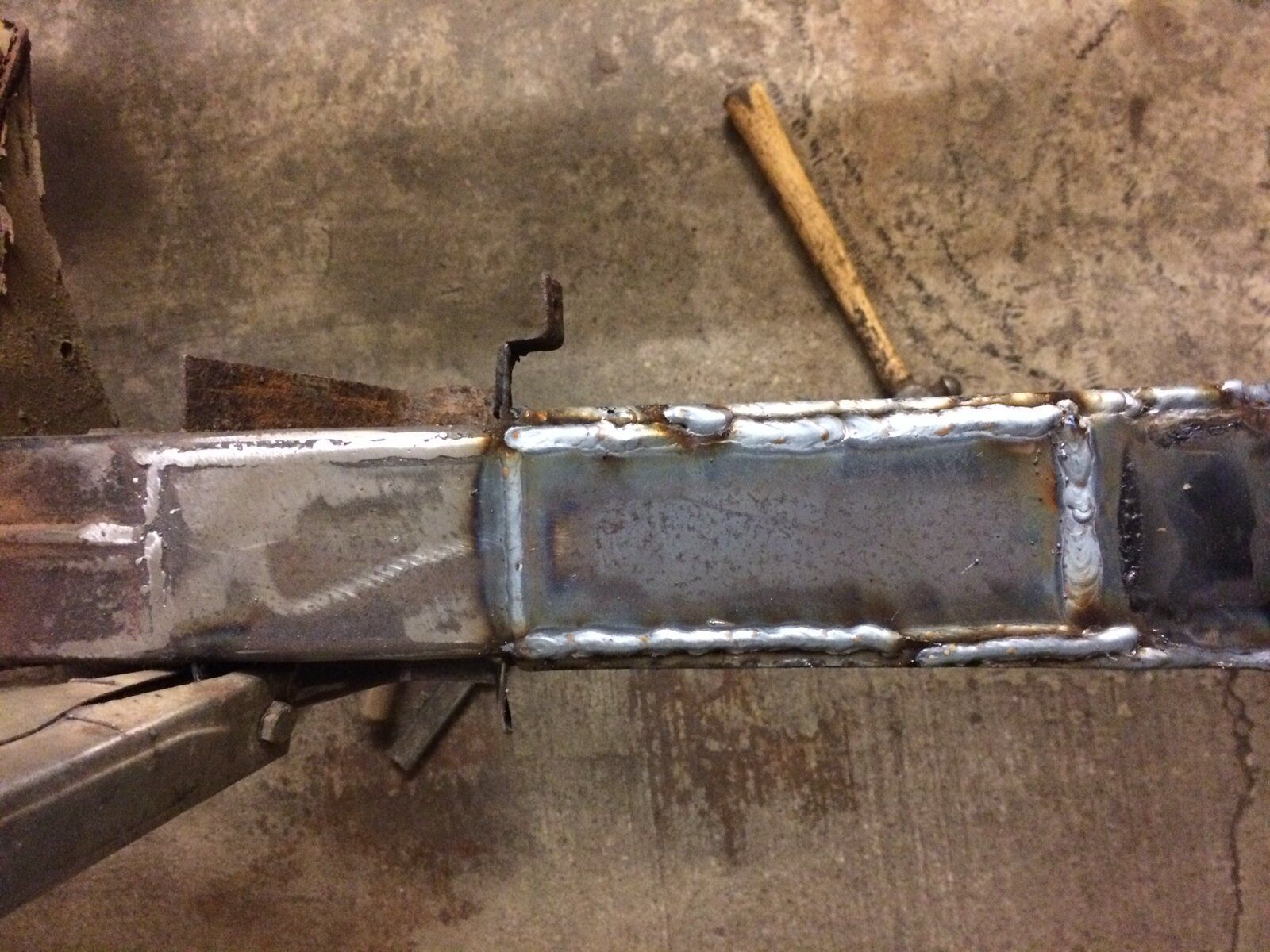

    Then to finish, add some 2mm plate to finish the top of the chassis. 533C5001-692A-4CB4-8B47-6CEC1FA7C612.jpeg 35FA84F8-C747-4A09-ADD9-A98CDE2D2FBA.jpeg

  12. GSF 109

    GSF 109 Active Member

    Joined:
    Mar 24, 2020
    Posts:
    242
    Likes Received:
    95
    Location:
    Kilmarnock
    Trial fit of the disco steering box. It will need a template made up to drill the position of the securing bolts (which I seem to have mislaid!). Then I will cut the bottom out of the lower half of the chassis to tack on the crush tubes inside the chassis leg. That is the plan for next week! 8999C353-5642-48AF-B696-3A5FD48A246F.jpeg DF17DFBC-688C-4195-BE42-72C60D775FC3.jpeg

    steve2286w likes this.
  13. auld duffer

    auld duffer Well-Known Member

    Joined:
    Oct 6, 2020
    Posts:
    211
    Likes Received:
    230
    Location:
    scotland
    Nice bit of work . Was scroling down through the pics and thought I would weld in a top plate, then next pic thats exactly what you done . Nice and strong, looks great .

  14. GSF 109

    GSF 109 Active Member

    Joined:
    Mar 24, 2020
    Posts:
    242
    Likes Received:
    95
    Location:
    Kilmarnock
    Thanks. To be honest, I think it’s probably a bit much going for 4mm plate like I did, but it certainly is strong enough.
    Next step is to finish this off and make a new front crossmember to replace the rotten one. Might be a bit of metal origami to make it fit :D

  15. auld duffer

    auld duffer Well-Known Member

    Joined:
    Oct 6, 2020
    Posts:
    211
    Likes Received:
    230
    Location:
    scotland
    I think the 4mm plate was a good idea, the 2mm over the depth of the frame is a bit flexible , and with the steering box mounted in that area there might have been a chance of stress cracks , unlikely, especially with the power steering, but you definitely eliminated any chance of that with the 4mm ( 6mm total) any flex will be spread well over that area .. proper job . Do it right , do it once :)

  16. Wagon Loon

    Wagon Loon Well-Known Member

    Joined:
    Apr 25, 2020
    Posts:
    149
    Likes Received:
    196
    Location:
    Aberdeen
    I am not familiar with the later power steering four bolt box set up, so I watched this

    Which helped me understand how it sits.
    The bleed nipple on top of the box looks like it would be interesting to access once fully built, but it seems a much better idea having it mounted to the side of leg as opposed to rust welded internally lol.
    Will you use some of the later components up to the steering wheel also ? Or just the shaft with the U/J's on it .
    I'm Shure this mod will result in less minor corrective steering needed when travelling in a straight line :)

  17. GSF 109

    GSF 109 Active Member

    Joined:
    Mar 24, 2020
    Posts:
    242
    Likes Received:
    95
    Location:
    Kilmarnock
    Yes, I have a steering column brackets and linkage from an early 110, so I’m hoping that will mate up to the disco steering box. I believe it does... :rolleyes:. I will mount the bulkhead back onto the chassis and fit the steering column to be sure the steering box is in the right place before I drill the holes to mount it. Again, cardboard aided design will help here.:) Hopefully this will be a worthwhile mod, given all the additional work required!

  18. Wagon Loon

    Wagon Loon Well-Known Member

    Joined:
    Apr 25, 2020
    Posts:
    149
    Likes Received:
    196
    Location:
    Aberdeen
    I'm sure it will be

    GSF 109 likes this.
  19. GSF 109

    GSF 109 Active Member

    Joined:
    Mar 24, 2020
    Posts:
    242
    Likes Received:
    95
    Location:
    Kilmarnock
    So I decided to continue with the power steering box mounting. I created a cardboard template to give me a idea of where the bolt holes should be..... ECD982A1-A9A0-456F-B6F8-B9EDDB63922D.jpeg

  20. GSF 109

    GSF 109 Active Member

    Joined:
    Mar 24, 2020
    Posts:
    242
    Likes Received:
    95
    Location:
    Kilmarnock
    Drilled the holes, hopefully straight and try the box back on.... 546D7017-0C27-4FBE-9E00-F7D27928B2F5.jpeg
