RRC wiring

D3FTL · Mar 22, 2021

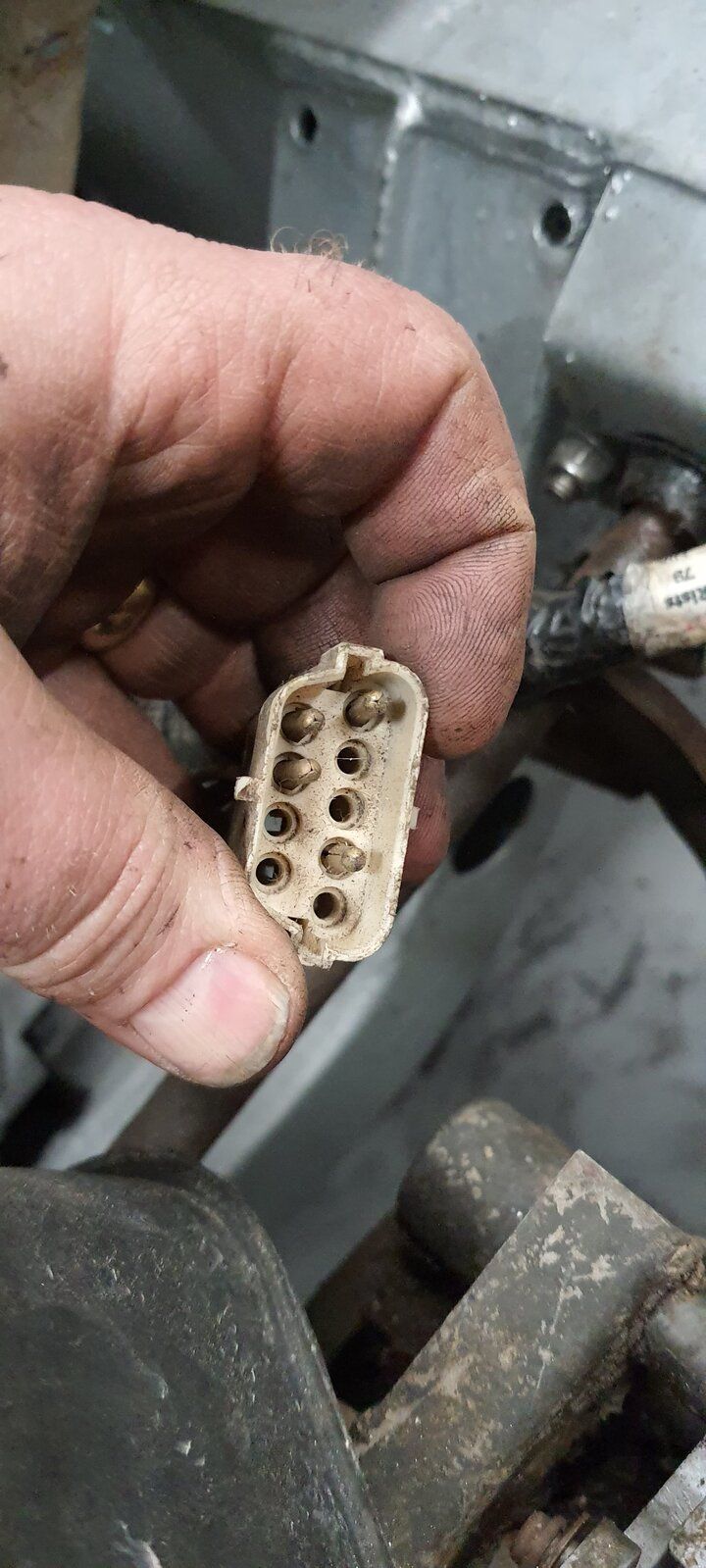

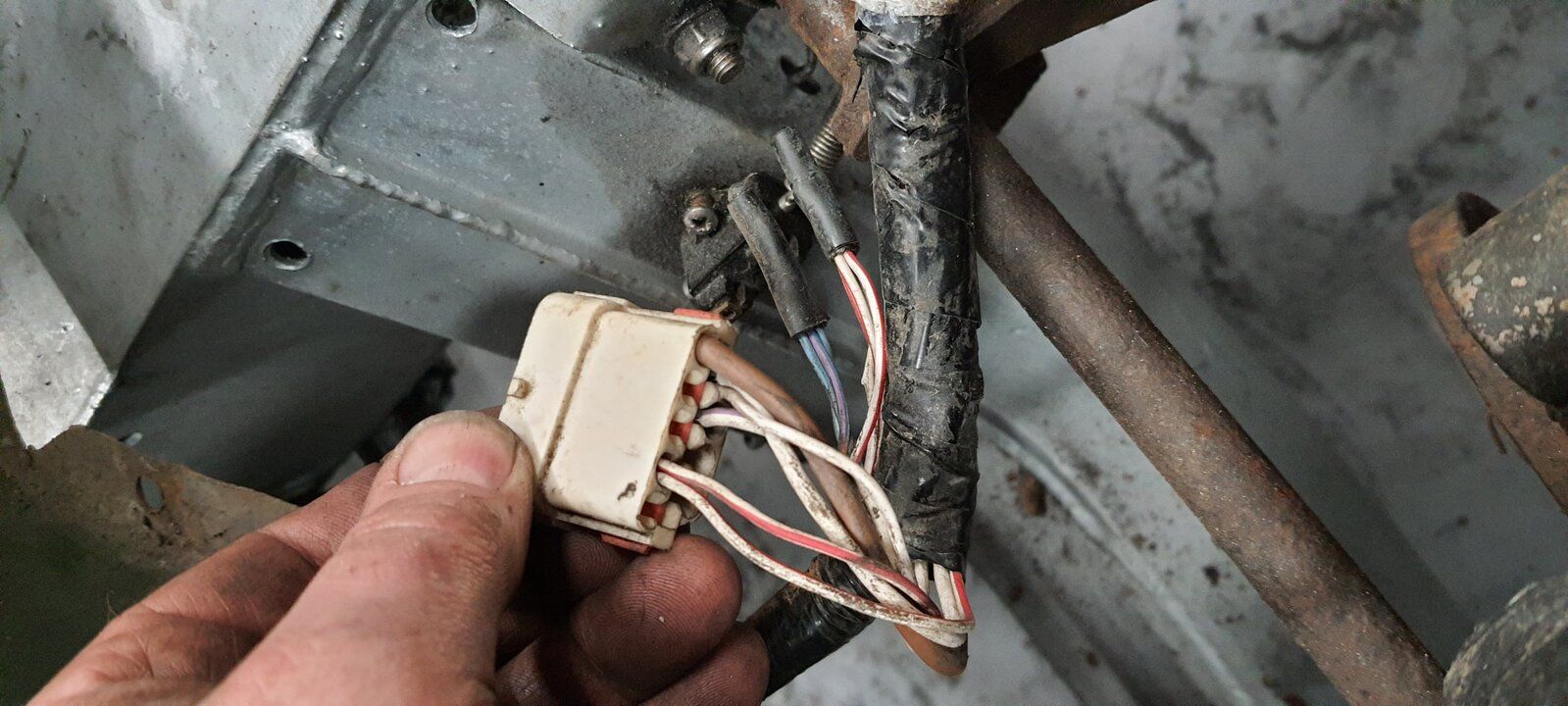

Hi, just trying to get a RRC 3.5 efi engine ecu powered up which we are fitting into a series land rover. Could anyone please help by letting me know which wires in this plug got to what feeds etc. Looks like it may power up the engine ecu etc.
Thanks Tim.

Kev12 · Mar 22, 2021

What year is the donor? I think I have wiring diagrams on another pc i can check tomorrow

D3FTL · Mar 22, 2021

Kev12 said:
What year is the donor? I think I have wiring diagrams on another pc i can check tomorrow

Hi Kev, thanks for your reply.
I have no idea on the age of the donor vehicle. Just know it's a 3.5 V8 efi so I would presume it's an early model year. This plug would sit around the front of the floor area.
