Rocker shaft

ormondstreet · Oct 24, 2020

Which way up is the rocker shaft installed, I didn’t realise there was a difference when I took off the rockers but the oil holes on one side of the shaft have a rectangular indent whereas the other side are plain holes.
Does the rocker go over the indented hole or the plain one. Many thanks

kermit_rr · Oct 24, 2020

I always thought the rocker shaft was free to spin. Might be wrong or might just be some designs

lynall · Oct 24, 2020

Any help?

ormondstreet · Oct 24, 2020

Kermit-rr it doesn’t spin, 5 bolts hold it in place but thanks all the same

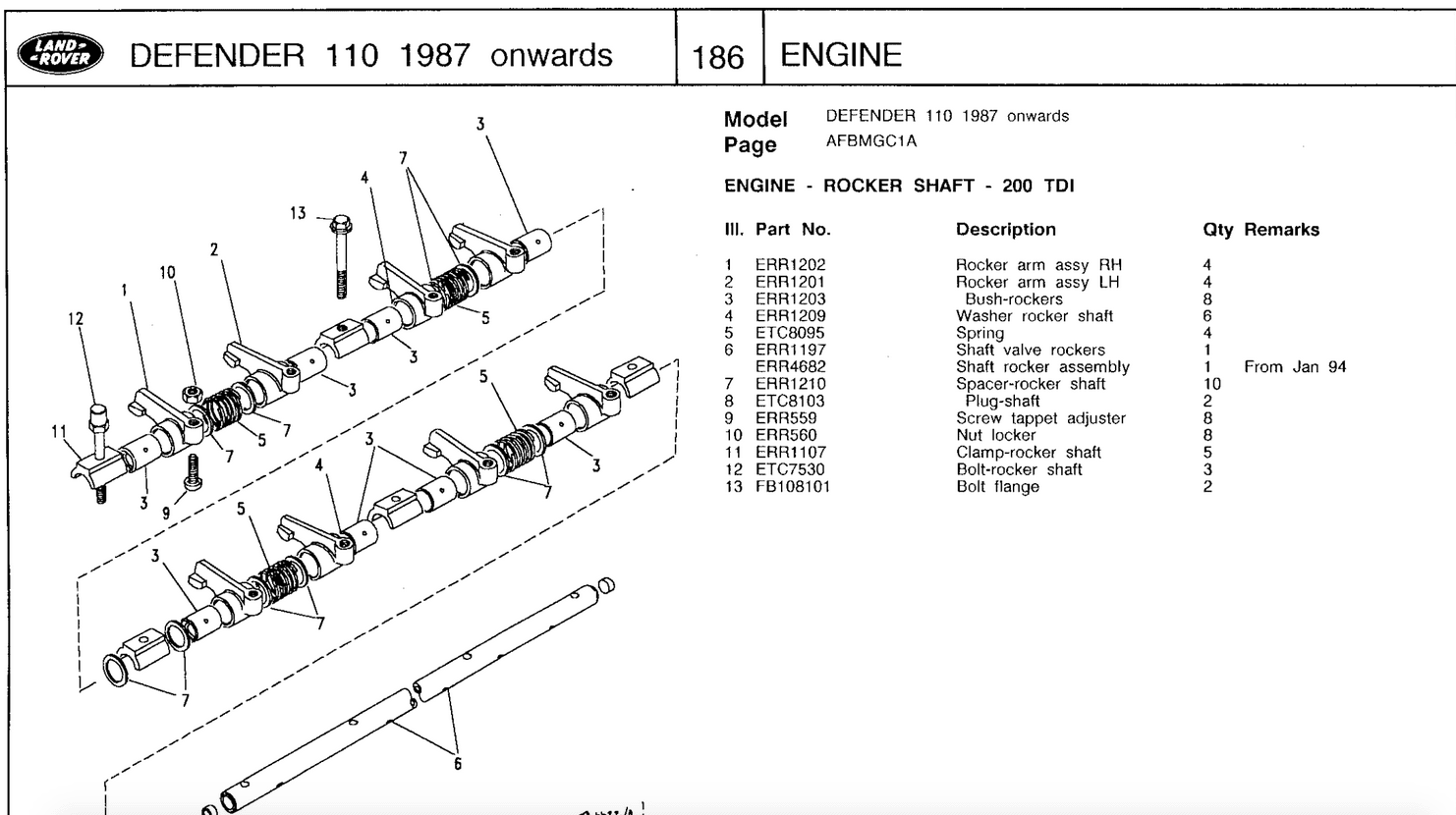

Lynall, yes I looked at that last night but it doesn’t show enough detail, thanks anyway.

jamesmartin · Oct 24, 2020

ormondstreet said:
Which way up is the rocker shaft installed, I didn’t realise there was a difference when I took off the rockers but the oil holes on one side of the shaft have a rectangular indent whereas the other side are plain holes.
Does the rocker go over the indented hole or the plain one. Many thanks

3 of the securing holes are larger on the side that locates on the dowels

ormondstreet · Oct 24, 2020

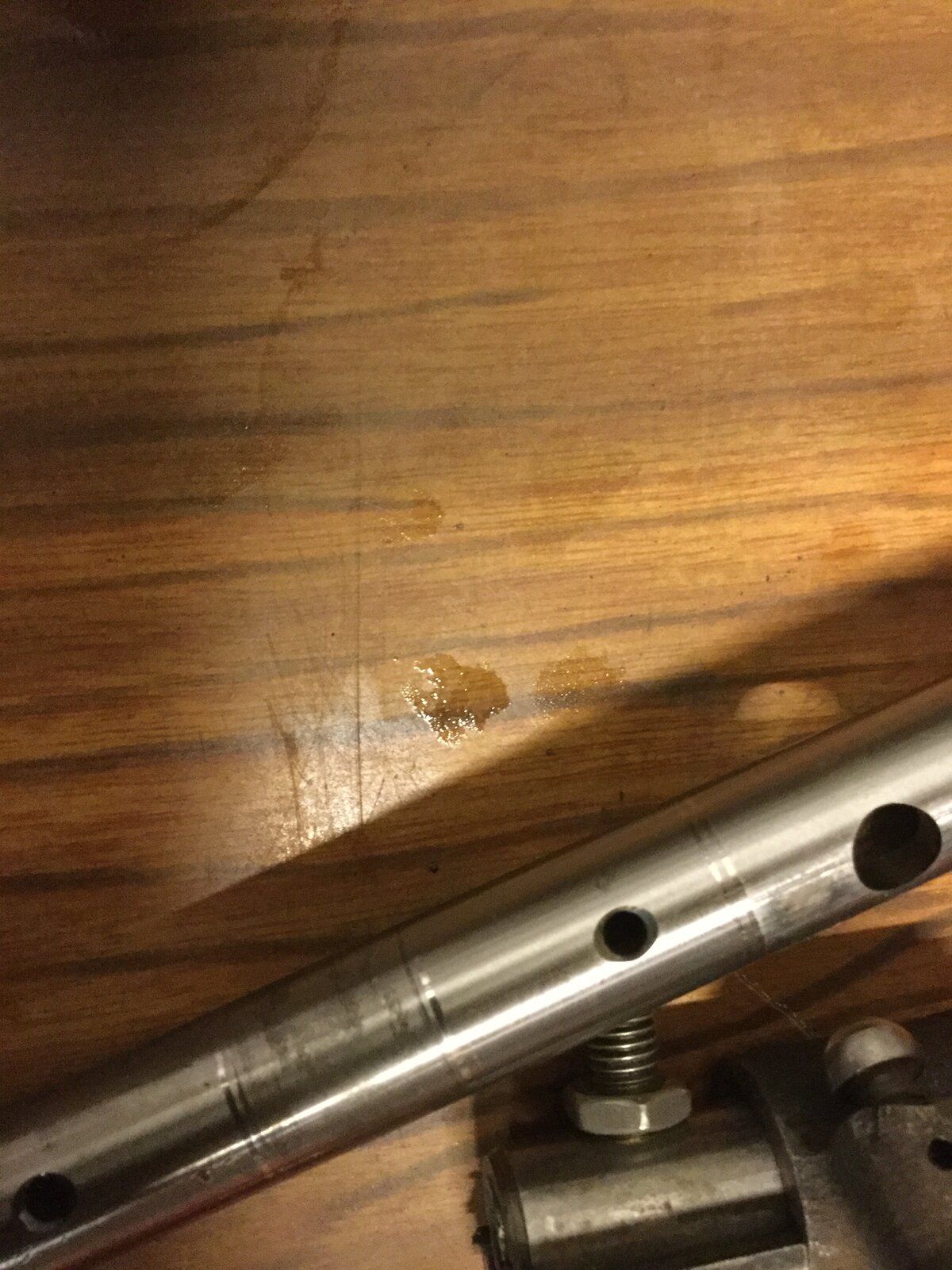

These are the oil holes on one side of the shaft, and the oil holes on the other side of the shaft and I don’t know which way up it goes

jamesmartin · Oct 24, 2020

ormondstreet said:
These are the oil holes on one side of the shaft, and the oil holes on the other side of the shaft and I don’t know which way up it goes

have you checked the 3 dowel hole

ormondstreet · Oct 24, 2020

There are 5 holes along the shaft, they all look the same size

steve2286w · Oct 24, 2020

The dowel at rear where oil supply comes should be a neat fit on one end of shaft

jamesmartin · Oct 24, 2020

steve2286w said:

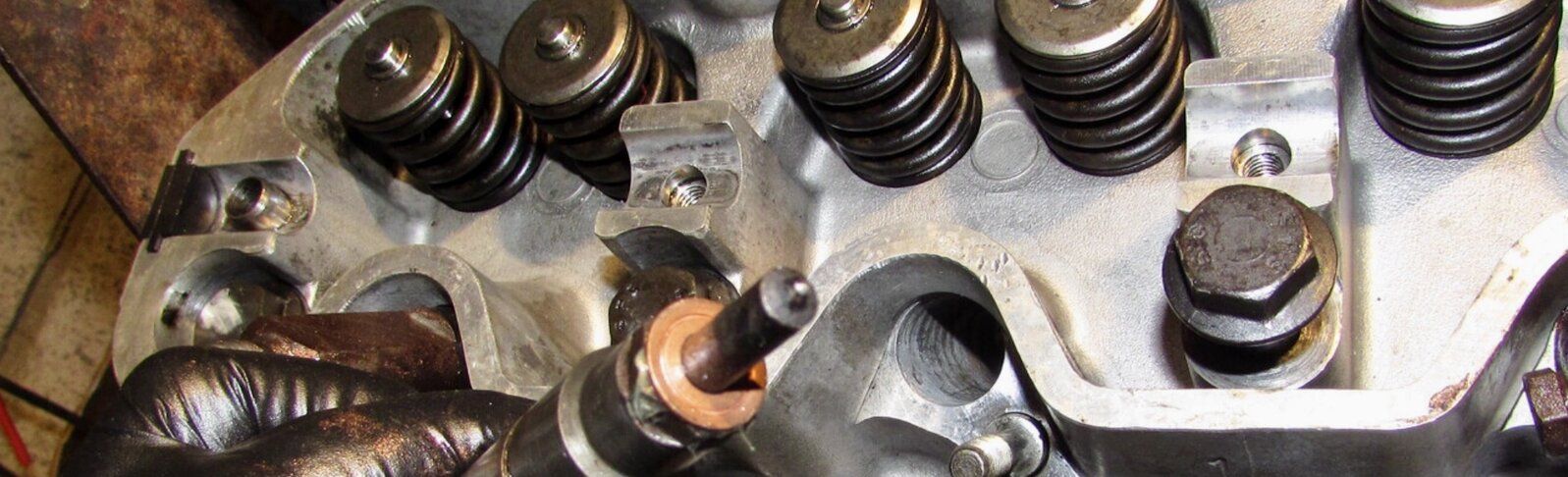

The dowel at rear where oil supply comes should be a neat fit on one end of shaftView attachment 221911

oil supplies at the front front cam bearing

steve2286w · Oct 24, 2020

Correct ignore my post I’m talking bollicks

ormondstreet · Oct 25, 2020

Well You we’re both in the right direction, I didn’t notice it until I had looked at it about 3 times but on the five fixing holes, one of them ( the one that the dowel goes into) was bigger on the underside than all the others so there was only one way it could have gone on. Thanks for all your help, next time I will think it out a bit more before shouting “help”.
