OK Just another problem that I have no Idea about.

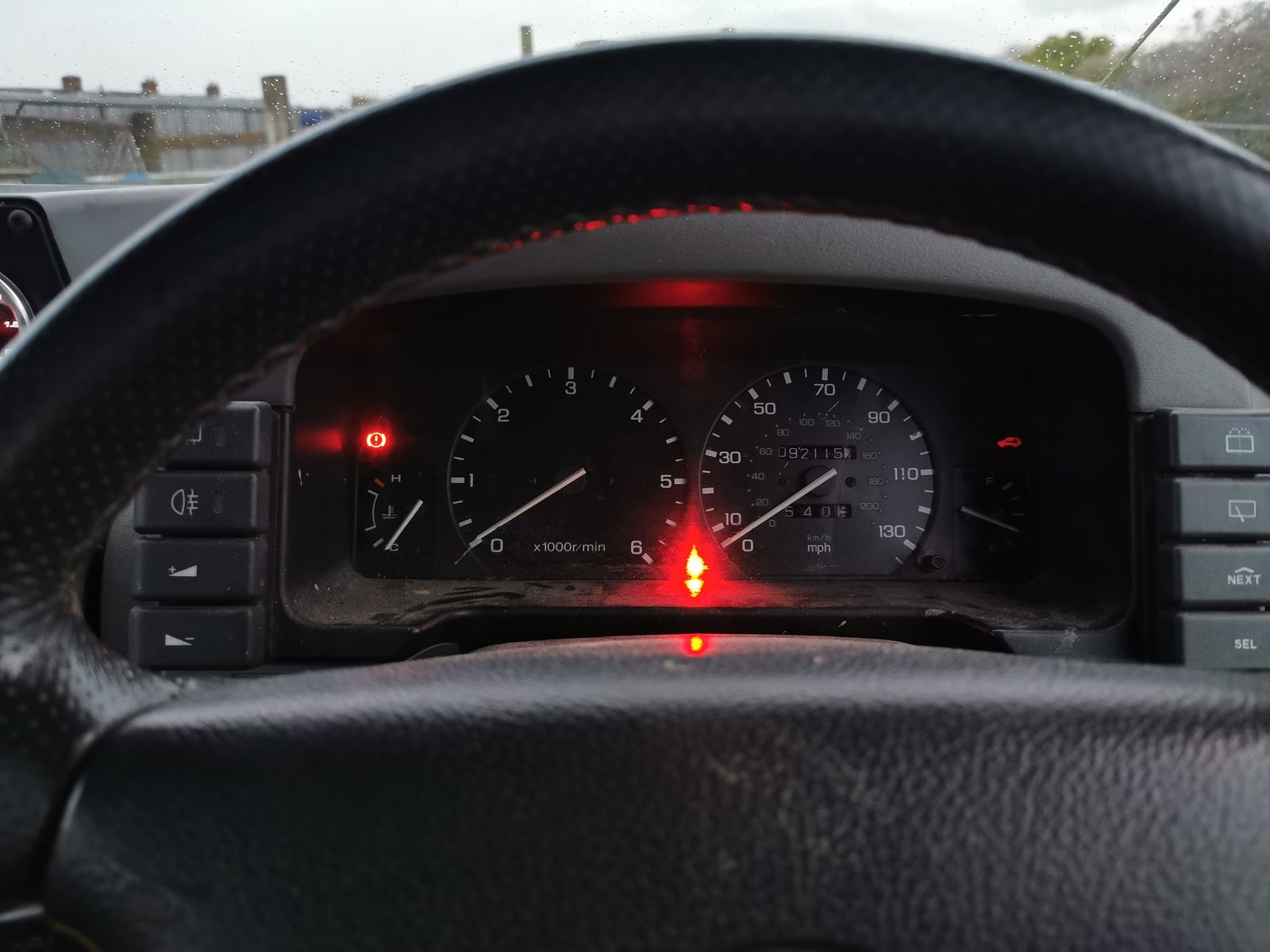

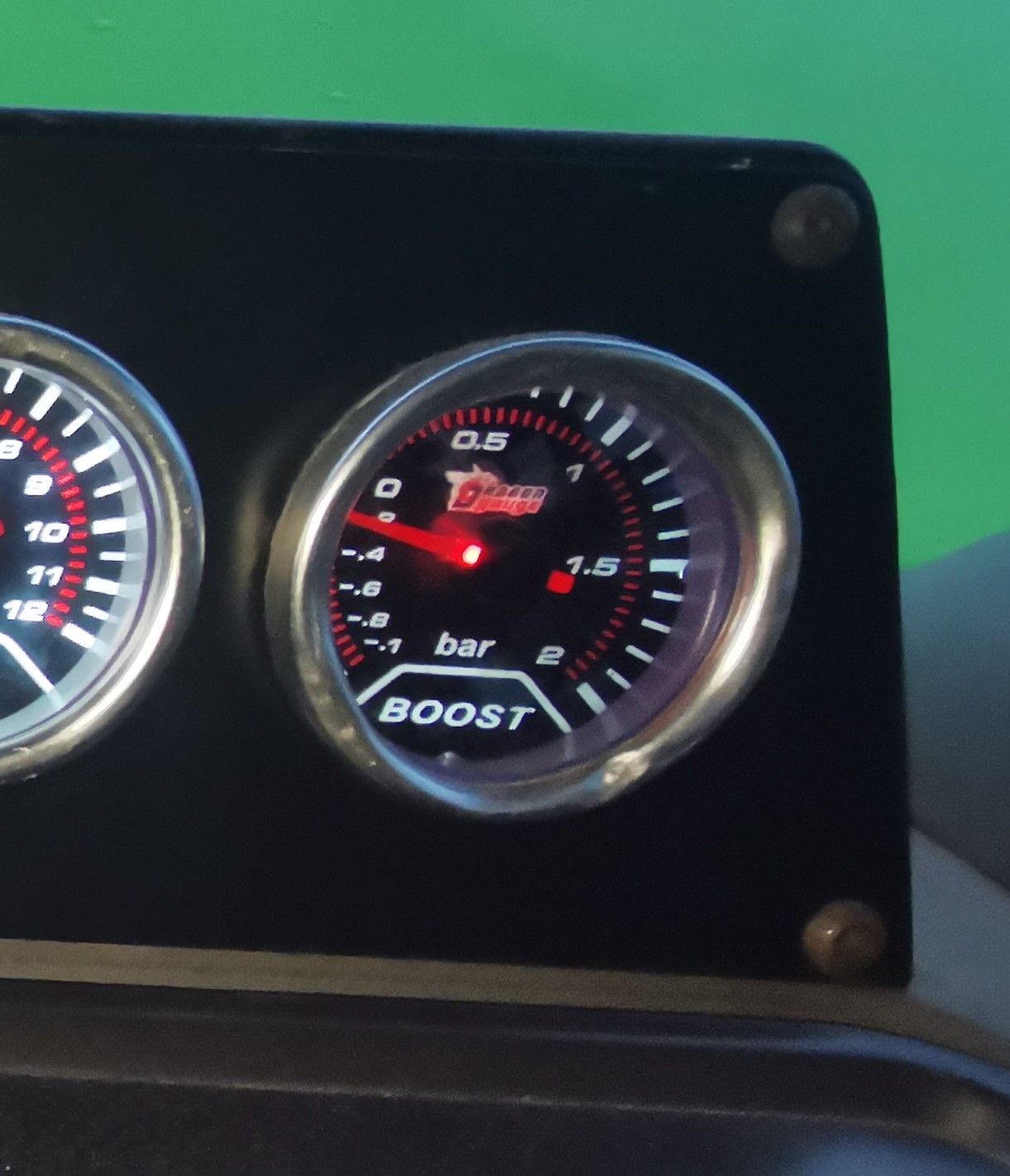

My Rev counter If that's the correct name for it ? The large one on the left that has x1000r/min , does not work, the needle does not move. Speedo, temp, mileage counter and fuel gauge all work as they should. Is it something to do with having Boost Gauge fitted or should it work as well as the Boost ??
Thanks


Attachments

  • IMG_20191103_163038.jpg
    137.1 KB · Views: 123
  • IMG_20191030_163846 (2).jpg
    IMG_20191030_163846 (2).jpg
    156.3 KB · Views: 122
Tacho works off the W signal wire on the back of the alternator, it is usually just a single white wire, not 100% on a 300Tdi as to whether they have a multiplug on the back as my 300Series was a V8 lol

This is very common, take the lead off the back of the alternator, clean and tighten the connection and put it back on, Hey presto it'll probably work. Mine did!
Tachometer, also know as rev counter, as it counts the revs, revolutions, of the engine, per minute. Useful for timing gear changes.

tilly2 said:
Do you know anyone with a Nanocom. You can test it with that...
Click to expand...
Aint got a clue what a Nancom is Mate :)
Stanleysteamer said:
This is very common, take the lead off the back of the alternator, clean and tighten the connection and put it back on, Hey presto it'll probably work. Mine did!
Tachometer, also know as rev counter, as it counts the revs, revolutions, of the engine, per minute. Useful for timing gear changes.
Click to expand...
Sounds like it could be easy fix. Will try this tomorrow, if I get Daylight time.

A Nanocom is a diagnostic tool other ones often mentioned are Hawkeye and Foxwell Scantool. These are all plugged into the OBDll port and then you do what you need to do with them. None are cheap but if you have a Disco 2 you'll end up needing one.

Don't think they are anywhere near as necessary with a Disco 1. I never got one until I got a Disco 2, and I have owned my Disco 1 since about 2006. Never needed it, this vehicle is much more conventional and "old Skool". So don't worry about it. You'll sort your problem out without it.

tilly2 said:
Sorry, missed that bit.... reading the forum on a phone...
Click to expand...
...another reason why I don't have an iPhone or anything much like it. Mine is a Motorola flip-open thing with a titchy aerial. Only phone on it once in a while or text on it. No one knows the number, not even me!!!

Exactly as said. Cleaned wires on Alt and worked instantly, wished all my fixes were as easy as that.
Thanks Everyone for help. Will get round to my next fix Soon:)
