Speedo/rev counter

C

curlycat

Member

Posts

12

• Jul 3, 2024

• #1

2002 Freelander1.
Following on from the last thread, the working replacement instrument cluster was fitted & the result was,,,, Speedo/rev counter remained still, not working.
So my question is: where does the info for the Speedo & rev counter come from? As it is quite clearly not being sent to my panel. I presume some electronic relay/sender in the gearbox or?



pwood999

Well-Known Member

Full Member

Posts

3,961

Location

Near Heathrow.

• Jul 3, 2024

• #2

It's explained in RAVE - Workshop Manual system Decription



C

curlycat

Member

Posts

12

• Jul 4, 2024

• #3

pwood999 said:

It's explained in RAVE - Workshop Manual system Decription

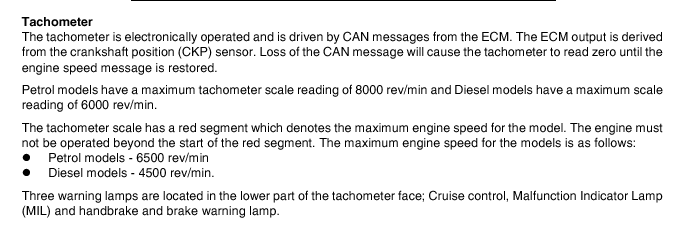

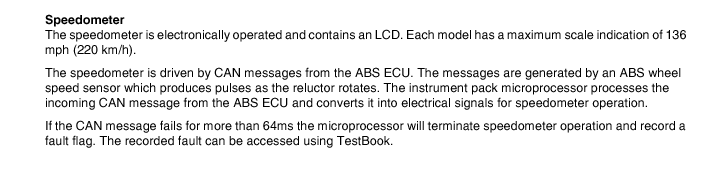

View attachment 320661

View attachment 320662

Click to expand...

Thank you for the info & I will try to find a copy of Rave as I understand from other posts it is no longer published.



Freddie17

Can’t reMember

Full Member

Posts

3,561

Location

Kent

• Jul 4, 2024

• #4

Search on here for Rave - there are ‘how too’s’ and copies of the disk available.
(Search under @Hippo )

It is a number of disk images - you’ll need a pc to run/read it (an old one will do), but it is invaluable for an F1.
It is the official Land Roverer workshop details. Waaay better than Haynes.



C

curlycat

Member

Posts

12

• Jul 4, 2024

• #5

Thanks Freddie, I will look it up & download it.



GrumpyGel

Well-Known Member

Posts

26,488

Location

Christchurch, New Zealand

• Jul 4, 2024

• #6

Rave disk maintenance manual

I'm putting this ere so I can link to it. If you can see adverts on this page selling car repair manuals, DONT click on them. They're sneaky adverts from google which detect words used in this fred, on the chance you will be attracted to click on said advert. The adverts are trying to get you...

landyzone.co.uk
