Restoring Defender 90

fanatic said:

sounds like mine, rolling project

Click to expand...

int that the same for all defenders??

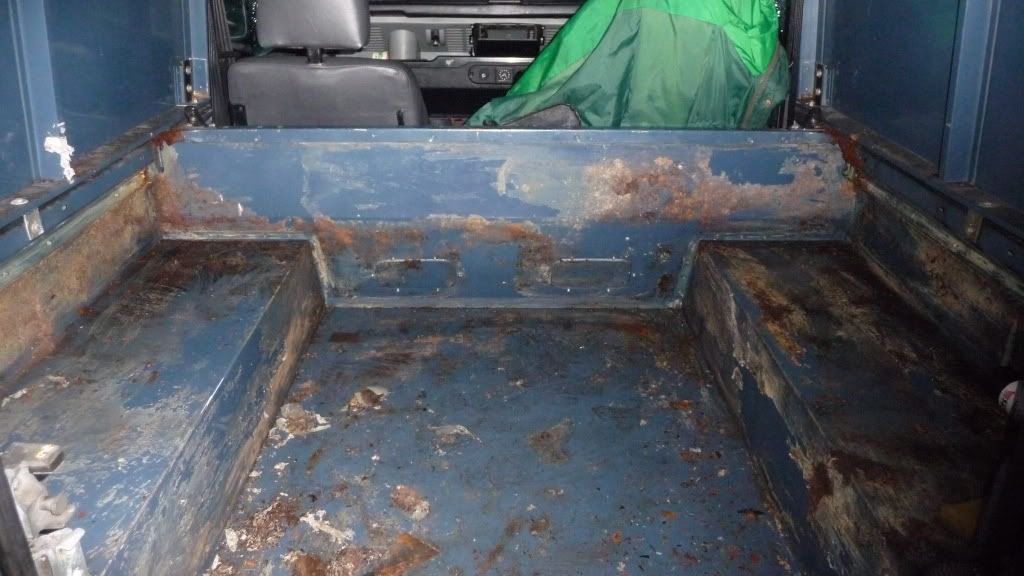

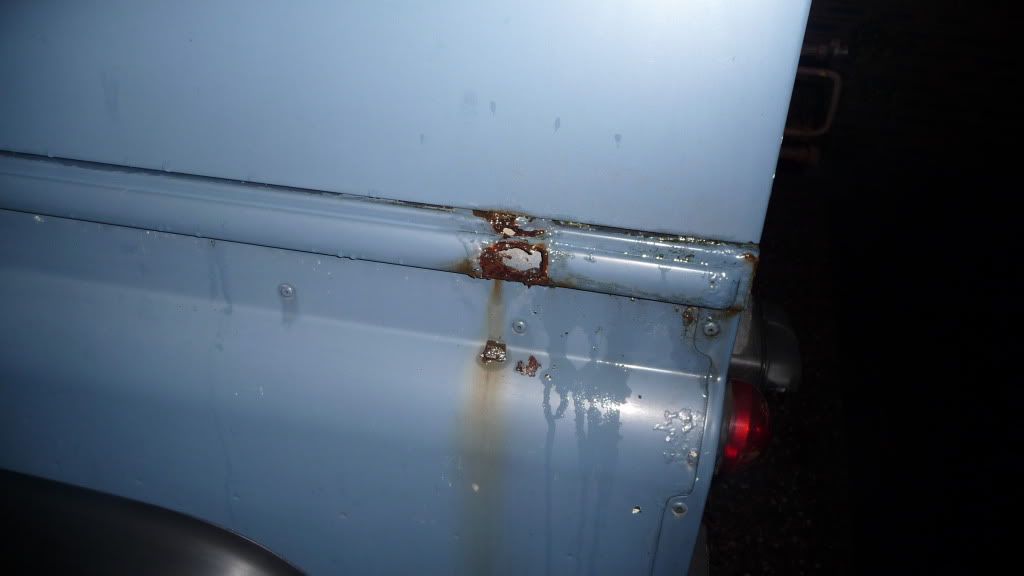

FINALLY! i got pictures done of what i cleared up so far. but before i post them all i want to know what you all think about these rust spots. there the only 4 spots inside that are bad, and there as bad as it gets inside. the 4 main rust on the outside are in the exact same place. so i deffo need to replace the seels.

main question is can these spots be cut and welded?

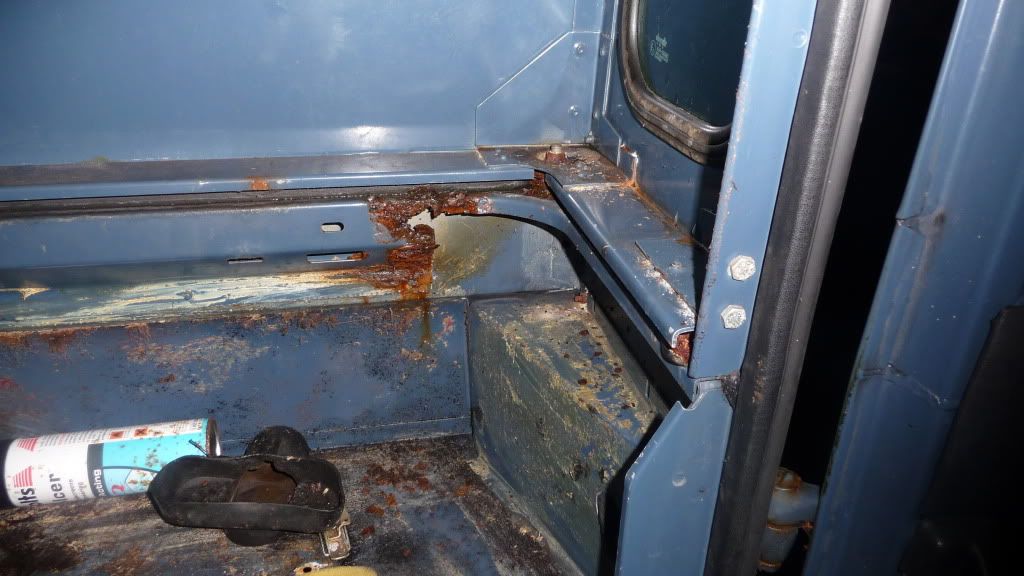

front drivers side

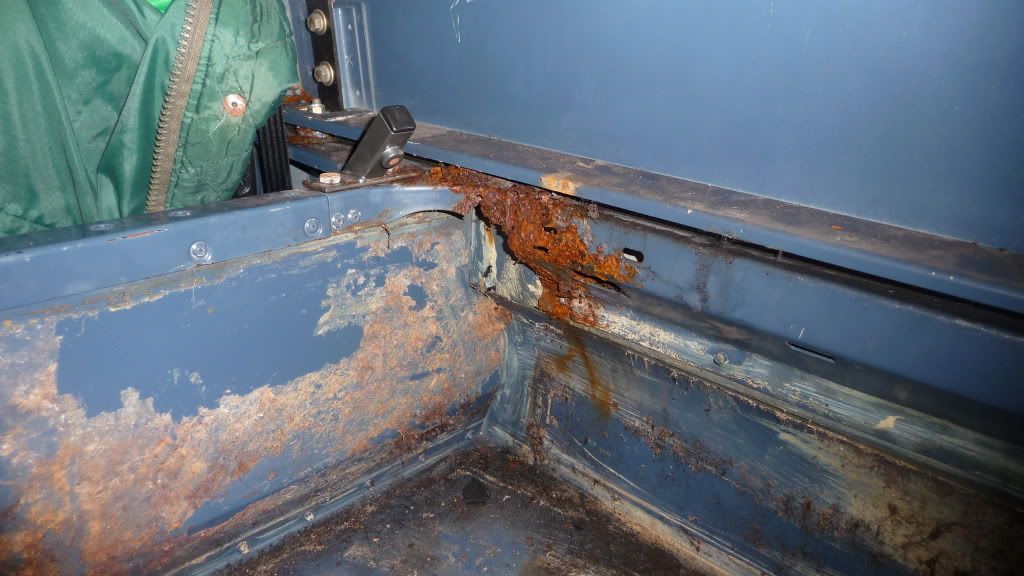

front passenger side

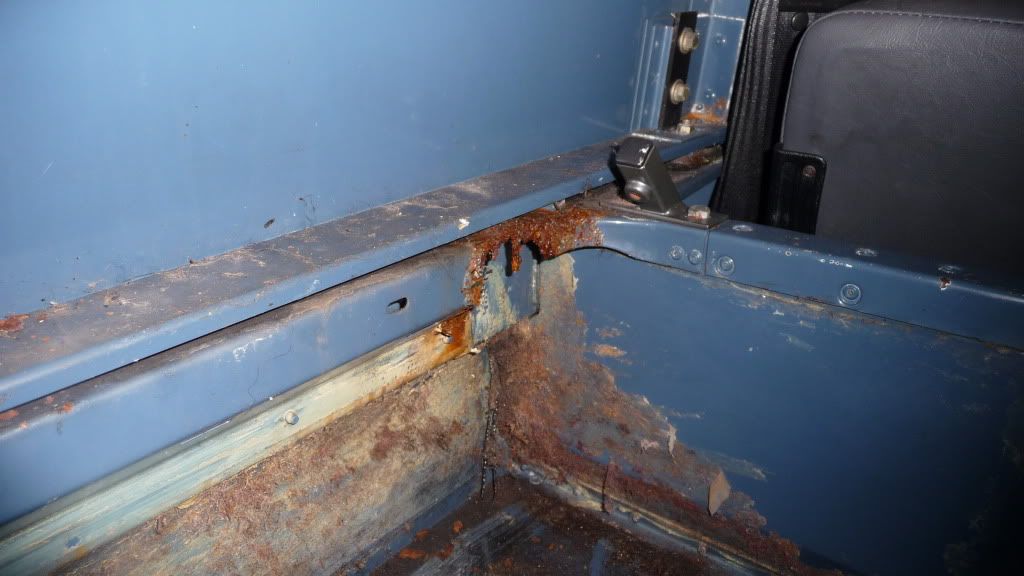

rear drivers side

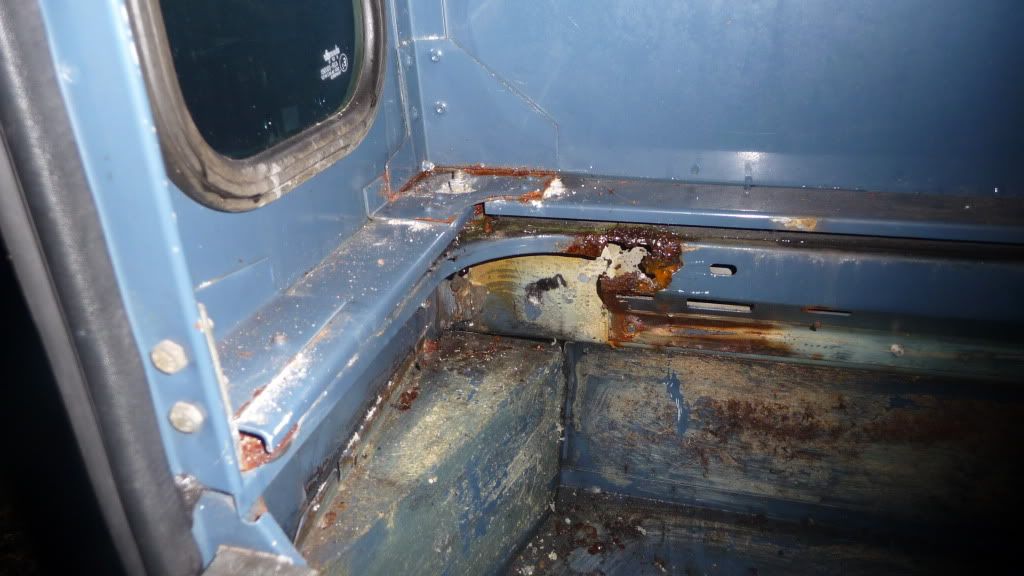

rear passenger

roof off and new cappings will sort that

Sean said:

roof off and new cappings will sort that

Click to expand...

mate thats great new for me hahaha

is the cappings the trim thats rusted round the out side

Easy fix and a propper job as Sean says... get new body cappings. About £75 for a propper pair. I got mine off Ian Notts (he is on this site). Drill the old rivets out. Replace all the seals. I believe you can get away with not taking to roof right off and prop it up with a brush but not seen that one done.
I did mine last year with no experience... it was easy enough. You drill new holes from the inside out for riveting and fill the old holes. You may as well prime and hand paint the lot while you are at it. See my profile for a couple of pics on my project and read what notes I made. Getting it water tight is testing but I did it with advice of peeps on here. Mine was in a similar condition to yours

MrJC said:

Easy fix and a propper job as Sean says... get new body cappings. About £75 for a propper pair. I got mine off Ian Notts (he is on this site). Drill the old rivets out. Replace all the seals. I believe you can get away with not taking to roof right off and prop it up with a brush but not seen that one done.
I did mine last year with no experience... it was easy enough. You drill new holes from the inside out for riveting and fill the old holes. You may as well prime and hand paint the lot while you are at it. See my profile for a couple of pics. Getting it water tight is testing but I did it with advice of peeps on here. Mine was in a similar condition to yours

Click to expand...

dum dum works well when putting the bits back together to keep the water out

the capping is the steel trim that sits on top of the ali tub.



AMN711210 REAR BODY CAPPING LH | shop | www.lrseries.com | L. R. Series

I would what a good look at the bulkhead and the chassis before sorting out the little jobs

I agree with that.... get it through an MOT first. Then the cosmetic stuff can be done in the summer (9 weeks away)

Discoandy said:

the capping is the steel trim that sits on top of the ali tub.

AMN711210 REAR BODY CAPPING LH | shop | www.lrseries.com | L. R. Series

I would what a good look at the bulkhead and the chassis before sorting out the little jobs

Click to expand...

The bulkhead is fine and so is the chassis from what i can see so far. i give the chassis some good thuds with a hammer and it didnt go through. im starting to thing this little beast dont need as much work as i thaught it did. i was underneith scrubbing the surfice rust off the tracking dods and it was starting to look good. all the rubber seels are fine, no dry cracks in them.

thanks for the replys and advice guys, much apreciated

Ben

MrJC said:

I agree with that.... get it through an MOT first. Then the cosmetic stuff can be done in the summer (9 weeks away)

Click to expand...

yeah thats prety much what i was gunna do, get it on the road is my main priority then the face lift

most of the brown on here you might think is rust but its where they stuck the carpet down with the glue. basicly the brown carpet underlay stuck to the gle, its a roal pain in the rear to get that stuff off

new problem! haha

window wiper motors. they moved a little when we first turn the engin on but now they wont move at all.

a nother problem is the fuel cap. it wont unlock. anyone know how to get them off without a key?

cheers

Bayden_uk said:

new problem! haha

window wiper motors. they moved a little when we first turn the engin on but now they wont move at all.

a nother problem is teh fuel cap. it wont unlock. anyone know how to get them off without a key?

cheers

Click to expand...

if its the old type fuel cap , just turn them by hand till her hear it crack then its buggered but open, i did mine once or a screwdriver will do it

90truckcab said:

if its the old type fuel cap , just turn them by hand till her hear it crack then its buggered but open, i did mine once or a screwdriver will do it

Click to expand...

i didnt think of a screwdriver good thinkin batman!

nice thin one will do it better order a new cap befor yer do too much damage, i ended up drivin round fer a week with a rag stuck in the 'ole ,

shes a great one ive seen alot lot worse around good spring clean is all she needs

tis a good really just a few things to tidy up then yer ok ,

cheers guys. well its absolutly spotless inside now. got a machanic coming to take a look at it an tell me what it needs to get through its MOT. i think it needs work on the electrics then i should be out on meets with you guys in no time then you can teach me all about using the 4X4 stick hahaha

cheers for all the info

more progress pictures on the way

atb

Ben

more questions. im ordering a service kit this week and im going to drain the oil out the engin an replace it. what oil have you had the best results.

reason for asking is i used the recommended brand in my punto manual, ever since i started using my engins been alot louder since i put it in

dont want to mess up my new toy

ah yer see, what it is the recomended oil will "wash " out yer engine too, sooooo, as it washes all the sludge out that keeps it quiet , it will start to rattle, some times its more hasstle than good,
