Respray on my series 3

Hi I have had my landy a few months now and decided to respray it. Firstly I took the bonnet off and started to take the many layers of paint off using an angle grinder with a rust/paint removing disk took about 30mins not as long as first thought pheww. Just couldn't seem to get close enough to where the rivets are so I have used good old nitro morse took ages to get off as the paint was well on. So here is a few pics of I've got on so far.

Seem to be having difficulties uploading pics ill get them up as soon as i figure out how

Photo bucket then paste the img code

Thanks mate

Grinding off the old paint

All grinded off and just after I put the nitro morse on I forgot to take a pic of that step

It looks pretty cool like that! What paint n primer are you going to use?

hope you didn't wear through any of the ally if you're using a grinder to strip it!


those flap disks even at 80 grit are rough enough to go through bodywork, ideally wants to be given a whiz over with that just to get the bulk off then do the rest by hand IMO

Took the bonnet hinges off and wire brushed and used sand paper to get the paint around the rivets (with the nitro morse applied)

Dr_evil said:

hope you didn't wear through any of the ally if you're using a grinder to strip it!


those flap disks even at 80 grit are rough enough to go through bodywork, ideally wants to be given a whiz over with that just to get the bulk off then do the rest by hand IMO

Click to expand...

I was a bit skeptical my self but it was ok didnt seem to take and off the metal off and what I am using its not the flap disks. I bought these off off eBay item no 251210581668

Hmmm they look interesting, may buy a couple to try out

Hi there, I like the bare ally look mind, you could do the whole car like that, clear coat it and leave it!:cool2:

I don't know anything about bare metal resprays but it seems to me to be more involved than a rub down and splash of nato paint with a roller. If you do it right I reckon you could end up with a top finish. Be careful with that ally bodywork, you may need a special primer then some kind of build up primer to smooth the metal back to flat. I guess you could bondo the whole panel but that would be a PITA to sand back and messy.

Good luck. One things for sure, it will look better than my Sunday afternoon efforts

Yeah the ally look is pretty cool and would be something completely different dont get me wrong i was thinking of that haha.
\yeah you need a special primer its called 'etch' primer i hope it will look awesome bare in mind this is my first time undertaking anything like this and what a great piece of machinery to do it on xD. Im pretty confident that the etch will cover up the vast majority of the marks as it is quite thick stuff.

bacon1991 said:

Yeah the ally look is pretty cool and would be something completely different dont get me wrong i was thinking of that haha.
\yeah you need a special primer its called 'etch' primer i hope it will look awesome bare in mind this is my first time undertaking anything like this and what a great piece of machinery to do it on xD. Im pretty confident that the etch will cover up the vast majority of the marks as it is quite thick stuff.

Click to expand...

Sounds good. Good thing about painting something like a Series Landy is you can always sand it back and do it again if it doesn't work first time.

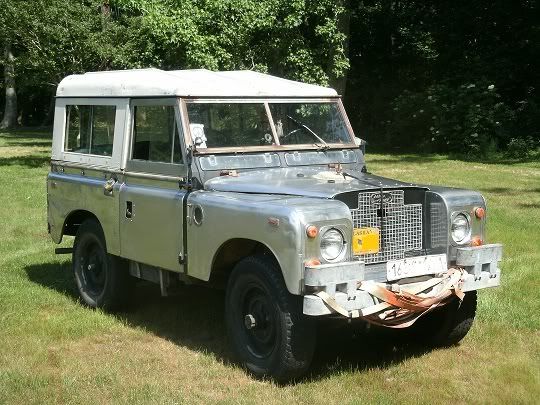

Like this maybe?

ronsealdeath said:

Sounds good. Good thing about painting something like a Series Landy is you can always sand it back and do it again if it doesn't work first time.

Like this maybe?

Click to expand...

i would agree and that is one awesome looking landy, is that yours?

Rattlegun said:

It looks pretty cool like that! What paint n primer are you going to use?

Click to expand...

Thanks rattle. Im going bronze green gloss, with a white gloss roof

Repaint is way down my to do list but will be following with great interest
Keep posting the pics please

Years ago did my series 1 and left it bare for a few months this helps the paint to key to the bare alloy. Reduces the need for etch primer.

Keep the pictures coming...just ordered a couple of those stripping discs...
