Replacing the rear tub to crossmember support rail.

Discussion in 'Defender 90 / 110 / 130' started by the_wolf, Apr 1, 2021.

< Previous Thread | Next Thread >
  1. Al2O3

    Al2O3 Well-Known Member Full Member

    Joined:
    Apr 21, 2014
    Posts:
    9,876
    Likes Received:
    3,788
    Location:
    North of the Wall

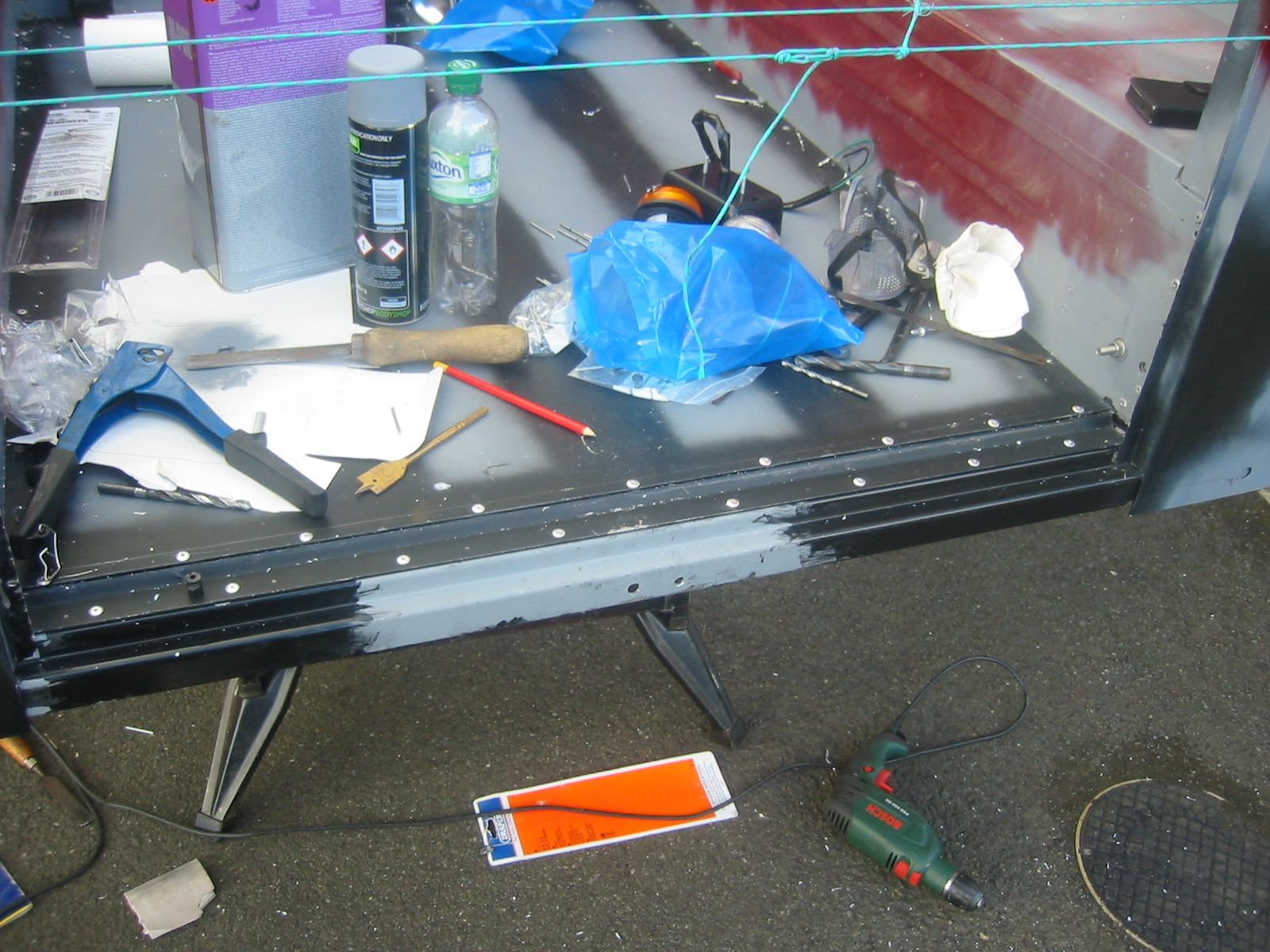

    I replaced all of the spot welds with pop rivets.
    You're not going to get it in unless you lift the tub at the back as has already been mentioned. A pig of a job :(

    the_wolf likes this.
  2. the_wolf

    the_wolf Well-Known Member

    Joined:
    Jan 22, 2012
    Posts:
    16,352
    Likes Received:
    3,662
    Location:
    Hamilton, Central Scotland
    Aye I reckon I'll do that. And cheers mate, I guess that'll be the easiest way. I've already done the annoying bit so surely lifting the tub will be a doddle

  3. Al2O3

    Al2O3 Well-Known Member Full Member

    Joined:
    Apr 21, 2014
    Posts:
    9,876
    Likes Received:
    3,788
    Location:
    North of the Wall
    Not so sure about that Mr Wolf. As you say, the outriggers might fall apart. :eek: It might be the start of a full rebuild :rolleyes: :)

  4. the_wolf

    the_wolf Well-Known Member

    Joined:
    Jan 22, 2012
    Posts:
    16,352
    Likes Received:
    3,662
    Location:
    Hamilton, Central Scotland
    As much as I'd love to i don't have the funds for that. Wanna buy a kidney?

    Al2O3 likes this.
  5. Al2O3

    Al2O3 Well-Known Member Full Member

    Joined:
    Apr 21, 2014
    Posts:
    9,876
    Likes Received:
    3,788
    Location:
    North of the Wall
    Only pullin ya tadger :D It'll be fine o_O

    the_wolf likes this.
  6. the_wolf

    the_wolf Well-Known Member

    Joined:
    Jan 22, 2012
    Posts:
    16,352
    Likes Received:
    3,662
    Location:
    Hamilton, Central Scotland
    Any advice on lifting the tub? Only bolts I can see that I still need to take out are the ones that fit the body to the rear outriggers (rounded off and rusted so they're getting cut and replaced). Is that the only ones and the tub should be able to be lifted enough then? Any tips on actually lifting the tub once they're out? Where's best to jack it up?

  7. Al2O3

    Al2O3 Well-Known Member Full Member

    Joined:
    Apr 21, 2014
    Posts:
    9,876
    Likes Received:
    3,788
    Location:
    North of the Wall
    There are two brackets that bolt the tub to the chassis just below the bulkhead (behind the seats) I'll try to find a picture!
    Hmmm, I think I would put a thick bit of flat timber across the rear floor between the chassis rails and gently jack it up from there.

    the_wolf likes this.
  8. the_wolf

    the_wolf Well-Known Member

    Joined:
    Jan 22, 2012
    Posts:
    16,352
    Likes Received:
    3,662
    Location:
    Hamilton, Central Scotland
    Just noticed you didn't have a crossmember in the way to worry about when you did it lol. I've got the parts in now so keen to get it all sorted but I'm unsure about jacking the body up, the tubs never been lifted before (not by me anyway)

  9. Al2O3

    Al2O3 Well-Known Member Full Member

    Joined:
    Apr 21, 2014
    Posts:
    9,876
    Likes Received:
    3,788
    Location:
    North of the Wall

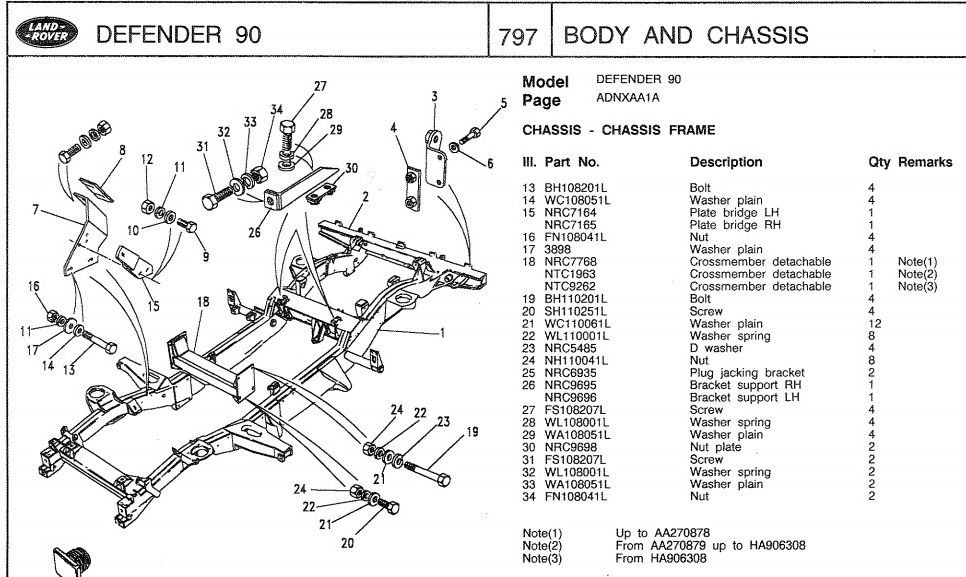

    They're number 26 on here.

  10. Al2O3

    Al2O3 Well-Known Member Full Member

    Joined:
    Apr 21, 2014
    Posts:
    9,876
    Likes Received:
    3,788
    Location:
    North of the Wall
    Yeah, my tub was off and rebuilt in the conservatory :rolleyes: Haven't done it the hard way :)

  11. Al2O3

    Al2O3 Well-Known Member Full Member

    Joined:
    Apr 21, 2014
    Posts:
    9,876
    Likes Received:
    3,788
    Location:
    North of the Wall
    Here they are in the flesh (rusty iron) I've put a couple of red arrows on to point them out. You might have to zoom in to see them. It's a high definition picture so just clicking on it should do the job.
    EDIT
    You can see them on the website better than I thought you would be able to!

  12. Al2O3

    Al2O3 Well-Known Member Full Member

    Joined:
    Apr 21, 2014
    Posts:
    9,876
    Likes Received:
    3,788
    Location:
    North of the Wall
    Important!
    Is yours a CSW? ie does it have seats in the back?
    If so, they may be bolted through the floor on to the chassis. Not sure about bench seats, but inward facing seats are!

    Last edited: Apr 7, 2021
  13. the_wolf

    the_wolf Well-Known Member

    Joined:
    Jan 22, 2012
    Posts:
    16,352
    Likes Received:
    3,662
    Location:
    Hamilton, Central Scotland
  14. the_wolf

    the_wolf Well-Known Member

    Joined:
    Jan 22, 2012
    Posts:
    16,352
    Likes Received:
    3,662
    Location:
    Hamilton, Central Scotland
    Points circled here are where its still fixed to the tub. On each of the outriggers there's two of those brackets I linked above, then on the centre crossmember there's fixings that seem to be held in place by some sort of split pins. That's the only other areas I can see from the seatbox back Screenshot_20210407-230932_Firefox~2.jpg Screenshot_20210407-230932_Firefox~2.jpg

  15. Al2O3

    Al2O3 Well-Known Member Full Member

    Joined:
    Apr 21, 2014
    Posts:
    9,876
    Likes Received:
    3,788
    Location:
    North of the Wall
    I thought you were working on a 110, but when I checked on your profile it looks like you have a 1987 90 :)
    The brackets you've highlighted seem to be performing the same function as the ones on my 90 chassis.
    By 110 hard top I presume you mean van back and so no seats other that the front ones :)

  16. the_wolf

    the_wolf Well-Known Member

    Joined:
    Jan 22, 2012
    Posts:
    16,352
    Likes Received:
    3,662
    Location:
    Hamilton, Central Scotland
    Aw that was my old one, didn't realise I hadn't updated it, I've had my 110 for about 7 years now. There's benches in the back but they're not fixed to the chassis in any way so yup pretty much just a van

  17. Turboman

    Turboman Rural Activist

    Joined:
    Aug 21, 2010
    Posts:
    49,376
    Likes Received:
    48,405
    Location:
    Continuously Cruising
    Once the tub is completely unbolted, and the roof off, it is usual to just manually lift the tub and carry it away.
    Two people can easily lift the tub of a 90, or maybe you will need more for a 110.
    Depends how weak you are, I expect!

  18. the_wolf

    the_wolf Well-Known Member

    Joined:
    Jan 22, 2012
    Posts:
    16,352
    Likes Received:
    3,662
    Location:
    Hamilton, Central Scotland
    I'm not lifting the full tub off, I just need to lift the rear a few inches to replace the rear support. The less work I can do the better!

  19. Turboman

    Turboman Rural Activist

    Joined:
    Aug 21, 2010
    Posts:
    49,376
    Likes Received:
    48,405
    Location:
    Continuously Cruising
    You may end up taking it off anyway, deal with all the rot spots underneath it.
    But if you don't, that is fine. I was just informing you of the usual method.

  20. Beneagles

    Beneagles Well-Known Member Full Member

    Joined:
    Oct 27, 2009
    Posts:
    4,902
    Likes Received:
    2,958
    Location:
    North Perthshire
    +1 on the timber/jacking technique although possibly use 2 jacks, for stability?
    :)
