Can anyone give me a link to find outwhich of these relays is for the starter ?

  • Don't understand this !

    Votes: 0 0.0%
  • This neither .

    Votes: 0 0.0%

  • Total voters
    0

idgaff58

New Member
Posts
3
Location
Bolton

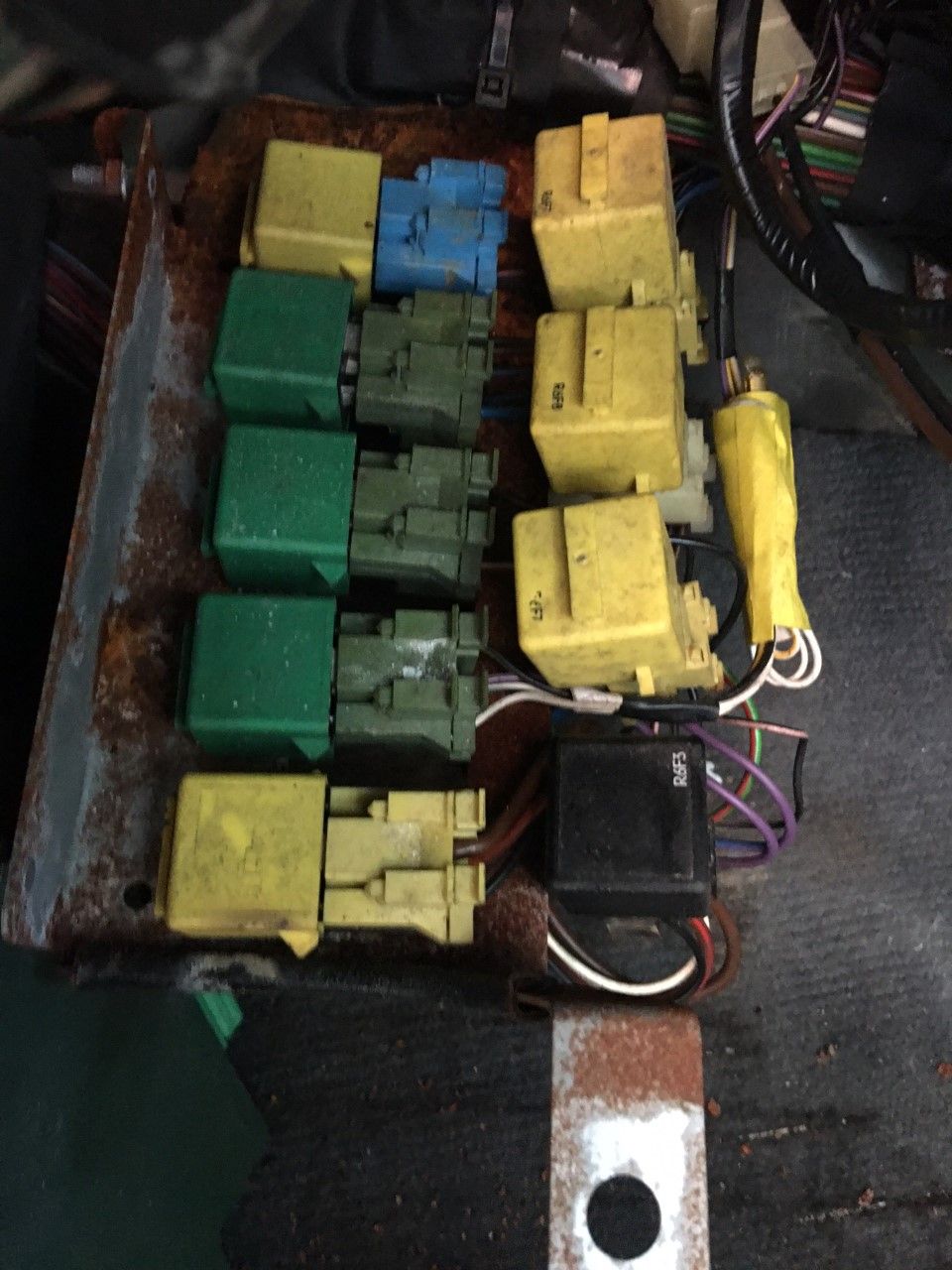

Trying to determin which relays these are . Have spent a few hours and cannot find out , any help will be appreciated . This is from passenger side , behind glovebox on a Disco 1 1995 .
Disco Relays.jpg

300 tdi I have two Disco's , one a 98 and one 95 which have been stood for about 6 years . I've managed to get the 98 running and preparing for MOT . The 95 won't turn over , all the dash lights up but nothing except a clicking which i think is from the passenger footwell .Also the hazard lights come on when i turn the key .

Last edited:

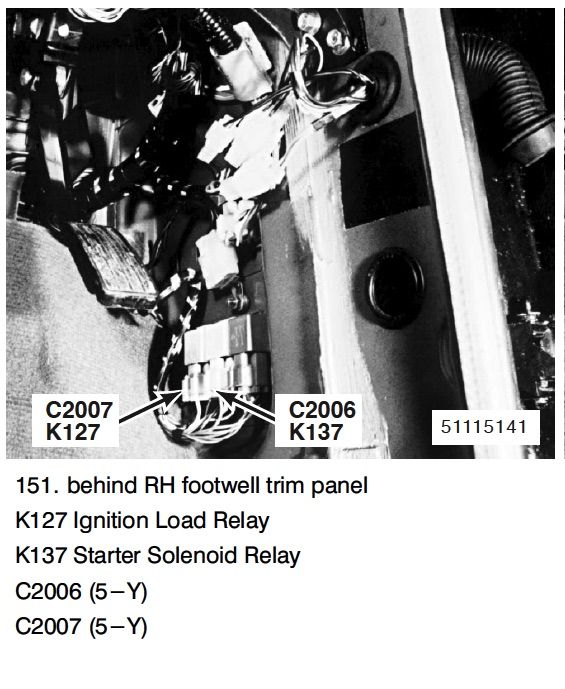

The starter relay is not between those, it should be as in the pic K137 and to make sure it must have brown/white, white/red, black/orange, brown/red wires in the socket

300tdi starter relay.jpg
