Refurbishing my 1997 defender 300 TDI

Discussion in 'Members Vehicles/Projects' started by marksman, Mar 14, 2019.

< Previous Thread | Next Thread >
  1. marksman

    marksman Well-Known Member

    Joined:
    Mar 3, 2008
    Posts:
    756
    Likes Received:
    305
    Location:
    Co Durham

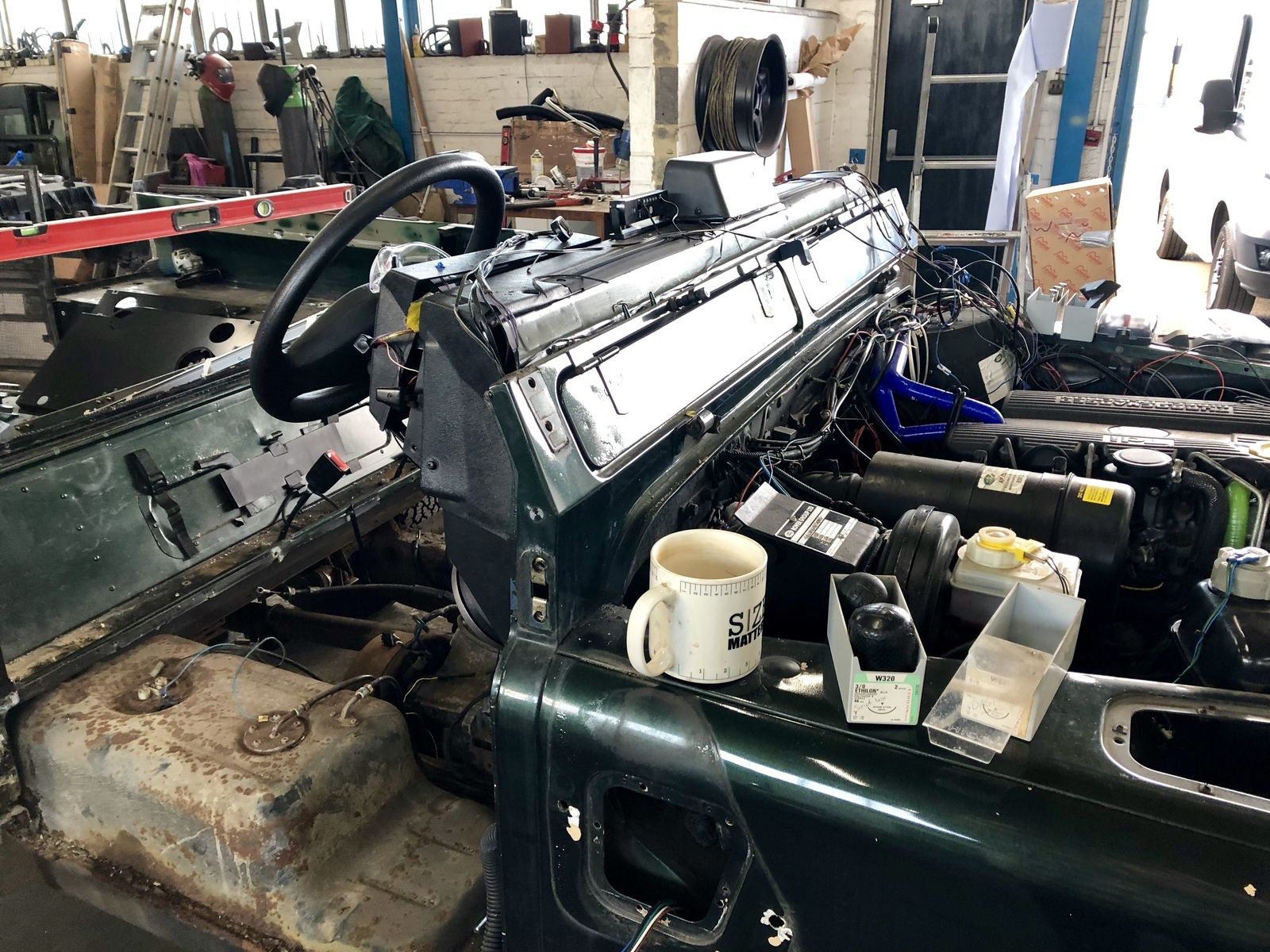

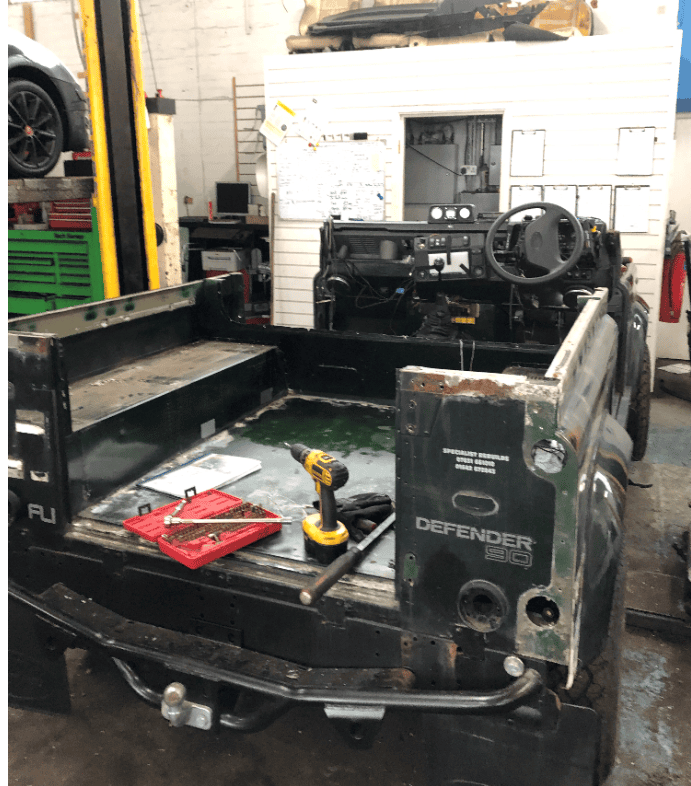

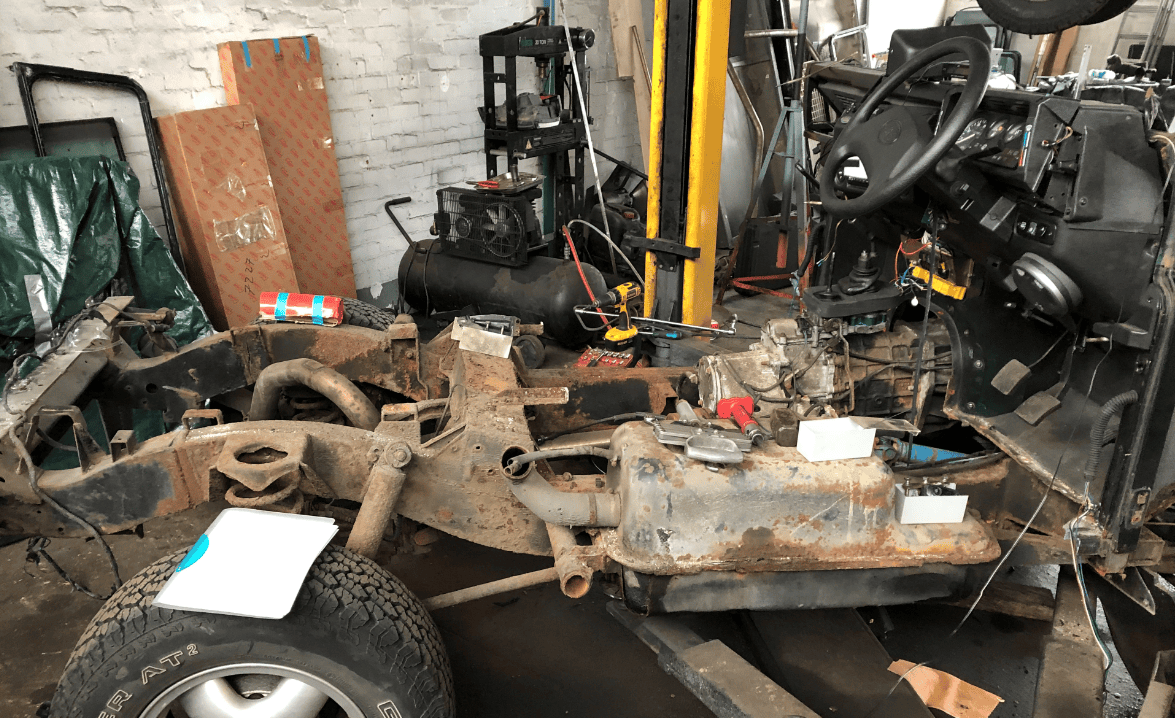

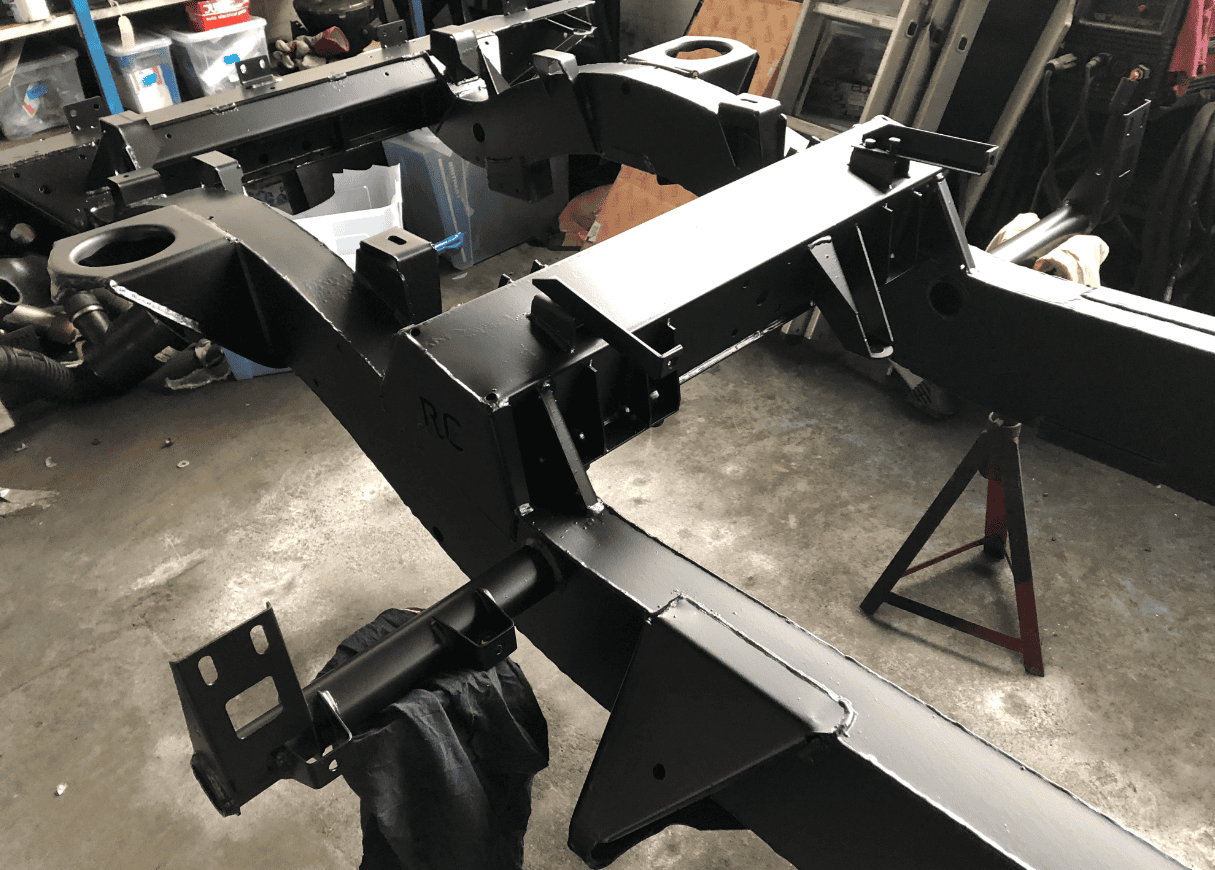

    I've started this so I don't clutter the defender forum with images

  2. marksman

    marksman Well-Known Member

    Joined:
    Mar 3, 2008
    Posts:
    756
    Likes Received:
    305
    Location:
    Co Durham





    Attached Files:

    v8250, JimG92 and andy_v like this.
  3. Chrisw8

    Chrisw8 Well-Known Member

    Joined:
    Apr 10, 2013
    Posts:
    1,878
    Likes Received:
    477
    Location:
    Top of the Hill
    Looks good. Keep the piccies coming :)

    FFR110 likes this.
  4. Knappster

    Knappster Well-Known Member

    Joined:
    Nov 3, 2018
    Posts:
    1,161
    Likes Received:
    460
    Location:
    Stroud
    +1! Good work too.

  5. marksman

    marksman Well-Known Member

    Joined:
    Mar 3, 2008
    Posts:
    756
    Likes Received:
    305
    Location:
    Co Durham
    I've found an issue while preparing to change my timing belt, one of the mounting lugs on the fan pulley mounts is damaged (4 bolts pass through the fan pulley and screw into mounting lugs), can you get replacement bearing/mounting or is it a replacement front timing belt cover I need

    Last edited: Mar 18, 2019
  6. dieseldog69

    dieseldog69 Well-Known Member LZIR Despatch Agent

    Joined:
    May 21, 2010
    Posts:
    9,090
    Likes Received:
    6,706
    Location:
    Back in the UK, Sunny Hampshire.
    I'm not sure i understand.

    Can we have a picture?

  7. jamesmartin

    jamesmartin Well-Known Member

    Joined:
    Dec 8, 2010
    Posts:
    89,072
    Likes Received:
    17,413
    Location:
    louth lincs
    can the thread be re- tapped or is it bust , 3 bolts is enough for practical purposes,replacement is generally a new cover but the flange can be pulled off and a good used one pressed back on

  8. marksman

    marksman Well-Known Member

    Joined:
    Mar 3, 2008
    Posts:
    756
    Likes Received:
    305
    Location:
    Co Durham
    Flange broken across the threads and missing, Ill look for a flange
    Thanks for the assistance

  9. marksman

    marksman Well-Known Member

    Joined:
    Mar 3, 2008
    Posts:
    756
    Likes Received:
    305
    Location:
    Co Durham

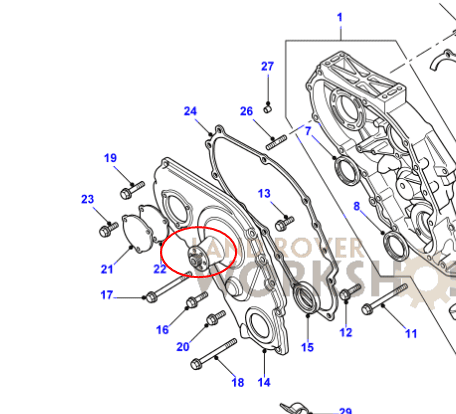

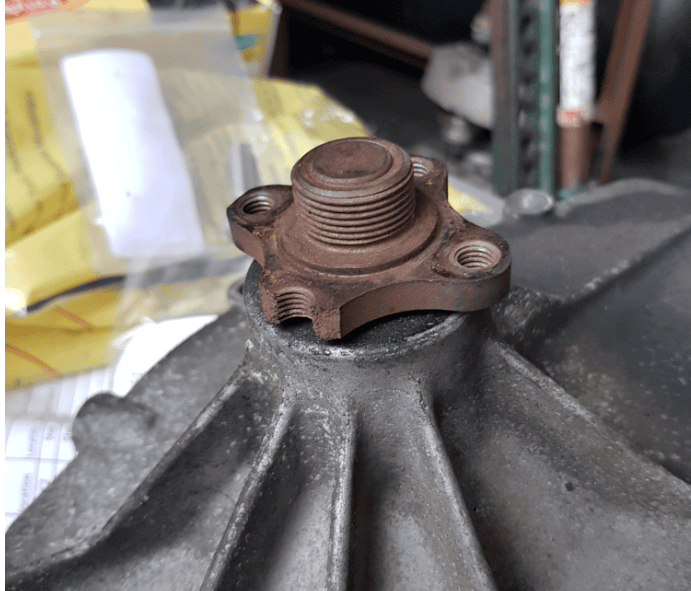

    Offending flange circled in red, anyone any idea of the part number ??


  10. marksman

    marksman Well-Known Member

    Joined:
    Mar 3, 2008
    Posts:
    756
    Likes Received:
    305
    Location:
    Co Durham

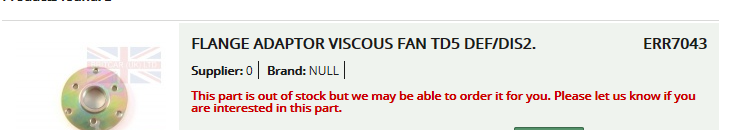

    I can track down the TD5 part

  11. jamesmartin

    jamesmartin Well-Known Member

    Joined:
    Dec 8, 2010
    Posts:
    89,072
    Likes Received:
    17,413
    Location:
    louth lincs
    its not available as a part, only second hand

  12. marksman

    marksman Well-Known Member

    Joined:
    Mar 3, 2008
    Posts:
    756
    Likes Received:
    305
    Location:
    Co Durham
    Ta, for expediency I may order a complete new front timing case

  13. marksman

    marksman Well-Known Member

    Joined:
    Mar 3, 2008
    Posts:
    756
    Likes Received:
    305
    Location:
    Co Durham
  14. marjon

    marjon Well-Known Member

    Joined:
    Jul 15, 2018
    Posts:
    5,463
    Likes Received:
    5,863
    Location:
    Bulgaria
    What’s it made of?
    Looks weldable to me if you can find somewhere handy.

    Just a thought.

    J

  15. marksman

    marksman Well-Known Member

    Joined:
    Mar 3, 2008
    Posts:
    756
    Likes Received:
    305
    Location:
    Co Durham

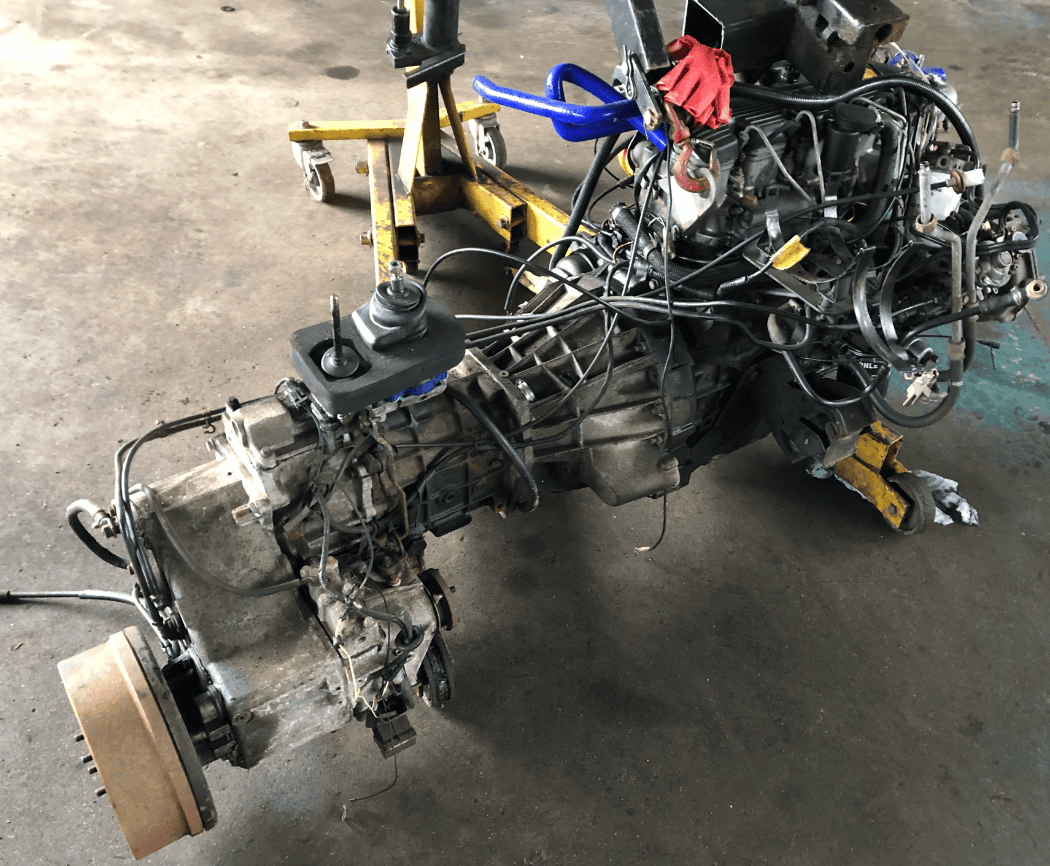

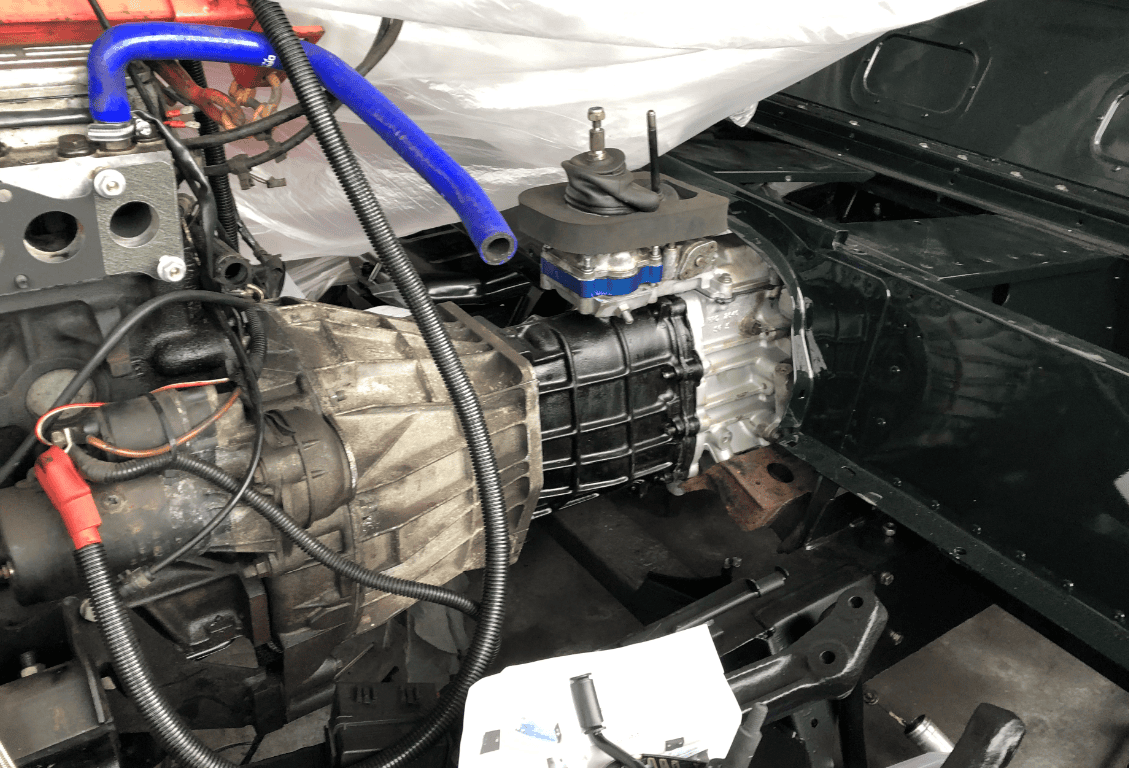

    Refurb gear and transfer box fitted, engine refitted

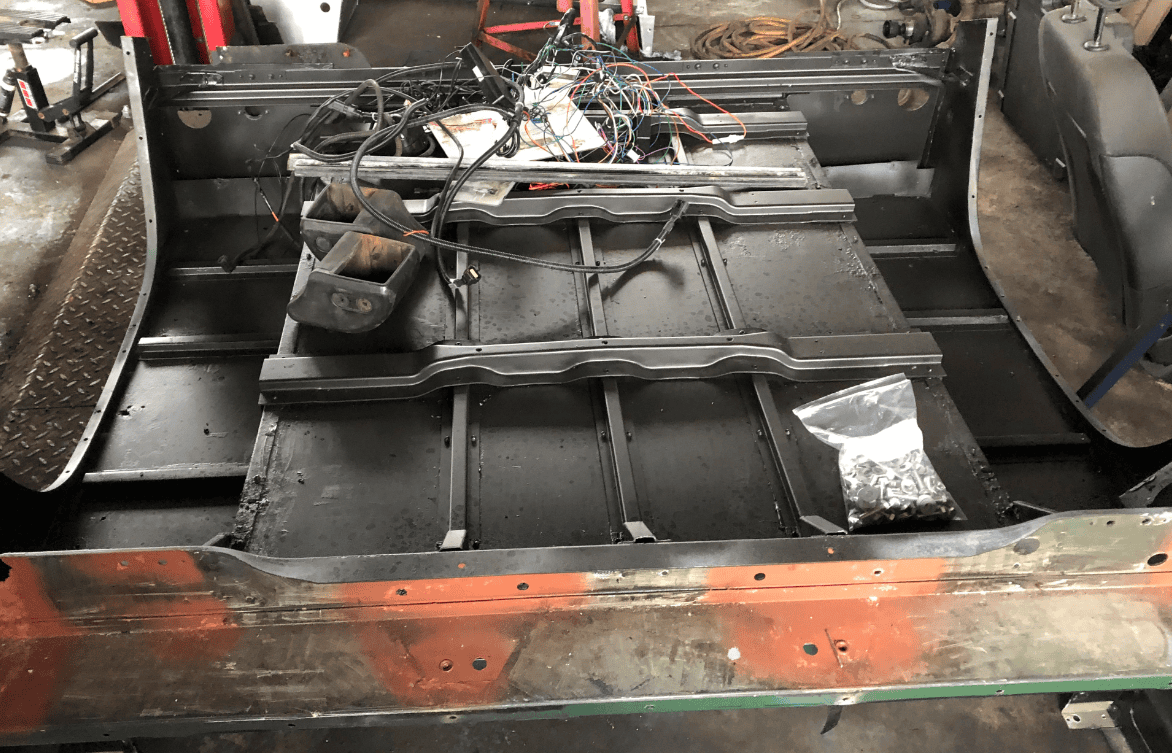

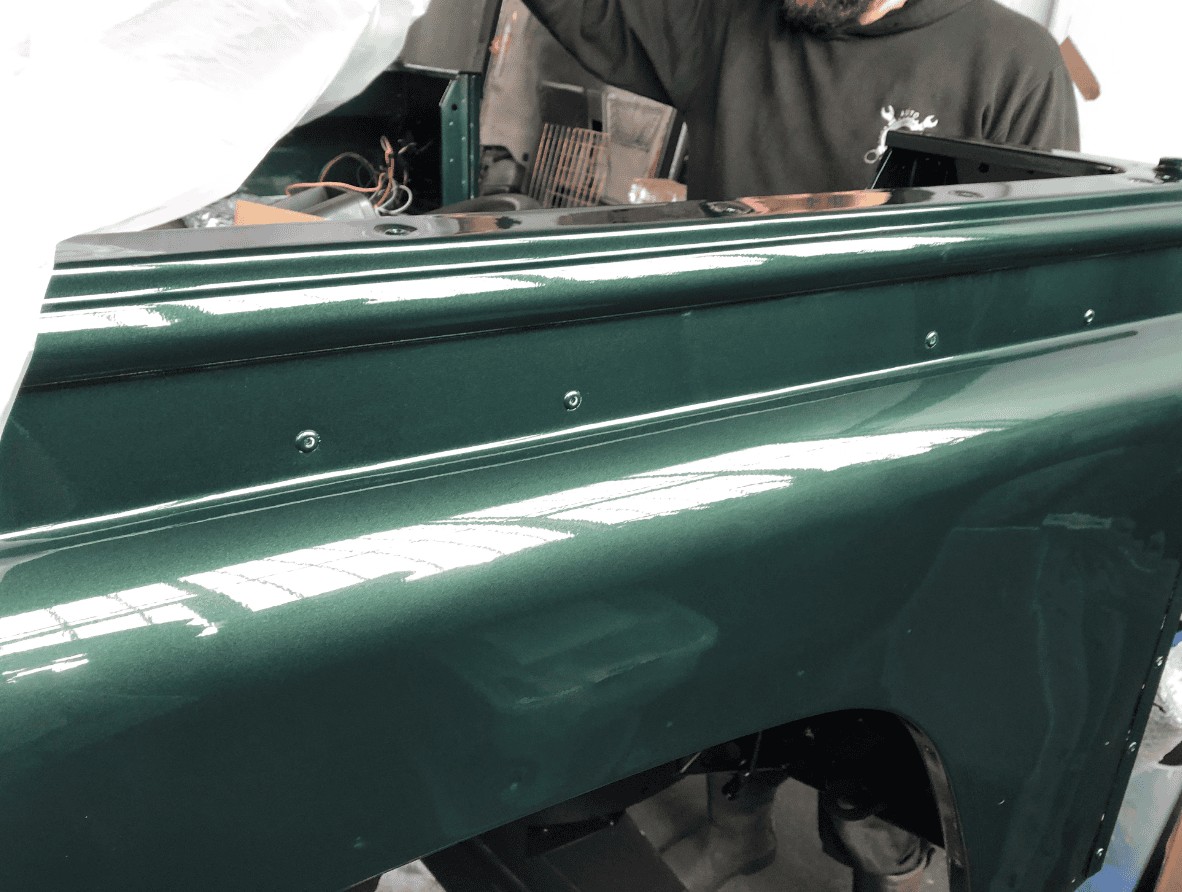

    Rear tub refurbished

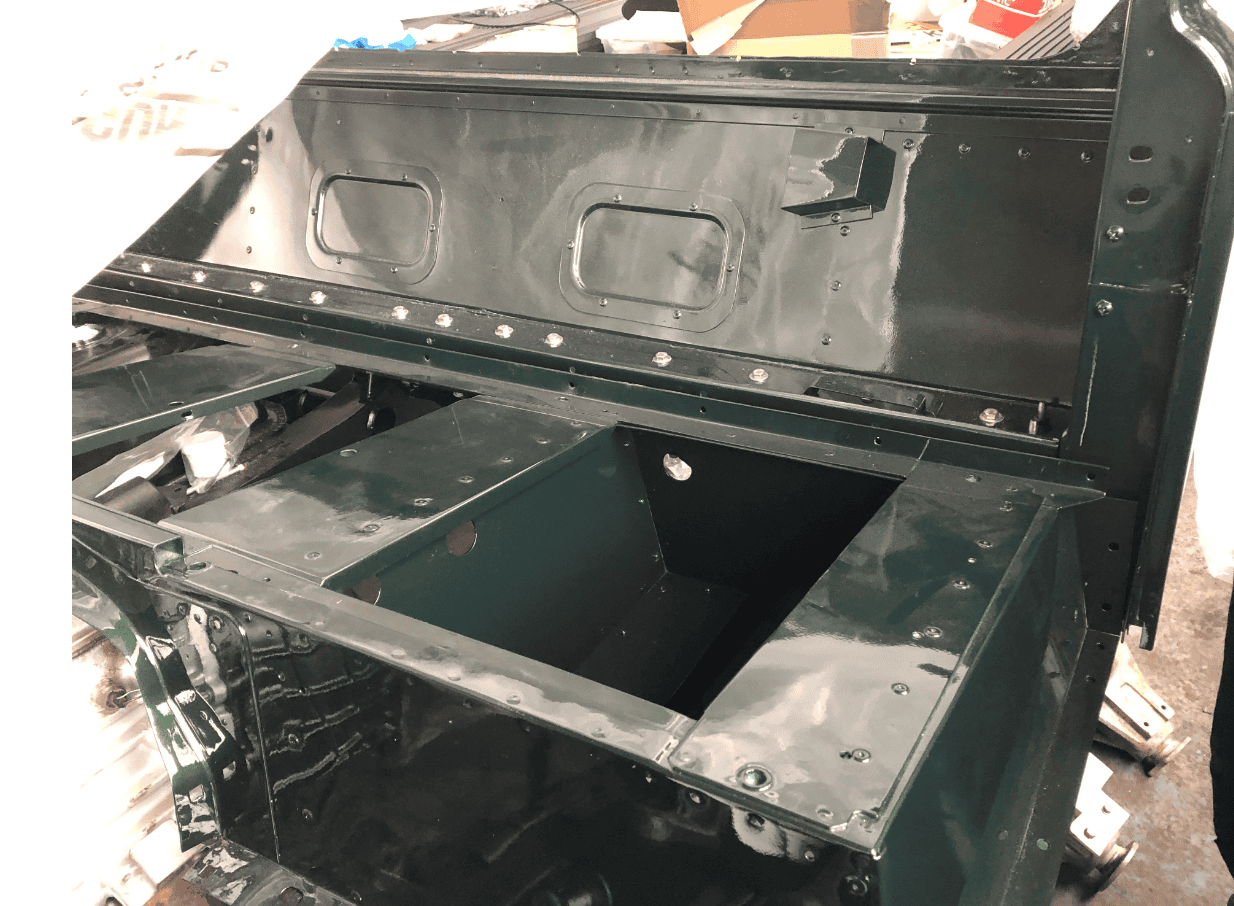

    Seat box refurbished


    Bulkhead and axles back from sand blasting, bulkhead requires some small repairs and new footwells but is in better condition than I expected

    Ordered new front stub axles, front timing case cover

    Last edited: Mar 19, 2019
    Disco1BFG and dieseldog69 like this.
  16. marksman

    marksman Well-Known Member

    Joined:
    Mar 3, 2008
    Posts:
    756
    Likes Received:
    305
    Location:
    Co Durham

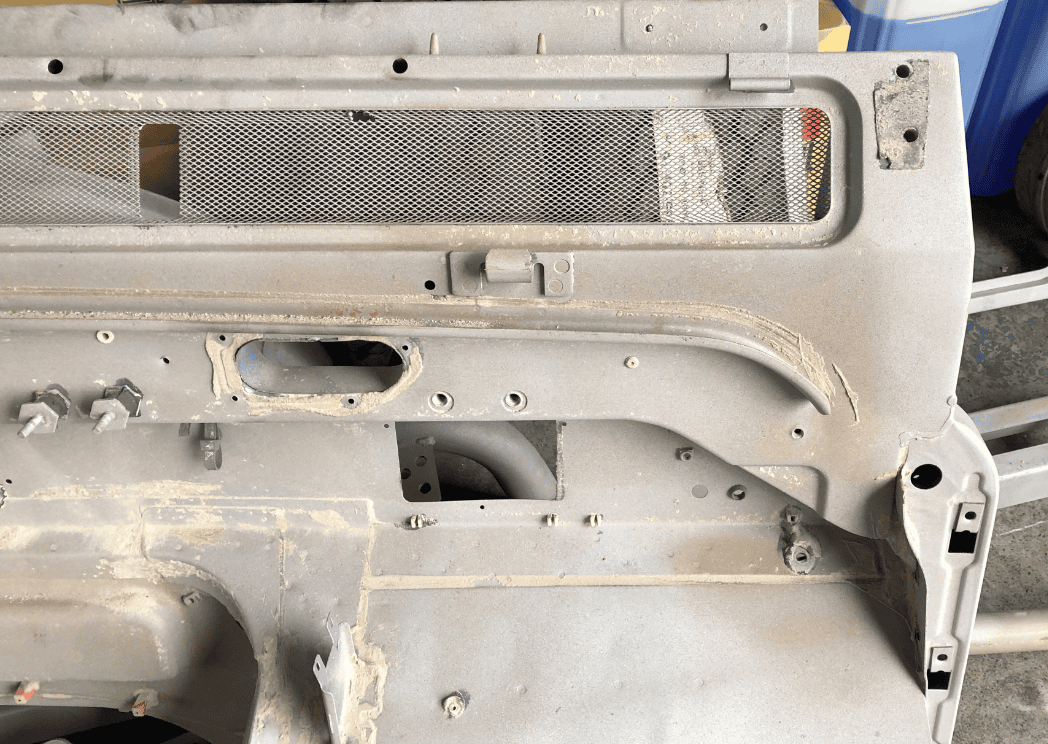

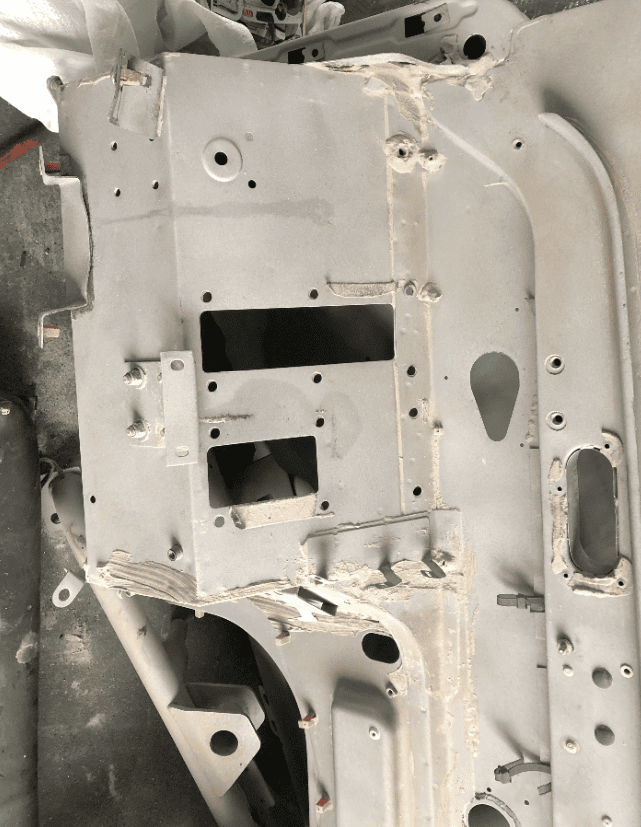

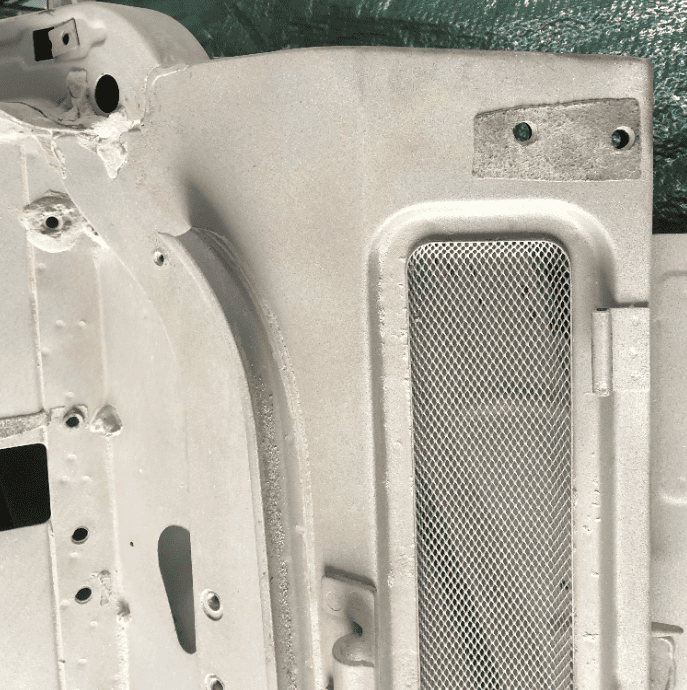

    Bulkhead post blasting




  17. marksman

    marksman Well-Known Member

    Joined:
    Mar 3, 2008
    Posts:
    756
    Likes Received:
    305
    Location:
    Co Durham

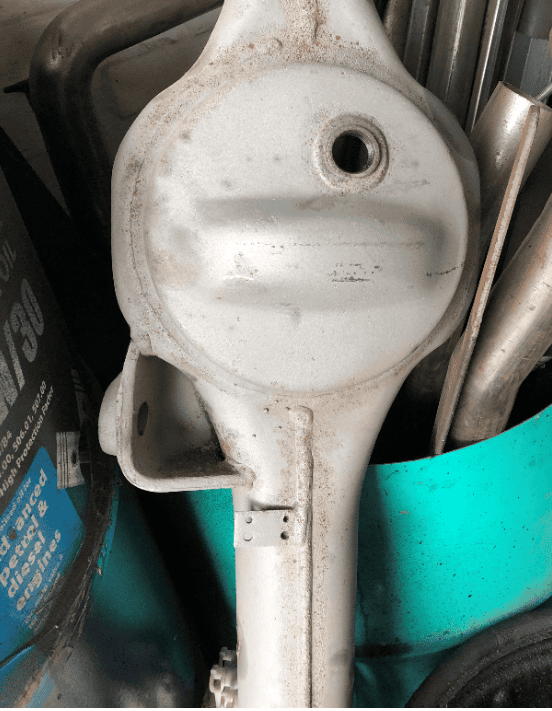

    Axles post blasting

  18. marksman

    marksman Well-Known Member

    Joined:
    Mar 3, 2008
    Posts:
    756
    Likes Received:
    305
    Location:
    Co Durham

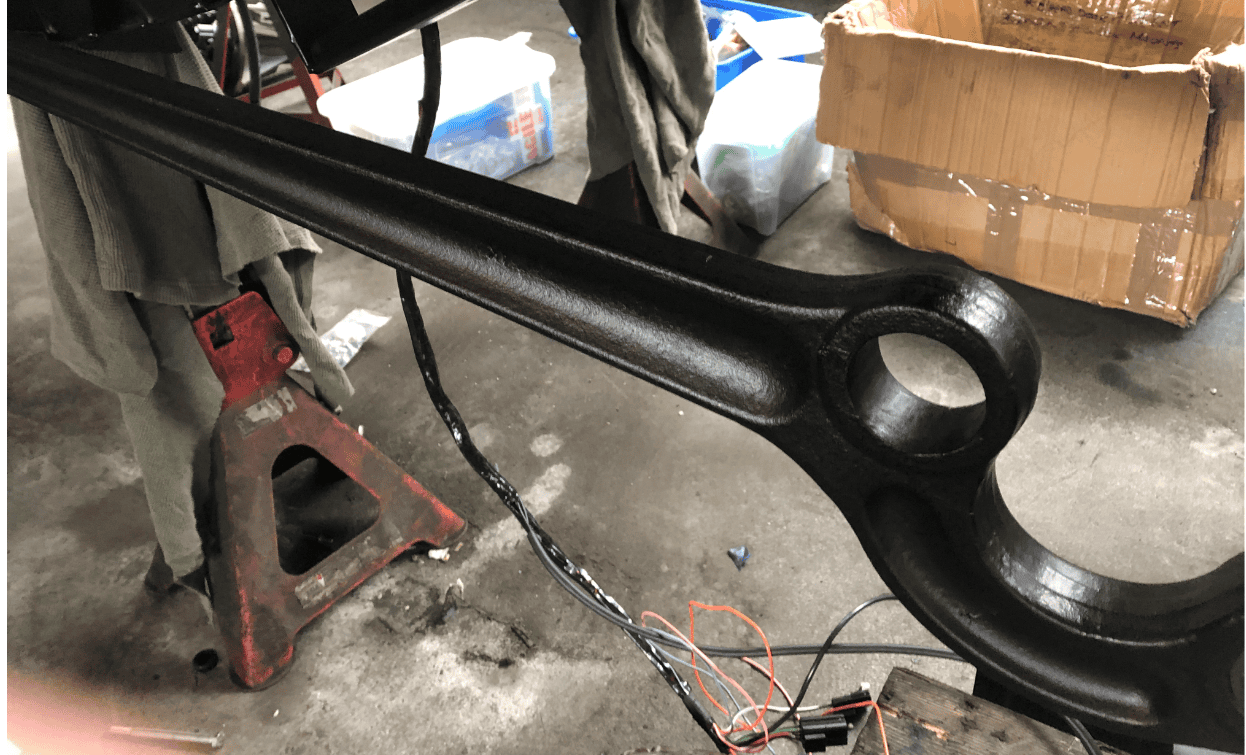

    I have a pair of narrow cleaned, Galvanised , T washed and chassis in one painted Front radius arms that will be going on Ebay shortly as I needed the wider ones.

    neilp1 likes this.
  19. marksman

    marksman Well-Known Member

    Joined:
    Mar 3, 2008
    Posts:
    756
    Likes Received:
    305
    Location:
    Co Durham

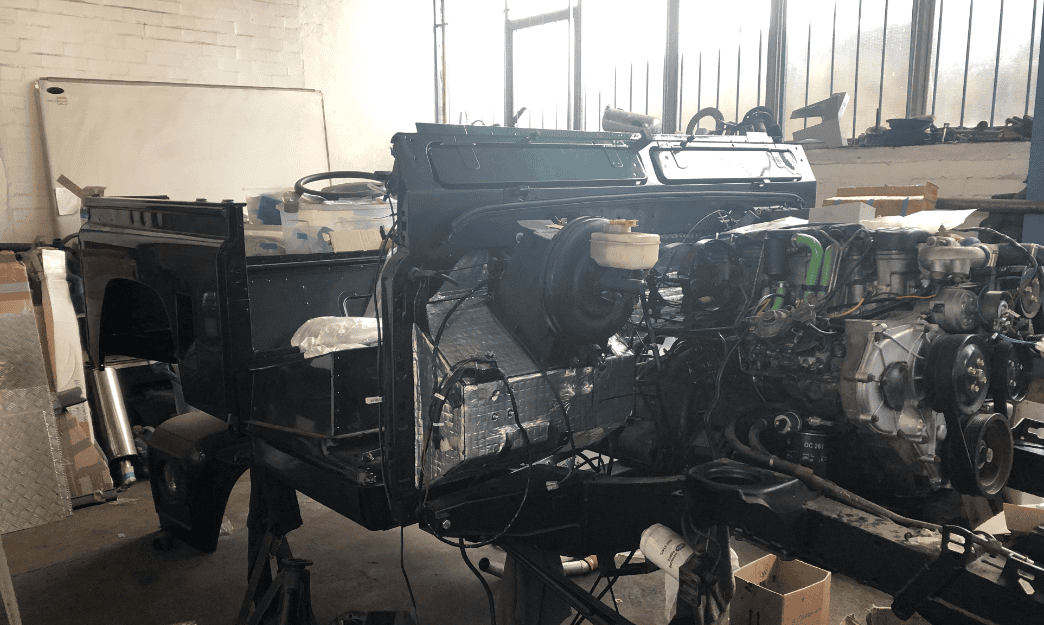

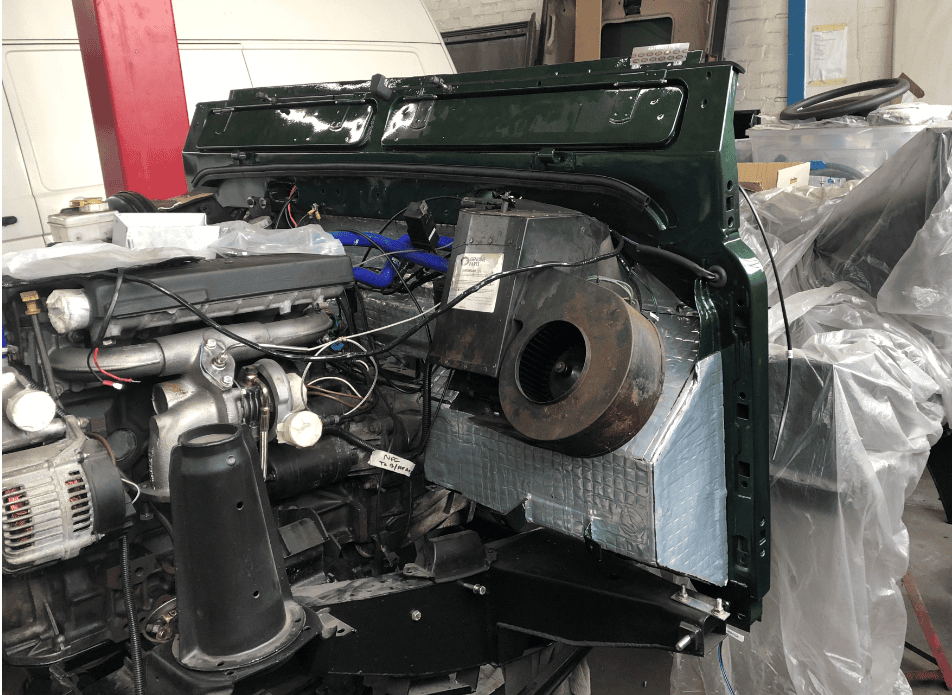

    Repaired and galvanised bulkhead refitted


  20. marjon

    marjon Well-Known Member

    Joined:
    Jul 15, 2018
    Posts:
    5,463
    Likes Received:
    5,863
    Location:
    Bulgaria
    Gonna be a stunner when done. Great work:)

    But.......:) please spend a couple of spray cans on the heater/fan box :)

    J
