L322 Rear wiper and washer issue SOLVED

This site contains affiliate links for which LandyZone may be compensated if you make a purchase.

Qasimahmed

Member
Posts
39
Location
Birmingham
Hello again.
I took apart the wiper motor today to change the plastic gear as it would stop midway and needed a little nudge to continue. Changed the gear and the wiper did not work. So I put a constant 12v onto the wiper and it started working, the problem is that it doesn't return to the rest position after completing the cycle and stops anywhere.
The second issue is the rear washer. When I put 12v to the washer pump, the water squirts about perfectly, but when pushing the stalk back, absolutely nothing from the washer pump.
Any ideas?
Thanks a lot

Last edited:
Hello again.
I took apart the wiper motor today to change the plastic gear as it would stop midway and needed a little nudge to continue. Changed the gear and the wiper did not work. So I put a constant 12v onto the wiper and it started working, the problem is that it doesn't return to the rest position after completing the cycle and stops anywhere.
The second issue is the rear washer. When I put 12v to the washer pump, the water squirts about perfectly, but when pushing the stalk back, absolutely nothing from the washer pump.
Any ideas?
Thanks a lot

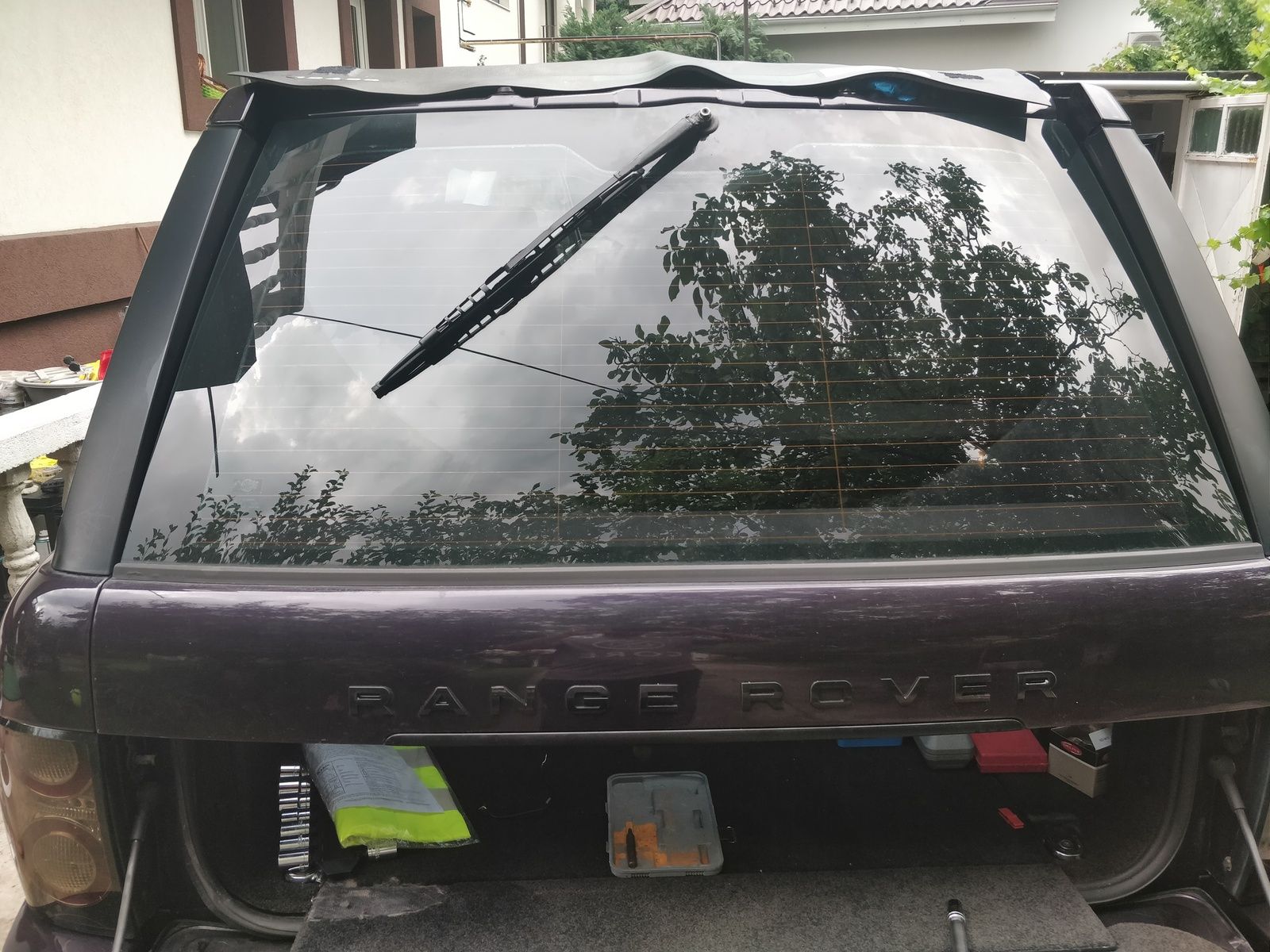

Year and model of car would help.

Sorry about that. 2004 Vogue TD6

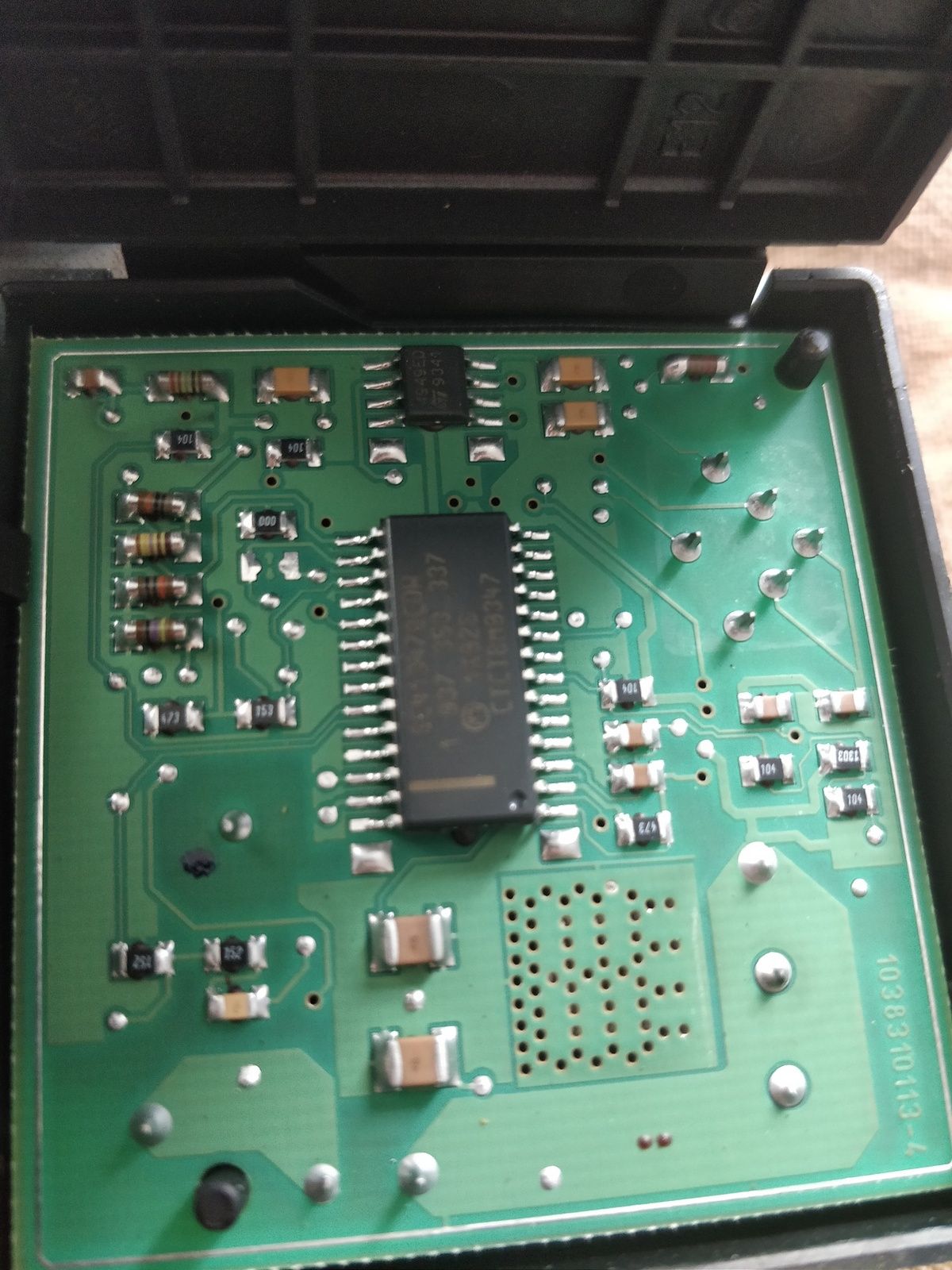

It stops in different places each time after running through the cycles. The ECU has no signs of corrosion


Attachments

  • IMG_20190609_185649.jpg
    298.8 KB · Views: 192
  • IMG_20190609_184032.jpg
    236 KB · Views: 140
