Rear tub measurements

neilp1 · Sep 17, 2021

I’m replacing lots of my rear tub and made the cardinal sin of not taking the measurements at the rear.

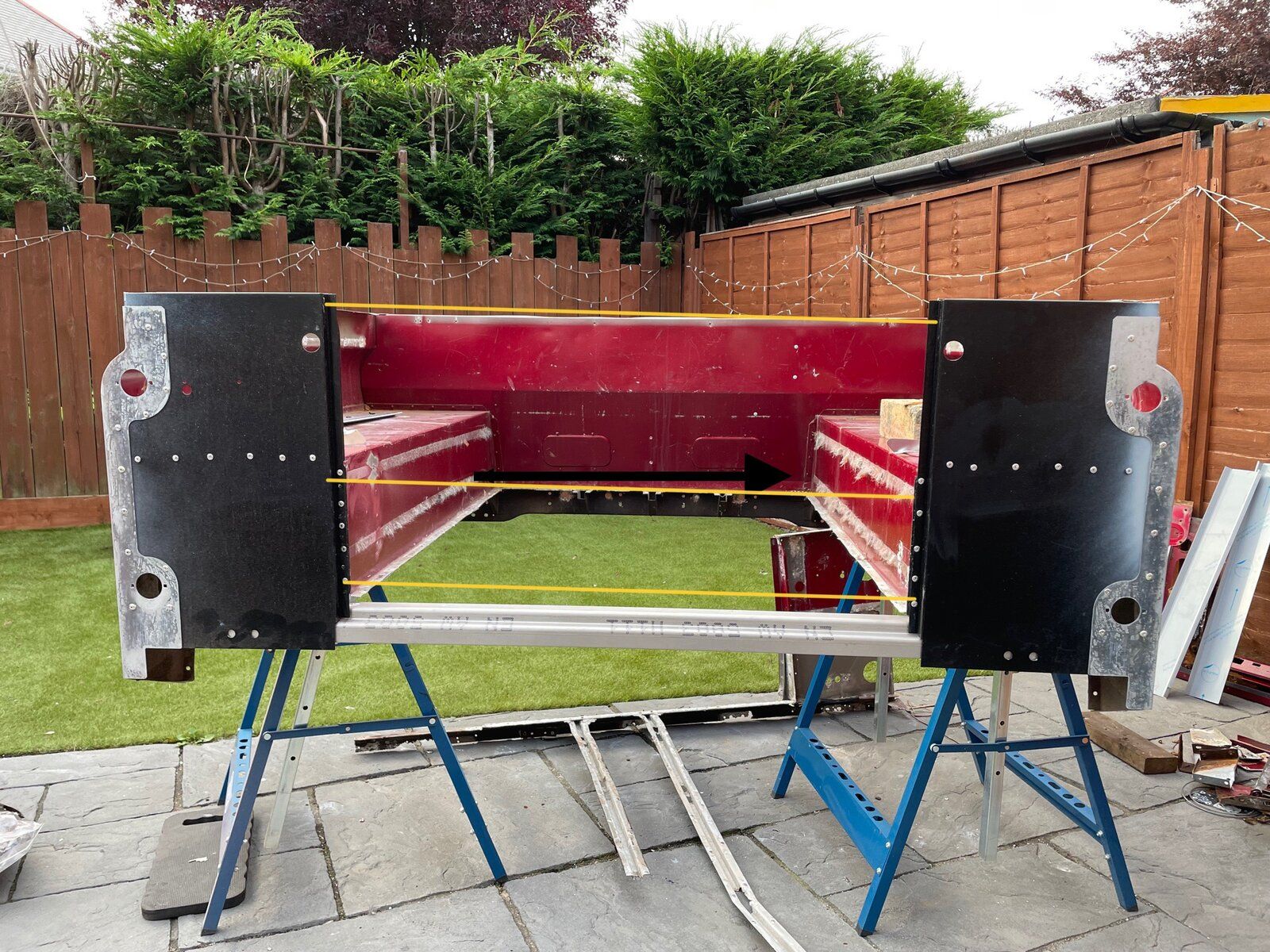

Can someone do me a big favour and measure the rear door opening in 3 places as shown in the photo. Mine is 10mm bigger at top. I did have it pulled in at top but sprang when I removed clamp.

thanks in advance

marjon · Sep 17, 2021

I get 920mm bottom and middle and 915mm top because of the 2 corner plates.

You are talking of the big door and not the flap type?
J

neilp1 · Sep 17, 2021

Yeah rear safari door. Thanks for the measurements
Need to do something with mine then

marjon · Sep 17, 2021

What measurement do you actually get?
Cos once you put the sides and roof on I am sure it could be pulled straighter abit.
Never had the tub off but am pretty sure its quite flexible just as a tub.

J

slomofo · Sep 18, 2021

neilp1 said:
I’m replacing lots of my rear tub and made the cardinal sin of not taking the measurements at the rear.
Can someone do me a big favour and measure the rear door opening in 3 places as shown in the photo. Mine is 10mm bigger at top. I did have it pulled in at top but sprang when I removed clamp.

thanks in advance
View attachment 248240

marjon said:
I get 920mm bottom and middle and 915mm top because of the 2 corner plates.

You are talking of the big door and not the flap type?
J

Ditto 920 Bottom/915 Top

mick 1986 · Sep 19, 2021

neilp1 said:
I’m replacing lots of my rear tub and made the cardinal sin of not taking the measurements at the rear.
Can someone do me a big favour and measure the rear door opening in 3 places as shown in the photo. Mine is 10mm bigger at top. I did have it pulled in at top but sprang when I removed clamp.

thanks in advance
View attachment 248240

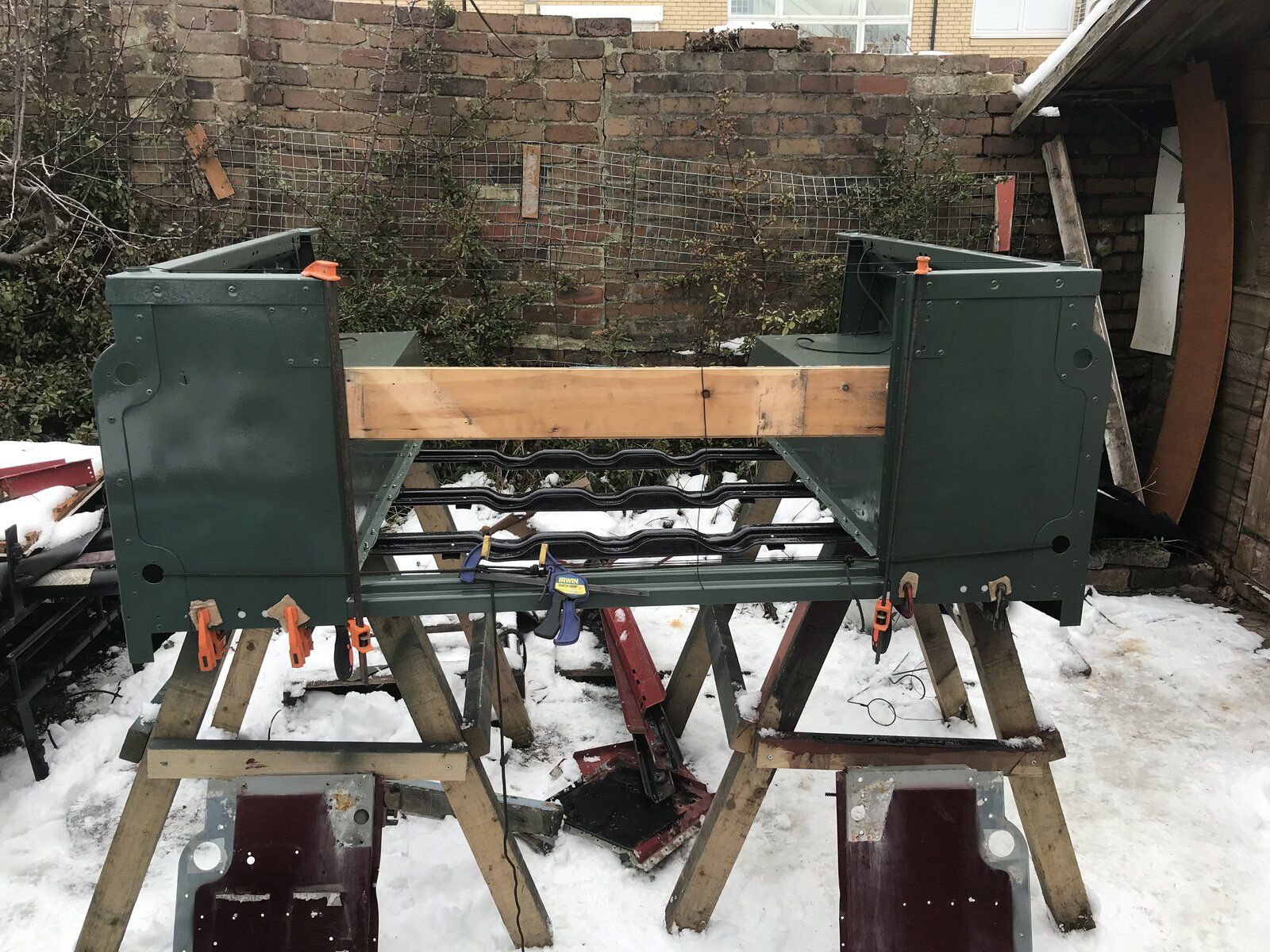

I wouldn’t worry about the measurements to be honest. I had mine jigged up, and it still sprang and flexed when I removed the straps/string, clamps, and wood.

The rear crossmember will keep the rear end relatively straight and pull out most of the misalignment, the tub sides and roof will do the rest.

v8250 · Sep 20, 2021

Crikey @mick 1986 , that's some dedication you have there...building LR's in the snow!

mick 1986 · Sep 20, 2021

v8250 said:
Crikey @mick 1986 , that's some dedication you have there...building LR's in the snow!

It was a case of “needs, must”. I needed the defender back on the road as we were down to one car, so getting it finished was the only way. You can sort of see in the photo how packed down the snow is at that point. It was around 9-10” when it first came down. It didn’t really stop me, just slowed things down a little.

I was finishing nightshift at 0720, home for 0830, showered and working on the rebuild for 0900-0915ish. It was like that for 6 months as I tried to get it back on the road ASAP. I wouldn’t change it, but I wouldn’t do it again. The amount of times I looked for a specific spanner or socket size, only to find it in my hand or right in front of me, was silly.

v8250 · Sep 20, 2021

[QUOTE="mick 1986, post: 5237944, member: 49926" It was like that for 6 months as I tried to get it back on the road ASAP. I wouldn’t change it, but I wouldn’t do it again. [/QUOTE]

Ha, I wonder how many of us have been like this with our projects? Years ago I got fed up with tinkering outside in the wet/colder months and with no more garage space discovered car tents. Now on my third tent kitted out with good solid flooring, electrical lighting, power sockets and mobile electrical heaters for when it's very cold. It's completely damp free as use a few layers of dpm under a marine ply floor - it's a nice place to be. All this will change next year as planning a new oak car port/garage for the Defender.

neilp1 · Sep 21, 2021

Cheers guys
I get 922mm at the bottom and +10mm at the top but as said hopefully this will pull in once the sides/roof are fitted
