Rear tub front chassis brackets

wwwfc666 · Mar 1, 2020

Can anyone tell me how the two middle brackets fit to the tub? The outside brackets are good as are the crossmember rear brackets can understand what the front middle do???

rob1miles · Mar 1, 2020

Is it a SWB and is that pic at 90 deg looking towards the bulkhead? Mine is a LWB but it has similar brackets on the chassis. There are bolts through a bracket that comes down from the bulkhead.

wwwfc666 · Mar 2, 2020

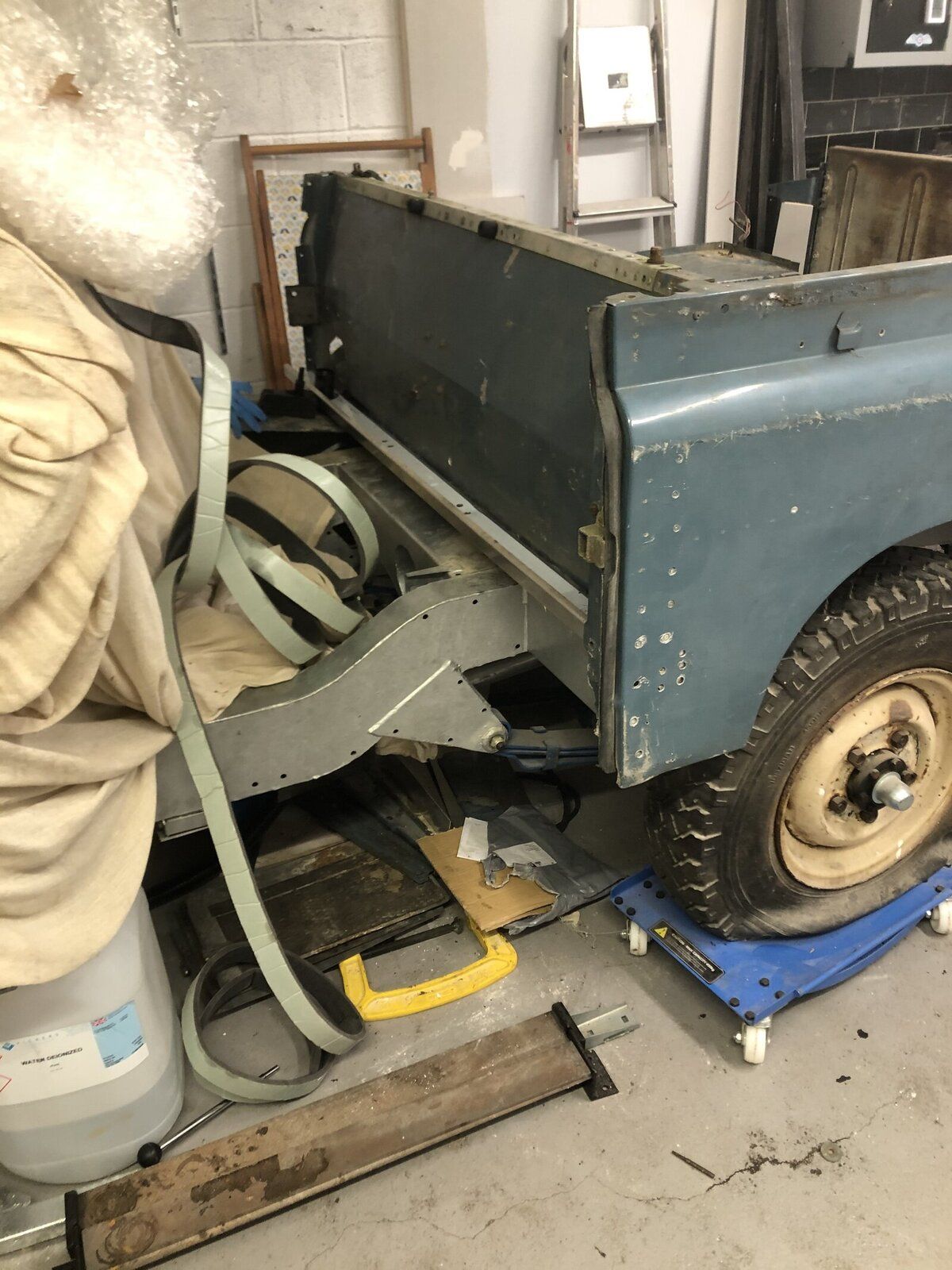

Sorry bad photo. Yes it’s swb. That is the front of the rear tub if that makes sense .

Blackburn · Mar 2, 2020

seat belt anchor points.

wwwfc666 · Mar 2, 2020

Is that rear seat belts? Not sure how the fronts would fit that?

rob1miles · Mar 2, 2020

OK, my LWB has two sets of two bolts per side from tub front to the chassis but they are inside the front of the rear wheel arch.

jamesmartin · Mar 2, 2020

wwwfc666 said:
Is that rear seat belts? Not sure how the fronts would fit that?

front

Rodeo Joe · Mar 2, 2020

Blackburn said:
seat belt anchor points.

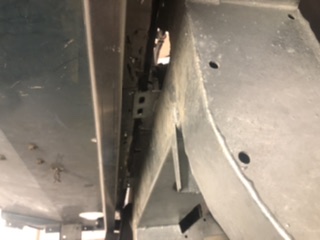

The seat belt brackets are bolted through the bulkhead on the flat partbehind the seats. They go into captive nuts (if they are still there) as shown in the above pic

wwwfc666 · Mar 2, 2020

Nice one I get the drift now. Thanks all

mystery · Mar 2, 2020

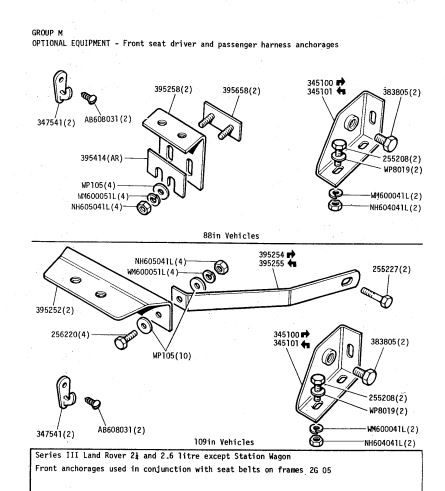

may be of use View attachment 202004

Blackburn · Mar 2, 2020

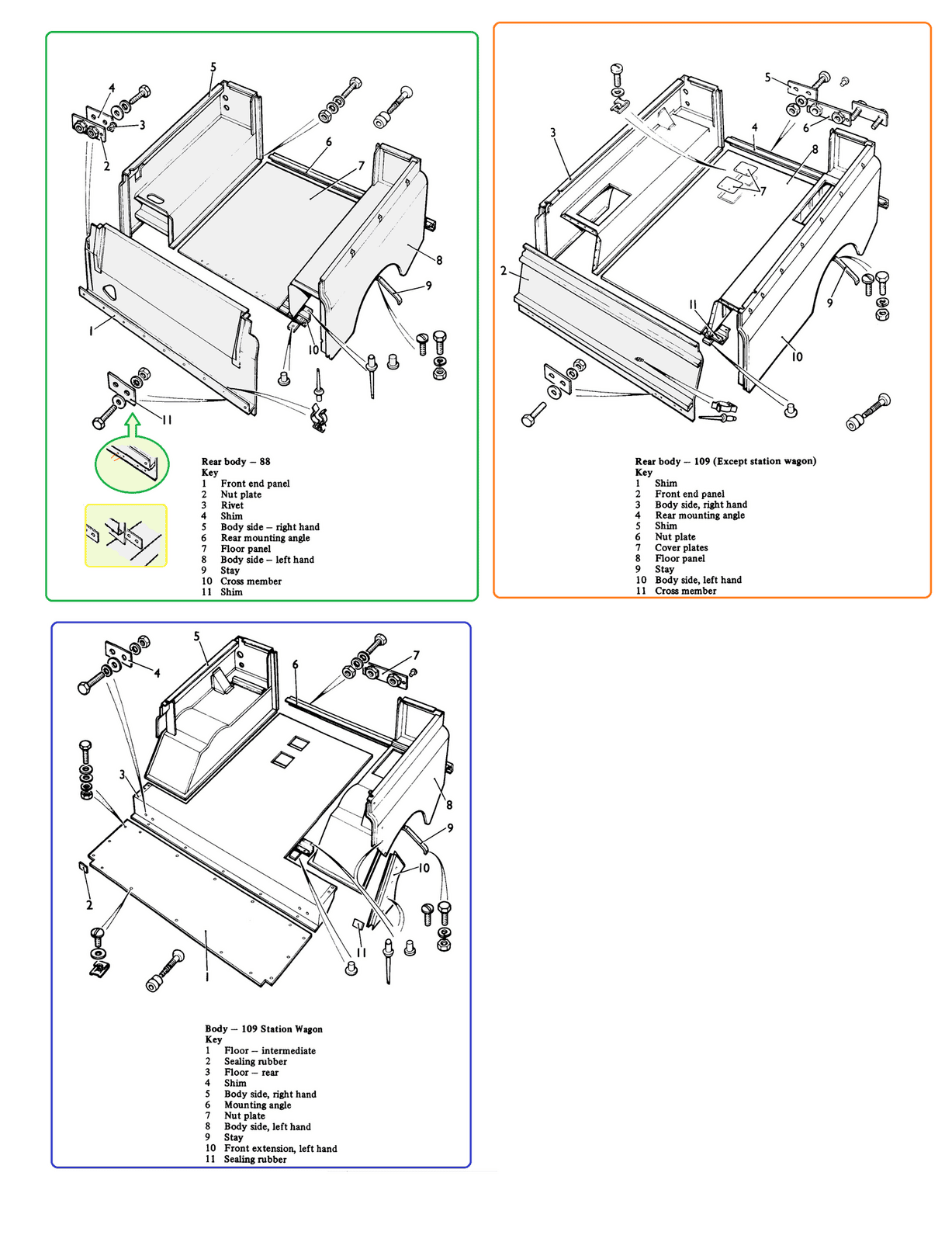

These are the relevant parts.

Rear tub front chassis brackets
