Rear shock Mounts

border · Feb 25, 2019

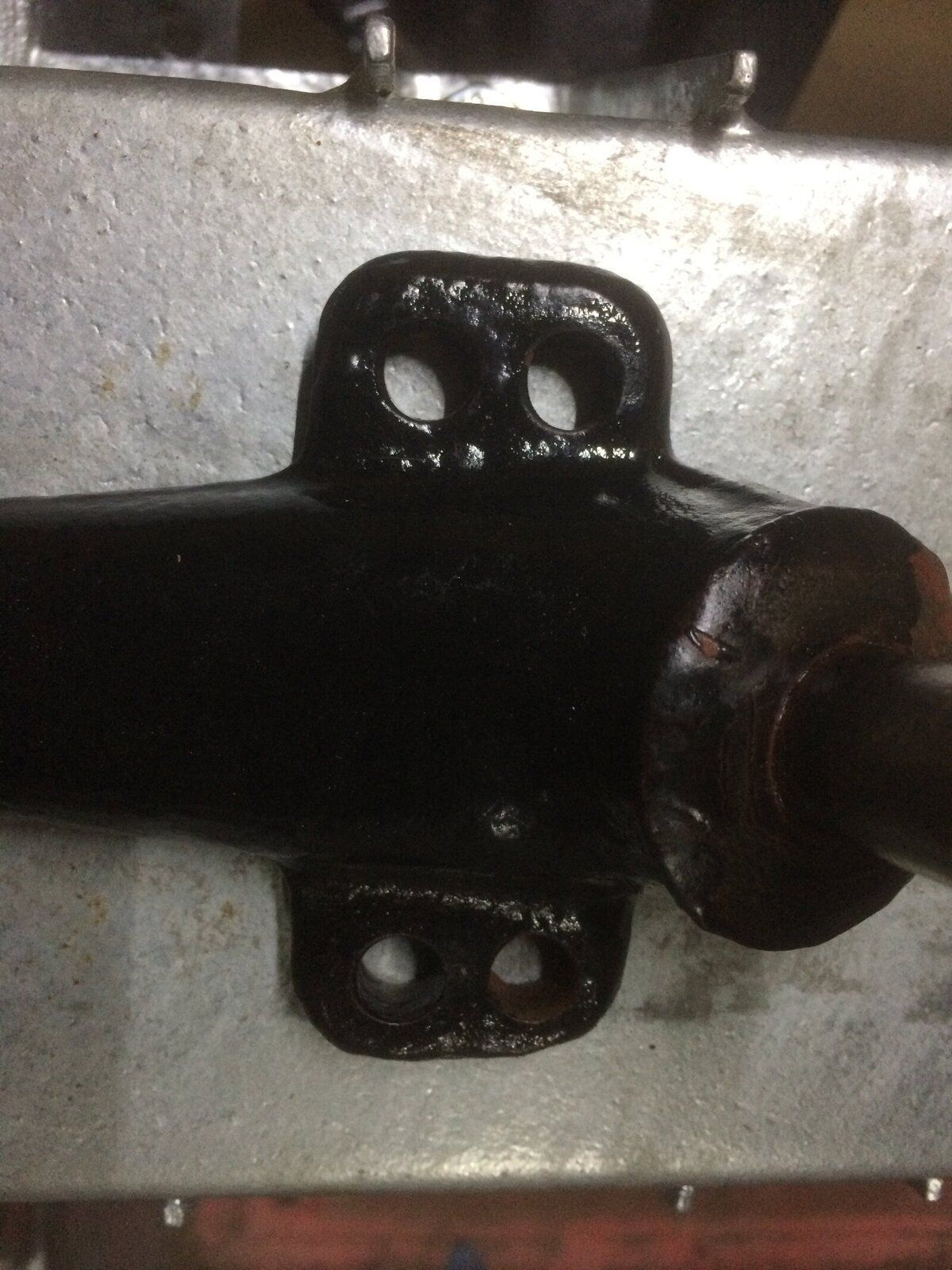

Just a quick one Please. Are My shock mounts on the right way ? they have 4 holes in the top, and only line up to Chassis holes as in photos,

jamesmartin · Feb 25, 2019

they have 4 holes at the top so the same fit both sides,you cant get them wrong

border · Feb 25, 2019

jamesmartin said:
they have 4 holes at the top so the same fit both sides,m you cant get them wrong

Thanks Mate. Will get them fitted now.

border · Feb 25, 2019

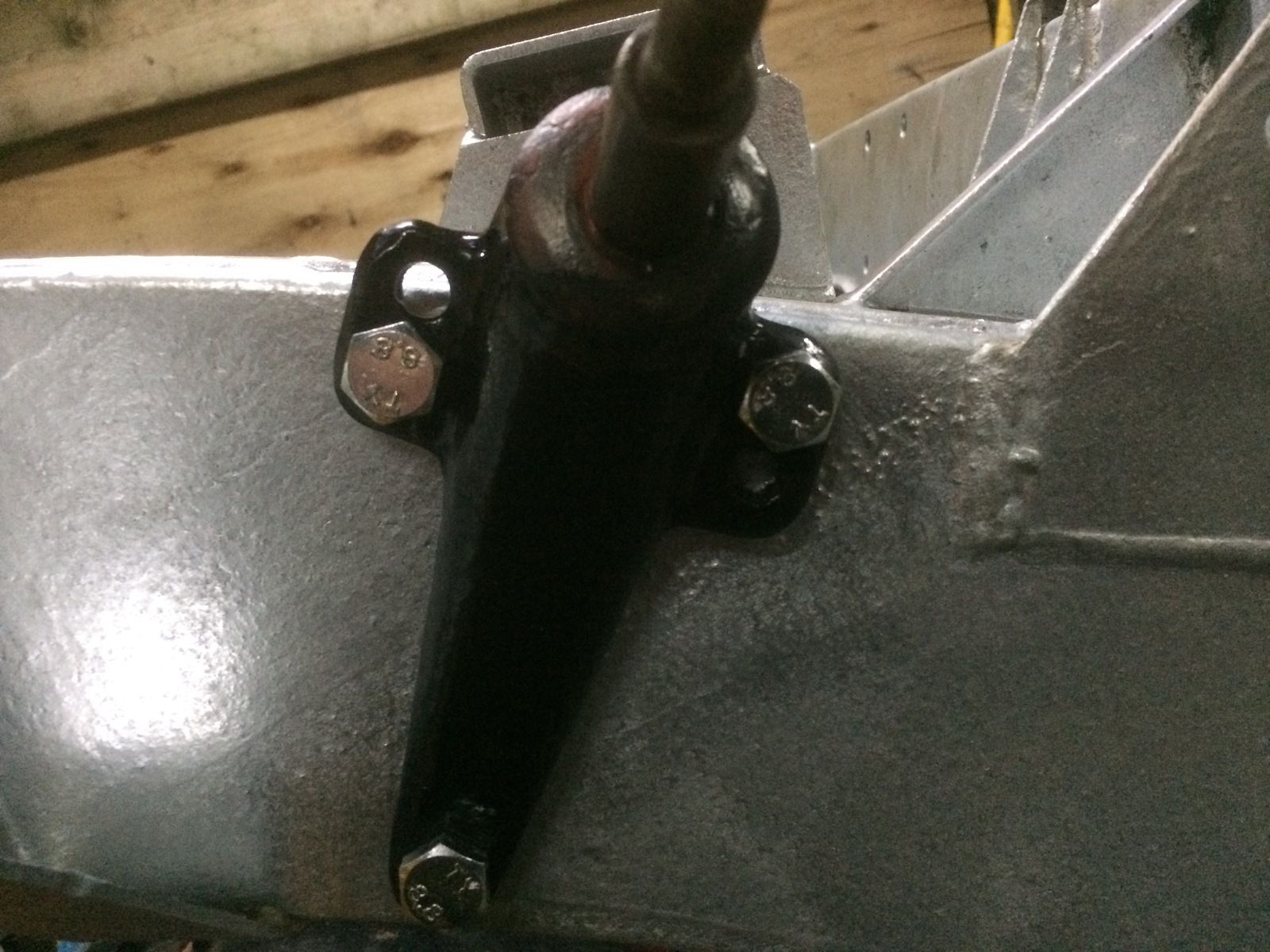

Just to be sure here do bolts go in as in photo with nuts on inside of chassis , or do they come in from other side, or does it not matter ??

mick 1986 · Feb 26, 2019

border said:
Just to be sure here do bolts go in as in photo with nuts on inside of chassis , or do they come in from other side, or does it not matter ??

It doesn’t matter, but try and visualise the finished parts. If you can get the bolt in both ways now, will it still go in both ways when the vehicle is finished and everything else is bolted back on?

Mine are bolted from the outsides, as in your photo.

border · Feb 26, 2019

mick 1986 said:
It doesn’t matter, but try and visualise the finished parts. If you can get the bolt in both ways now, will it still go in both ways when the vehicle is finished and everything else is bolted back on?

Mine are bolted from the outsides, as in your photo.

Thanks Mate, one of my Main problems is that I didn’t take it apart, so have to either guess or ask which way certain bits go back together, but learning every day

jamesmartin · Feb 26, 2019

border said:
Just to be sure here do bolts go in as in photo with nuts on inside of chassis , or do they come in from other side, or does it not matter ??

nuts on inside of chassis

border · Feb 26, 2019

jamesmartin said:
nuts on inside of chassis

There’s a plain and spring washer does the plain go on first then spring on inside??

jamesmartin · Feb 26, 2019

border said:
There’s a plain and spring washer does the plain go on first then spring on inside??

plain ,spring ,nut, if you use nyloc nuts miss out the spring washer

border · Feb 26, 2019

jamesmartin said:
plain ,spring ,nut, if you use nyloc nuts miss out the spring washer

Thanks I’ve got Nyloc will miss spring.

border · Feb 26, 2019

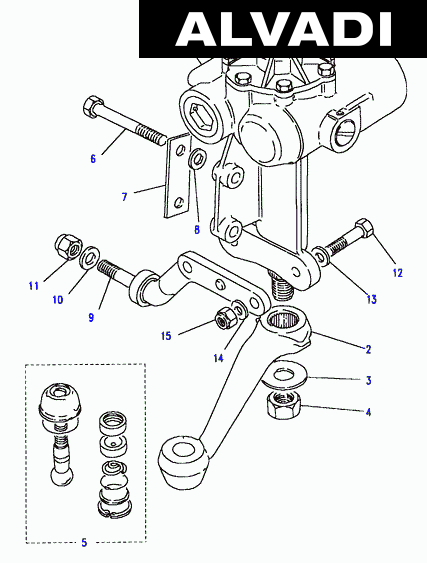

While we are on subject of nuts and bolts, I am ready to fit steering box, I’ve ordered number 7 and 8 on photo, will I need both and in that order on photo ? Thanks

jamesmartin · Feb 26, 2019

border said:
While we are on subject of nuts and bolts, I am ready to fit steering box, I’ve ordered number 7 and 8 on photo, will I need both and in that order on photo ? Thanks

7 is a lock tab 8 is a flat washer to space tab out so you can get behind the tab to fold it over the bolt flat, you can use them or a spring washer and bolt and miss them out

border · Feb 26, 2019

jamesmartin said:
7 is a lock tab 8 is a flat washer to space tab out so you can get behind the tab to fold it over the bolt flat, you can use them or a spring washer and bolt and miss them out

border · Feb 26, 2019

jamesmartin said:
7 is a lock tab 8 is a flat washer to space tab out so you can get behind the tab to fold it over the bolt flat, you can use them or a spring washer and bolt and miss them out

Thanks again Mate should of asked first before I ordered them.
