P38A Rear radius arms

Discussion in 'Range Rover' started by pete12345, May 12, 2020.

< Previous Thread | Next Thread >
  1. pete12345

    pete12345 Well-Known Member

    Joined:
    Jun 15, 2012
    Posts:
    1,119
    Likes Received:
    131
    Location:
    Isle Sheppy
    hi all can I remove the rear radius arm aswell as the front one on the same side or best to replace front 1st

  2. jamesmartin

    jamesmartin Well-Known Member

    Joined:
    Dec 8, 2010
    Posts:
    86,866
    Likes Received:
    15,668
    Location:
    louth lincs
    yes if chassis is well supported

  3. pete12345

    pete12345 Well-Known Member

    Joined:
    Jun 15, 2012
    Posts:
    1,119
    Likes Received:
    131
    Location:
    Isle Sheppy
    Thanks yer it's all well supported 2 jacks and 6 axle stands

  4. pete12345

    pete12345 Well-Known Member

    Joined:
    Jun 15, 2012
    Posts:
    1,119
    Likes Received:
    131
    Location:
    Isle Sheppy
    On the very back of the radius arm there's a bolt does that have a small bush also all that rubber bit how do you get that out there 2 small screw things but mine are rusted so much was wondering I've they were special tool for removing

  5. romanrob

    romanrob Active Member

    Joined:
    Jan 19, 2020
    Posts:
    258
    Likes Received:
    90
    Location:
    SW London
    Hi Pete, add a photo maybe - just to be sure which bits you're talking about, else we'll head off on a tangent

  6. pete12345

    pete12345 Well-Known Member

    Joined:
    Jun 15, 2012
    Posts:
    1,119
    Likes Received:
    131
    Location:
    Isle Sheppy

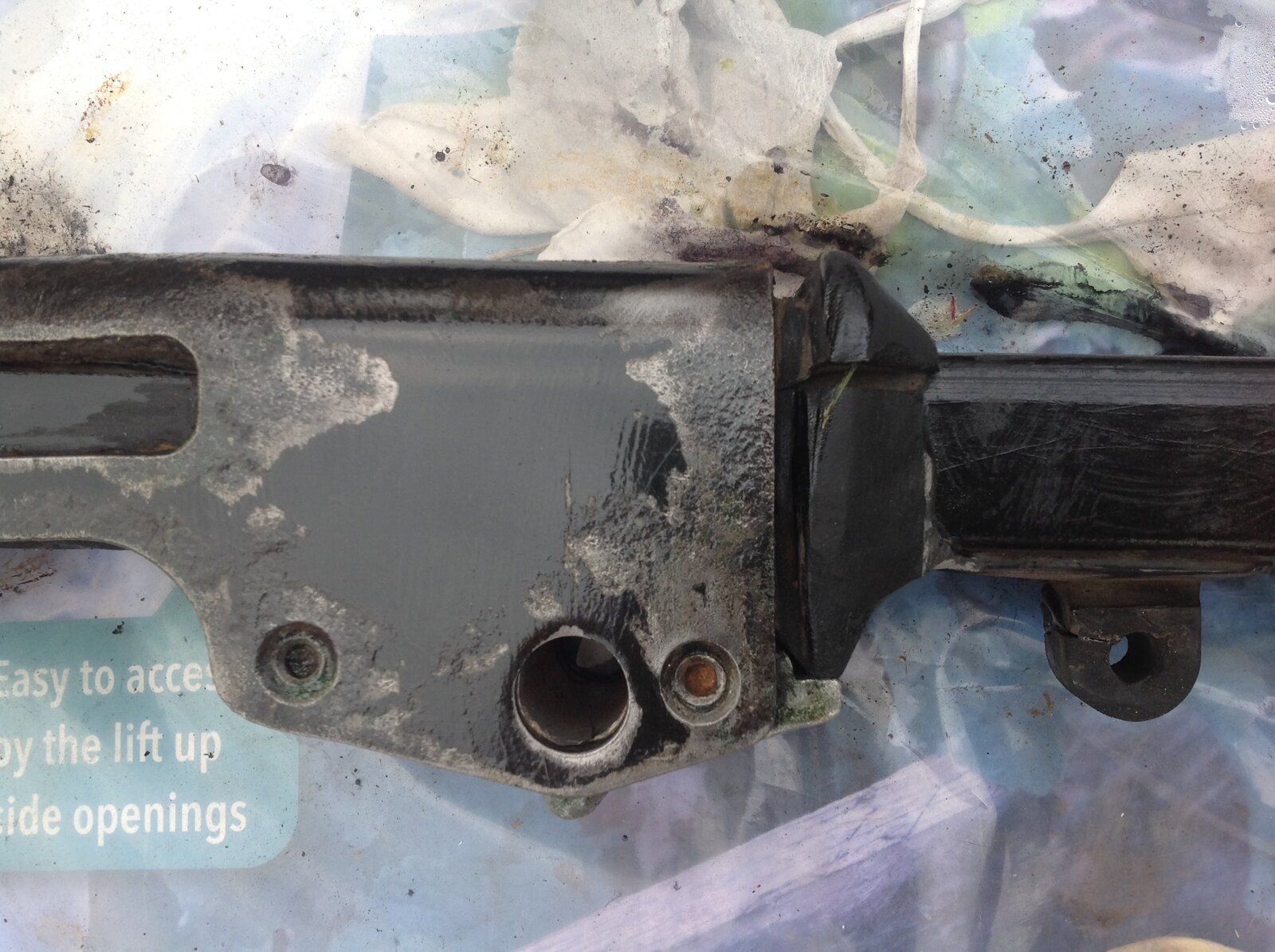

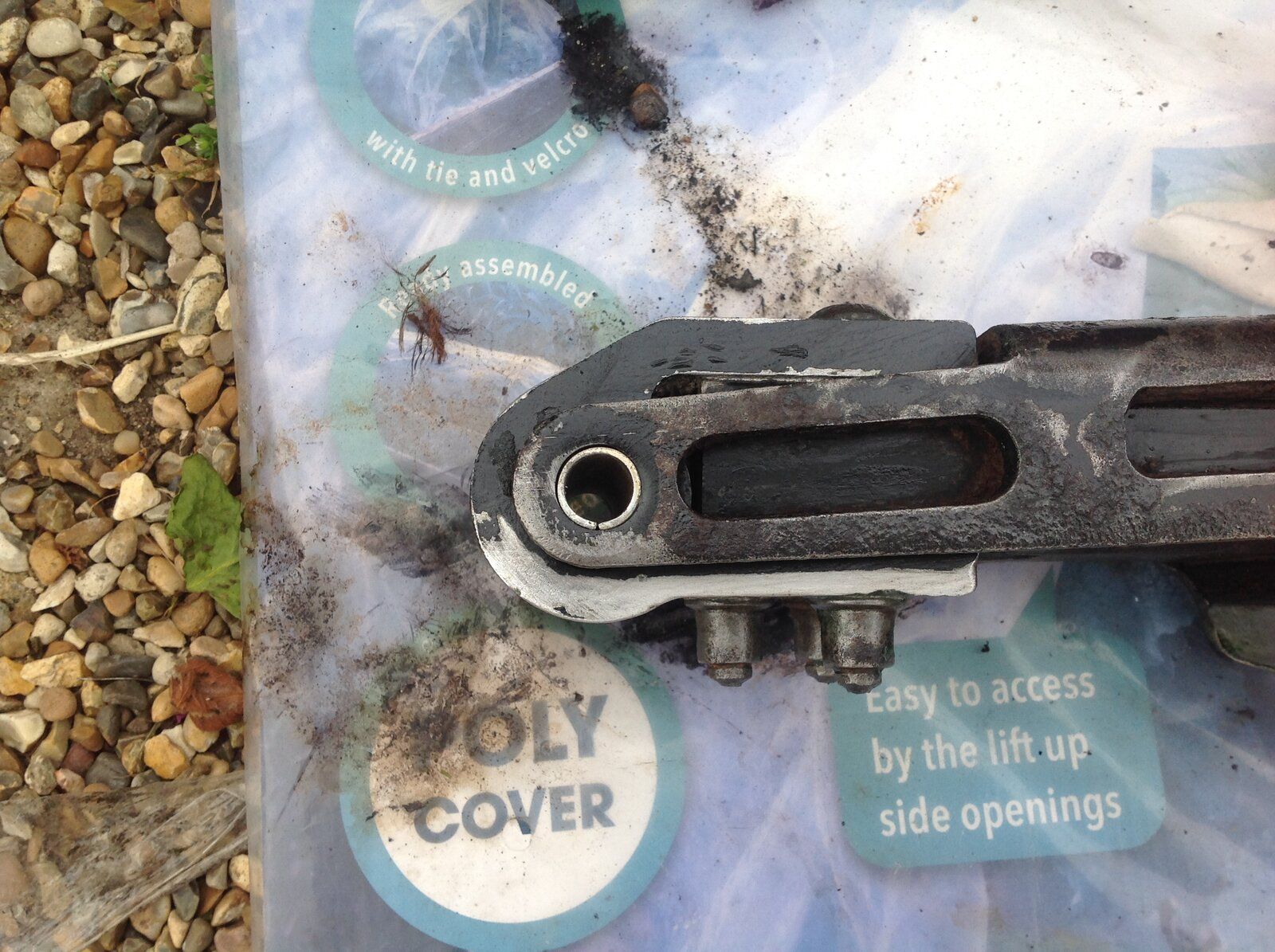

    Here's the offending part cheers


    Attached Files:

  7. pete12345

    pete12345 Well-Known Member

    Joined:
    Jun 15, 2012
    Posts:
    1,119
    Likes Received:
    131
    Location:
    Isle Sheppy
    Any advice much appreciated looked at new bushes but there doesn't seem to be them ones anywhere

  8. gstuart

    gstuart D3 Grandad

    Joined:
    May 18, 2010
    Posts:
    25,045
    Likes Received:
    8,789
    Location:
    Swanley , Kent
  9. RangeRoller dt

    RangeRoller dt Well-Known Member

    Joined:
    Dec 23, 2018
    Posts:
    9,799
    Likes Received:
    4,163
    Location:
    Trapped inside my head @ LZ asylum
    I snapped one rear when I went over, new one had that bit on there already.

  10. wammers

    wammers STILL BREATHING. Donater

    Joined:
    Oct 19, 2008
    Posts:
    57,790
    Likes Received:
    11,349
    Location:
    Preston Lancs.
    They are part of the assembly and should not be removed. Fit genuine bushes only NOT poly bushes.

    gstuart likes this.
  11. pete12345

    pete12345 Well-Known Member

    Joined:
    Jun 15, 2012
    Posts:
    1,119
    Likes Received:
    131
    Location:
    Isle Sheppy
    Thanks chaps no wonder I can't find them and already got genuine son order then to find someone with a big enough press to get them in

  12. pete12345

    pete12345 Well-Known Member

    Joined:
    Jun 15, 2012
    Posts:
    1,119
    Likes Received:
    131
    Location:
    Isle Sheppy
    Any good tips for getting the new bushes in they look to big do I need to file a small edge on them to start them off

  13. RangeRoller dt

    RangeRoller dt Well-Known Member

    Joined:
    Dec 23, 2018
    Posts:
    9,799
    Likes Received:
    4,163
    Location:
    Trapped inside my head @ LZ asylum
    Stick them in the freezer for few days and use jubilee clips to squeeze them in one saint on here did.

  14. pete12345

    pete12345 Well-Known Member

    Joined:
    Jun 15, 2012
    Posts:
    1,119
    Likes Received:
    131
    Location:
    Isle Sheppy
    Ok ta very much

  15. Grrrrrr

    Grrrrrr Technician, Bodgit & Scarper Ltd

    Joined:
    Jul 8, 2012
    Posts:
    13,739
    Likes Received:
    3,629
    Location:
    Buckinghamshire, UK. ('95 DT)
    A bit of fairy liquid can help. If using a press then do it slowly with a little rest every so often.

  16. pete12345

    pete12345 Well-Known Member

    Joined:
    Jun 15, 2012
    Posts:
    1,119
    Likes Received:
    131
    Location:
    Isle Sheppy
    I'm going to take them to a local garage so hopefully he will no the tricks of the trade

  17. pete12345

    pete12345 Well-Known Member

    Joined:
    Jun 15, 2012
    Posts:
    1,119
    Likes Received:
    131
    Location:
    Isle Sheppy

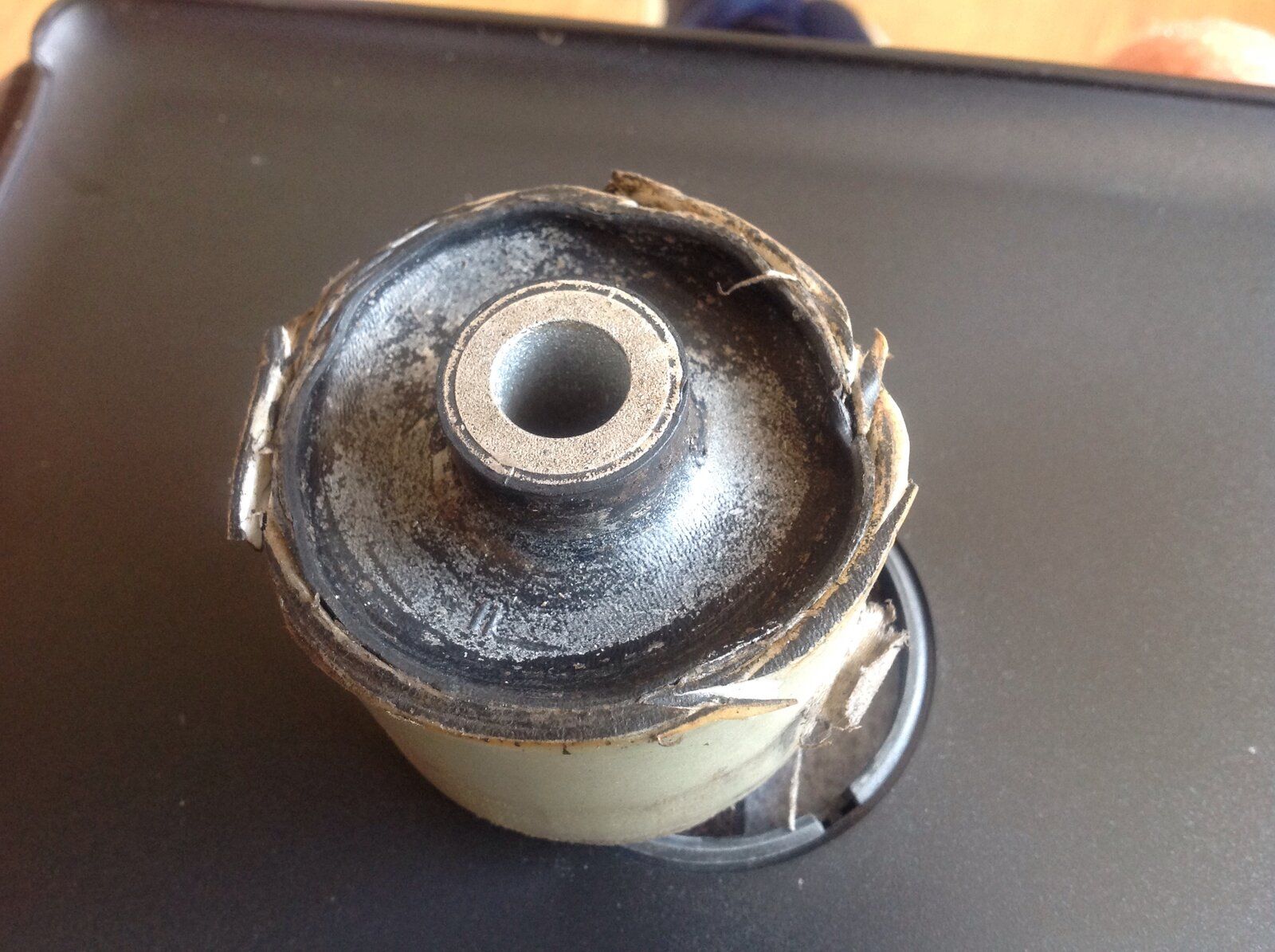

    And for the next problem can anyone else tell me the correct part number for the two front radius arm bushes on 1999 p38a the part I got is ANR3332 and the fella in the garage said they don't fit when trying to push them in for me


    Attached Files:

  18. wammers

    wammers STILL BREATHING. Donater

    Joined:
    Oct 19, 2008
    Posts:
    57,790
    Likes Received:
    11,349
    Location:
    Preston Lancs.
    That is the correct part number and the bloke at the garage is a muppet. Special tool needed to compress bush as it it being pressed in. What a bloody plonker he is.

  19. pete12345

    pete12345 Well-Known Member

    Joined:
    Jun 15, 2012
    Posts:
    1,119
    Likes Received:
    131
    Location:
    Isle Sheppy
    Would a large jubilee clip do the job as it goes in or do I need that special tool cheers

  20. wammers

    wammers STILL BREATHING. Donater

    Joined:
    Oct 19, 2008
    Posts:
    57,790
    Likes Received:
    11,349
    Location:
    Preston Lancs.
    Yes. The O/D of the bush will be around 61.5 mm the I/D of the radius arm hole is 60mm. Clean it up and apply some grease. Put jubilee clip on about 3 mm from end of bush and tighten until bush enters hole once engaged in press remove clip and press in.
