Disco 2 Rear Power Window Not going up

mad85 · Jun 18, 2021

Discovery 2 Td5 facelift model:

My latest problem is that the rear driver side window has decided it doesnt want to go up. Tried both switches, tried to take it all the way down. In the end I hotwired the motor so that I can close it for the night, so i know at least the motor is working fine. something tells me it is probably the ecu? any thoughts?

discool · Jun 19, 2021

mad85 said:
Discovery 2 Td5 facelift model:

My latest problem is that the rear driver side window has decided it doesnt want to go up. Tried both switches, tried to take it all the way down. In the end I hotwired the motor so that I can close it for the night, so i know at least the motor is working fine. something tells me it is probably the ecu? any thoughts?

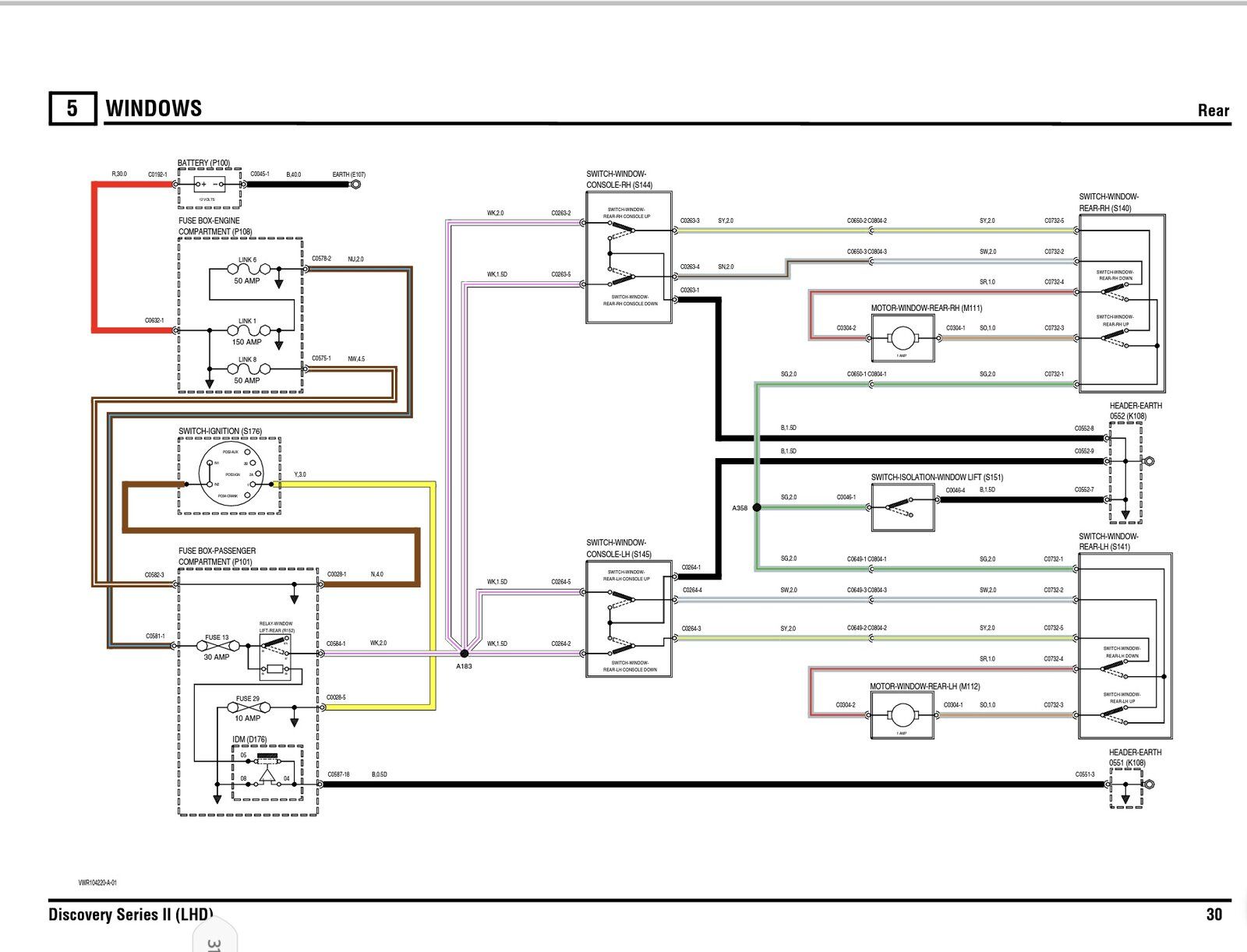

Just a screen copy of what in the LR workshop manual on the electrics for your rear windows, it appears there isn't an ECU involved. Just switches..
Hope it helps.

It does state LHD but its similar for your RHD disco 2.

sierrafery · Jun 20, 2021

Check if the loom is not chafed where it passes between the body and door

mad85 · Jun 20, 2021

after checking everything it seemed that nothing was wrong. so I just worked the switch for about one million times and it started working again! however now im quite sure it is not going down as far as it used to. other observations:
1. used the switch from the other window and that didnt work.
2. after i replaced the switch, the otherside also didnt work, even with the original switch!!!
3. both sides started working again after working the switches

mad85 · Jun 20, 2021

discool said:
Just a screen copy of what in the LR workshop manual on the electrics for your rear windows, it appears there isn't an ECU involved. Just switches..
Hope it helps.

thanks it did help a lot, since there is no ecu involvement i knew it was less complicated than i was afraid it might be

discool · Jun 20, 2021

mad85 said:
thanks it did help a lot, since there is no ecu involvement i knew it was less complicated than i was afraid it might be

Possibly a slight corrosion on the external switch contacts, or could be the ‘use it or loose it’ syndrome that my disco sometimes has on the stuff I don’t use.

I look out for you when I’m in Sliema next, I alway check out the D1s and 2s I see when travelling around Malta, but Ive stayed away for the last couple of years, and it looks like it will be the same for this year.

mad85 · Jun 21, 2021

discool said:
Possibly a slight corrosion on the external switch contacts, or could be the ‘use it or loose it’ syndrome that my disco sometimes has on the stuff I don’t use.

yeah, maybe. im more inclined to think there is some sort of mechanism which decides that it is up or down far enough? not sure.

discool said:
I look out for you when I’m in Sliema next, I alway check out the D1s and 2s I see when travelling around Malta, but Ive stayed away for the last couple of years, and it looks like it will be the same for this year.

im very rarely in Sliema but not too far away. Malta is full of d1s and d2s so you ll have a few to check out

pm me if you re here and need any help around
