Freelander 1 Rear drum brake reset

Discussion in 'Land Rover Freelander' started by rob_bell, Dec 1, 2016.

< Previous Thread | Next Thread >
  1. rob_bell

    rob_bell Well-Known Member

    Joined:
    Jul 18, 2016
    Posts:
    2,603
    Likes Received:
    566
    Location:
    London
    hi chaps,

    I think I must have made a school boy error when reassembling the OSR drum brake after cleaning.

    I will take the drum off again to have a look, but the problem is that the handbrake function is poor, and looking at the adjuster and handbrake cable balance bar, the cable to the OSR drum appears much longer than the NSR.

    I thought the brake shoes would self adjust themselves against the drum, but perhaps this hasn't happened and do I need to manually adjust the shoes close to the drum?

    Thanks for your thoughts! I much prefer brake discs and calipers ;)

  2. Skinny Mike

    Skinny Mike Well-Known Member

    Joined:
    Jun 17, 2009
    Posts:
    2,909
    Likes Received:
    536
    Location:
    Yorkshire (Center of the known universe!)
    On most versions once you've messed with the rear brakes, leave the handbrake off, start the engine, pump the foot brake about 30 times, then take the slack up with the cable adjuster behind the handle.
    This should set it up ok
    Mike

  3. Joe_H

    Joe_H Well-Known Member

    Joined:
    Dec 30, 2015
    Posts:
    1,486
    Likes Received:
    252
    Location:
    Brit in Northern Portugal
    I think he has done that Mike - the cable bit is interesting - check under the console Rob and see if the cables are balanced - they should be.
    Also check the cable runs. It would be unusual for one cable to be stretched considerably further than the other - the adjuster 'taking up' does not actually alter the cable lengths (by more than a fraction)

    If you need images rob (from rave) no worries I have both (cannot remember what year yours is ?) - you probably do as well.

    It is worth checking one thing that had me and my local specialist totally confused (not difficult ;)) for ages ... really poor handbrake performance on out L series (same brakes as any pre 2000). - all new components including cylinders / shoes / drums etc.
    After months of trying to solve the issue I final took it to a local LR dealer out of desperation as I knew the vehicle was supposed to hold on a 33.3% gradient.
    What we found was that the slave cylinders were too short in length ! - seriously - they were aftermarket - fitted apparently perfectly - specified for the freelander - yet when compared to originals were shorter by about 5 or 6 mm !!! - you could not tell apart from a direct comparison.
    Order from rimmers 2 new ones (OEM)- compared them to genuine - exactly the same - fitted and immediately hand brake is the best of most cars I have ever driven. - we have a 30% slop at the top of a tarmac road from the farm track to the main road junction. it will hold easily there on 4 clicks. Even my bride who is 5 foot nothing can now drive it - before it was frightening for her as you needed to toe and heel it at the junction.
    Cannot see that part being connected to the cable but ..............
    Joe

  4. rob_bell

    rob_bell Well-Known Member

    Joined:
    Jul 18, 2016
    Posts:
    2,603
    Likes Received:
    566
    Location:
    London
    Thanks chaps.

    Mike, yes, I've done the 30 brake depressions with the handbrake off. In fact, to be fair, I've done many more than that "just in case".

    I didn't take a picture last night, but the cable balance bar is straight as it should be - and it was before I messes with the rear drum. I suspect I've done something stupid, but I thought I had put everything back as it came out? The hand brake cable is connected. But the cable now clearly moves much more than it did - and more than it does on the near side (which I haven't touched for now).

    I guess there is only one thing I can do and that is remove the drum and look. Shame it is pitched black out there already, and I still haven't left for home yet!!!

    My hunch is that the top of the shoes are somehow not square on the actuator pins of the slave cylinder, but I guess I'll see...

  5. Alibro

    Alibro Well-Known Member

    Joined:
    Jan 5, 2015
    Posts:
    5,339
    Likes Received:
    1,467
    Location:
    Northern Ireland
  6. Nodge68

    Nodge68 Well-Known Member

    Joined:
    Nov 15, 2011
    Posts:
    21,415
    Likes Received:
    4,803
    Location:
    Near Newquay
    Take photos;)

  7. rob_bell

    rob_bell Well-Known Member

    Joined:
    Jul 18, 2016
    Posts:
    2,603
    Likes Received:
    566
    Location:
    London
    I've spent a little too much time reading through that Fred! Assembled the wrong way round? Lol

    not a lot of time now, but I'll slacken the handbrake cable and try the 30 steps on the brake again :)

    Alibro likes this.
  8. rob_bell

    rob_bell Well-Known Member

    Joined:
    Jul 18, 2016
    Posts:
    2,603
    Likes Received:
    566
    Location:
    London
    Sadly that hasn't worked. I've done something stoopid, I'm sure. I'll take the drum off, but I'd better cancel tomorrow afternoon's MoT as I won't get time to sort it before :(

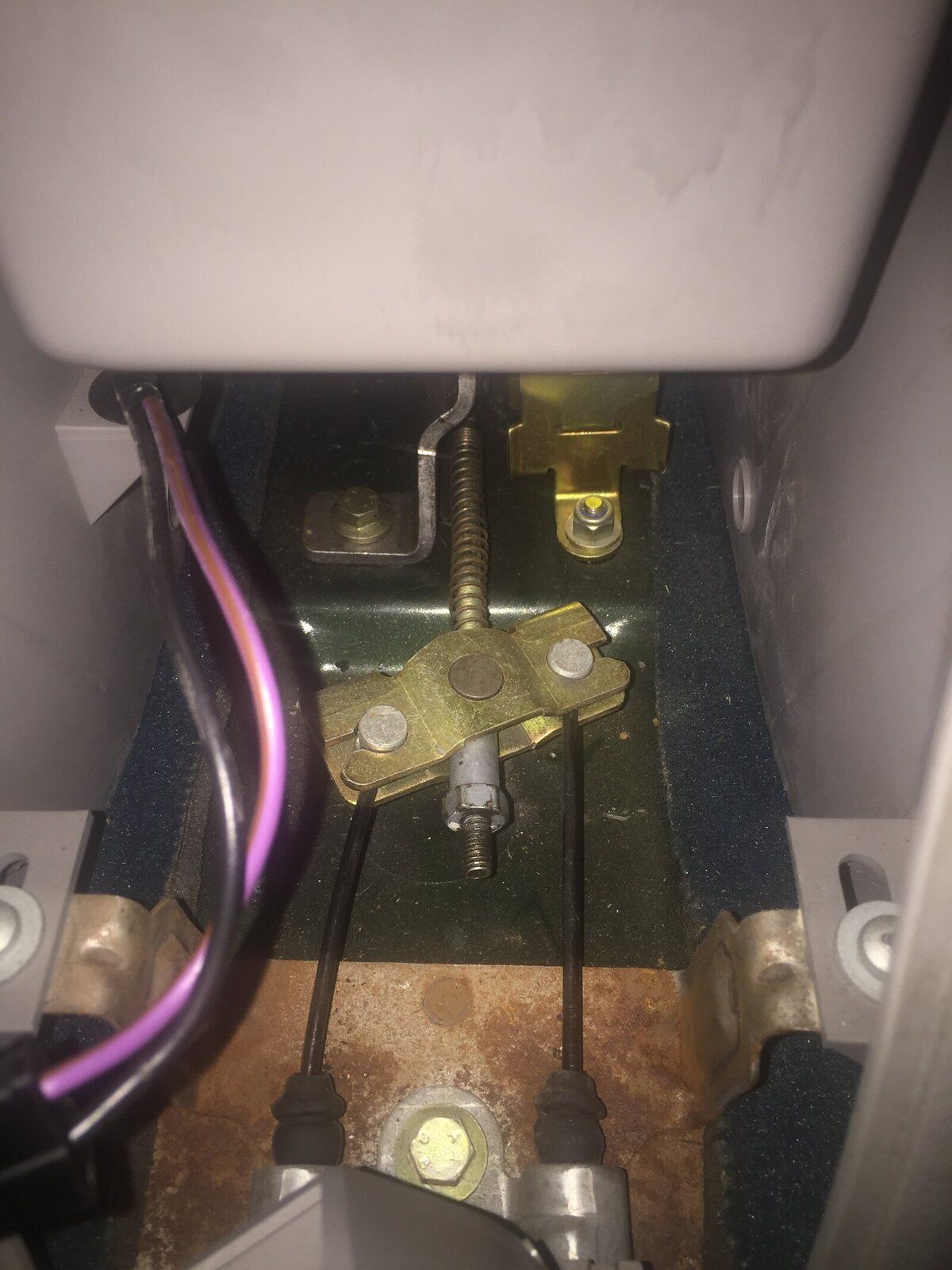

    Here's the handbrake cable. All wrong...

    . image.jpeg

  9. teddywood1

    teddywood1 Well-Known Member

    Joined:
    Jul 7, 2011
    Posts:
    5,524
    Likes Received:
    295
    Location:
    stoke-on-trent
    have you put all the springs back as they should go when doing any thing I always take a picture then you can put it back the same way, also you should adjust the shoes up until it starts to drag on the drum then back it of 1 notch , you can do this by taking the rubber plug out of the back of the plate and get a torch and you will see a small cog wheel that is the adjusting wheel with a screw driver prises it so you are putting the flat of the screw driver under the flat part of the cog , if you look at 1 o'clock on the picture you can just see it ,the long cable worries me a bit are you sure you have it fastened in the adjuster under the center consol.


    Attached Files:

    Last edited: Dec 1, 2016
  10. rob_bell

    rob_bell Well-Known Member

    Joined:
    Jul 18, 2016
    Posts:
    2,603
    Likes Received:
    566
    Location:
    London
    I didn't actually take the springs off: the shoes had plenty of friction material still on them, so I simply kept it all assembled for simplicity, cleaned and then replaced.

    But one of them could have been displaced? I shall check, thanks! :)

  11. Alibro

    Alibro Well-Known Member

    Joined:
    Jan 5, 2015
    Posts:
    5,339
    Likes Received:
    1,467
    Location:
    Northern Ireland
    Oops! If you have time in the morning it'll probably be very obvious. I spotted the mistake we made and had it sorted in minutes.

  12. rob_bell

    rob_bell Well-Known Member

    Joined:
    Jul 18, 2016
    Posts:
    2,603
    Likes Received:
    566
    Location:
    London
    Sadly at work now. Contemplating either re-booking the MoT for next week and fix it tomorrow morning, or take it for an inevitable fail, identify any problems and fix it tomorrow morning and re-test ....

  13. Nodge68

    Nodge68 Well-Known Member

    Joined:
    Nov 15, 2011
    Posts:
    21,415
    Likes Received:
    4,803
    Location:
    Near Newquay
    I would think that there's a mistake when reassembling. The cables should be pretty close in length. Your offside cable is pulling through to far.
    I'm sure you'll spot it, the moment you take the drum off :)

  14. Skinny Mike

    Skinny Mike Well-Known Member

    Joined:
    Jun 17, 2009
    Posts:
    2,909
    Likes Received:
    536
    Location:
    Yorkshire (Center of the known universe!)
    If I were you, I'd take both rear drums off, take the self adjusters out and wind them both back in. Then do the brake pump thing. This should wind them both back out the same amount, then adjust the cable.
    Mike

  15. rob_bell

    rob_bell Well-Known Member

    Joined:
    Jul 18, 2016
    Posts:
    2,603
    Likes Received:
    566
    Location:
    London
    Tyanks chaps. I'll spend some time tomorrow looking at this - and as you say Mike have a look at the other side.

    I am wary that the car hand binding brakes when I got it so it would make sense to look at both sides.

    Go for MoT or not though? It'll fail of course but might highlight anything I've missed?

  16. GrumpyGel

    GrumpyGel Well-Known Member

    Joined:
    Oct 31, 2013
    Posts:
    15,767
    Likes Received:
    10,428
    Location:
    Christchurch, New Zealand
    That's always a difficult one! If you take it in knowing it will fail on something, are they more likely to fail it on other things that they might have listed as advisories if all else was OK? :)

  17. rob_bell

    rob_bell Well-Known Member

    Joined:
    Jul 18, 2016
    Posts:
    2,603
    Likes Received:
    566
    Location:
    London
    Well, having given it some thought, I've managed to move it to Monday. Gives me a couple of hours to have another look at the brakes on Saturday. It'll be something simple I'm sure!

  18. Alibro

    Alibro Well-Known Member

    Joined:
    Jan 5, 2015
    Posts:
    5,339
    Likes Received:
    1,467
    Location:
    Northern Ireland
    When I had a similar issue one of the levers was on the wrong side something or other. Sorry can't be more specific than that but I had similar symptoms with the handbrake not working on that side and a rubbing noise from the hub. Whip the hubs off both sides and you'll spot it in no time.

  19. rob_bell

    rob_bell Well-Known Member

    Joined:
    Jul 18, 2016
    Posts:
    2,603
    Likes Received:
    566
    Location:
    London
    Now sorted :)

    I took the drum off again, and everything appeared to be as it should. I then took the shoes off.

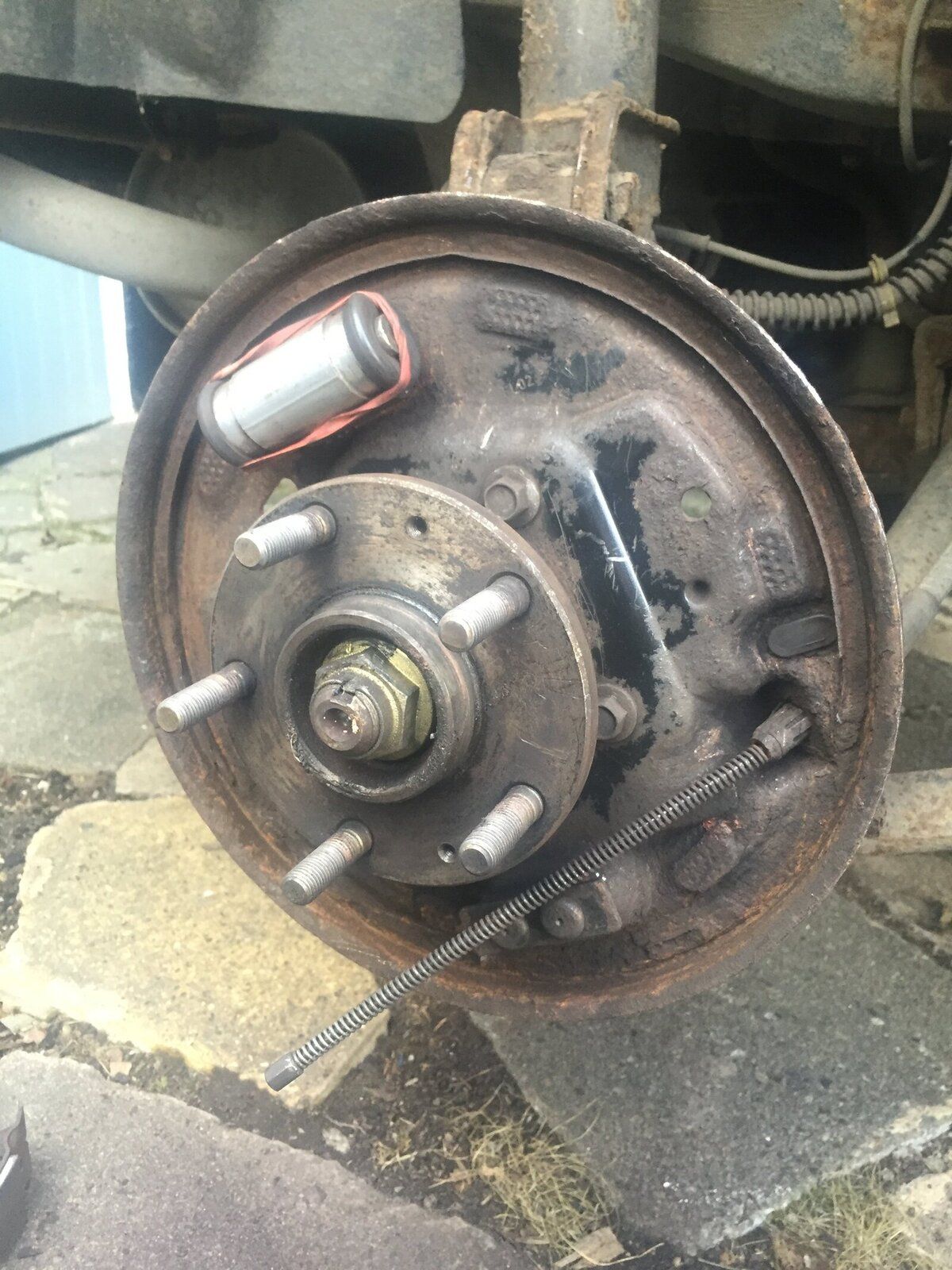

    Back plate looks like this (after cleaning):


    A lot of surface corrosion as you can see. The drum mounts to the back plate on a thin circular steel lip: this has completely rotted away along its lower half. You can see this most clearly if you look where the handbrake cable enters.

    At this point my phone went flat, so apologies, no more pictures...

    But I realised my oversight: as you mention Ali, there is a hand brake actuator lever on the shoe assembly. On mine, it was completely seized.

    Luckily I was able to free it off and get it moving freely. I didn't lubricate it: I am afraid that if it were lubricated it would attract brake dust and gum up.

    Now reassembled and the handbrake works again and all seems well :D

    MoT tomorrow pm, so fingers crossed! :)

    Alibro likes this.
  20. rob_bell

    rob_bell Well-Known Member

    Joined:
    Jul 18, 2016
    Posts:
    2,603
    Likes Received:
    566
    Location:
    London
    Kicking myself: I missed the perfect opportunity to do the OWUT! D'oh.
