rear door
- Thread starter silly boy
- Start date
This site contains affiliate links for which LandyZone may be compensated if you make a purchase.
Old diver
Well-Known Member
- Posts
- 432
- Location
- Dunfermline, Fife

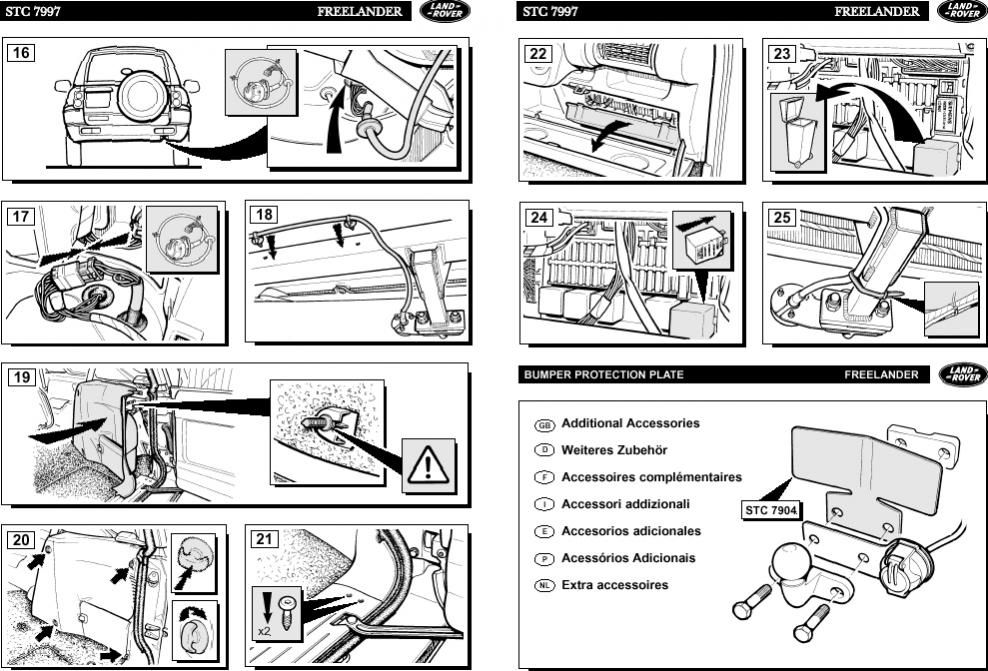

Here.
is it white with a multitude of BLACK wires leading to it cos that's what I see after getting the panel off
have got the offsider panel off the one over the wheel arch is the plug white with black wires leading to itThe tow bar plug is behind the RH boot side panel, not in the door.
Alibro
Well-Known Member
- Posts
- 7,202
- Location
- Northern Ireland
I think there's only one socket free for the tow bar so it should be pretty obvious. Can't remember the colours though.
The tow bar plug is hidden behind the inner structure, and normally has a blank plug fitted.
The white plastic thing with the black wires could be the ground connection, if it's bolted to the frame?
Last edited:
andyfreelandy
Well-Known Member
- Posts
- 5,584
- Location
- Devon
If all wires are black it is more than likely an earth point. Trailer socket has wires with different colours and is hidden from view behind the metalwork in the rear quarter panel.
andyfreelandy
Well-Known Member
- Posts
- 5,584
- Location
- Devon

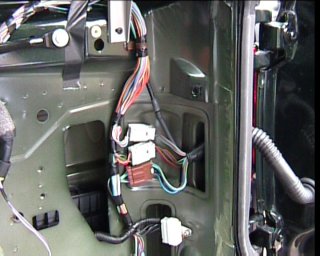

This shows the earth block in white bolted to the bodywork and the trailer socket is on the end of the black covered cable at the bottom of the photo with the plug behind the metal work. The plug has many different colour wires in it - and maybe a spare plug - there was on mine.
andyfreelandy
Well-Known Member
- Posts
- 5,584
- Location
- Devon
Brilliant!!
