Rear door leak

This site contains affiliate links for which LandyZone may be compensated if you make a purchase.

Cyrus 200

Active Member
Posts
56
Location
West Yorkshire

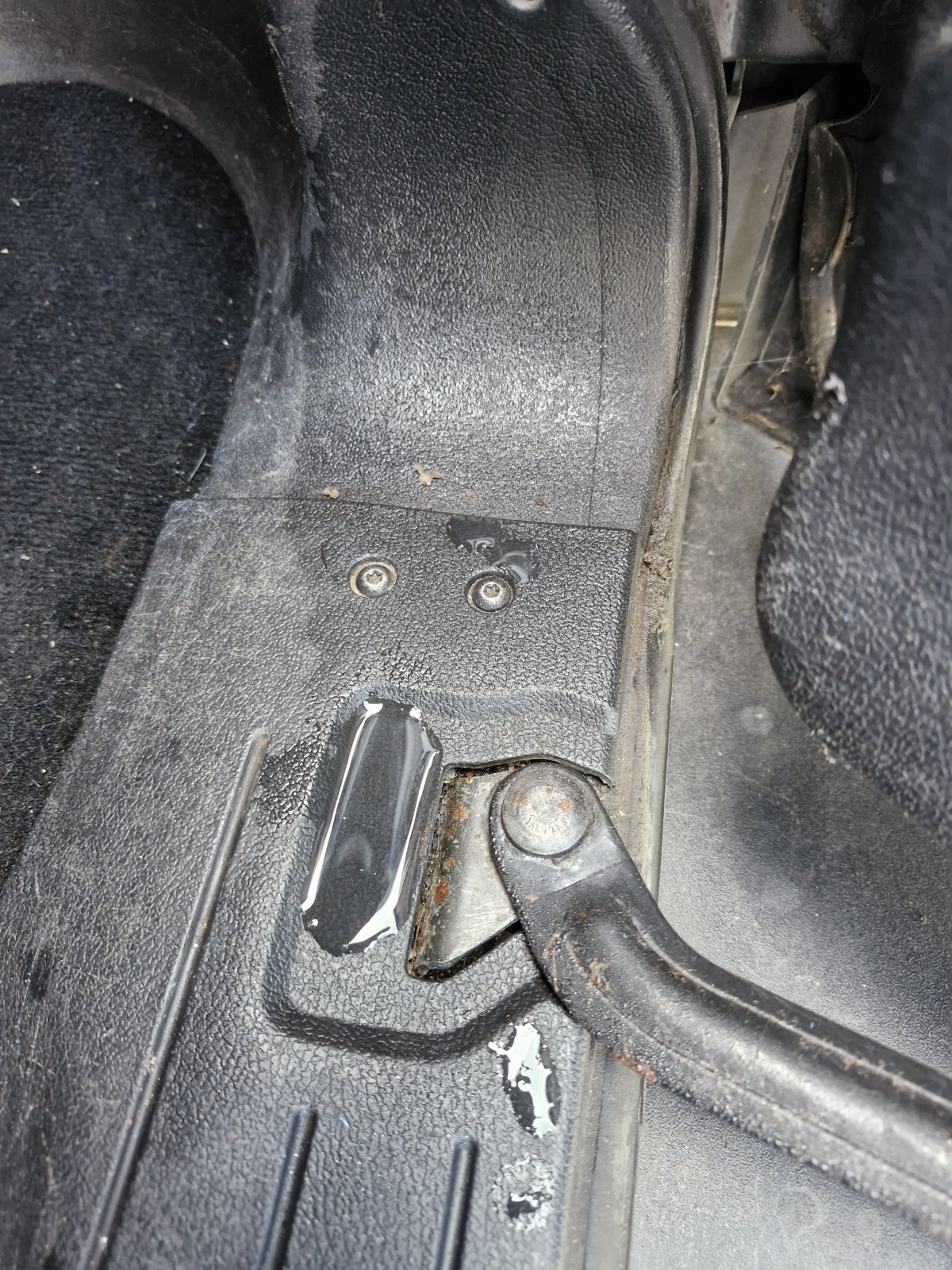

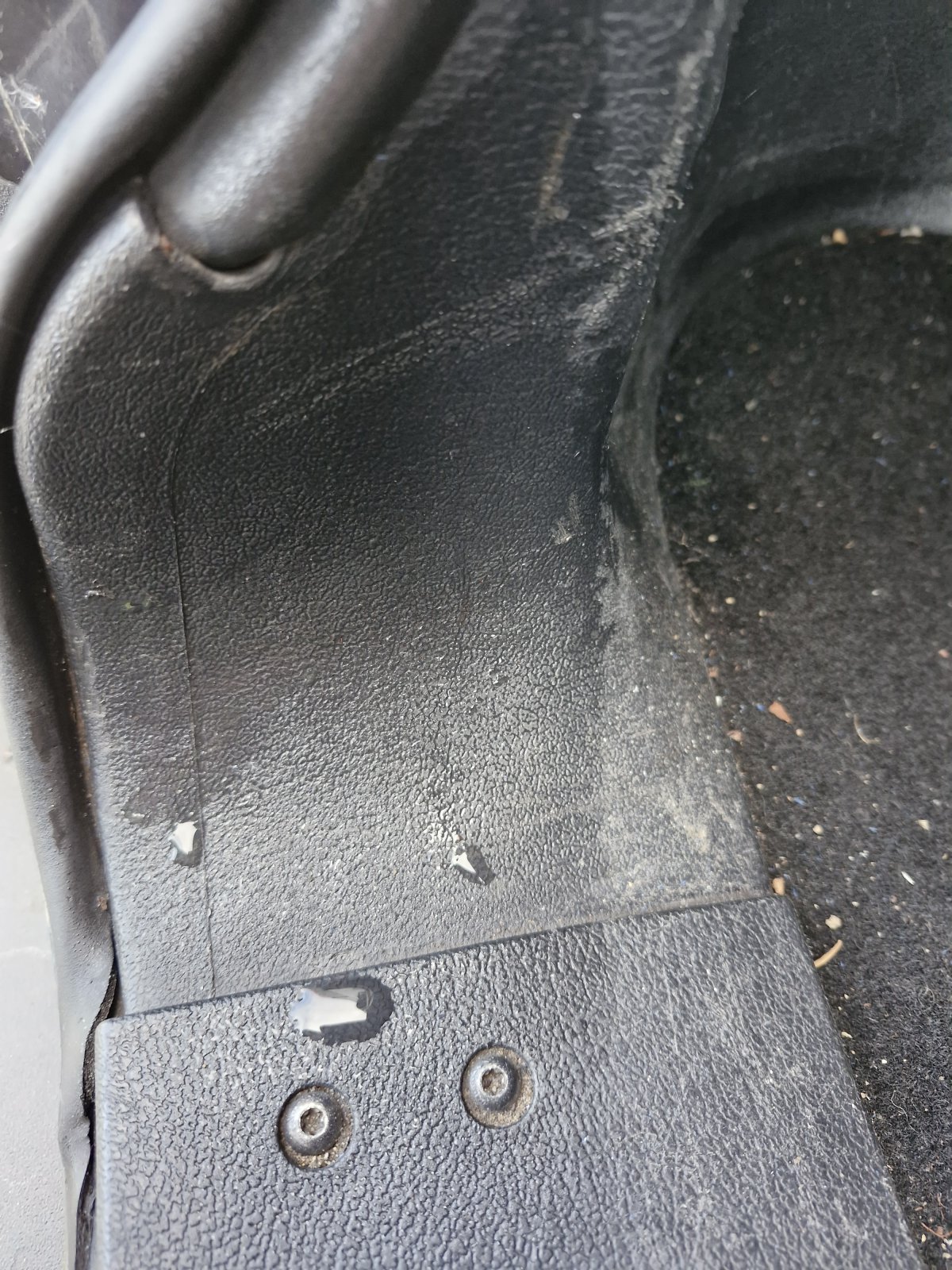

Hi all does anyone have any ideas where this problem would be coming from? The rear door seal looks pretty good condition wise and the trim above the rear door is sealed tight any advice is really appreciated


Attachments

  • 20241014_142057.jpg
    463.1 KB · Views: 54
  • 20241014_142101.jpg
    519.2 KB · Views: 50
Is your rear window closing fully/correctly when the rear door is closed (I.e. lifting up correctly when the door has shut)?

Hi Freddie17
yes the window goes up fine under the trim, it is central on each side I was wondering could it be rain going inside the door from where the window comes up then coming out of the door at the bottom perhaps

Hi Freddie17
yes the window goes up fine under the trim, it is central on each side I was wondering could it be rain going inside the door from where the window comes up then coming out of the door at the bottom perhaps
Possibly.
If nothing obvious, then I’d start removing the trims and look for tell-tale (whilst it’s still wet).
Assume you have nothing bolted to the rear around the roof/door (aerials/lights or similar).

Hi,


There is a plastic part that can let the water go in, like on the picture. Use a small amount of water to see if goes in.



You can remove that part and put a new seal.
Or you can use a silicon tube, like I did on my car, no more water. Just cover the ruber seal, don’t cover the 2 water holes on each side.

Possibly.
If nothing obvious, then I’d start removing the trims and look for tell-tale (whilst it’s still wet).
Assume you have nothing bolted to the rear around the roof/door (aerials/lights or similar).
No nothing bolted on that should not be there will just do the trial and error stuff

Hi,

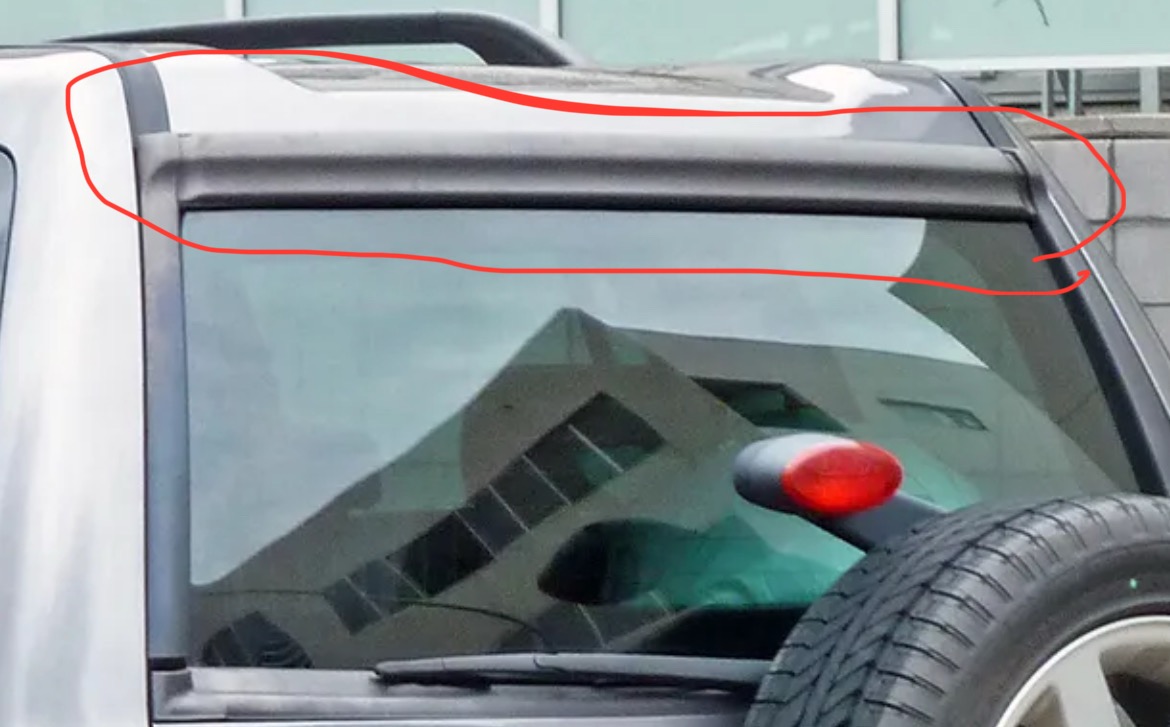

There is a plastic part that can let the water go in, like on the picture. Use a small amount of water to see if goes in.

View attachment 328473

You can remove that part and put a new seal.
Or you can use a silicon tube, like I did on my car, no more water. Just cover the ruber seal, don’t cover the 2 water holes on each side.

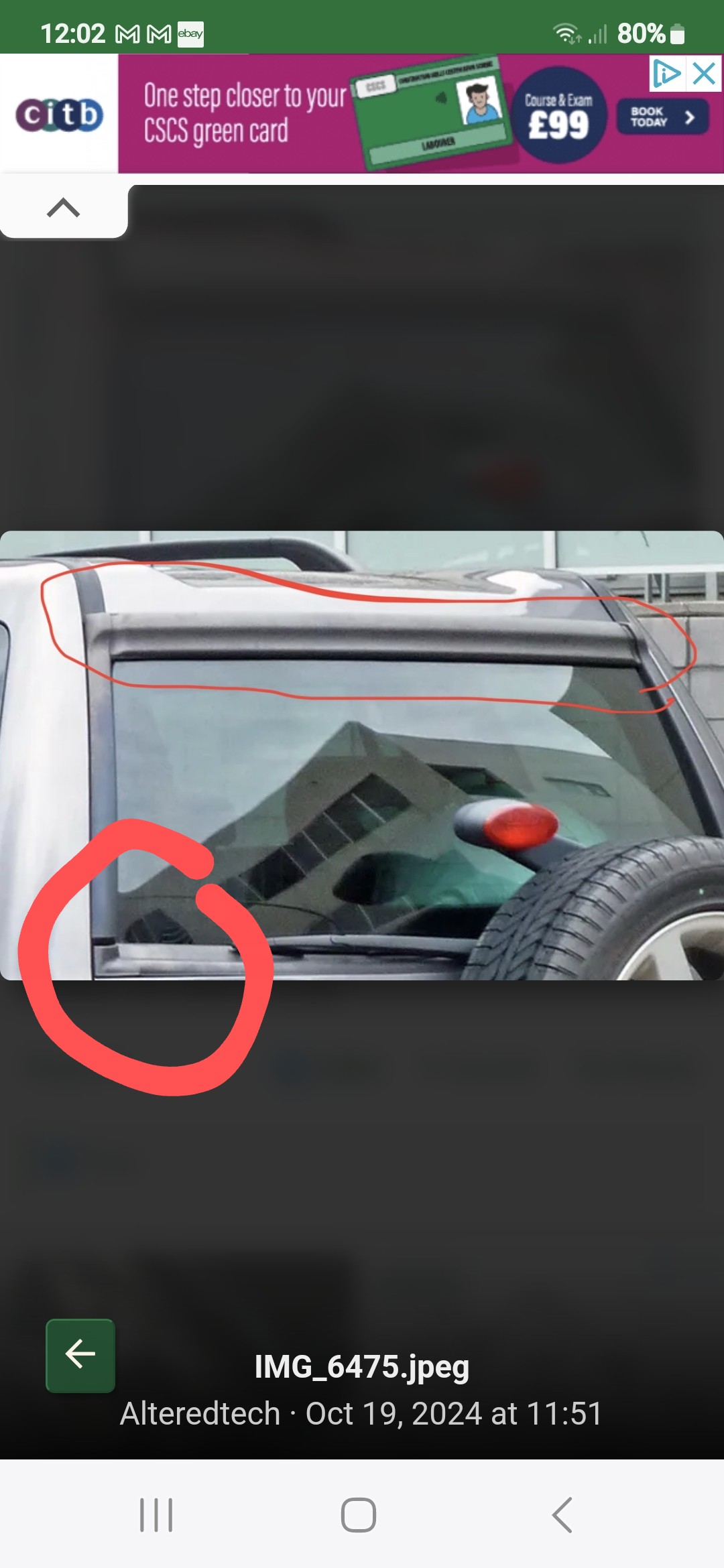

That piece looks pretty solid but will seal it anyway but I was thinking about this spot marked on the picture


Attachments

  • Screenshot_20241019_120205_Chrome~2.jpg
    216.3 KB · Views: 46
