Rear diff pinion play

micknkatenki said:

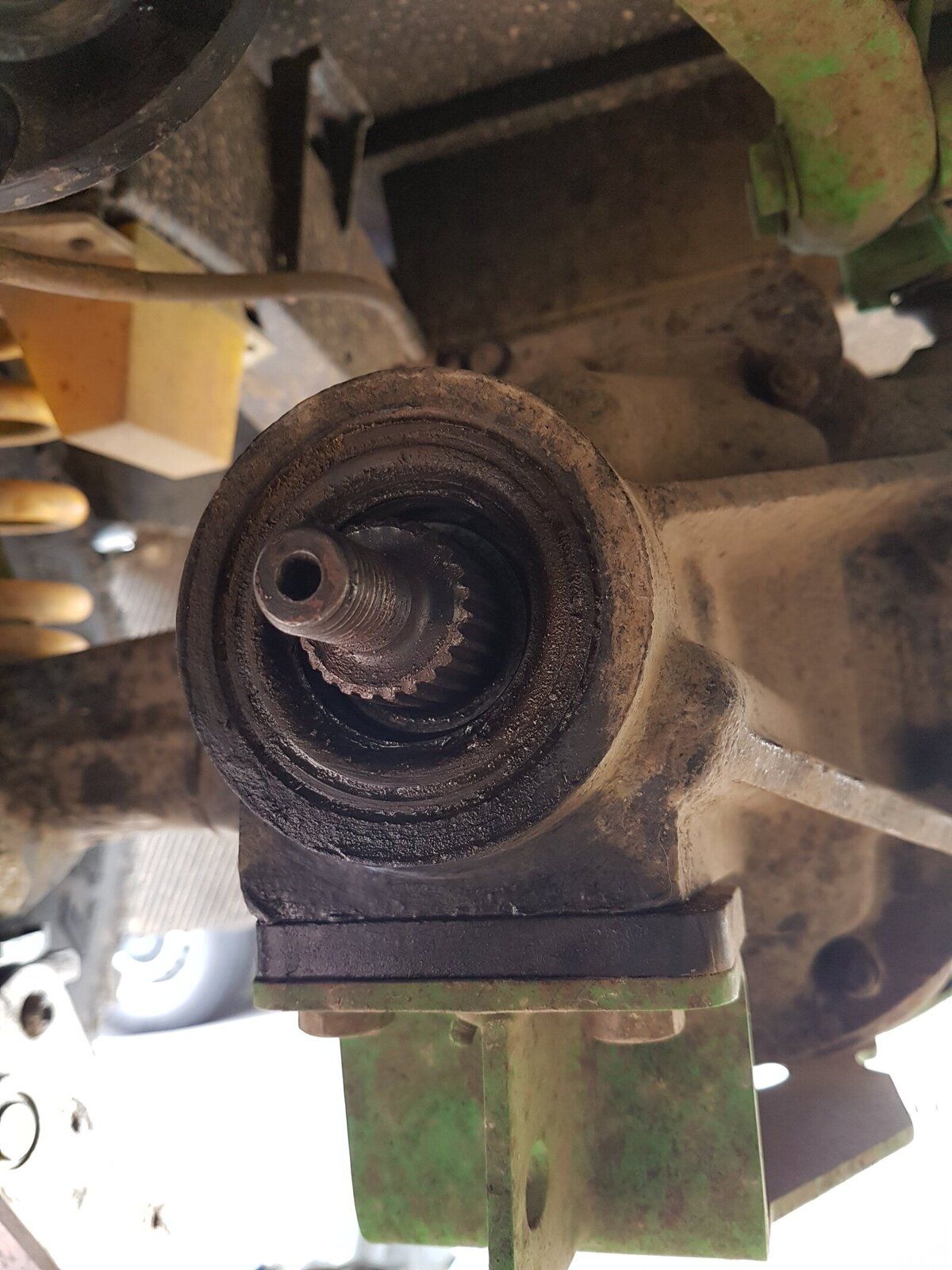

View attachment 174526 Hi,
Removed rear prop flange to replace the seal, I can lift/move up and down, side to side the pinion shaft am I right in thinking it shouldn't move at all ?? If I refit the flange there is no movement but it is only the seal that is stopping it so am I right in thinking this is fubbered??
Thanks in advance.

Click to expand...

jamesmartin said:

no thats normal the 2 taper bearings will allow movement till flange is tightened down and the play between the bearings is removed

Click to expand...

micknkatenki said:

Thanks James, yes was just about to repost what a Muppet I am, had another look and realised I'm a Muppet...... Lol.

Thank you.

Click to expand...

jamesmartin said:

its not muppetry its always best to ask even if your fairly sure

Click to expand...
