I think my rear axle is 300tdi but seem to remember range rover for some reason, I need discs, callipers and pads. Does anyone know when and how they changed rear brake fitments? Its a fix at week end thing so cant have it off the road, I need to strip down and replace same day.
Rear brake differences?
- Thread starter nobber
- Start date
This site contains affiliate links for which LandyZone may be compensated if you make a purchase.
jamesmartin
Well-Known Member
- Posts
- 91,879
- Location
- louth lincs
discs will be ftc1381 and pads sfp500200 (secured by 2 long split pins)
jamesmartin
Well-Known Member
- Posts
- 91,879
- Location
- louth lincs
no they are imperial caliper fixing bolts so more likely rtc5889 and rtc5890,its a pre 300tdi axle
Rougharse Racing
Well-Known Member
- Posts
- 883
- Location
- The Grim North
The first three characters of the axle number will tell you what it's off.

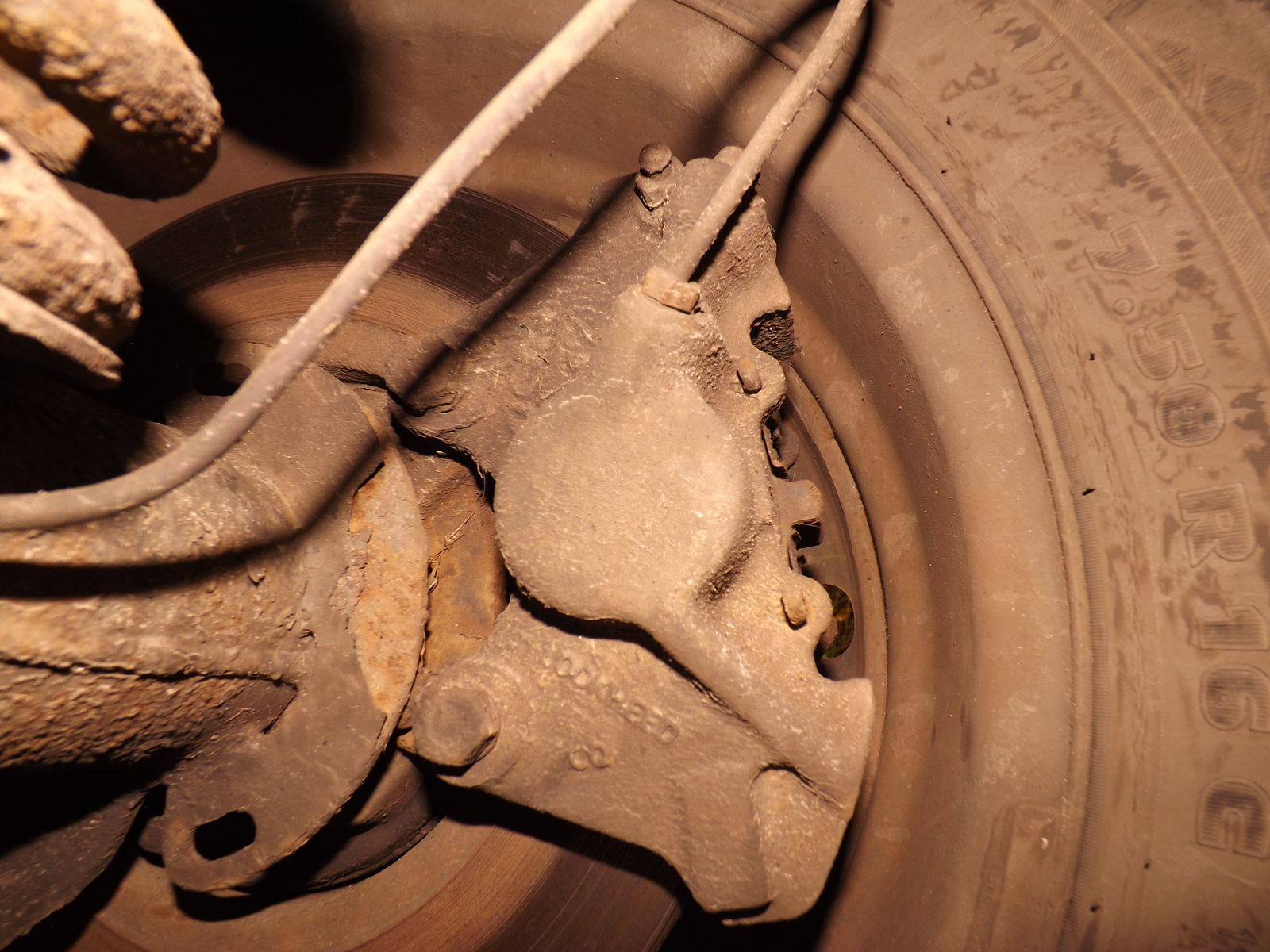

So I crossed referenced the Lockheed part number on the calipers 3242-292c , it seems they are disco1 and RRC, so I should be good to go with rtc5889 and rtc5890 @jamesmartin ?
Thing is I have found these but they relate to the STC1265R, STC1264R, part numbers.
https://www.ebay.co.uk/itm/Bearmach...595359&hash=item23a26d1360:g:aJAAAOSwcfdbEBW4
https://www.ebay.co.uk/itm/Bearmach...595359&hash=item23a26d1360:g:aJAAAOSwcfdbEBW4
jamesmartin
Well-Known Member
- Posts
- 91,879
- Location
- louth lincs
yours are disco rrc early too as imperial bolts ie hex head not bihex like metric , the hole diameters are different so you shouldnt use metric calipers with imperial bolts
jamesmartin
Well-Known Member
- Posts
- 91,879
- Location
- louth lincs
yes, thats right
