Rear axle
- Thread starter Madtaffy
- Start date
This site contains affiliate links for which LandyZone may be compensated if you make a purchase.
- Posts
- 11,020
- Location
- North of the Wall
Probably the seal behind the stub axle. This might be it LINKY
Not sure though, so hopefully someone will clarify.
- Posts
- 9,105
- Location
- Roaming the UK on assignments
Hub seal.

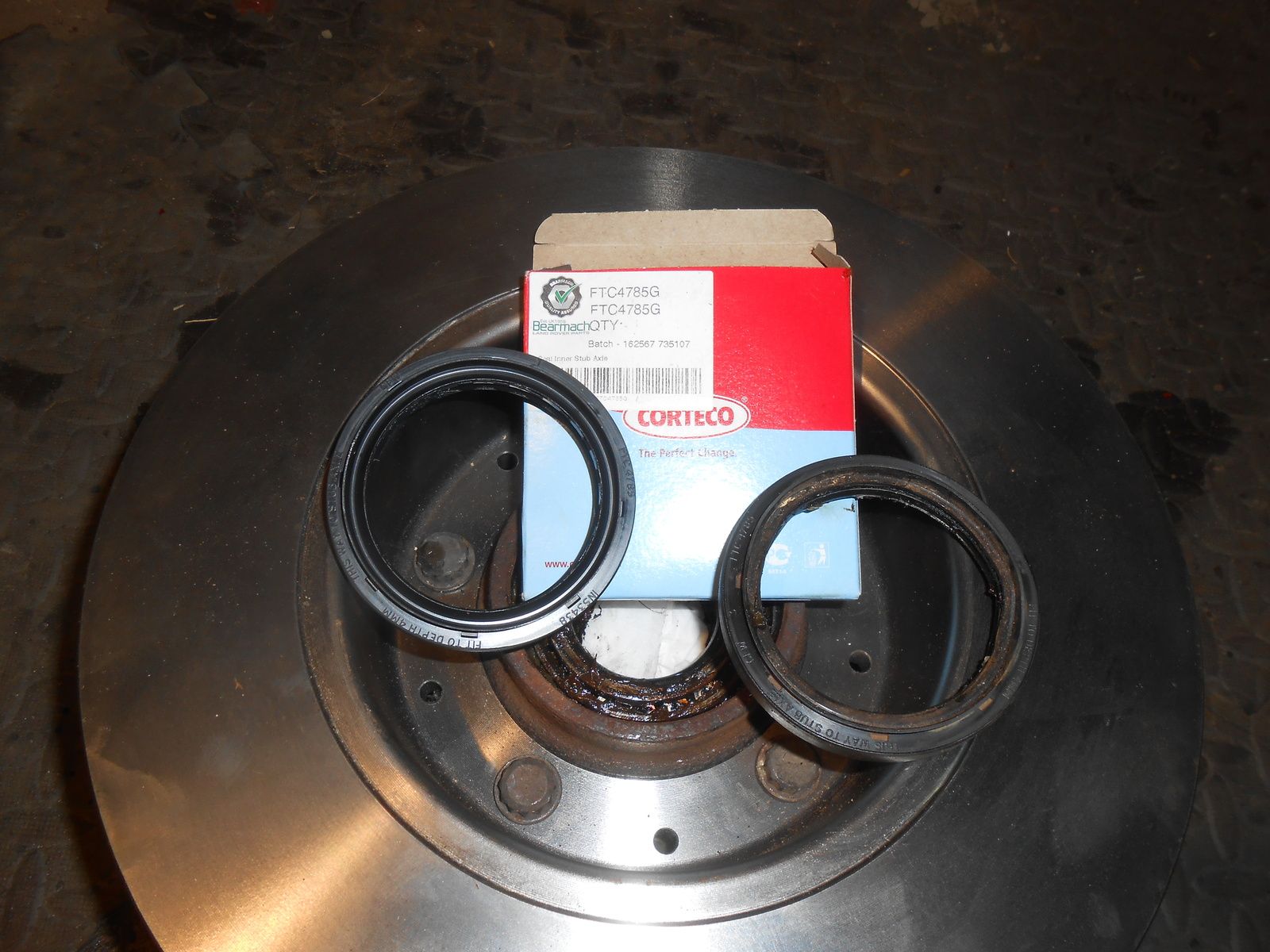

I would advise you buy a new locktab washer, new stub axle and new Corteco seal, the stub axle is to replace your original as it will most likely have a badly scored seal landing and will just destroy a new seal if you just fit a seal.
Very easy to do.
engage diff lock
jack up and remove road wheel
support on axle stands
Remove the brake caliper

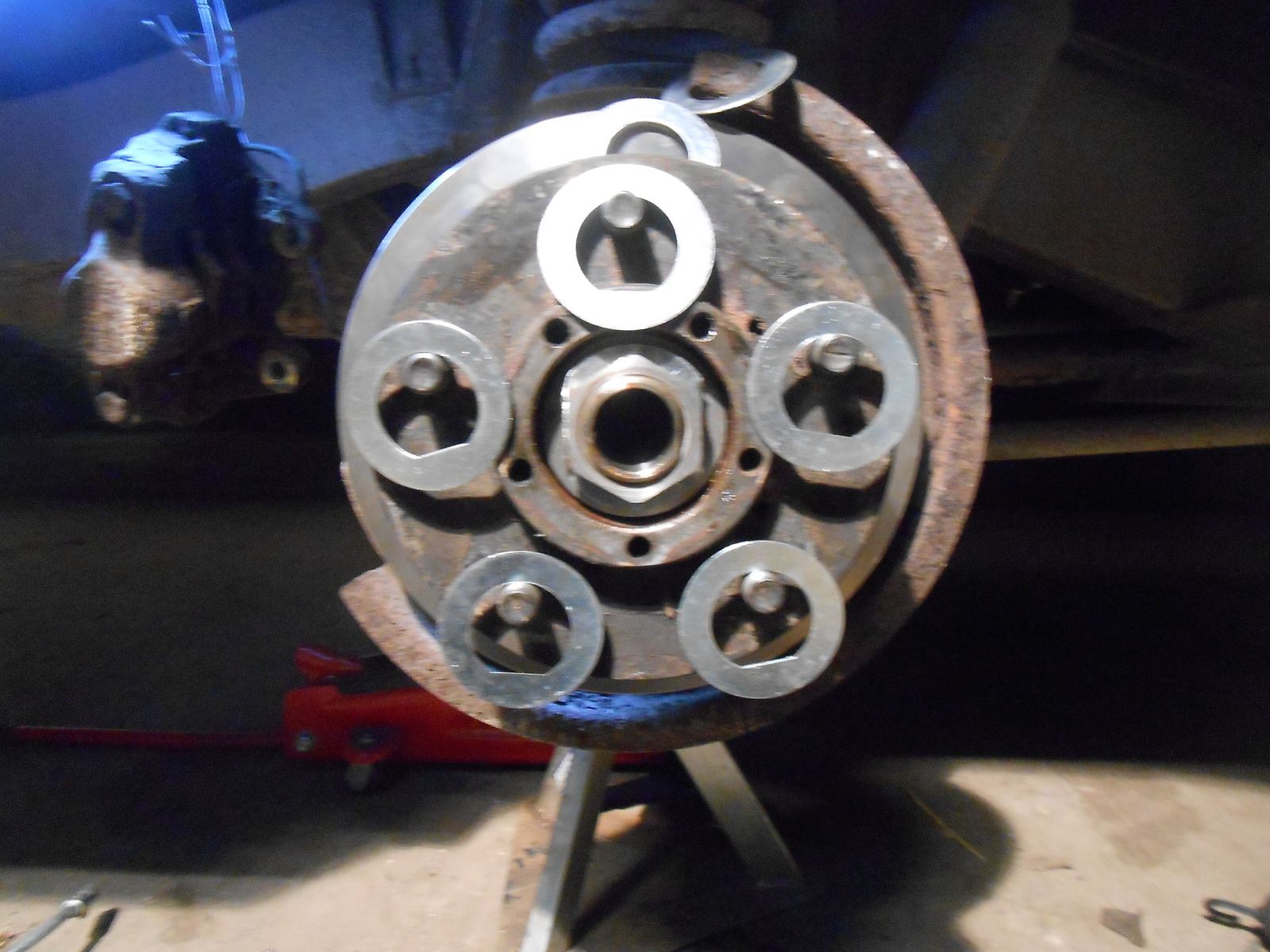

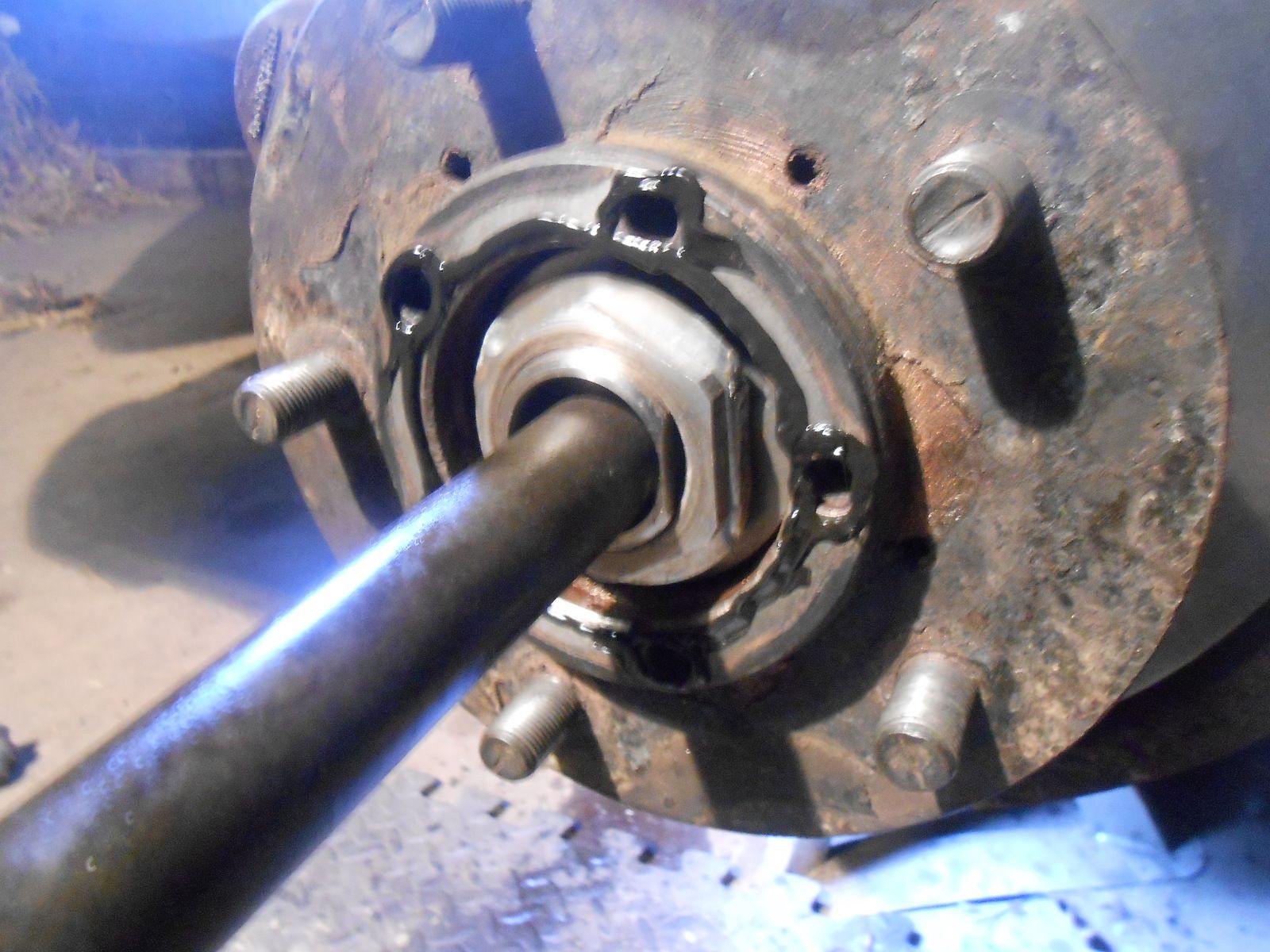

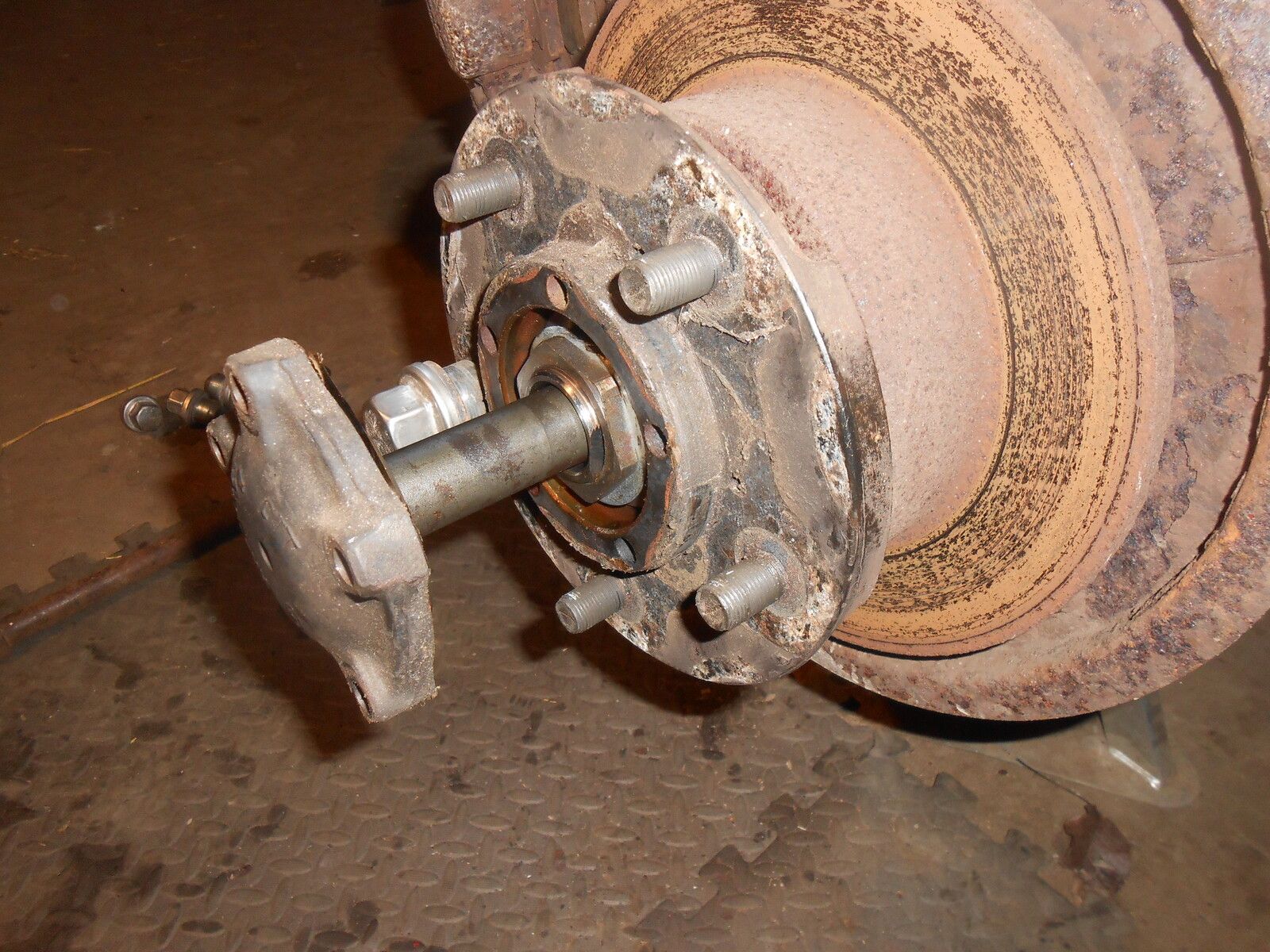

Undo the 5 17mm bolts, pull the rear drive shaft out

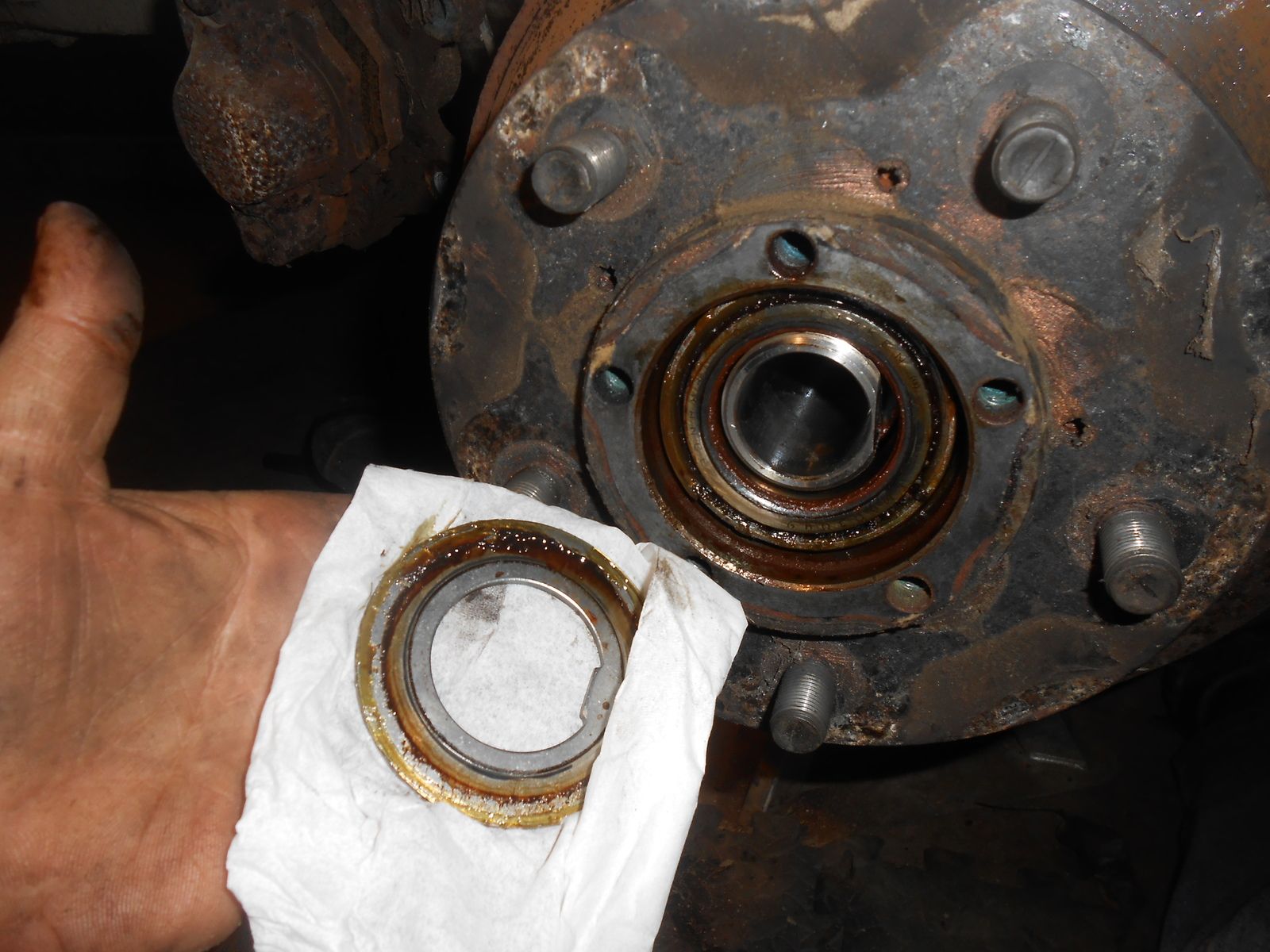

Bend back the lock tabs on the locking washer

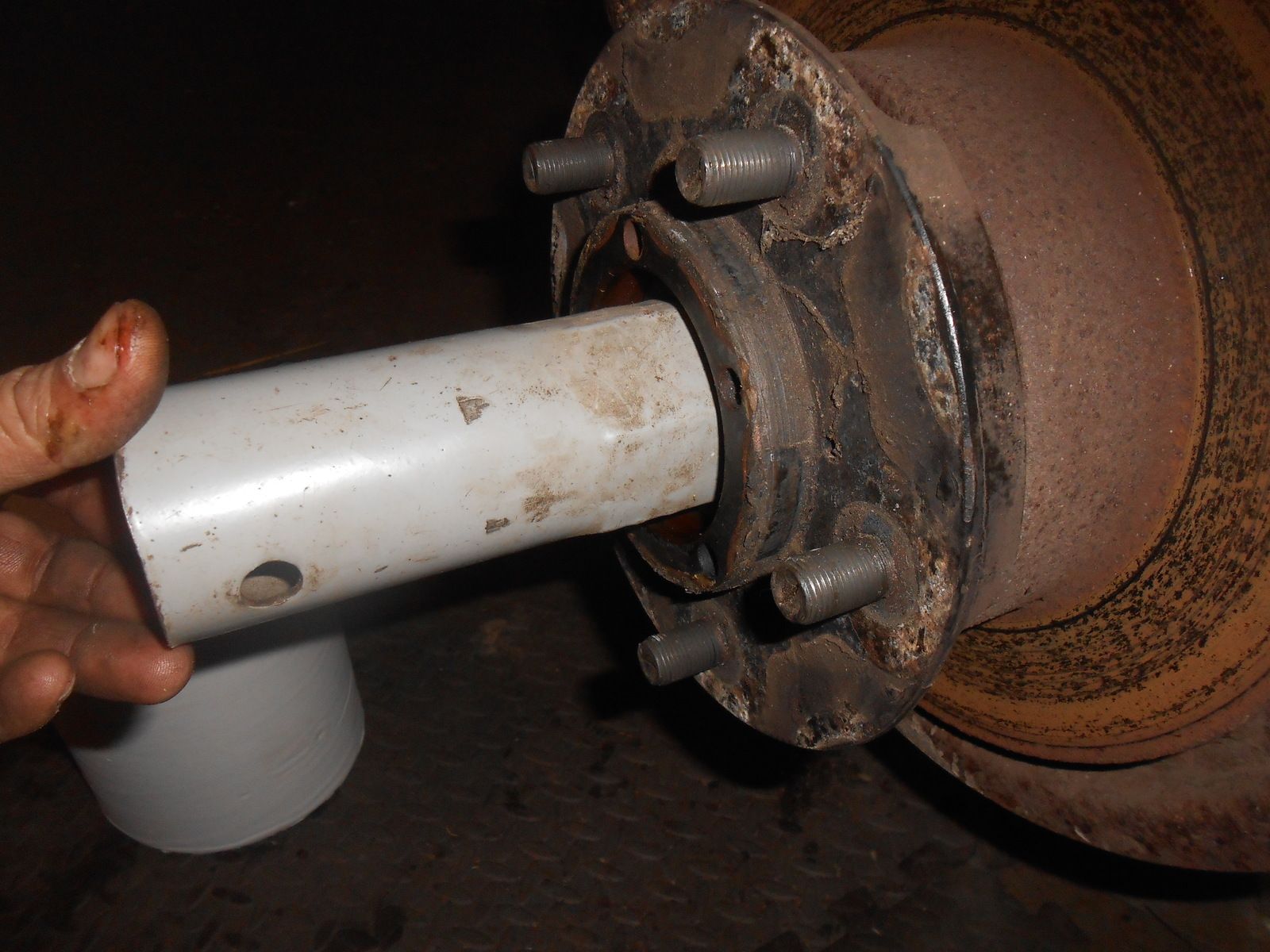

use a 52mm hub nut socket or box spanner to undo the lock nut and remove the hub nut

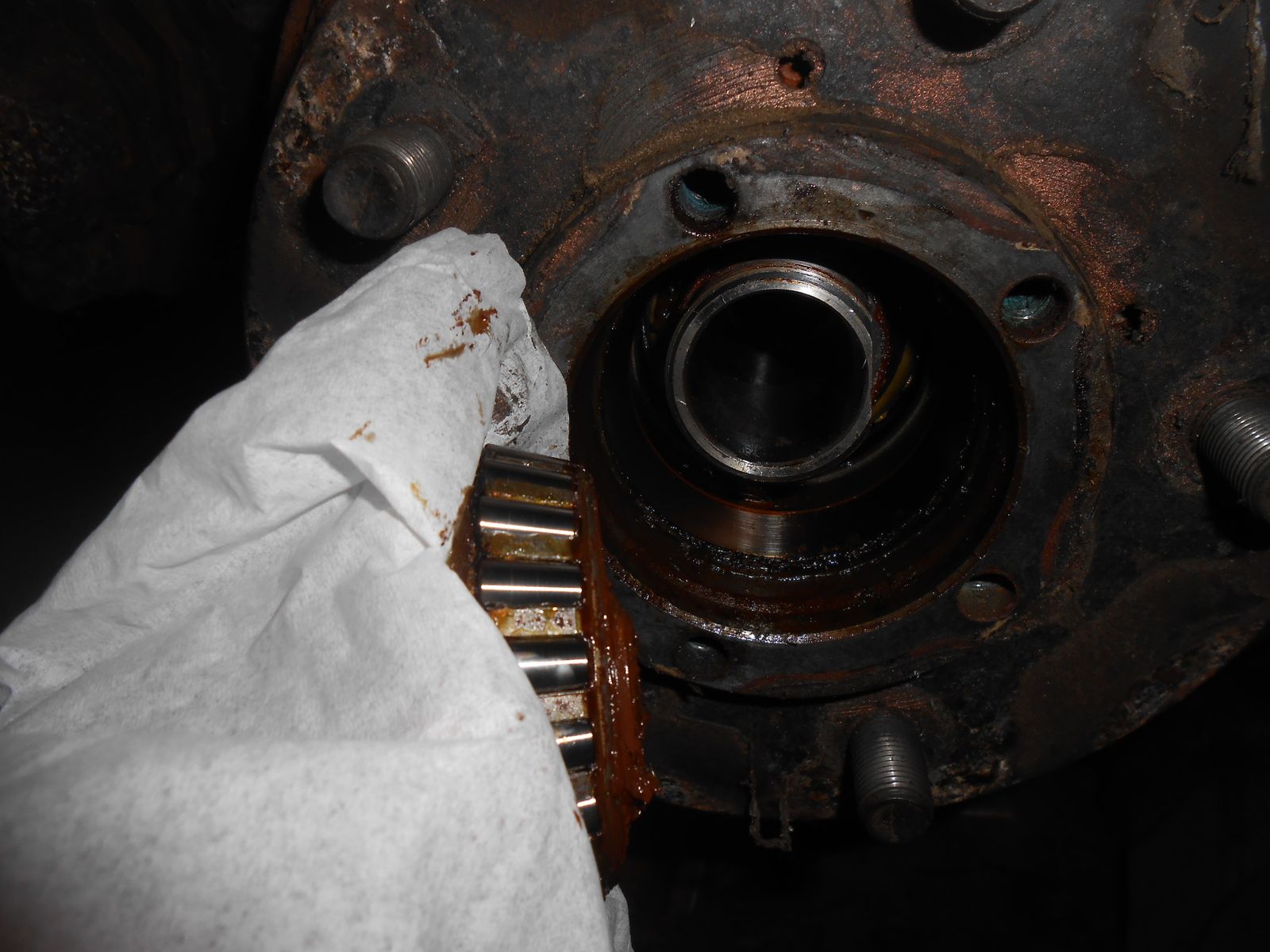

Slide the hub off the stub axle and flip it over being careful not to drop the bearings in the muck

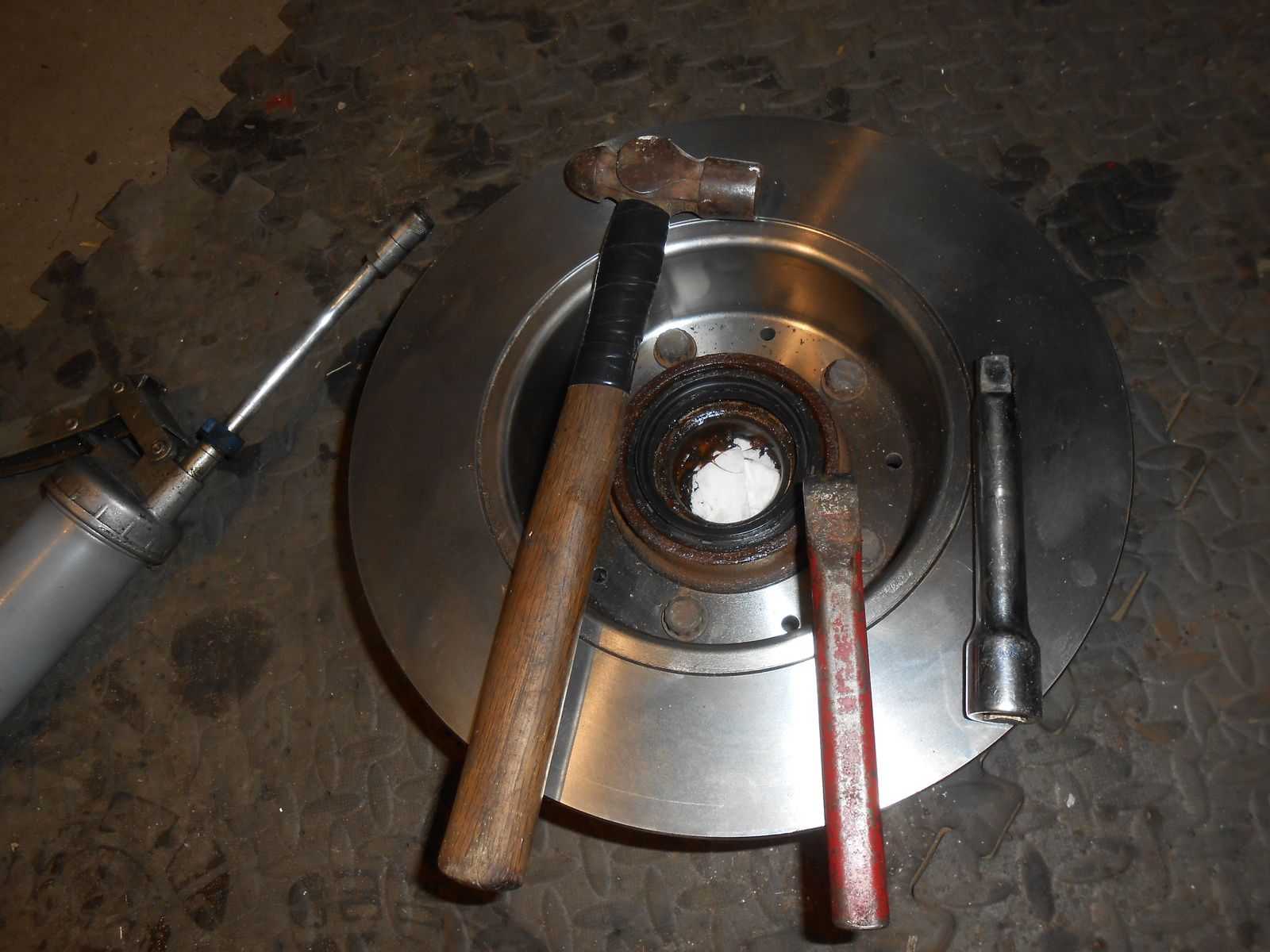

Pry the old seal out of the back of the hub

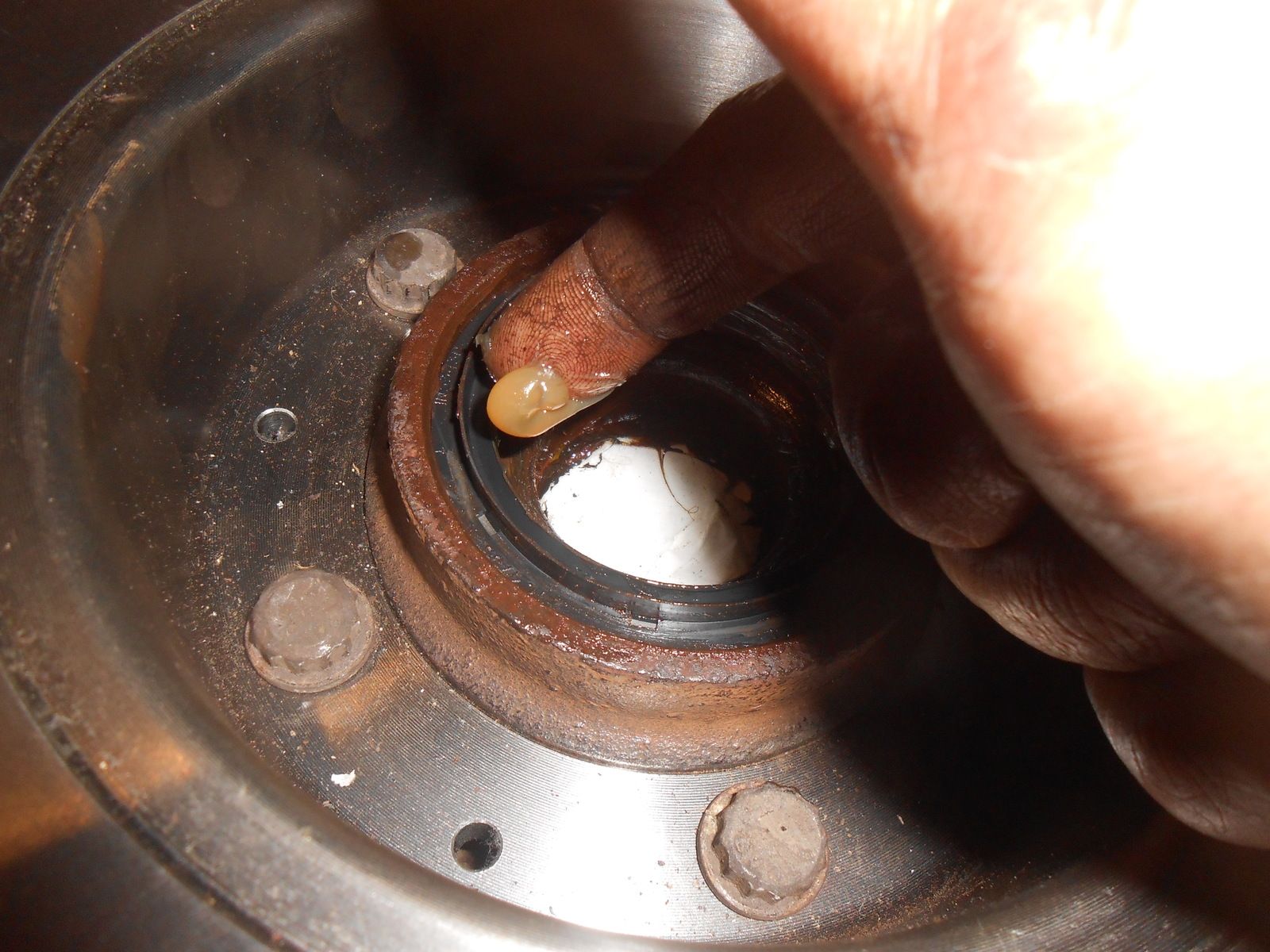

Grease up the outer circumference of the seal and drift it in nice and square and gently
Refit as reverse of removal but you just need to set the wheel bearings up correctly.
jamesmartin
Well-Known Member
- Posts
- 91,879
- Location
- louth lincs
hub seal is a grease seal it has no garter spring if oils reaches hub seal breathers blocked or stub axle seals poor or wheel bearings allowing half shaft to move
- Posts
- 9,105
- Location
- Roaming the UK on assignments
I pulled out the stub axle oil seals and run oil lubed bearings, no probs in thousands of kilometers of off roading that I've done in it, one of my rear half shafts was actually bent and has never sealed on the raised seal landing on it.
- Posts
- 11,020
- Location
- North of the Wall
Are you invisible on here?
It's called an oil seal on the defender workshop manual, JM.
jamesmartin
Well-Known Member
- Posts
- 91,879
- Location
- louth lincs
?maybe called that but look at one theres no garter spring needed for oil ,there used to be an oil seal used with garter spring prior to hubs using grease and either stud axle oil seal or an outer hub oil seal, meaning inner hub seal isnt needed to cope with oil, if you want hub to cope with oil ftc4785 needs to be changed to rtc3511 a garter spring seal, maxi drive diff lockers used top offer those so oil could be allowed in to the hub so drive member/half shaft splines would get lubeAre you invisible on here?
It's called an oil seal on the defender workshop manual, JM.
jamesmartin
Well-Known Member
- Posts
- 91,879
- Location
- louth lincs
oil is fine for wheel bearings landys used it for years but they changed the seal when they moved to grease and ftc4785 isnt designed to stop oil
- Posts
- 11,020
- Location
- North of the Wall
I've noticed you never turn up in the 'Members Online Now' panel on the right hand side of the main forum page.
Then your post #4, above, didn't show up as an Alert for this thread. It's like you're invisible
Can't tell looking at the pic on Paddocks, but I'll take your word for it.
jamesmartin
Well-Known Member
- Posts
- 91,879
- Location
- louth lincs
oh i dont know about that nothing ive knowingly doneI've noticed you never turn up in the 'Members Online Now' panel on the right hand side of the main forum page.
Then your post #4, above, didn't show up as an Alert for this thread. It's like you're invisible
Can't tell looking at the pic on Paddocks, but I'll take your word for it.
you dont have to but its true
- Posts
- 11,020
- Location
- North of the Wall
I think the alert for your first post on this thread was probably an anomaly, your subsequent posts are coming up on the alert panel.
Can you see yourself in the Members Online Now section?
Ha ha, yes I believe you. Is that the same seal as RTC3511 on the Defender?
jamesmartin
Well-Known Member
- Posts
- 91,879
- Location
- louth lincs
was fitted to series and rrc too when oil lubed the wheel bearings,when hubs moved to grease having an oil seal for the inner hub was no longer necessary ,though why they changed is a moot point because ftc4785 isnt cheaper
- Posts
- 11,020
- Location
- North of the Wall
Ahh, I see in post #7 you've mentioned RTC3511. thought that might be it, but didn't know if the number was the same on the disco axle
Looked it up on Paddocks and got FTC5268G, which I posted the link to.
jamesmartin
Well-Known Member
- Posts
- 91,879
- Location
- louth lincs
thats the stub axle seal to keep oil out of the hub,not inner hub sealAhh, I see in post #7 you've mentioned RTC3511. thought that might be it, but didn't know if the number was the same on the disco axle
- Posts
- 9,105
- Location
- Roaming the UK on assignments
That's another £17 in new seals added to the stores and I think I'll order up some new wheel bearings for all 4 corners too
